2002 CASE 70XT Skid-Steer Loader – CONSIGN
$13,500.00
Request more information:

2002 CASE 70XT Skid-Steer Loader at Luby Equipment – Consignment Unit, Cab, Heat Only, Hours are Estimated under 7,000. Steel Grouser Tracks, Machine Runs Good!
| BRAND |
CASE |
|---|---|
| MODEL |
70XT |
| CONDITION |
Used |
| YEAR |
2002 |
| HOURS |
7,000 |
| HORSEPOWER |
79 HP |
| ROPS |
Open |
| OPERATING WEIGHT |
6,906 lbs |
| PRODUCT |
Skid-Steer Loader |
| LOCATION |
CONSIGN |
For over 50 years, Luby Equipment has been the authorized dealer of CASE CE and Takeuchi Equipment in St. Louis and surrounding areas. Our reputation is built on trust, transparency, and a commitment to always deliver reliable, high-quality used equipment that performs.
Whether you’re buying for the first time or adding to your fleet, we provide peace of mind with every purchase. Always Transparent, Globally Trusted—contact us today for top-quality used equipment and unmatched customer service.
Out of stock

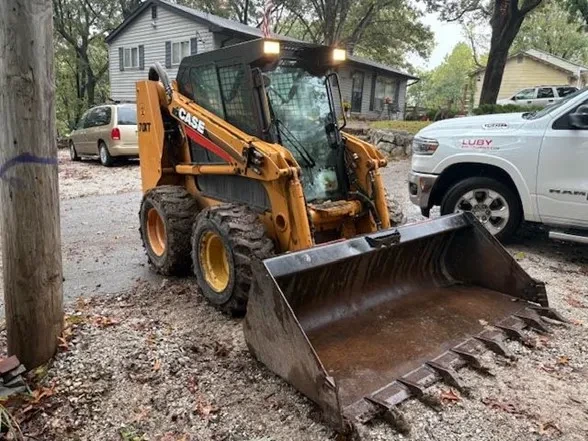

2002 CASE 70XT Skid-Steer Loader for Sale

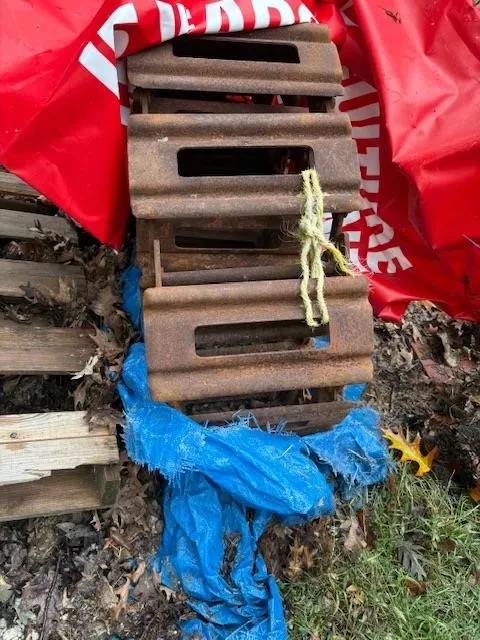

Consignment Unit, Cab, Heat Only, Hours are Estimated under 7,000. Steel Grouser Tracks, Machine Runs Good!

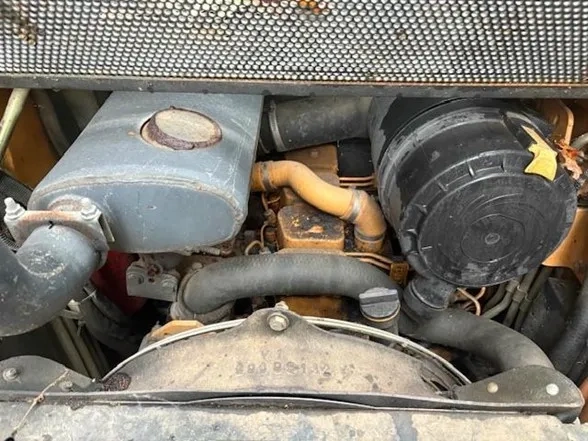

The 2002 CASE 70XT Skid-Steer Loader has an operating weight of 6,906 lbs, a rated operating capacity of 2,000 lbs, and a tipping load of 4,000 lbs. It is powered by a Case 4T-390 turbocharged diesel engine and has a max travel speed of approximately 7.1 mph. Key dimensions include a length with bucket of 11 ft (3 m), a height at the top of the cab of 6 ft (2 m), and a ground clearance of 9 inches (23 cm).
For over 50 years, Luby Equipment has been the authorized dealer of CASE CE and Takeuchi Equipment in St. Louis and surrounding areas. Our reputation is built on trust, transparency, and a commitment to always deliver reliable, high-quality used equipment that performs.
Whether you’re buying for the first time or adding to your fleet, we provide peace of mind with every purchase. Always Transparent, Globally Trusted—contact us today for top-quality used equipment and unmatched customer service.
CASE 70XT Specifications
Engine
| Aspiration | Turbocharged |
| Displacement | 239 cu in (3,917 cu cm) |
| Engine Model | 4T-390 |
| Gross Power | 79 hp (59 kw) |
| Number of Cylinders | 4 |
| Power Measured @ | 2200 rpm |
Hydraulic System
| Pump Flow Capacity | 21 gpm (79 lpm) |
| Pump Type | gear pump |
| Relief Valve Pressure | 3000 psi |
Loader
| Breakout Force | 4664 psi |
| Bucket Capacity | 1 cu yd (0 cu m) |
| Operating Load Rating | 2,000 lbs (907 kg) |
| Tipping Angle | 4000 degrees |
Operating Specifications
| Alternator Supplied Amperage | 65 amps |
| Chain Box Fluid Capacity – each side | 2 gal (6 l) |
| Cooling System Fluid Capacity | 4 gal (17 l) |
| Engine Oil Fluid Capacity | 3 gal (11 l) |
| Fuel Capacity | 22 gal (83 l) |
| Hydraulic System Fluid Capacity | 13 gal (50 l) |
| Max Speed | 7 mph (11 kph) |
| Operating Voltage | 12 volts |
| Operational Weight | 6,906 lbs (3,133 kg) |
| Tire Size | 12.00×16.5 |
CASE 70XT Dimensions
Dimensions
| Clearance at Max Lift and Dump | 8 ft (2 m) |
| Ground Clearance | 9 in (23 cm) |
| Height – Top of Cab | 6 ft (2 m) |
| Length w/o Bucket | 9 ft (3 m) |
| Length with Bucket | 11 ft (3 m) |
| Reach at Max Lift and Dump | 21 in (54 cm) |
| Turning Radius from Center – inc bucket | 77 in (195 cm) |
| Turning Radius from Center – machine rear | 59 in (150 cm) |
| Wheelbase | 4 ft (1 m) |
| Width Over Tires | 5 ft (2 m) |
Additional information
| Weight | 2000 lbs |
|---|---|
| Condition | Used |
| Year | 2022 |
| Hours | 7,000 |
| Location | Luby Equipment |
