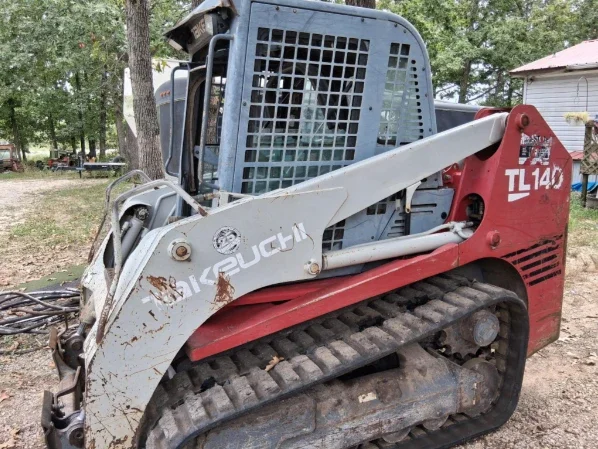

2004 Takeuchi TL140 Track Loader – EQ0050437
$15,595.00
Request more information:
2004 Takeuchi TL140 Track Loader – OROPs, Pilot Controls, Standard Flow, Bucket. Machine is Sold As-Is.
| BRAND |
Takeuchi |
|---|---|
| MODEL |
TL140 |
| CONDITION |
Used |
| YEAR |
2004 |
| HOURS |
3,000 |
| HORSEPOWER |
81 hp |
| ROPS |
Open |
| OPERATING WEIGHT |
9,590 lbs |
| PRODUCT |
Track Loader |
| LOCATION |
Springfield, MO |
For over 50 years, Luby Equipment has been the authorized dealer of CASE CE and Takeuchi Equipment in St. Louis and surrounding areas. Our reputation is built on trust, transparency, and a commitment to always deliver reliable, high-quality used equipment that performs.
Whether you’re buying for the first time or adding to your fleet, we provide peace of mind with every purchase. Always Transparent, Globally Trusted—contact us today for top-quality used equipment and unmatched customer service.
2004 Takeuchi TL140 Track Loader for Sale
OROPs, Pilot Controls, Standard Flow, Bucket. Machine is Sold As-Is.
The 2004 Takeuchi TL140 is a compact track loader known for its reliable 81-horsepower Isuzu diesel engine and robust hydraulic performance. Key specifications include a standard operating capacity of 2,083 pounds, a tipping load of 5,952 pounds, and a 12.8-inch ground clearance.
Engine
- Engine model: Isuzu 4JG1T.
- Gross power: 81 hp (60.4 kW) at 2,500 rpm.
- Peak torque: 193 lb-ft (262 Nm) at 1,800 rpm.
- Cylinders: 4.
- Displacement: 187.7 cubic inches (3,076 cc).
- Fuel capacity: 23.8 gallons (90.1 L).
Operational
- Operating weight: Approximately 9,590 to 9,769 pounds, depending on the configuration.
- Tipping load: 5,952 pounds (2,700 kg).
- Operating capacity (35% of tipping load): 2,083 pounds (945 kg).
- Maximum travel speed: The two-speed travel system has a low range of 4.6 mph and a high range of 6.6 mph.
- Hydraulic pump flow: 19.8 gallons per minute (75 L/min).
- Hydraulic pressure: 2,988 psi.
Dimensions and features
- Overall length (with bucket): 12.17 feet.
- Overall width (over tracks): 5.81 feet.
- Height to top of cab: 7.45 feet.
- Ground clearance: 12.8 inches.
- Length of track on ground: 4.91 feet.
- Track width: 18 inches.
- Clearance at max lift and dump: 10.25 feet.
- Bucket breakout force: 7,403 pounds.
Features: The TL140 has pilot-operated joystick controls and a hydrostatic drive system with planetary final drives for efficient power transfer. The operator’s compartment can be tilted back to provide easy access for engine and hydraulic system maintenance.
Additional information
| Weight | 2000 lbs |
|---|---|
| Condition | Used |
| Price | 15,595 |
| Hours | 3000 |
| Location | Springfield, MO |
