2006 YANMAR VIO35-3 Excavator – EQ0050549
$23,159.00
Request more information:

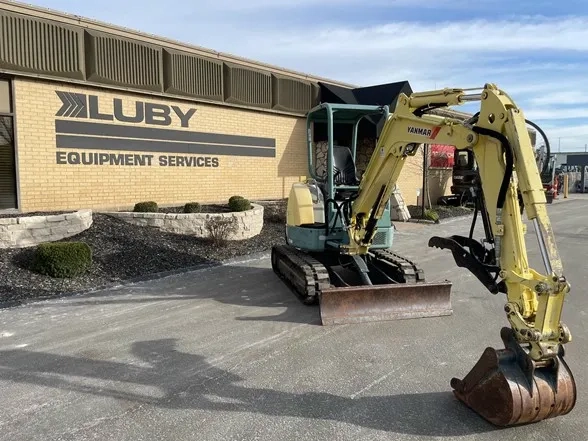

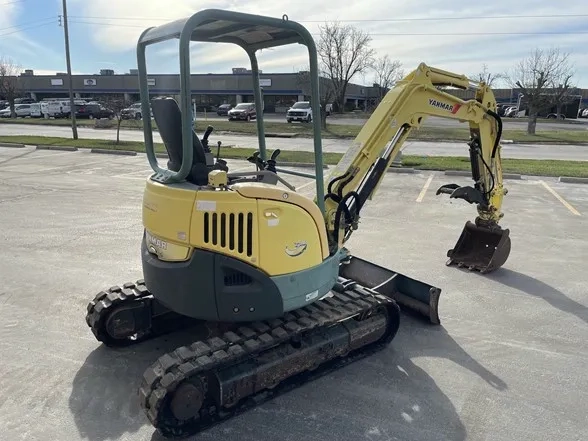

2006 Yanmar VIO35-3 excavator available now at Luby Equipment. OROPs, Hydraulic Thumb, 20″ Tooth Bucket.
| BRAND |
Yanmar |
|---|---|
| MODEL |
VIO35-3 |
| CONDITION |
Used |
| YEAR |
2006 |

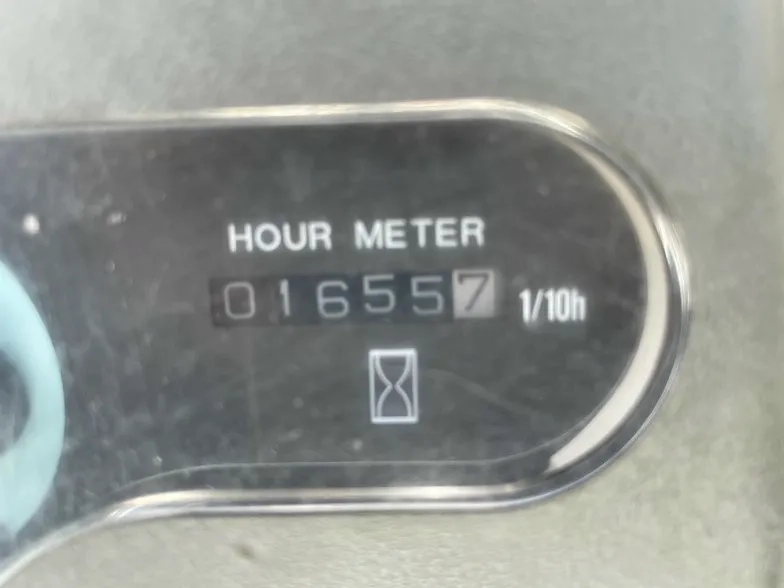

| HOURS |
1,655 |
| HORSEPOWER |
28 hp |
| ROPS |
Open |
| OPERATING WEIGHT |
8,400 lbs |
| PRODUCT |
Mini Excavator |
| LOCATION |
Fenton, MO |
For over 50 years, Luby Equipment has been the authorized dealer of CASE CE and Takeuchi Equipment in St. Louis and surrounding areas. Our reputation is built on trust, transparency, and a commitment to always deliver reliable, high-quality used equipment that performs.
Whether you’re buying for the first time or adding to your fleet, we provide peace of mind with every purchase. Always Transparent, Globally Trusted—contact us today for top-quality used equipment and unmatched customer service.
2006 YANMAR VIO35-3 Excavator for sale
Luby Equipment ServicesLuby EquipmentEdit Profile
OROPs, Hydraulic Thumb, 20″ Tooth Bucket.
The 2006 Yanmar ViO35-3 is a 3.5-ton zero-tail-swing mini excavator known for tight-space maneuverability, powered by a 28 hp diesel engine, with an operating weight around 8,400 lbs, digging depth near 11 feet, and features like hydraulic quick couplers for attachments, offering a blend of power (around 5,600 lb breakout force) and compact size.
Engine & Performance

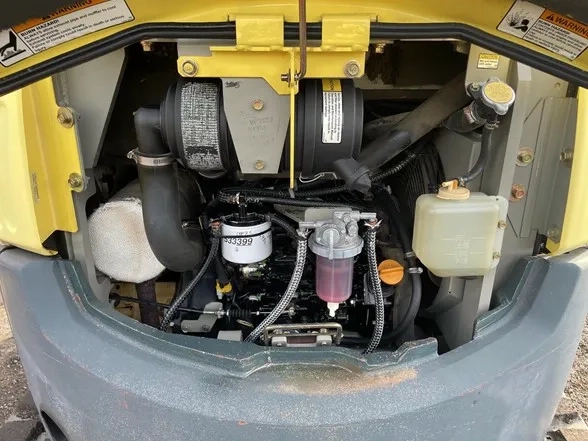

- Engine: Yanmar 3-cylinder diesel (3TNV88)
- Horsepower: Approx. 28 hp (20.9 kW)
- Displacement: 100.1 cu in (1.6 L)
- Max Travel Speed: ~2.9 mph (4.6 km/h)
Dimensions & Weight
- Operating Weight: Approx. 8,400 lbs (3,830 kg)
- Width (outside tracks): ~5.1 ft (1,550 mm)
- Ground Clearance: ~1 ft (320 mm)
- Tail Swing Radius: ~2.5 ft (775 mm) – Zero Tail Swing
Digging & Hydraulics
- Max Dig Depth: ~10.8 ft (3,300 mm)
- Max Reach Along Ground: ~17.1 ft (5,220 mm)
- Max Loading Height: ~11.6 ft (3,550 mm)
- Bucket Capacity: ~0.17–0.2 yd³
- Hydraulic Relief Pressure: ~2,988 psi (20,600 kPa)
- Hydraulic Flow: ~20.4 gal/min (77.2 L/min)
Key Features
- Zero Tail Swing: Ideal for tight jobsite operation
- Attachments: Auxiliary hydraulics with quick couplers
- Blade: Integrated dozer blade for backfilling and leveling
Additional information
| Condition | Used |
|---|---|
| Hours | 1,655 |
| Year | 2006 |
| Location | Fenton, MO |
