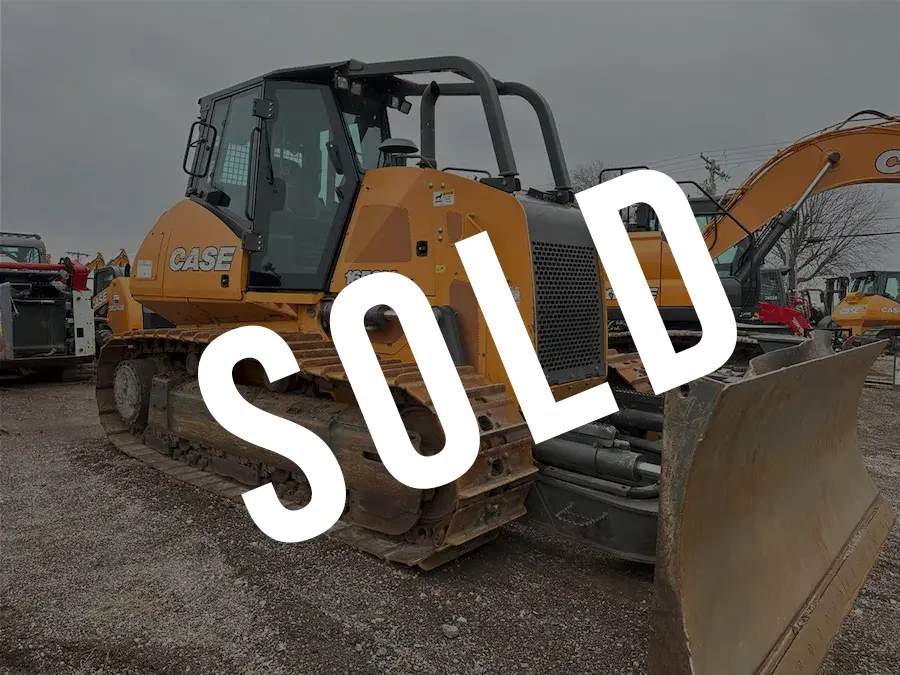

2019 CASE 1650M XLT Dozer – NGC107008

Key Features and Benefits:

• Versatile Performance: Equipped with various track and blade options, the 1650M can be customized to meet the specific needs of any job site, ensuring continuous progress in challenging environments.
• Powerful Engine: The heart of the 1650M is its 150-horsepower engine, backed by more than 61,000 pounds of drawbar pull. This provides a solid foundation for high productivity and superior performance.
• Emissions Compliance: Featuring a selective catalytic reduction (SCR)-only system, the 1650M meets stringent emissions regulations while ensuring all power is directed towards productive work.

Enhanced Operator Control and Comfort:

• Customizable Control: Operators can tailor the dozer’s response with an adjustable shuttle, steering, and blade sensitivity settings, ensuring optimal performance in varying site conditions.
• Advanced Load Monitoring: This system adjusts track speed based on the load on the blade, optimizing power and efficiency for consistent, effective operation.
• Operator-Centric Features: Additional controls like Blade Shake and Fine Grading enhance the machine’s functionality, allowing for precise operation and improved performance.

Unparalleled Visibility and Comfort:

• Industry-Leading Visibility: The CASE M Series dozers boast exceptional sight lines to the blade, tracks, and work site, ensuring operators have a clear view of their surroundings.
• Positive-Pressure Cab: Designed to keep out dust, dirt, and noise, the cab offers one of the lowest sound ratings in the industry, coupled with reduced vibration, for a smoother, more comfortable experience.

Maintenance and Service Efficiency:

• Easy Maintenance Access: Grouped service points and easy access ensure straightforward and efficient maintenance, minimizing downtime.
• CASE SiteWatch™ Telematics: This advanced system provides valuable insights into machine performance and maintenance needs, helping to optimize uptime.

Protected by CASE ProCare:

Each CASE M Series dozer, including the 1650M, comes with the comprehensive ProCare protection plan, offering:

• Three-year, 3,000-hour full-machine factory warranty.
• Three-year, 2,000-hour planned maintenance contract.
• Three-year Advanced CASE SiteWatch™ telematics subscription.

Operator Environment:

• Cabin Comfort: The operator’s environment is designed with a fully enclosed ROPS cab, complete with a single lever control for speed, steering, and direction, ensuring ease of use and safety.
• Seating: A comfortable cloth air suspension seat with back adjustment and retractable 3-inch seat belt enhances operator comfort, along with adjustable armrests and footrests for ergonomic support.
• Visibility and Convenience: Features such as a rearview mirror, two-door windshield wipers, a dome light, and a 12-volt accessory outlet contribute to convenience and visibility.
• Climate Control: The cabin includes heat and AC systems to maintain comfort in various weather conditions and additional amenities like a radio and floor mat.

Engine:

• Power and Compliance: The F4HFE6132 engine is Tier 4 Final Certified, ensuring compliance with environmental regulations while delivering robust performance.
• Cooling and Maintenance: Features an integral engine oil cooling system, a V-shaped cooling package with a hydraulic-driven reversing fan, and convenient access to hinged engine side panels for maintenance.

Drivetrain:

• Efficient Control: The dozer has a dual-path, infinitely variable hydrostatic drive controlled by a single lever for precise maneuvering.
• Durable Construction: Features a final drive with triple reduction and a helical gear/planetary decelerator, paired with an automatic spring-applied parking brake for reliable operation.

Blade:

• Versatility: The blade offers a 55° – 60° variable pitch, controlled by a single lever electro-hydraulic system, allowing for efficient blade lift, angle, and tilt adjustments.

Undercarriage:

• Durability and Ease of Maintenance: The undercarriage includes hydraulic track adjusters, sealed and lubricated track chains, and an enhanced track recoil system for durability and easy maintenance.

Additional Features:

• Safety and Convenience: Equipped with a backup alarm, horn, work lights, master disconnect switch, and anti-vandalism package for safety and convenience.
• Environmental Considerations: Features like environmental drains, a grid heater for cold starts, and transport protection emphasize the machine’s environmental and operational safety.

Telematics and ProCare:

• Monitoring and Maintenance: The CASE SiteWatch™ Telematics system offers comprehensive monitoring capabilities, including a 3-year advanced data subscription. Additionally, CASE ProCare provides a full-machine protection factory warranty for three years/3000 hours, a planned maintenance contract for three years/2000 hours, and SiteWatch telematics, ensuring peace of mind and controlled operating expenses.

Operator Environment Enhancements:

• Cab Air Quality System: Ensures a clean and healthy environment inside the cab, optimizing operator comfort and safety.

Hydraulic System Options:

• 4-Spool Hydraulic Valve: For field-installed ripper, providing added versatility for attachment use.
• 3-Spool Hydraulic Valve without Plugs: Designed for the field-installed ripper, offering flexibility in equipment configuration.
• 3-Spool Hydraulic Valve with Plugs: Enhances hydraulic system capabilities, allowing for various attachments.

Rear Mounted Equipment for Increased Versatility:

• Ripper: 3 positions with three shanks for breaking up hard soil or rock.
• HD Ripper – 6″ Tooth: Heavy-duty ripper option for the most challenging conditions.
• Drawbar: Provides towing capability for additional equipment.
• Drawbar with Step: Enhances accessibility while offering towing capabilities.

Blade Options for Various Applications:

• PAT (Power Angle Tilt) Blades: Available in 130 in (3,302 mm) and 156 in (3,974 mm) sizes, with a foldable option for the 156 in size, providing flexibility for different job requirements.
• Semi-U Blade: Measuring 131 (3,322 mm), designed for heavy pushing tasks.

Protective Guards for Enhanced Safety:

• CAB Canopy Brush Guard: Protects the cab in environments with overhead hazards.
• Center Rock Guard: Shields the undercarriage from rocks and debris.
• Sweeps: Protect the sides of the dozer in brush and forested areas.
• Waste Handler Guarding Package: Offers additional protection in waste management applications.

Screens for Additional Protection:

• Cab Rear Screen: Guards the rear window against debris while maintaining visibility.

Additional Equipment Options:

• CASE Ultra Life Track: Offers extended durability for the dozer’s undercarriage.
• Additional Work Lights: Enhance visibility for safe operation during low-light conditions.
• Severe Cold Weather Package: Ensures reliable operation in icy environments.

Precision Control Systems:

• Factory Fit CoPilot: Basic guidance system to improve operational efficiency.
• Factory Fit 2D Laser and 3D GNSS: Advanced machine control systems for precise grading and dozing.
• Universal Blade Guidance: Compatible with leading brands such as Leica, Trimble, and Topcon, this product allows for flexible integration with existing systems.

Engine Specification	Details
Model	FPT F4HFE6132
Emissions Certification	Tier 4 Final Certified
Cylinders	6
Displacement	409 in³ (6.7 L)
Fuel Injection	Common rail
Fuel Type	#2 Diesel
Fuel Filter	Spin-on with in-line strainer
Air Intake	Cross-flow
Cooling	Liquid
Engine Speeds (RPM)	High idle – no load: 2200 ± 50 <br> Rated – full load: 2200 <br> Low idle: 800 ± 25
Horsepower @ 2000 RPM – SAE J1349	Net: 150 hp (112 kW) <br> Gross: 164 hp (122 kW)
Engine Lubrication	Pump: Deep sump plate cooler with pressurized under-piston nozzles
Pump Operating Angle Ratings	Side-to-side: 35° <br> Fore and aft: 45°
Oil Filtration	Replaceable, spin-on full-flow cartridge
Radiator Fins per Inch	10
Fan	Type: Variable speed/Auto reversing/Hydraulic driven <br> Diameter: 27.6 in (700 mm)

Dimension/Configuration	XLT with Semi U	XLT with PAT	WT with PAT	LGP with PAT
Blade Width	131 in (3,322 mm)	130 in (3,302 mm)	156 in (3,962 mm)	156 in (3,962 mm)
SAE Blade Capacity	6.33 yd³ (4.84 m³)	4.28 yd³ (3.18 m³)	5.28 yd³ (4.04 m³)	5.28 yd³ (4.04 m³)
Blade Height (A)	51.9 in (1,319 mm)	46.3 in (1,176 mm)	46.3 in (1,176 mm)	46.3 in (1,176 mm)
Blade Lift Above Ground	44.3 in (1,124 mm)	42.5 in (1,077 mm)	42.5 in (1,077 mm)	42.5 in (1,077 mm)
Blade Depth Below Ground (B)	22.5 in (572 mm)	19.8 in (503 mm)	19.8 in (503 mm)	19.8 in (503 mm)
Blade Angle (C)	0°±25°	25°	25°	25°
Cast Reach (D)	16.3 in (414 mm)	17.2 in (457 mm)	20.0 in (507 mm)	19.2 in (487 mm)
Cut Reach (E)	16.3 in (414 mm)	0.9 in (24 mm)	3.9 in (99 mm)	3.0 in (76 mm)
Blade Tilt	—	16.1 in (410 mm)	17.7 in (450 mm)	21.7 in (550 mm)
Track Gauge	76 in (1.93 m)	76 in (1.93 m)	86 in (2.18 m)	86 in (2.18 m)
Maximum Shoe Width	24 in (606 mm)	24 in (610 mm)	32 in (813 mm)	34 in (864 mm)
Length of Track on Ground (F)	121.7 in (3.09 m)	121.7 in (3.09 m)	121.7 in (3.09 m)	121.7 in (3.09 m)
Area of Track on Ground	5,837 in² (3.77 m²)	5,837 in² (3.77 m²)	7,770 in² (5.01 m²)	8,268 in² (5.01 m²)
Ground Pressure	6.62 psi (0.46 bar)	6.62 psi (0.46 bar)	5.27 psi (0.36 bar)	4.78 psi (0.33 bar)
Height to Top of ROPS Cab (G)	9 ft 8 in (2,945 mm)	9 ft 8 in (2,945 mm)	9 ft 8 in (2,945 mm)	9 ft 8 in (2,945 mm)
Ground Clearance (H)	13.5 in (342 mm)	13.5 in (342 mm)	13.5 in (342 mm)	13.5 in (342 mm)
Length w/ Blade Straight & Drawbar	19 ft 8 in (5,985 mm)	18 ft 8 in (5,678 mm)	18 ft 8 in (5,678 mm)	18 ft 8 in (5,678 mm)
Length w/ Blade Straight & Ripper (I)	24 ft 1 in (7,345 mm)	23 ft 1 in (7,038 mm)	23 ft 1 in (7,038 mm)	23 ft 1 in (7,038 mm)
Width w/ Blade Straight (J)	10 ft 11 in (3,322 mm)	10 ft 10 in (3,302 mm)	13 ft 0 in (3,962 mm)	13 ft 0 in (3,962 mm)
Width w/ Blade Angled	—	9 ft 10 in (3,000 mm)	11 ft 10 in (3,602 mm)	11 ft 10 in (3,602 mm)
Width Over Tracks (K)	8 ft 2 in (2,490 mm)	8 ft 4 in (2,530 mm)	9 ft 10 in (2,994 mm)	8 ft 2 in (2,490 mm)
