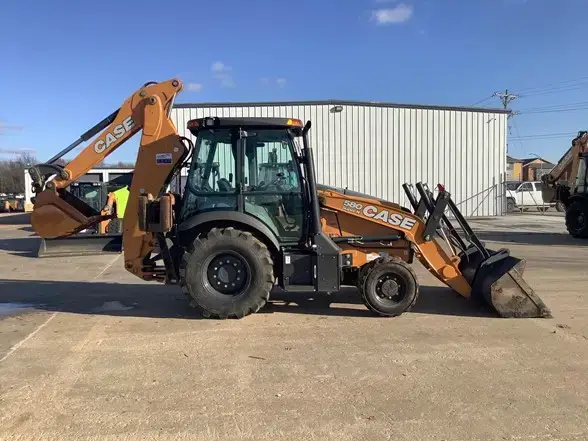

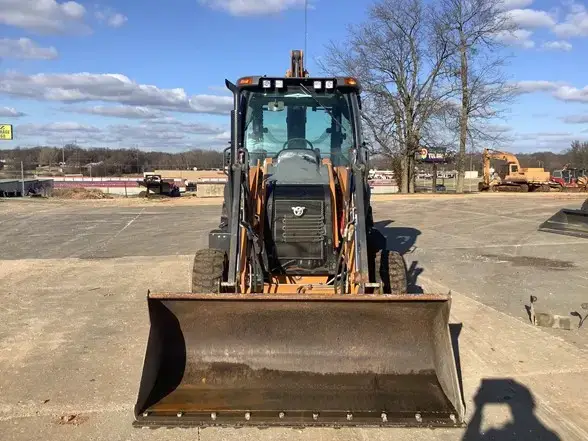

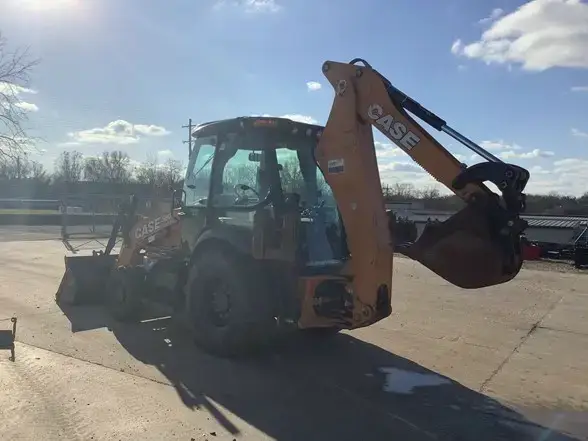

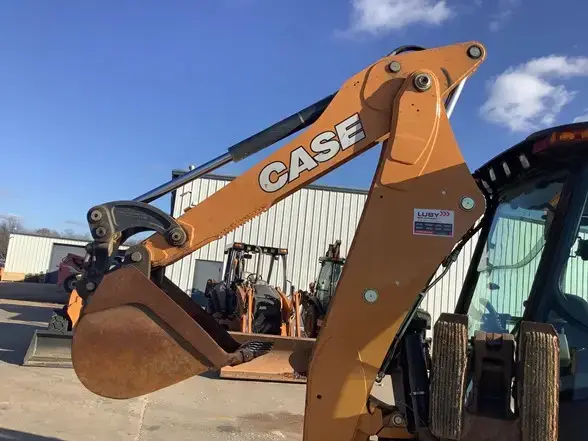

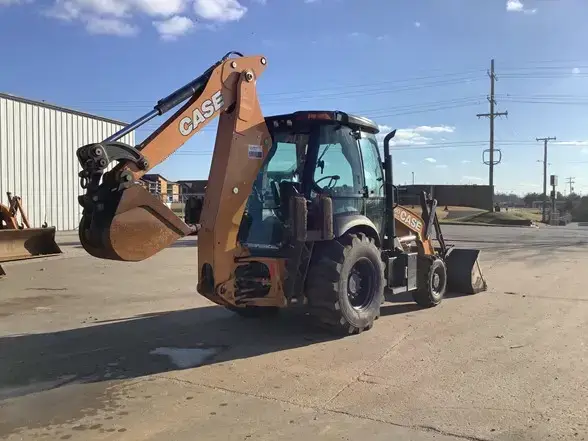

2019 CASE 580SN Super N Construction King Backhoe Loader – EQ0036915

2019 CASE 580 Super N Construction King Backhoe Loader For Sale

Cab, HVAC, Pilot Controls, 4WD, Standard Stick.

The 2019 CASE 580SN has a gross horsepower of 97 hp (72 kW) from its FPT F5BFL413B engine, with a maximum torque of 334 lb·ft (453 N·m). Key specifications include a standard operating weight of approximately 17,810 to 17,269 lbs (8,078 to 7,833 kg), a 17 ft 11 in (5.47 m) max dig depth, and a 1 yd³ (0.79 m³) standard general purpose bucket capacity. It is available in both 2WD and 4WD configurations and features a Power Shift transmission with 4 forward and 4 reverse speeds.

Specifications

Engine

• Horsepower: 97 hp (72 kW) gross @ 2200 RPM
• Torque: 334 lb·ft (453 N·m) gross @ 1400 RPM
• Engine Model: FPT F5BFL413B
• Displacement: 3.4 L (207 in³)
• Emissions: Tier 4 Final

Performance

• Max Dig Depth: 17 ft 11 in (5.47 m) with extendable dipper
• Loading Height: 12 ft 1 in (3.67 m) with non-extending dipper
• Loader Breakout Force: 10,947 lbf (49.65 kN) for general purpose bucket
• Backhoe Bucket Breakout Force: 14,452 lbf (64.29 kN)
• Standard General Purpose Bucket Capacity: 1 yd³ (0.79 m³)

Capacities and Weights

• Operating Weight: ~17,810 lbs (8,078 kg) (4WD)
• Fuel Tank Capacity: 35 gallons (132 L)
• Hydraulic Fluid Capacity: 31.5 gallons (119 L)

Transmission

• Type: Power Shift
• Speeds: 4 forward, 4 reverse
• Configuration: 2WD or 4WD

Other Features

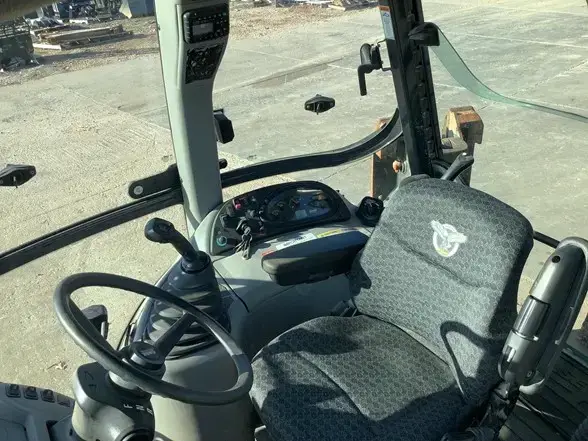

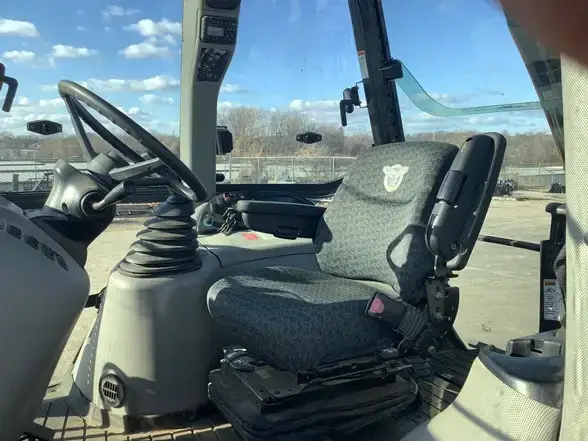

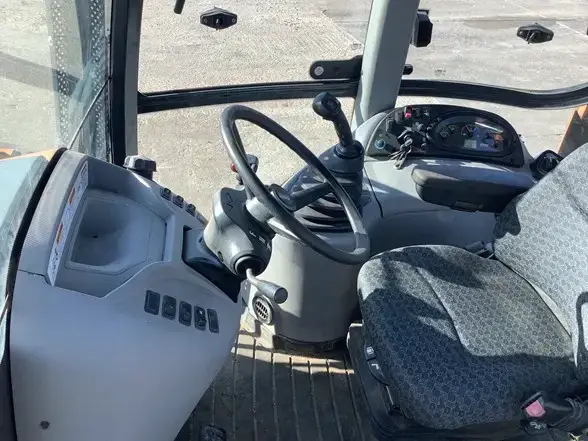

• Cab: Enclosed, often with AC and pilot controls
• Controls: Pilot controls are common, with FNR on the joystick
• Optional Features: Extending dipper, ride control, and auxiliary hydraulics
