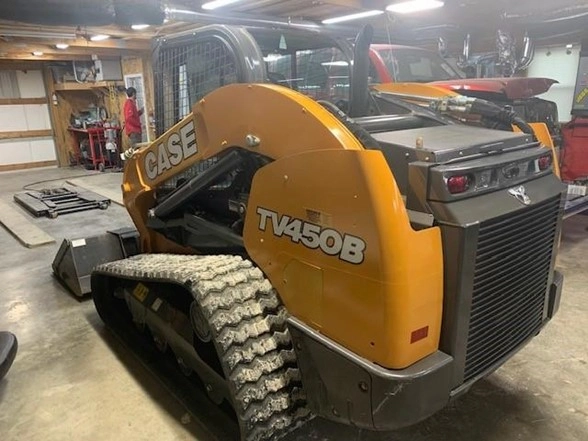

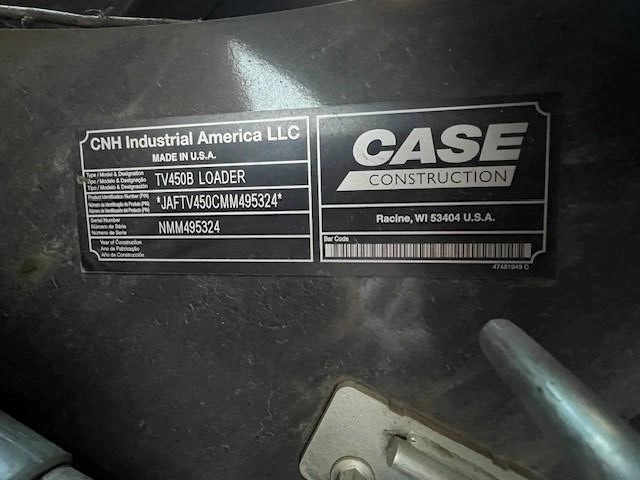

2021 CASE TV450B Compact Track Loader – JAFTV450CMM495324
$65,000.00
Request more information:
2021 CASE TV450B Compact Track Loader For Sale at Luby Equipment – Consignment! Cab, HVAC, EH Controls, Enhanced High Flow Hydraulics, Hydraulic Coupler, Air Ride Seat, Radio, 78″ Bucket.
BRAND
CASE
MODEL
TV450B
CONDITION
Used
YEAR
2021
HOURS
322
HORSEPOWER
90 HP
ROPS
Enclosed
OPERATING WEIGHT
10,610 lbs
PRODUCT
Track Loader
LOCATION
Consignment
For over 50 years, Luby Equipment has been the authorized dealer of CASE CE and Takeuchi Equipment in St. Louis and surrounding areas. Our reputation is built on trust, transparency, and a commitment to always deliver reliable, high-quality used equipment that performs.
Whether you’re buying for the first time or adding to your fleet, we provide peace of mind with every purchase. Always Transparent, Globally Trusted—contact us today for top-quality used equipment and unmatched customer service.

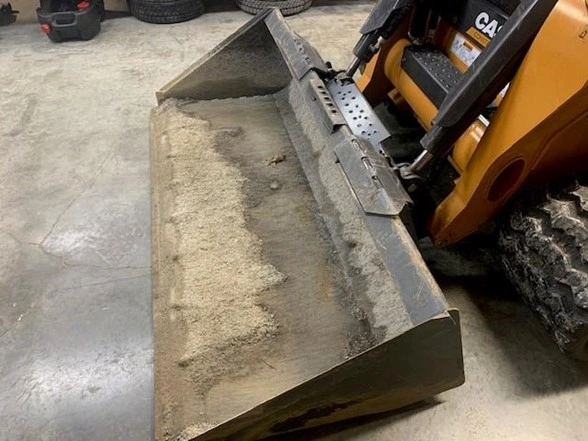

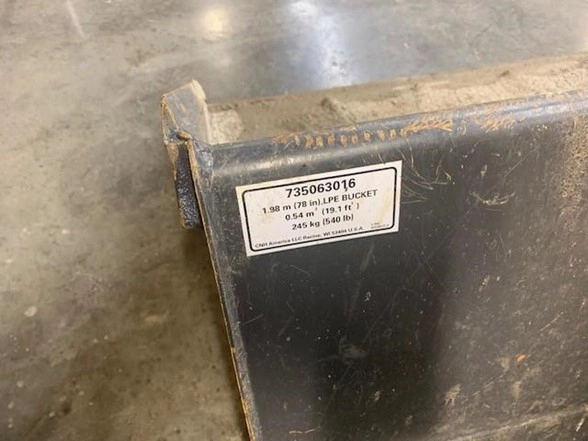

Consignment! Cab, HVAC, EH Controls, Enhanced High Flow Hydraulics, Hydraulic Coupler, Air Ride Seat, Radio, 78″ Bucket.
At Luby Equipment, the TV450B stands as one of the most popular and powerful CTLs in the CASE lineup. With a 4,500-pound rated operating capacity at 50 percent tipping load and high breakout forces, it allows contractors to lift and load more efficiently. Equipped with enhanced high-flow auxiliary hydraulics, this CTL enables the use of powerful attachments for increased productivity in various tasks.
TV450B Features
Powerful Performance:
Rated Operating Capacity: A formidable 4,500-pound capacity at 50 percent tipping load.
Breakout Forces: High bucket and lift cylinder breakout forces for demanding tasks.
Enhanced Hydraulics: Optional enhanced high-flow auxiliary hydraulics for superior performance.
Unrivaled Visibility and Comfort:
360-Degree Visibility: Equipped with a backup camera, rearview mirror, and large windows for unmatched job site awareness.
Ease of Access: Low entry threshold and sloping rear hood for enhanced visibility to the bucket.
Spacious Cab: Industry-leading cab width and redesigned controls for maximum comfort during long hours of operation.
Optimal Control:
Control Options: Available in electro-hydraulic, mechanical, and mechanical hand and foot configurations.
Advanced Display: An 8-inch LCD multi-function display for easy control adjustments and real-time data monitoring.
Customizable Operation: Ability to set and save operator profiles and machine responsiveness settings.
Peak Productivity and Performance:
Impressive Specifications: 9,188-pound bucket breakout force and nearly 12-foot hinge pin height.
High-Flow Hydraulics: 35 gpm at 4,000 psi for running heavy-duty attachments like mulchers and cold planers.
Built for Tough Jobs: Ideal for high-performance, production-level environments.
Ease of Ownership:
Accessible Maintenance: Critical service points are conveniently located at the machine’s rear.
Informative Display: The 8-inch LCD provides vital operation and performance data.
Low Maintenance Solution: Features a selective catalytic reduction (SCR) emissions solution that simplifies upkeep.
TV450B Standard Equipment
Operator Environment:
Safety First: ROPS/FOPS Level 1 canopy with side screens and a tilt function for added protection.
Comfort and Control: Suspension seat with vinyl covering and a 2-inch retractable seat belt ensures operator comfort throughout the day.
Intuitive Operation: Features both hand and foot throttles, along with an advanced instrument cluster that includes a digital hour meter, fuel level LCD bar graph, and diagnostic features.
Visibility and Awareness: Equipped with rearview mirror, dome light, top window, and a rear window with emergency escape for superior visibility and safety.
Convenience Features: Includes a cup holder, 12V power plug socket, footrest, seat pocket, and a padded seat bar with integral armrests for enhanced comfort and convenience.
Engine:

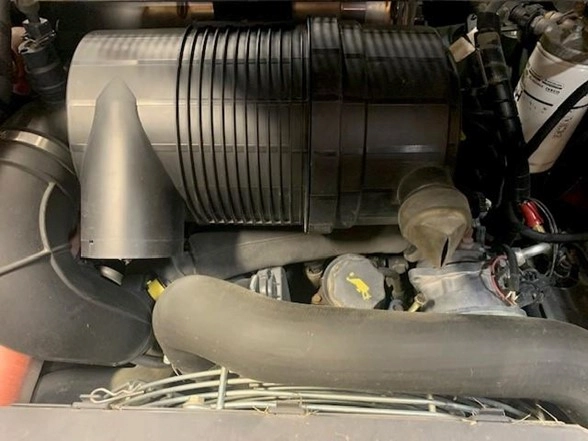

Powerful and Efficient: The TV450B boasts a dual-element air cleaner and an integral engine oil cooler for optimal performance.
Fuel Efficiency: A 25.5-gallon fuel tank and an anti-freeze solution to -34°F ensure long operating hours and reliable performance in cold conditions.
Drivetrain and Hydraulics:
Smooth Operation: The 2-speed hydrostatic drivetrain is complemented by a SAHR disc parking brake for precise control and safety.
Versatile Hydraulics: Auxiliary hydraulics provide 24.2 gpm flow at 3,450 psi, supported by a 6-micron oil filtration system for reliable and efficient operation.
Loader:
Heavy-Duty Performance: With a manual attachment coupler and vertical lift geometry, the loader is designed for high lifting capacity and stability.
Robust Capacity: The SAE operating load is rated at 3,150 lbs, with a tipping load of 9,000 lbs, ensuring heavy-duty lifting capability.
Tracks and Lighting:

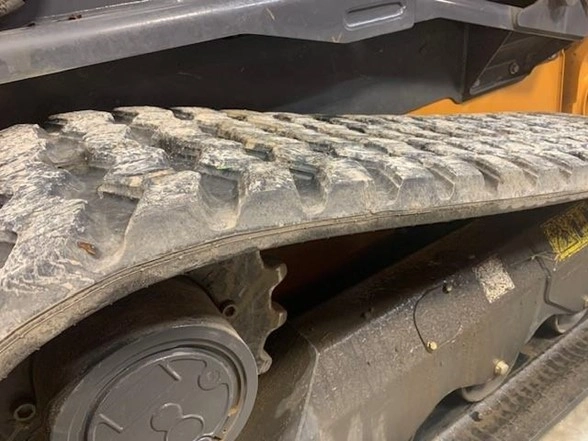

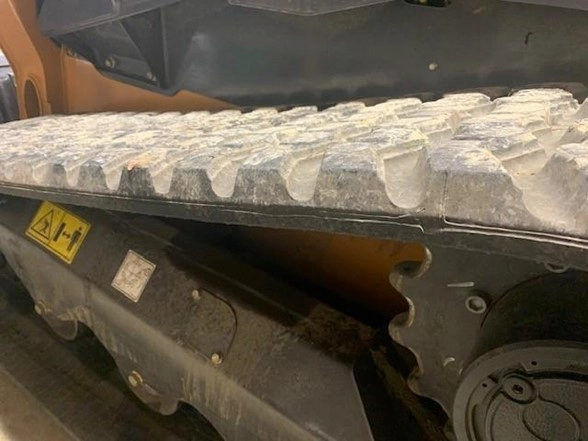

Durable Tracks: The TV450B has rubber tracks for superior traction and minimal ground disturbance.
Enhanced Visibility: LED lighting (two front, two sides, two rear floods) ensures the workspace is well-lit for safe and efficient operation, even in low-light conditions.
Telematics and Additional Features:
Advanced Monitoring: CASE SiteWatch™ Telematics with a 5-year data subscription and SiteConnect Module for remote diagnostics enhance fleet management and operational efficiency.
User-Friendly Maintenance: Lockable service access hood, single-point daily servicing, and remote oil and fuel filters for easy maintenance.
TV450B Optional Equipment
Operator Environment Enhancements:

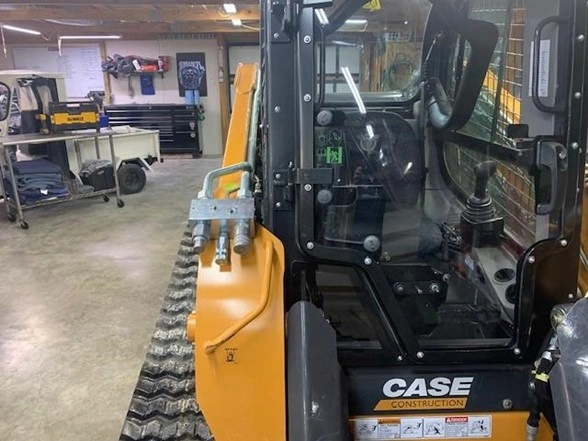

Enclosed Cab Comfort: Experience the luxury of a fully sealed and pressurized cab, complete with a glass door featuring a wiper and washer, removable sliding side windows, and an integrated ventilation system with a heater and air conditioner for year-round comfort.
Entertainment on the Go: Stay connected and entertained with an AM/FM Bluetooth radio featuring two speakers and a USB port, ensuring a pleasant work environment.
Advanced Control: Benefit from the convenience of keyless start ignition, an 8-inch color LCD display, and economy mode for auto idle shutdown and auto engine protection shutdown for enhanced efficiency and safety.
Customized Controls: Choose between mechanical hand controls or the versatility of hand and foot controls, with hand managing the loader drive and foot controlling the bucket and boom for optimal operation.

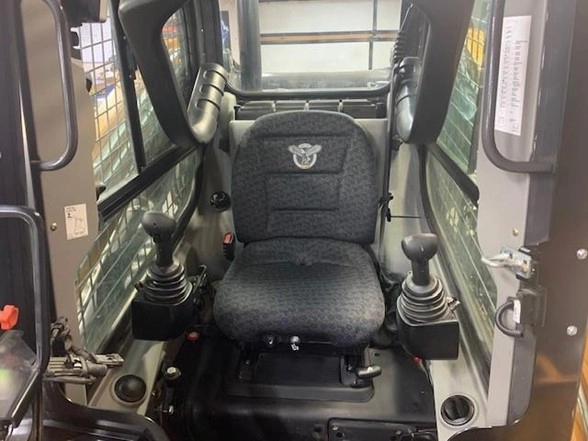

Deluxe Seating: Upgrade to a deluxe cloth, air suspension seat with heater and lumbar support for ultimate comfort during long working hours.
Hydraulic System Options:
Enhanced Hydraulics: Opt for high-flow auxiliary hydraulics for increased versatility and power in attachment use or the enhanced high-flow auxiliary hydraulics for even more demanding tasks.
Additional Hydraulic Features: Consider the convenience of second auxiliary hydraulics, hydraulic one-way self-leveling, and ride control for a smoother, more efficient operation.
Loader and Drivetrain Customizations:
Loader Upgrades: Enhance your loader with auxiliary front electric control and a hydraulic attachment coupler for quick and easy attachment changes.
Drivetrain Adaptations: Creep Speed Mode is available for precision work, and EZ Trac offers a suspension track with a bogey wheel design for improved traction and ride comfort.
Additional Options and Attachments:
Customization and Convenience: Select from language decals, various buckets, bolt-on edges, spill guards, special paint, and offsite service arrangements to tailor the TV450B to your specific needs.
Factory Supplied Attachments: Increase functionality with a rotating beacon, four-point lift hook, and 48-inch pallet forks, expanding your machine’s versatility.
Service Parts and Safety Features:
Enhanced Safety and Utility: Add-on counterweights for improved stability, road lights, and a four-corner LED strobe for increased visibility, along with a single-point lift hook for easy transportation.
Maintenance and Durability Upgrades: Consider an aspirator, precleaner for the air intake, a 3-inch retractable seat belt for added safety, and bolt-on heavy-duty bucket teeth for increased durability and performance.
With these optional features and attachments, the CASE TV450B Compact Track Loader can be customized to meet any construction site’s diverse needs and challenges, making it a truly versatile addition to your fleet.
TV450B Engine Specs
ENGINE Feature
Specification
Model
FPT F5B FL413 D*C001
Emissions Certification
Tier 4 Final
Type
Diesel 4-stroke, Turbo, D.I.
Cylinders
4
Bore/Stroke
3.9 x 4.3 in (99 x 110 mm)
Displacement
207 in³ (3.4 L)
Fuel injection
Direct, high pressure common rail – HPCR
Fuel
#2 Diesel
Fuel filter: Pre-filter
Beta (30) = 200/spin-on
Fuel filter: Main filter
Beta (4) = 20/spin-on
Air intake
Turbocharged w/ waste gate and external cooled EGR
Exhaust aftertreatment
Selective Catalytic Reduction (SCR)
Cooling
Liquid
Engine speeds RPM
High idle – no load
2500 +/- 25
Rated – full load
2500
Low idle
1150 +/- 25
Horsepower @ 2500 RPM – SAE J1349
Gross
90 hp (67 kW)
Net
84 hp (63 kW)
Peak torque @ 1400 RPM
282 lb·ft (383 N·m)
Radiator:
Core type
Aluminum bar and plate
Core size area
319 in² (0.206 m²)
Rows of tubes
21 rows
Cap pressure
16 +/- 2 psi (1.10 +/- 0.14 bar)
Fan:
Diameter
22 in (560 mm)
Ratio
0.96:1 standard, 1.1:1 high-flow
Water pump:
Style
Centrifugal
Flow
47.8 gpm (181 L/min)
Engine lubrication pump:
Type
Rotor pump w/ deep sump pan, plate cooler, and pressurized under-piston nozzles
Pump operating angle ratings:
Side to side
45°
Bucket up
35°
Bucket Down
45°
TV450B Dimensions
Dimension
Description
Measurement
A
Overall operating height with foundry/excavating bucket
161.4 in (4.10 m)
A
Overall operating height with heavy duty bucket
165.6 in (4.21 m)
A
Overall operating height with low profile extended bucket
170.4 in (4.33 m)
B
Height to bucket hinge pin
131.6 in (3.34 m)
C
Height to top of ROPS
80.4 in (2.04 m)
D
Bottom of level bucket, fully raised
123.2 in (3.13 m)
E
Overall length without attachment with coupler
120.2 in (3.05 m)
F
Overall length with foundry/excavating bucket on ground
144.4 in (3.67 m)
F
Overall length with heavy duty bucket
148.6 in (3.78 m)
F
Overall length with low profile extended bucket
153.5 in (3.89 m)
G
Maximum dump angle
45.3°
H
Dump height with foundry/excavating bucket @ 45.0°
104.1 in (2.65 m)
H
Dump height with heavy duty bucket @ 45.0°
101.1 in (2.57 m)
I
Dump reach at maximum height with low profile extended bucket @ 45.0°
35.1 in (0.89 m)
J
Maximum attachment rollback: Bucket on ground
32.0°
K
Maximum attachment rollback: Bucket at full height
83.1°
L
Track on ground
64.5 in (1.64 m)
M
Ground clearance – bottom of belly pan
9.5 in (0.24 m)
N
Angle of departure
32.0°
O
Clearance circle without bucket
57.7 in (1.47 m)
P
Clearance circle with 78 in foundry/excavating bucket on ground
87.8 in (2.23 m)
Q
Clearance circle rear
68.6 in (1.74 m)
R
Track gauge
58.6 in (1.49 m)
S
Over the track width
76.5 in (1.94 m)
Emissions
Tier 4 Final
HPCR, EXTERNAL CEGR WITH DOC & SCR
Why this solution: As an after-treatment system, Selective Catalytic Reduction (SCR) lowers exhaust temperatures and does not require unproductive fuel use associated with burning off particulate matter, plus there’s no Diesel Particulate Filter (DPF) to replace making it a great solution for larger, high-productivity engines.
How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. Then the diesel oxidation catalyst (DOC) oxidizes the machine’s exhaust to create heat, further managing particulate matter emissions.
SCR is a simple solution that combines DEF (Diesel Exhaust Fluid) with exhaust to convert NOx emissions into nitrogen and water. DEF is a non-toxic liquid that reacts with engine exhaust in the presence of a catalyst to perform emissions conversion.
What this means to you: SCR provides a significant reduction in fuel use and has no DPF to replace, resulting in a lower total operating cost for the life of the machine. Keeping it running is simple – just refill DEF as needed.
