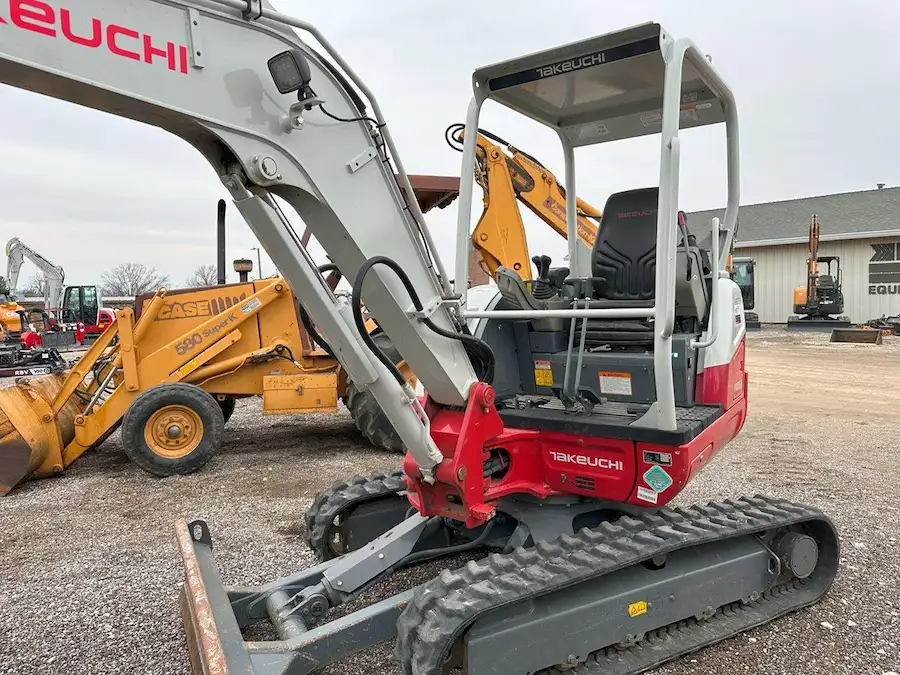

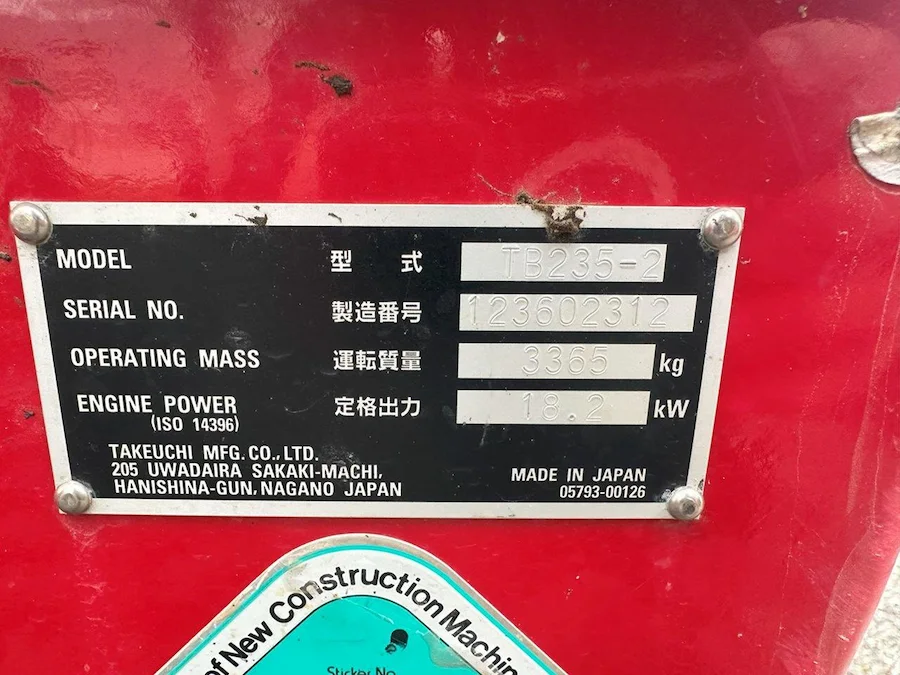

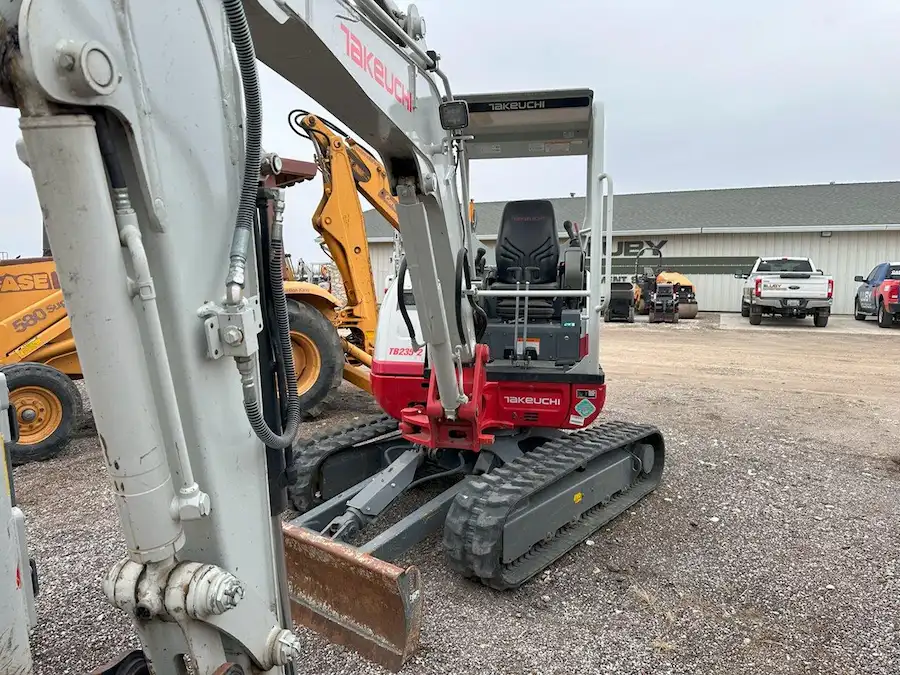

2021 Takeuchi TB235-2R Compact (Mini) Excavator – 123602312

Engine and Performance Features

• U.S. EPA Final Tier 4 Compliance: Demonstrates Takeuchi’s commitment to environmental responsibility without compromising power.
• Efficiency Optimized: Features an automatic fuel bleed system, dual-element air filter, and automatic idle Takeuchi’s fuel efficiency and reduced emissions.

Advanced Electrical System

• Multi-Informational Displays: Offers an LCD display under the canopy and a larger 5.7″ display in the cab version, providing critical operational data at a glance.
• Enhanced Functionality: Equipped with sealed rocker switches, a 55 amp alternator, and halogen work lights, ensuring reliability and visibility in all working conditions.

Robust Undercarriage and Frame

• Durable Design: The TB235-2’s sloped frame, large wrap-around counterweight, and triple-flanged track rollers are engineered for long-term durability and stability.
• Versatile Movement: Features automatic load TB235-2’s two-speed travel and a heavy-duty dozer blade with an optional power angle blade and bolt-on cutting edge for enhanced maneuverability and productivity.

Hydraulic System and Attachments

• Precision Hydraulics: Offers variable displacement, open center hydraulics, and cushioned boom and swing cylinders for smooth operation.
• Versatile Control: Hydraulic pilot controls and proportional auxiliary controls with detent allow for precise operation and easy attachment changes, enhancing the TB235-2’s versatility on the job site.

Operator Comfort and Safety

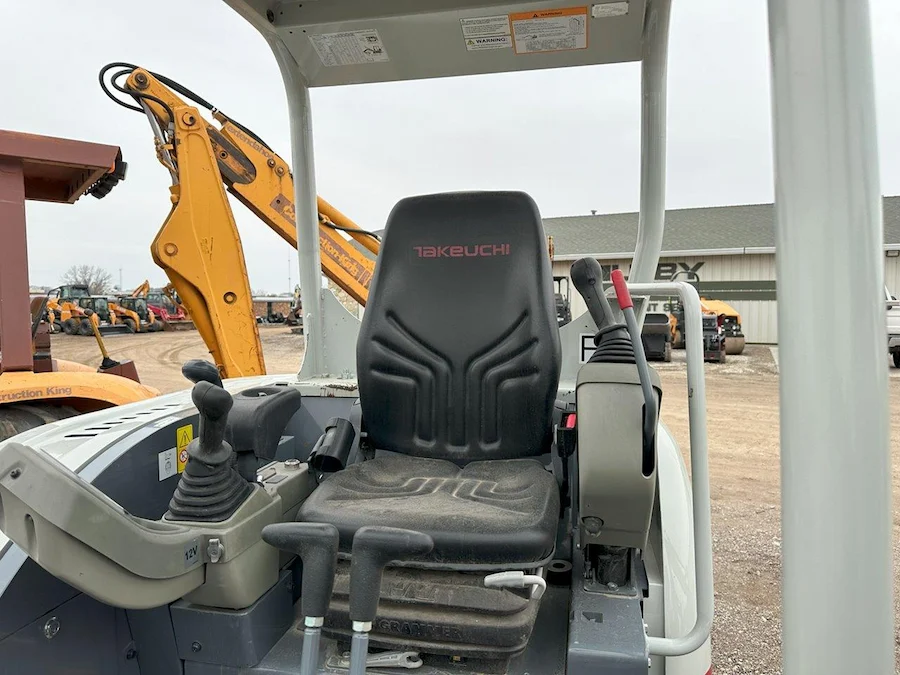

• Designed for Operators: The cab has a deluxe high-back suspension seat, adjustable armrests, A/C, heat, and an optional AM/FM/MP3 radio, ensuring operator comfort and efficiency.
• Safety First: The TB235-2 features a ROPS/TOPS/OPG four-post canopy, retractable seat belts, and optional safety enhancements for peace of mind during operation.

Takeuchi Fleet Management

• Maximize Uptime: With two years of standard service, Takeuchi Fleet Management minimizes downtime through remote diagnostics, utilization tracking, proactive maintenance, and cost control.

The TB235-2: A Compact Powerhouse

The Takeuchi TB235-2 Compact Excavator is designed to meet the demands of today’s construction professionals, providing a powerful, versatile, and reliable solution for a wide range of applications. Whether tackling utility work, landscaping, or construction, today’s TB235-2 delivers the performance, efficiency, and durability you expect from Takeuchi.

OPERATING PERFORMANCE
Operating Weight (Canopy)	7,418 lb	(3,365 kg)
Operating Weight (Cab)	7,639 lb	(3,465 kg)
Maximum Bucket Breakout Force	9,127 lb	(4,140 kg)
Maximum Arm Digging Force	3,889 lb	(1,764 kg)
Arm Length	4 ft 9.0 in	(1,445 mm)
Slew Speed	9.3 rpm
Traction Force	9,112 lb	(4,130 kg)
Ground Pressure (Canopy)	4.4 psi	(30.4 kPa)
Ground Pressure (Cab)	4.6 psi	(31.4 kPa)
Travel Speed – Low	1.7 mph	(2.8 km/hr)
Travel Speed – High	2.6 mph	(4.2 km / hr)
HYDRAULIC SYSTEM
Total Hydraulic Flow	28.6 gpm	(108.4 L /min)
Auxiliary Flow – Primary Circuit	15.8 gpm	(60.0 L /min)
Hydraulic System Pressure	3,553 psi	(24.5 MPa)
ENGINE
Make / Model	Yanmar / 3TNV88F
Displacement	100.0 cu in	(1.6 L)
Horsepower @ 2,400 rpm	24.4 hp	(18.2 kW)
Maximum Torque @ 1,440 rpm	68.0 ft-lb	(92.2 Nm)
FLUID CAPACITIES
Engine Lubrication	5.0 qt	(4.7 L)
Cooling System	4.2 qt	(4.0 L)
Fuel Tank Capacity	12.2 gal	(46.0 L)
Fuel Consumption (65% of Full Load)	0.90 gal/hr	(3.4 L /hr)
Hydraulic Reservoir Capacity	9.2 gal	(35.0 L)
Hydraulic System Capacity	18.0 gal	(68.0 L)

MACHINE DIMENSIONS
Maximum Reach	17 ft 2.9 in	(5,255 mm)
Maximum Reach at Ground Level	16 ft 10.0 in	(5,130 mm)
Maximum Digging Depth	10 ft 7.8 in	(3,245 mm)
Maximum Vertical Digging Depth	8 ft 2.2 in	(2,495 mm)
Maximum Dig Height	16 ft 5.2 in	(5,010 mm)
Maximum Dumping Height	11 ft 9.5 in	(3,595 mm)
Front Swing Radius	6 ft 6.9 in	(2,005 mm)
Front Swing Radius with Boom Offset	5 ft 5.4 in	(1,660 mm)
Tail Swing (Slew) Radius	4 ft 4.4 in	(1,330 mm)
Transport Length	16 ft 0.9 in	(4,900 mm)
Transport Height	8 ft 2.8 in	(2,510 mm)
Ground Clearance	11.6 in	(295 mm)
Undercarriage Length	6 ft 11.1 in	(2,110 mm)
Track Width (Rubber)	11.8 in	(300 mm)
Undercarriage Width	5 ft 2.2 in	(1,580 mm)
