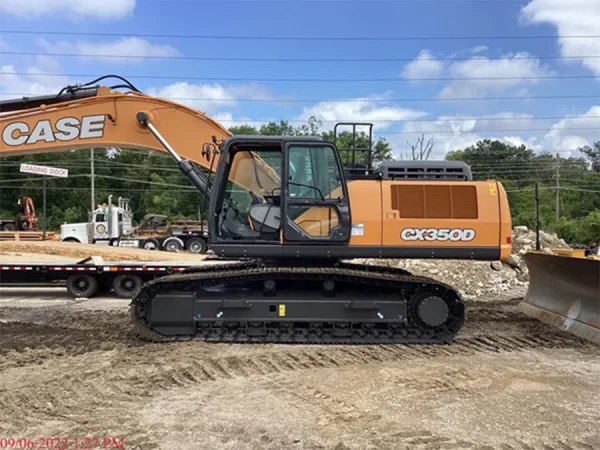

2022 CASE Full Size Excavator CX350D – EQ0030233

Purpose-Built Performance:

• Power Modes: Three selectable options to optimize efficiency.
• Intelligent Hydraulics: CASE Intelligent Hydraulics System (CIHS) for precise control.
• Electronically Controlled Pump: Enhances cycle times and power.
• Durability: Reinforced undercarriage, arm, and boom for extended service life.
• Additional Features: Free Swing for controlled craning and programmable attachment presets for easy task switching.

Fuel Efficiency:

• Tier 4 Final Solution: Utilizes SCR and DOC, eliminating the need for a DPF.
• Fuel Savings: Up to 8% greater efficiency compared to previous models.
• DEF uses a simple addition of Diesel Exhaust Fluid during refueling.

Comfort & Visibility:

• Cab Design: Spacious with excellent visibility and adjustable controls.
• Seating: Heated air-ride seat with lumbar support and extensive adjustability.
• Convenience: Bluetooth radio, auto-temperature control, and joystick-mounted functions.
• Enhanced Visibility Options: LED lighting and CASE Max View are available for a 270-degree view.

Simple Serviceability:

• Maintenance Access: Easy access to oil sample ports and grouped service points.
• Debris Screens: Removable for quick cooler cleanouts.
• ProCare Protection: A 3-year/2,000-hour planned maintenance package is included.

OEM-Fit Machine Control:

• Precision Technology: Available with 2D and 3D control solutions.
• Expert Installation: Installed and tested by certified CASE specialists.
• Value Addition: Enhances residual/resale value, confirming system compatibility.

Equipped with these features, the CASE CX350D is a versatile and reliable choice for contractors seeking a machine capable of tackling a wide range of tasks efficiently and precisely.

Engine and Fuel Economy:

• Isuzu AQ-6HK1X diesel engine with Tier 4 Final certification.
• Advanced fuel efficiency features include Selective Catalytic Reduction (SCR), Diesel Oxidation Catalyst (DOC), and Cooled Exhaust Gas Recirculation (CEGR).
• Features such as Electronic Fuel Injection, a High-Pressure Common Rail System, and a Fuel Economy Assist System (FEA) contribute to its performance.
• Engine protection and maintenance features like dual-stage fuel filtration, dual-element air filter, remote oil filter, and a 500-hour engine oil change interval ensure longevity and reliability.
• High Ambient Temperature Cooling Package and Cyclone Air Pre-cleaner support optimal engine operation in various conditions.

Hydraulics:

• The excavator’s hydraulic system includes Auto Power Boost, Auto Swing Priority, and an Electronically Controlled Hydraulic Pump for enhanced performance.
• Auxiliary Flow Control and Pre-set Auxiliary Pump Settings enable versatility for various attachments.
• Hydraulic Oil Sample Port and a 5,000-hour Hydraulic Oil Change Interval facilitate maintenance.

Upper Structure:

• Equipped with features like ISO Mirrors, a Swivel Guard Belly Pan, and Lockable Service Doors for both functionality and security.
• The Fuel Tank Belly Pan and Lifting Eyes for Counterweight add to the machine’s durability and convenience for transport.

Operator Environment:

• ROPS/FOPS protection, Pressurized Cab, and One-touch Lock Front Window ensure operator safety and comfort.
• The cab includes AC/Heat/Defrost with Auto Climate Control, an LED Color Monitor, and Low-Effort Joystick Controls for an optimal operator experience.
• Additional amenities like a Heated High-Back Cloth Seat, AM/FM Radio with Bluetooth, and Rear-View Camera enhance convenience and functionality.

Undercarriage and Attachments:

• A Long Undercarriage with 31.5-inch Triple Semi-Grouser Steel Shoes and a Full Overlap Turntable Bearing Tub provides stability and durability.
• The Hydraulic Track Adjustment and Sealed Link Chain are designed for longevity and ease of maintenance.
• Standard equipment includes a 21 ft 2 in Boom, a 10 ft 8 in Arm, and Heavy-duty Bucket Linkage and Centralized Grease Fittings for operational efficiency.

Telematics:

• CASE SiteWatch™ Telematics system with a 3-year Advanced Data Subscription offers advanced monitoring and management capabilities to enhance productivity and maintenance scheduling.

Equipped with these features, the CASE CX350D Full Size Excavator is engineered to deliver exceptional performance, durability, and operator comfort, making it a reliable choice for various excavation projects.

Engine Enhancements:

• Refueling Pump: Simplifies the refueling process, ensuring efficiency and convenience on the jobsite.

Hydraulic System Upgrades:

• Auxiliary Hydraulics: Options include single-acting, double-acting for thumbs, multi-function with or without electronic pressure control, and secondary low-flow, all joystick activated for precise operation.
• Proportional Hydraulic Controls: Offer fine-tuned control for delicate operations.
• Hose Burst Check Valve (HBCV): Enhances safety by preventing the sudden release of hydraulic fluid.

Attachment Versatility:

• Booms and Arms: A selection of heavy-duty, short, and long booms and arms to match various digging depths and reach requirements.
• Quick Coupler/Case Multi-Pin Grabber: Allows swift attachment changes, increasing versatility.
• Tools: Range from heavy-duty and extreme-duty buckets to hammers, thumbs, and compaction plates, facilitating diverse tasks.
• Load Holding Control: Improves safety and control when handling heavy loads.

Upper Structure Additions:

• Rubber Bumper Guard: Protects the excavator’s body from damage during operation.
• Catwalks: Left and right side catwalks provide safe and easy access for maintenance.

Operator Environment Enhancements:

• FOPS Cab Top Guard – Level 2: Offers additional protection against falling objects.
• Front Grill and Rock Guards: Protect the front end from debris with options for two-piece or one-piece vertical bars.
• Vandal Guard: Secures the front window against unauthorized access.
• Rain Deflector and Sun Visor: Improve visibility and operator comfort in varying weather conditions.
• Side-View Camera: Enhances visibility on the sides of the excavator for safer operation.
• LED Package: Includes additional lighting for improved visibility during early morning or late evening work.

Undercarriage Options:

• Steel Shoes: Available in 27.6 in and 33.5 in sizes with triple semi-grousers for enhanced stability and traction.

Machine Control Systems:

• Leica iCON iXE2 – 2D System: Offers advanced grading and depth control for precision work.
• Leica iCON iXE3 – 3D System: Provides comprehensive site work capabilities with GPS integration for complex projects.

These optional features are designed to customize the CASE CX350D Full Size Excavator to specific job requirements, ensuring optimal performance, safety, and operator satisfaction across various construction tasks.

Engine Feature	Specification
Model	Isuzu AQ-6HK1X
Emissions Certification	Tier 4 Final
Fuel Requirement	Ultra-low sulfur fuel; B5 biodiesel tolerant
Type	Water-cooled, 4-cycle diesel, 6-cylinder in-line, high-pressure common rail system with electric control, VGT Turbocharger with air-cooled intercooler, SCR system
Cylinders	6-cylinder in-line
Displacement	475 in³ (7.8 L)
Bore/Stroke	4.53 x 4.92 in (115 x 125 mm)
Fuel Injection	Direct injection – electronic
Fuel Filter	Replaceable, full flow spin-on cartridge
Air Filter	Dry type element with warning restriction indicator
Oil Filter	Replaceable, full flow spin-on cartridge
Engine Gradeability	Side-to-side 35°; Fore and aft 35°
Net Horsepower – SAE J1349	@ 1900 RPM: 268 hp (200 kW)
Net Max Torque – SAE J1349	@ 1500 RPM: 728 lbf·ft (988 N·m)
Cooling Operating Range	122° to -4°F (50° to -20°C)
Oil Requirement	Requires low-ash oil CJ-4

Dimension	10 ft 8 in (3.25 m) Arm	8 ft 8 in (2.63 m) Arm	13 ft 3 in (4.04 m) Arm
A. Overall Height – With Attachment	11 ft 5 in (3,470 mm)	11 ft 11 in (3,630 mm)	11 ft 11 in (3,620 mm)
B. Cab Height	10 ft 5 in (3,180 mm)	10 ft 5 in (3,180 mm)	10 ft 5 in (3,180 mm)
C. Overall Length – With Attachment	36 ft 8 in (11,170 mm)	36 ft 10 in (11,220 mm)	36 ft 9 in (11,190 mm)
D. Overall Length – Without Attachment	19 ft 9 in (6,010 mm)	19 ft 9 in (6,010 mm)	19 ft 9 in (6,010 mm)
E. Width of Upper Structure	9 ft 11 in (3,030 mm)	9 ft 11 in (3,030 mm)	9 ft 11 in (3,030 mm)
F. Track Overall Length	16 ft 4 in (4,980 mm)	16 ft 4 in (4,980 mm)	16 ft 4 in (4,980 mm)
G. Track Overall Width with 31.5 in (800 mm) Shoes	11 ft 2 in (3,400 mm)	11 ft 2 in (3,400 mm)	11 ft 2 in (3,400 mm)
H. Track Shoe Width	2 ft 7 in (800 mm)	2 ft 7 in (800 mm)	2 ft 7 in (800 mm)
J. Center to Center – Idler to Sprocket	13 ft 3 in (4,040 mm)	13 ft 3 in (4,040 mm)	13 ft 3 in (4,040 mm)
K. Upper Structure Ground Clearance	4 ft 0 in (1,210 mm)	4 ft 0 in (1,210 mm)	4 ft 0 in (1,210 mm)
L. Minimum Ground Clearance	1 ft 7 in (470 mm)	1 ft 7 in (470 mm)	1 ft 7 in (470 mm)
M. Rear Tail Swing Radius	11 ft 8 in (3,550 mm)	11 ft 8 in (3,550 mm)	11 ft 8 in (3,550 mm)
Operating Weight*	82,483 lb (37,414 kg)	82,373 lb (37,364 kg)	83,144 lb (37,714 kg)
Ground Pressure	7.5 psi (0.52 bar)	7.5 psi (0.52 bar)	7.7 psi (0.53 bar)

Base & Extended Warranty Coverage

CASE ProCare applicable on select new heavy machine orders.

See your CASE dealer for model availability and timing.
