2022 CASE TV370B Compact Track Loader – EQ0038455

Visibility and Comfort:

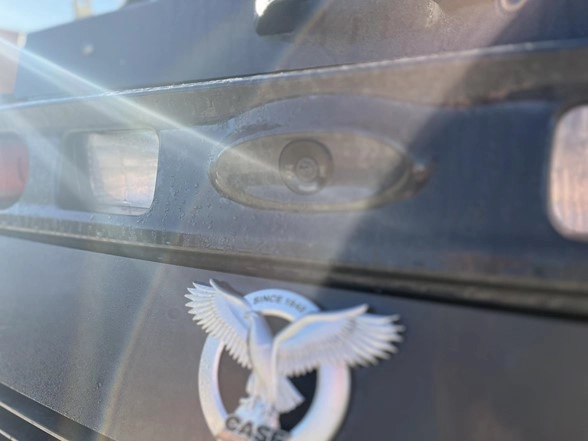

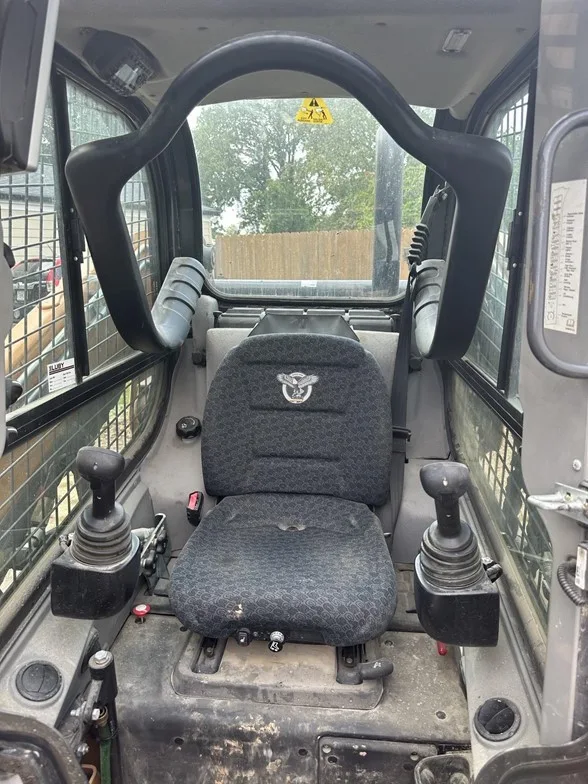

CASE CTLs boast unparalleled visibility with a backup camera, cab-wide rearview mirror, and large windows, ensuring excellent sightlines to the bucket and surroundings. With one of the industry’s widest cabs, redesigned controls, and ergonomic features like cupholders and air vents, operators enjoy enhanced comfort throughout the day.

Optimal Control:

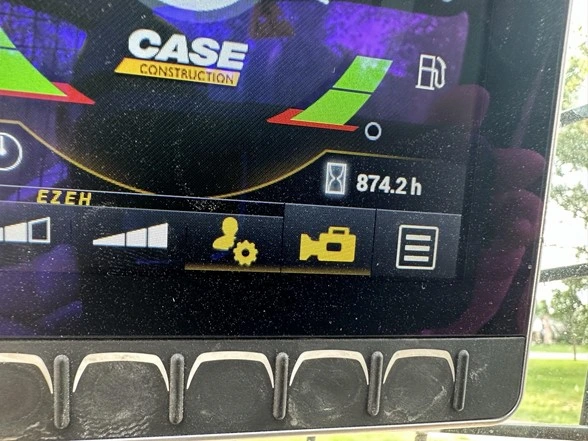

Available in various configurations, including electro-hydraulic models with an 8-inch LCD multi-function display, CASE compact track loaders offer precise control. Operators can easily switch between operating patterns, save profiles, and adjust machine responsiveness to meet specific preferences, ensuring optimal performance.

Productivity and Performance:
The TV370B delivers exceptional torque and breakout force, with a rated capacity of 3,700 pounds, making it perfect for heavy-duty loading and material handling tasks. Equipped with standard and optional high-flow auxiliary hydraulics, it supports a wide range of attachments and applications, maximizing productivity on the job site.

Ease of Ownership:

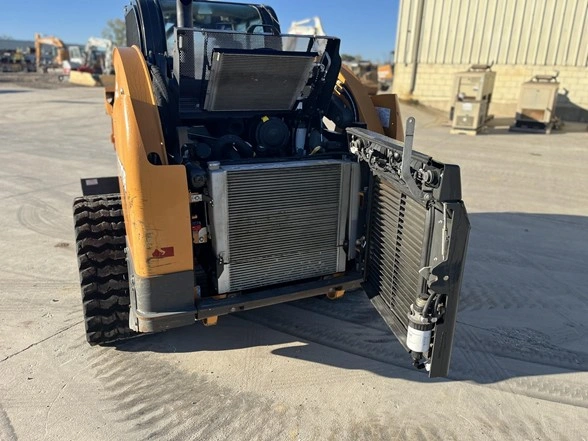

Critical checks and service points on the TV370B are conveniently grouped at the rear for easy access. The 8-inch LCD multi-function display provides real-time data on machine operation and performance. With a maintenance-free Tier 4 Final emissions solution, requiring no fluids or filter replacement, ownership is hassle-free.

OPERATING PERFORMANCE
Operating Weight – 9,945 lb
Tipping Load – 7,400 lb

Rated operating capacity – ROC*:
35% of tipping load – 2,590 lb
50% of tipping load – 3,700 lb
w/ additional counterweight – 3,900 lb

Breakout forces @ 3,150 psi
Bucket cylinders – 8,593 lb
Lift cylinders – hydraulic limit – 6,385 lb

Travel speed:
Low range – 5.1 mph
High range – 8.0 mph

HYDRAULIC SYSTEM
Standard flow @ rated engine RPM: @ 100% efficiency – 24.2 gpm
Optional high-flow @ rated engine RPM: @ 100% efficiency – 37.6 gpm

ENGINE
FPT F5H FL463 A*G001
Engine Displacement – 207 in3
Horsepower @ 2,500 rpm – 74 hp
Maximum Torque @ 1,400 rpm – 232 lb·ft

Overall Operating Height:
with foundry/excavating bucket – 160.2 in
with low profile extended bucket – 169.2 in

Height To:
Bucket hinge pin – 131.1 in
Top of ROPS – 80.4 in
Bottom of level bucket, fully raised – 123.0 in

Overall Length:
without attachment with coupler – 117.0 in
with foundry/excavating bucket on ground – 141.4 in
with low profile extended bucket – 150.5 in

Dump Height:
with foundry/excavating bucket – 104.5 in @ 45°
with low profile bucket – 98 in @ 45°
