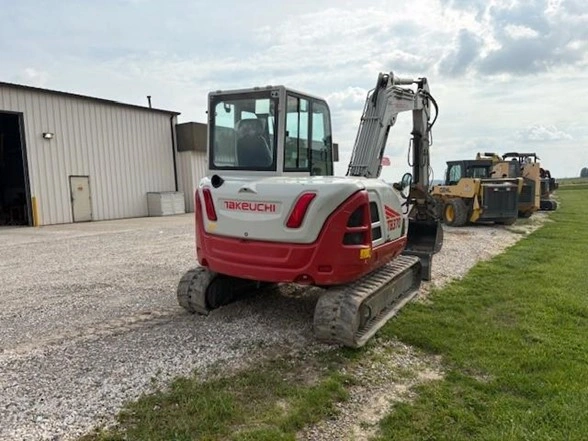

2022 Takeuchi TB370 Compact Excavator – EQ0039425

ENGINE
EPA Tier 4 Final
Turbocharged
DOC+DPF Exhaust After Treatment
Automatic Fuel Priming System
Dual Element Air Cleaner
Working Modes: Standard and ECO
Automatic Cold Start Device
High-Capacity Radiator and Hydraulic Oil Cooler
Engine Safe Start System
90 Amp Alternator

UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers
2-Speed Axial Piston Travel Motors with Counterbalance Valves
Integrated Load Sensing Automatic Shift Down
Integrated Fail-Safe Mechanical Parking Brake
Automatic Slew Break with Shock-less Relief Valve
Concealed in Frame Travel Motor Hoses
High Torque Final Planetary Drives
Heavy Duty Backfill Blade with Float
Large Wrap-Around Counterweight
Power Angle Blade (Optional)
15.7″ Rubber Tracks
15.7″ Steel Tracks (Optional)
15.7″ Segmented Rubber Tracks (Optional)

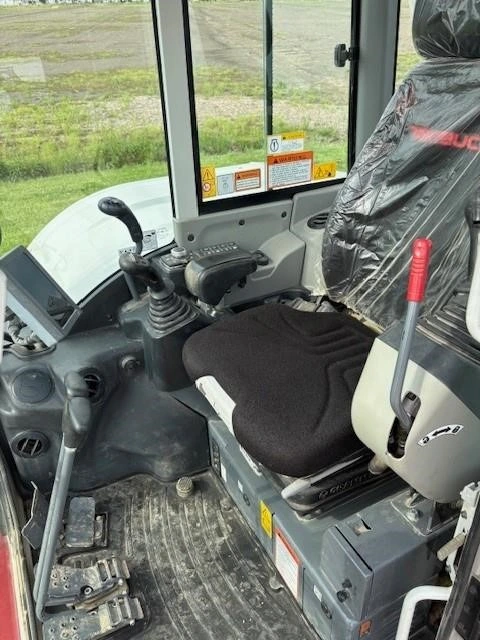

OPERATOR’S STATION
Cab with Automatic Climate Control System
Windshield Wiper and Washer
Skylight with Sunshade
AM/FM Radio with Bluetooth

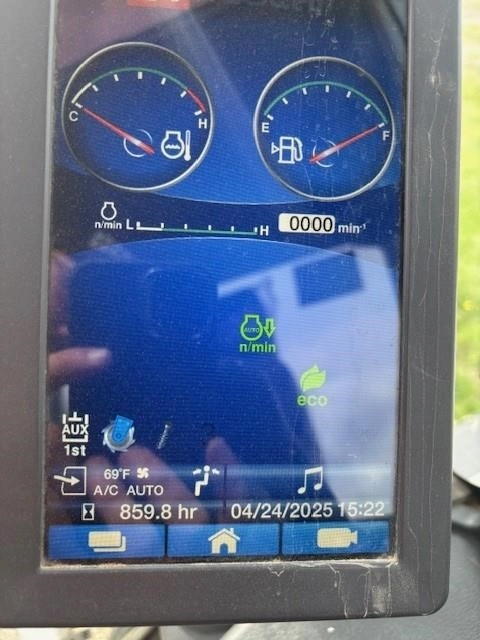

8″ Color Multifunction LCD Touchscreen Display
Jog Dial with Multifunction Panel
Multifunction Joystick Controls
Hand Dial Electronic Throttle Control
Rear View Camera
Pilot Control Safety Lockout System
ROPS/FOPS/OPG Level 1 Cab
Deluxe High Back Suspension Seat
Removable Washable Floor Mat
Cup Holder
Adjustable Arm Rests
12 Volt Power Socket
2′ Retractable Seat Belt
3′ Retractable Seat Belt (Optional)

HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Axial Piston Hydraulic Pump with Tandem Gear Pumps
Closed Center, Load Sensing Hydraulic System
Cushioned Boom and Swing Cylinders
Boom Holding Valve with Integrated Lift Overload Alarm
Hydraulic Pilot Controls
High Flow Primary Auxiliary Circuit Plumbed to Mid-Arm with Shutoff Valves
Secondary Auxiliary Hydraulic Circuit Plumbed to Mid-Arm with Shutoff Valves
Integrated Hydraulic Attachment Quick Connect System (Couple Optional)
Automatic One-Way Flow Valve for Primary Auxiliary Circuit
Automatic Auxiliary Circuit Pressure Release Feature
Pilot Pressure Accumulator Valve
Pilot Control Pattern Change Valve (ISO/SAE)
LED Work Lights
Main Boom Cylinder Guard
Long Arm with Integrated Thumb Mount
Dual Pin Position Bucket (optional)
Hydraulic Pin Grabber Coupler (optional)
Mechanical Bucket Quick Coupler (optional)
Main Pin Hydraulic Thumb (optional)

OPERATING PERFORMANCE
Operating Weight – 14,850 lb
Slew Speed – 8.8 rpm
Travel Speed – Low Range 1.6 mph
Travel Speed – High Range 2.9 mph
Gradeability – 30 deg
Ground Pressure Cab (Rubber) – 5.4 psi
Max Bucket Breakout Force – 14,613 lb
Max Arm Digging Force – 6,609 lb
Traction Force – 16,479 lb
Boom Swing Angle (Left/Right) – 79 deg / 51 deg

HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit 31.7 gpm
Auxiliary Flow – Secondary Circuit 12.3 gpm
Hydraulic System Pressure 3,550 psi

ENGINE
Make / Model Kubota V2607-CR-TE5B
Displacement 159.6 cu in
Horsepower @ 2,200 rpm 56.9 hp
Maximum Torque @ 1,500 rpm 168.1 ft-lb

FLUID CAPACITIES
Engine Lubrication – 9.5 qt
Cooling System – 11.6 qt
Fuel Tank Capacity – 29.0 gal
Hydraulic Reservoir Capacity – 17.3 gal
Hydraulic System Capacity – 36.7 gal

MACHINE DIMENSIONS
Maximum Reach – 21′ 11.4″
Maximum Reach at Ground Level – 21′ 6.4″
Maximum Digging Depth – 13′ 4.7″
Maximum Vertical Digging Depth – 12′ 6.2″
Maximum Height of Cutting Edge – 21′ 0.7″
Maximum Dumping Height – 14′ 11.0″
Front Swing Radius – 8′ 5.5″
Front Swing Radius with Boom Offset – 6′ 8.3″
Slew Radius – 4′ 9.4″
Transport Length – 19′ 5.2″
Transport Height – 8′ 4.0″
Upper Structure Overall Width – 6′ 10.5″
Ground Clearance – 13.2″
Undercarriage Length – 8′ 5.4″
Undercarriage Width – 6′ 10.7″
Track Width (Rubber) – 15.7″
