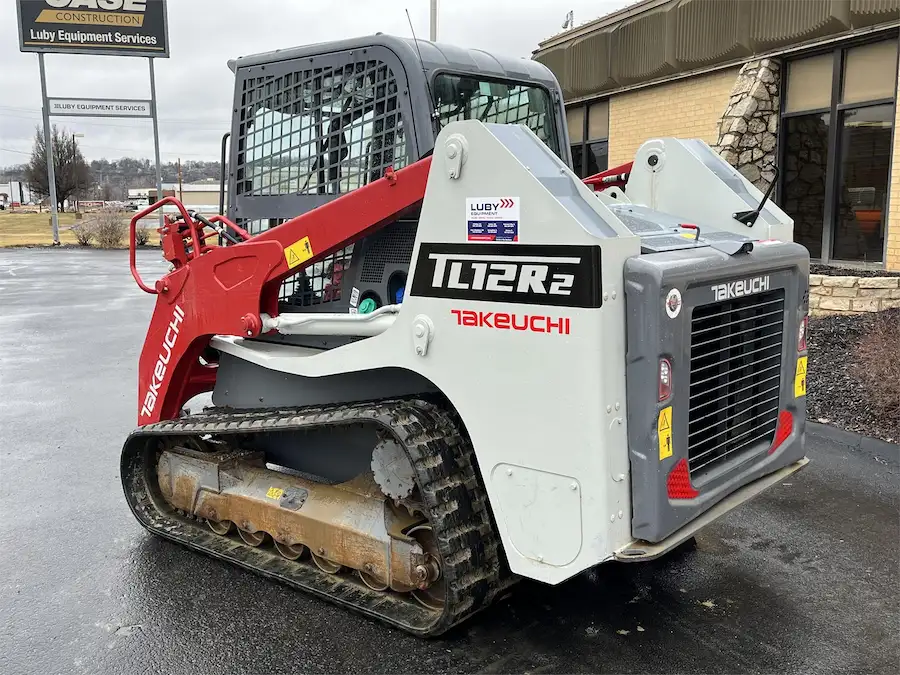

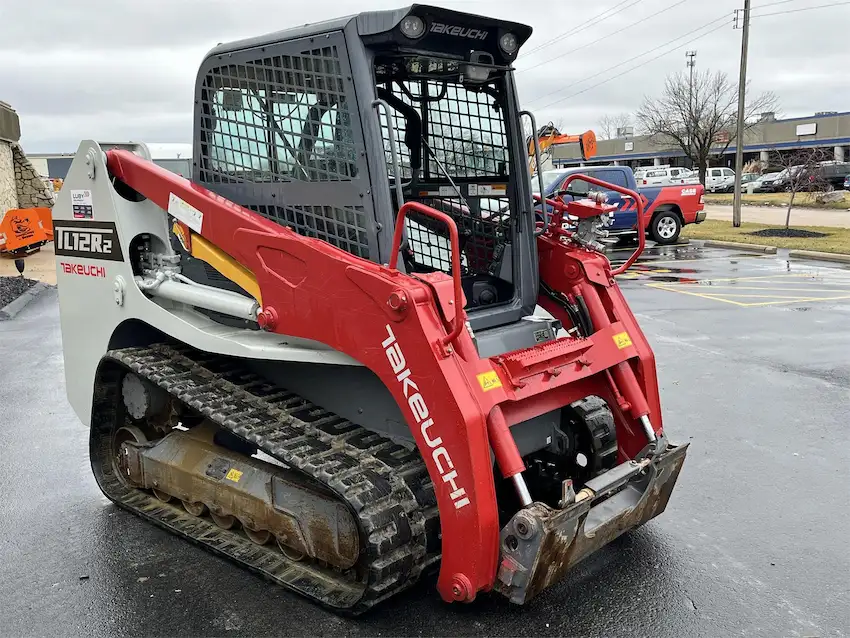

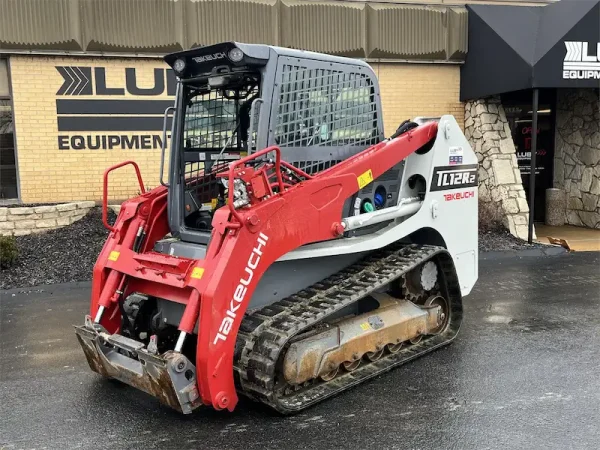

2022 Takeuchi TL12R2 Compact Track Loader – EQ0027051

ENGINE
EPA Final Tier 4 Emission Compliant
Turbocharged and Intercooled
DOC+DPF+SCR Exhaust After Treatment
Automatic Fuel Bleed System
Active Power Control Power Management System
Working Modes – Power and ECO
Dual Element Air Filter

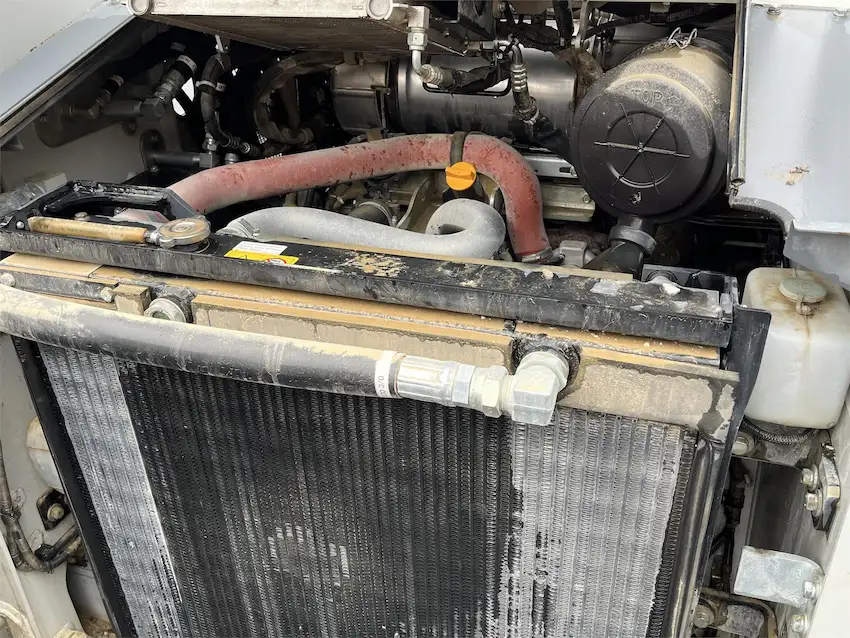

High Capacity Radiator, Hydraulic Oil Cooler and Intercooler Mounted Side-by-Side on Swing Out Frame

ELECTRICAL

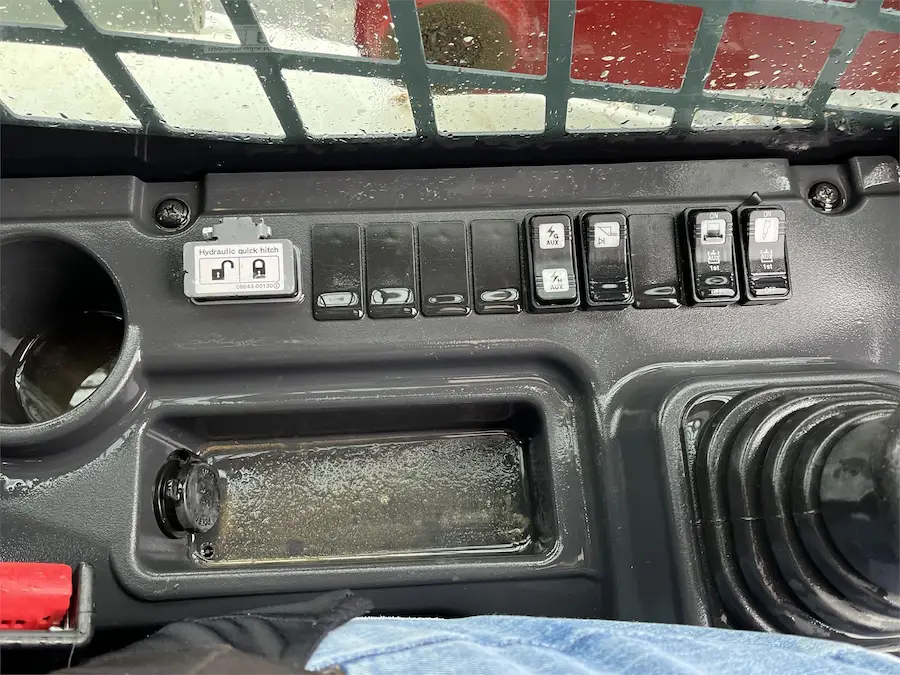

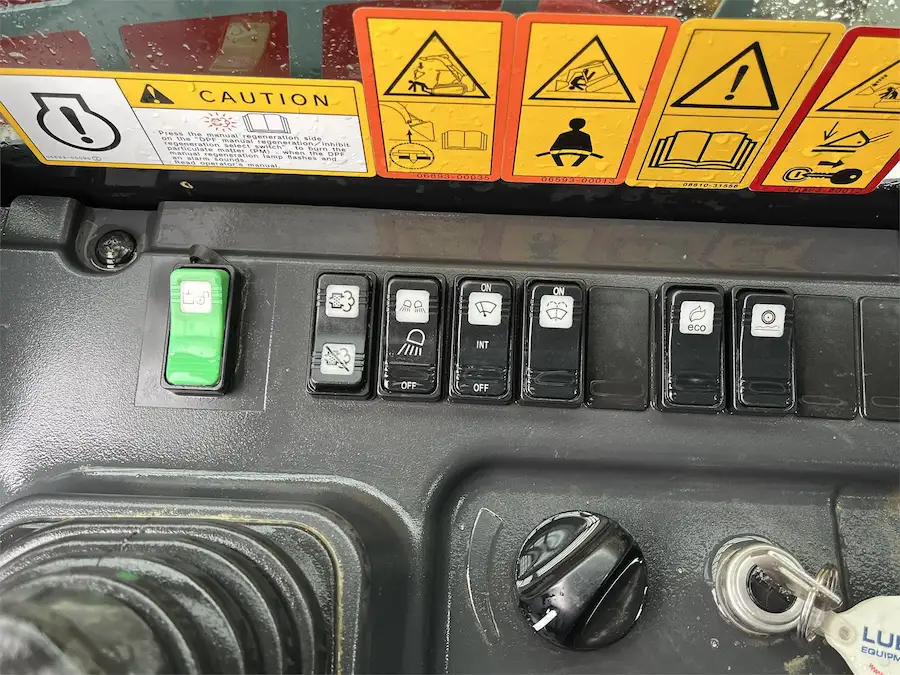

Sealed Rocker Switches
12 volt System with 80 amp Alternator
LED: Two Front and Two Rear
Engine Preheat
Hour Meter
Back-up Alarm
Horn

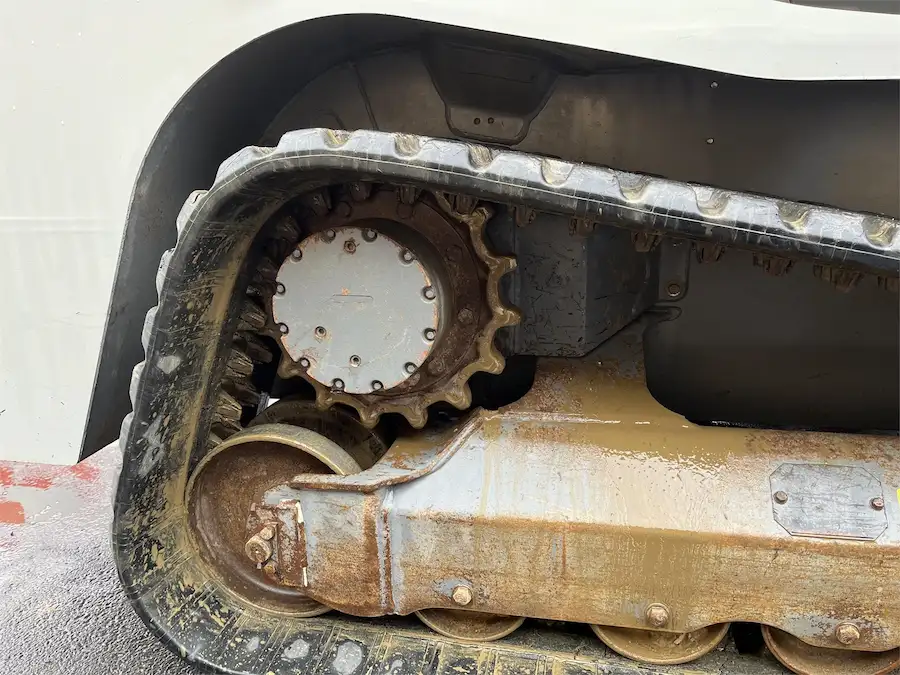

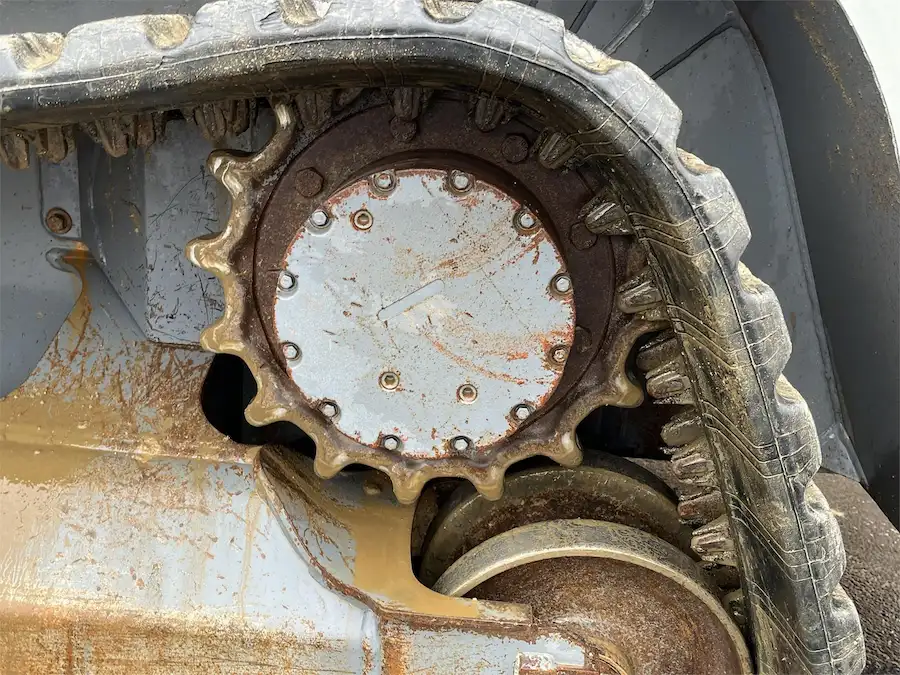

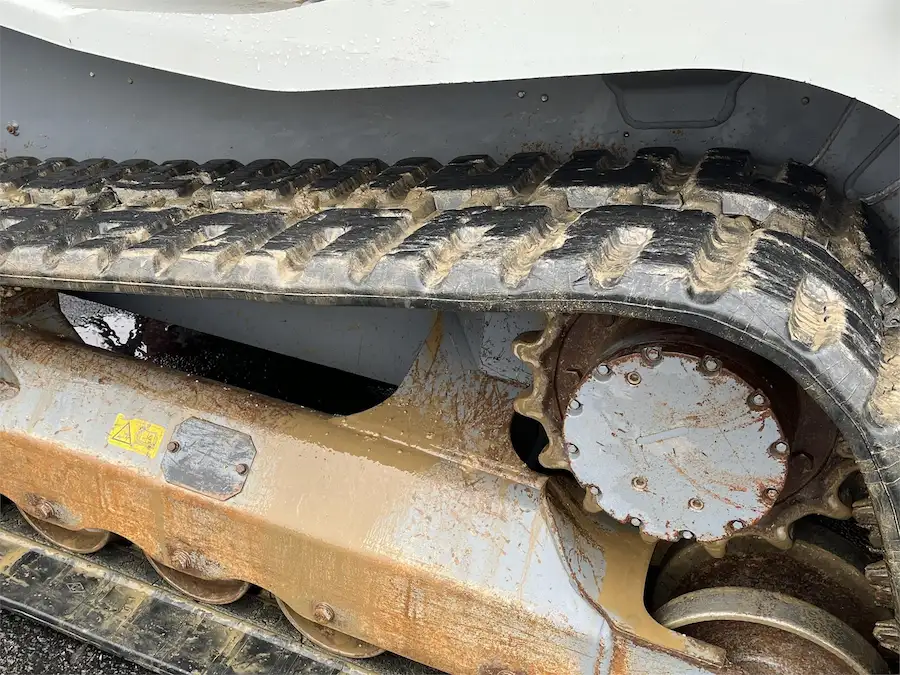

UNDERCARRIAGE AND FRAME
Double Reduction Planetary Drives
Permanently Sealed Track Rollers with Metal Face Seals
Fully Welded Frame with Integrated Cross Members
2 Speed Travel

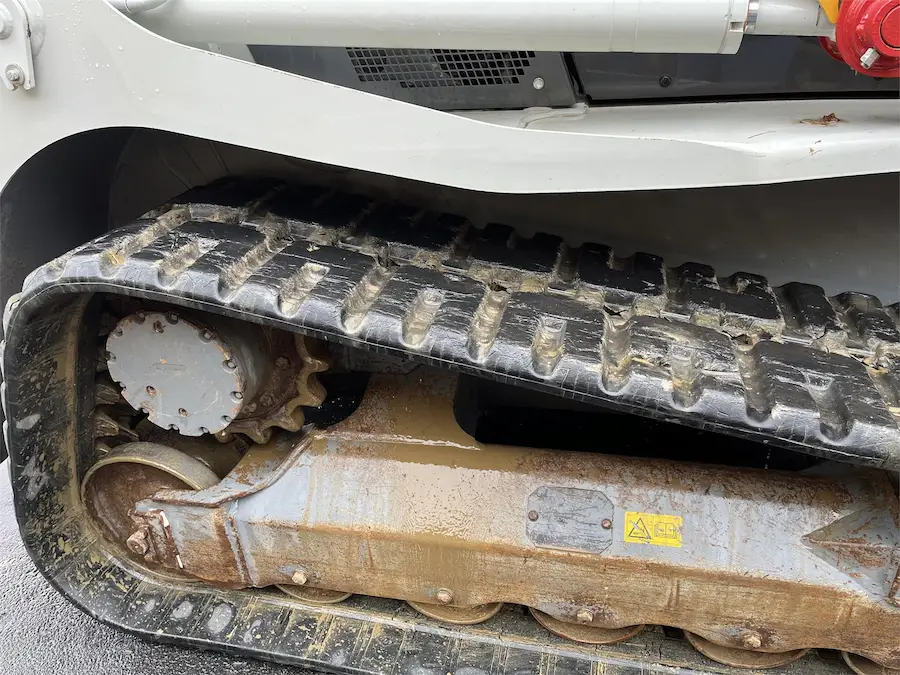

17.7″ Rubber Track
Grease Type Track Adjuster
Front and Rear Tie-Down Points and Lift Points
Rear Bumper Integrated into Frame

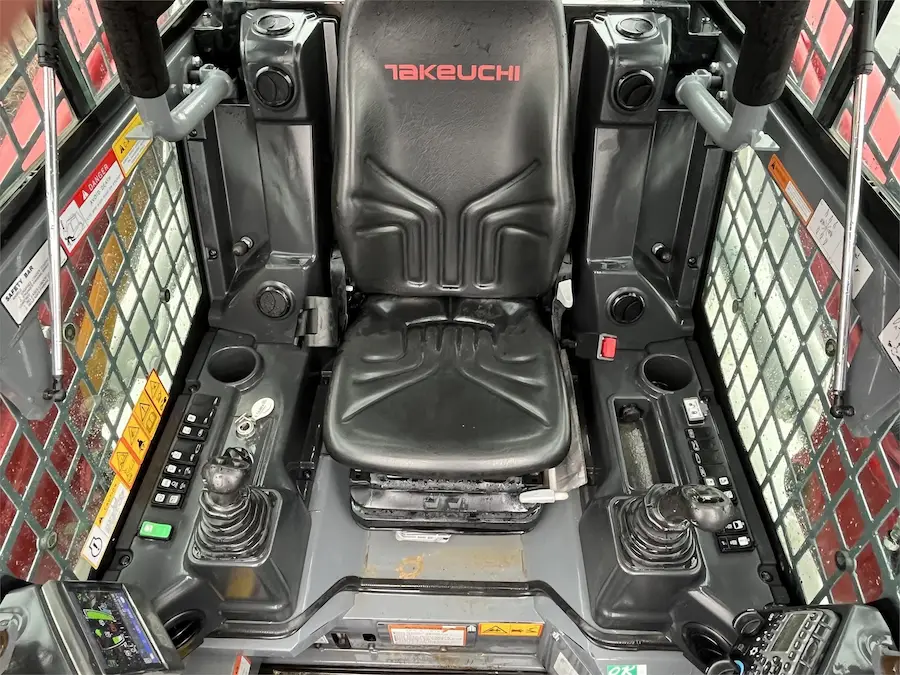

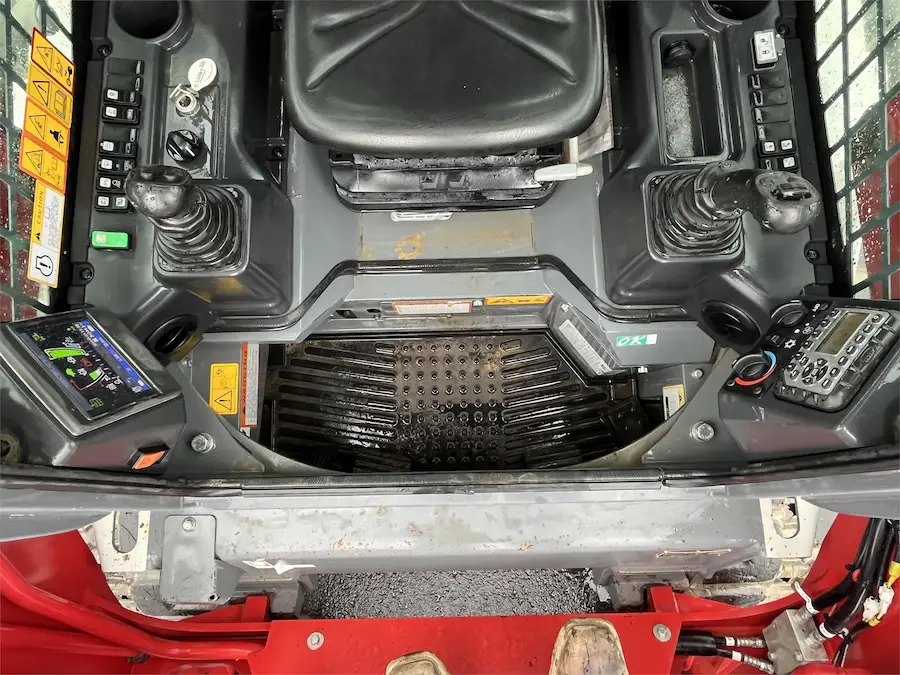

OPERATOR’S STATION

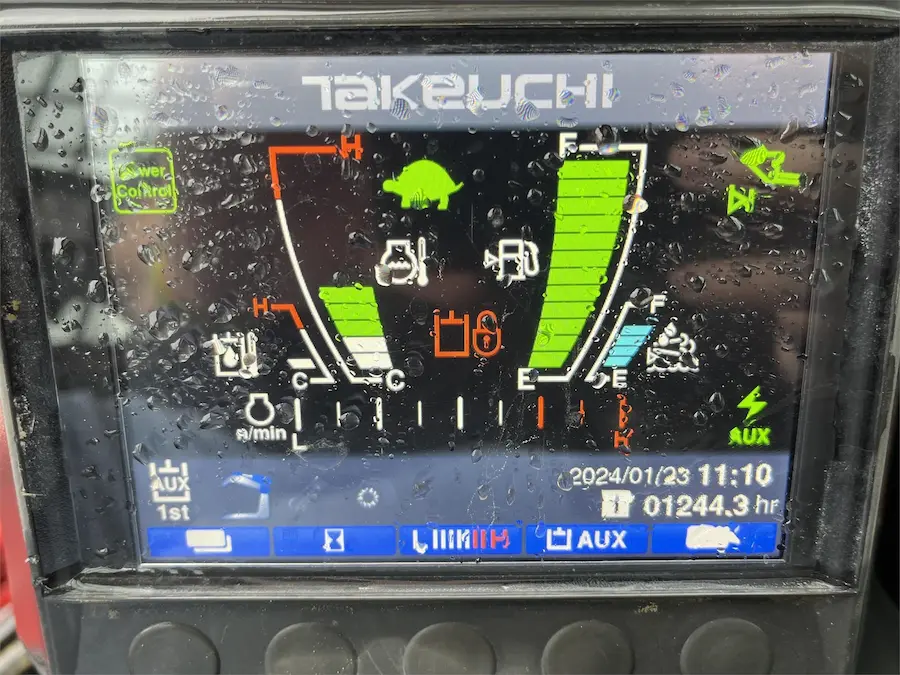

5.7″ Color Multi-Informational Display with Rear Camera
Tilt-up Operator’s Station
Deluxe High Back Suspension Seat
Rear Pivoting Lap Bar with Arm Rest
ROPS / FOPS Structure
Dial Throttle Control
Retractable 2″ Seat Belt
Foot Throttle

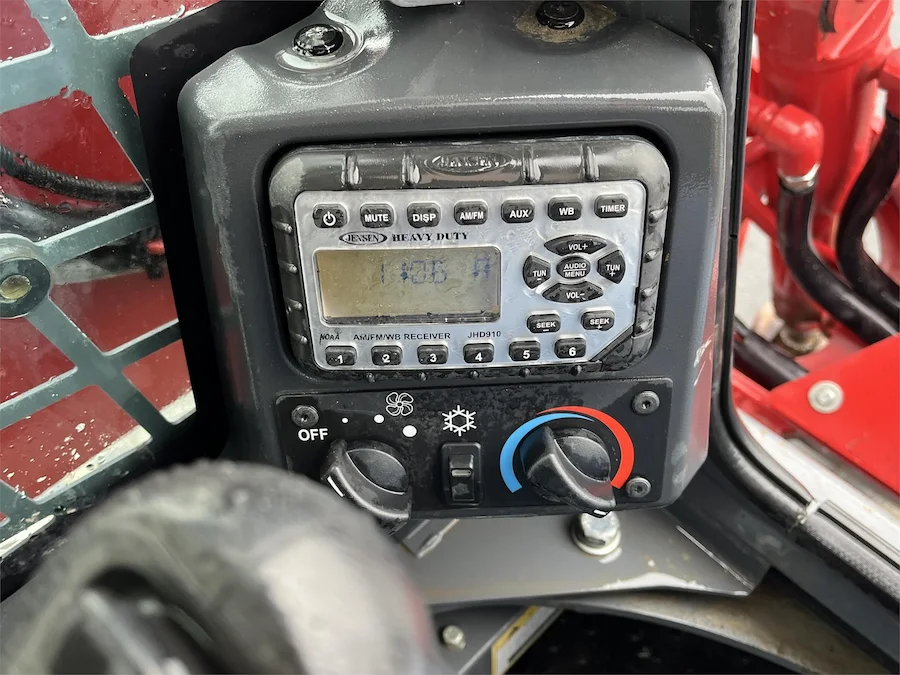

Pressurized Cab with Roll-up Door, A/C, Heat, Defrost and Front Wiper, and AM / FM / MP3 Radio with NOAA Weatherband (optional)
Retractable 3″ Seat Belt (optional)
3 Point Retractable Seat Belt (optional)
Polycarbonate Door and Top Guard (High Flow Only)

HYDRAULIC & WORKING EQUIPMENT
Hydraulic Pilot Controls
Boom Float with Detent
Cushioned Boom Cylinders
Proportional Auxiliary Controls with Detent
Hydraulic Self Leveling
Pressure Relieving Flat Faced Coupler Body
High Capacity Steel Hydraulic Tank
14-Pin Connector with Push Button Control

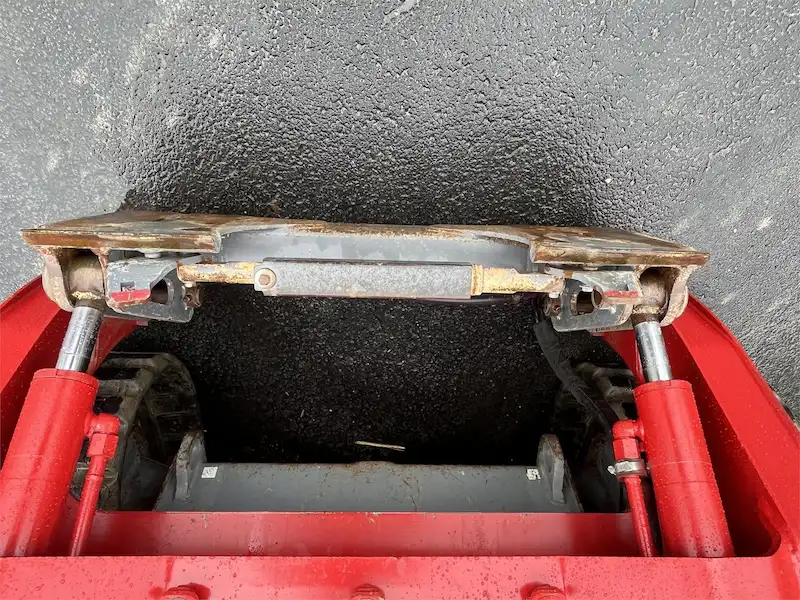

Mechanical Quick Coupler
Hydraulic Quick Coupler Cab – Standard Equipment
Hydraulic Quick Coupler Canopy – Optional
Primary Flow Auxiliary Hydraulics 23.2 gpm
High Flow Auxiliary Hydraulics 40.4 gpm (optional)
Secondary Auxiliary Circuit 23.2 gpm (optional with High Flow only)
Ride Control (optional)
Pattern Change Valve (ISO or H) (optional)

OPERATING PERFORMANCE
Operating Weight – Canopy 12,300 lb (5,580 kg)
Operating Weight – Cab 12,590 lb (5,710 kg)
Tipping Load 8,629 lb (3,915 kg)
Rated Operating Capacity
(ISO 14397-1) @35%* 2,975 lb (1,349 kg)
Operating Load @ 50% of Tip Load 4,315 lb (1,957 kg)
Bucket Breakout Force 8,210 lb (3,722 kg)
Lift Arm Breakout Force 8,075 lb (3,663 kg)
Traction Force 14,010 lb (6,353 kg)
Ground Pressure – Canopy 4.58 psi (31.6 kPa)
Ground Pressure – Cab 4.68 psi (32.3 kPa)
Travel Speed – Low 5.0 mph (8.1 km/hr)
Travel Speed – High 7.3 mph (11.8 km/hr)
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.

ENGINE
Make / Model Kubota / V3800TIF4B-Turbo Intercooled
Engine Displacement 230 cu in (3.8 L)
Horsepower @ 2,400 rpm 111.3 hp (83.0 kW)
Maximum Torque @ 1,500 rpm 276 ft-lb (374 Nm)

HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit 23.2 gpm (88.0 Lpm)
Auxiliary Flow – High Flow (optional) 40.4 gpm (153.0 Lpm)
Auxiliary Flow – Secondary Circuit (optional) 23.2 gpm (88.0 Lpm)
Hydraulic System Pressure 3,481 psi (24.0 MPa)

FLUID CAPACITIES
Engine Lubrication 13.9 qt (13.2 L)
Cooling System 19.0 qt (18.0 L)
Fuel Tank Capacity 31.6 gal (119.5 L)
DEF Fluid Tank Capacity 4.8 gal (18.0 L)
Fuel Consumption (65% of Full Load) 3.8 gal/hr (14.4 L /hr)
Hydraulic Reservoir Capacity 13.2 gal (50.0 L)
Hydraulic System Capacity 20.9 gal (79.0 L)

MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin – 10 ft 6.0 in
Dump Height Fully Raised – 7 ft 10.5 in
Dump Reach Fully Raised – 3 ft 1.8 in
Dump Angle – 42°
Rollback Angle – 30°
Track Ground Contact Length – 5 ft 7.5 in
Machine Length – 10 ft 6.2 in
Transport Length – 13 ft 3.3 in
Transport Height – 7 ft 7.0 in
Departure Angle – 30°
Clearance Circle with Bucket – 8 ft 4.6 in
Clearance Circle without Bucket – 5 ft 4.4 in
Clearance Circle Rear – 6 ft 0 in
Track Width – 17.7 in
Ground Clearance – 12.5 in
Overall Width without Bucket – 6 ft 5.2 in
