Takeuchi Luby Equipment images coming soon

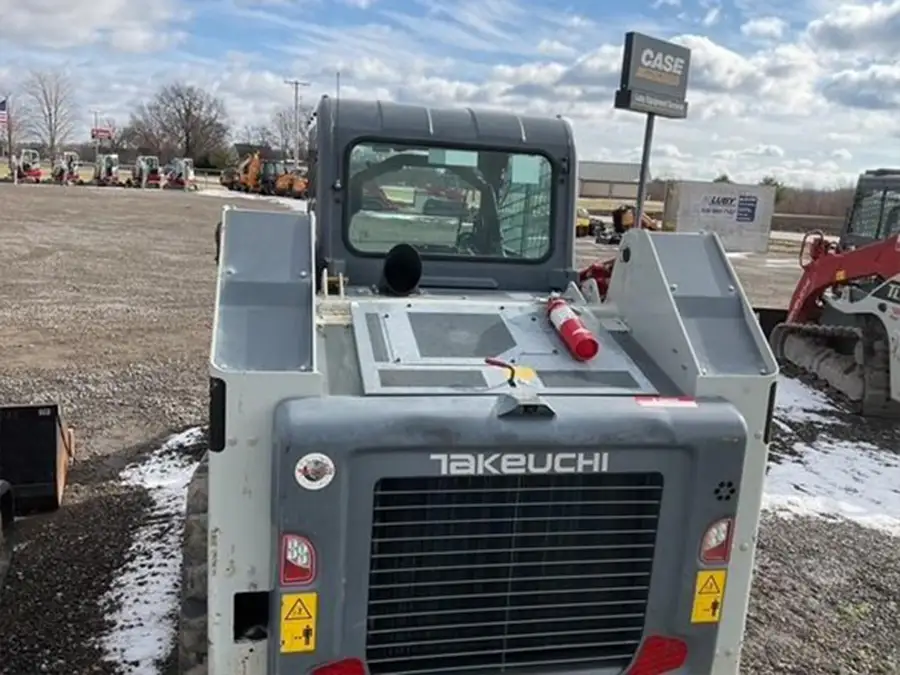

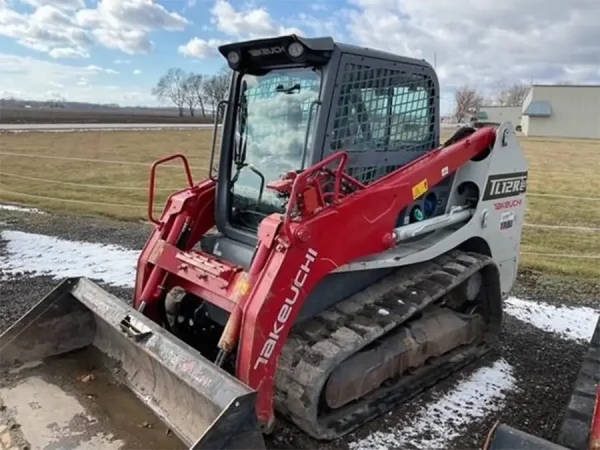

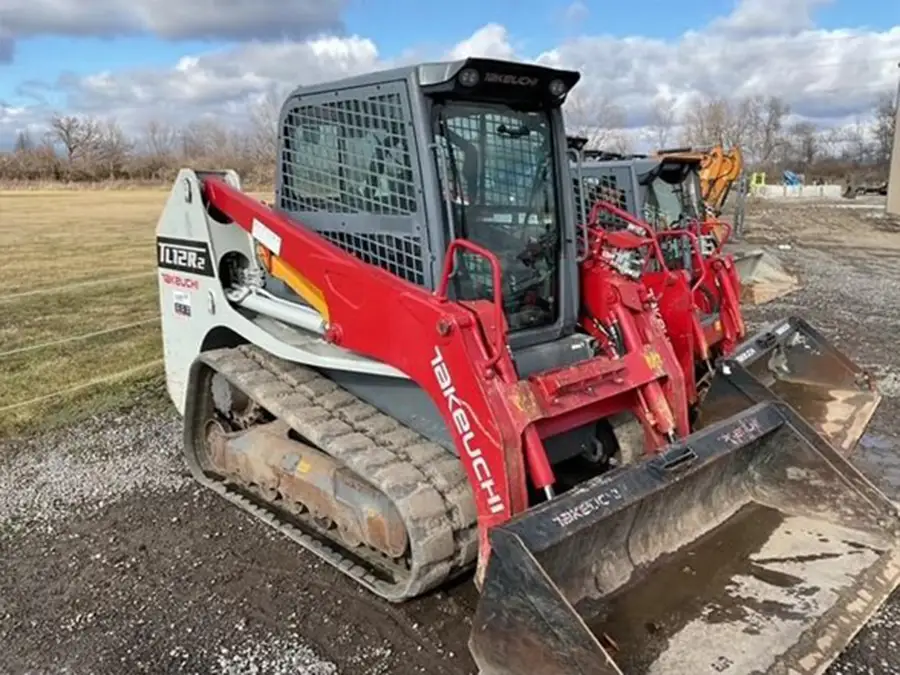

2022 Takeuchi TL12R2 Compact Track Loader – EQ0026175

Name: 2022 Takeuchi TL12R2 Compact Track Loader - EQ0026175
Brand: Takeuchi
SKU: EQ0026175
Availability: InStock

$50,159.00

Request more information:

2022 Takeuchi TL12R2 radial lift loader Track Loader for Sale in Springfield, IL at lubyequipment.com. Cab, HVAC, Pilot Controls, Standard Flow Hydraulics, Smooth or Tooth Buckets Available for Purchase.

BRAND	Takeuchi
MODEL	TL12R2
CONDITION	Used
YEAR	2022
HOURS	2,238
HORSEPOWER	111.3 hp
ROPS	Enclosed
OPERATING WEIGHT	13,190 lb
PRODUCT	Track Loader
LOCATION	Springfield, IL

For over 50 years, Luby Equipment has been the authorized dealer of CASE CE and Takeuchi Equipment in St. Louis and surrounding areas. Our reputation is built on trust, transparency, and a commitment to always deliver reliable, high-quality used equipment that performs.

Whether you’re buying for the first time or adding to your fleet, we provide peace of mind with every purchase. Always Transparent, Globally Trusted—contact us today for top-quality used equipment and unmatched customer service.

DOWNLOAD BROCHURE: Takeuchi TL12R2 Compact Track Loader

SKU: EQ0026175 Categories: Takeuchi, Track Loader Tags: compact, Used Equipment Product Condition: Used Brand: Takeuchi

Description
Additional information

2022 Takeuchi TL12R2 Track Loader for Sale

Cab, HVAC, Pilot Controls, High Flow Hydraulics, Smooth or Tooth Buckets Available for Purchase.

Unmatched Performance: 2022 Takeuchi TL12R2 at Luby Equipment: Dominate your next project with a track loader that balances heavy-duty grit with precision engineering. The TL12R2 sets a new industry peak, offering a rugged, reliable platform that leaves standard machines in the dust.

High Flow Hydraulics: Drive your most intensive attachments with peak efficiency thanks to an advanced, high-pressure hydraulic suite.
Radial Lift Dominance: Optimized loader geometry provides elite breakout force and simplified maintenance for heavy-duty digging.

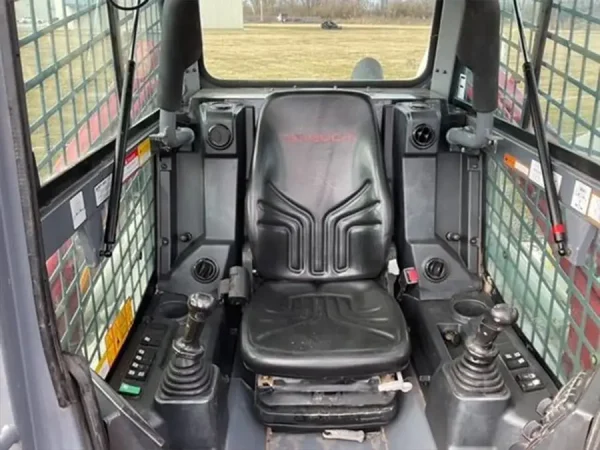

Luxury Operator Station: Work in a massive, refreshed cabin equipped with a space-saving overhead door for quick, effortless transitions.
Refined Motion: Experience the “Quiet Ride” difference with integrated flotation pads that dampen site noise and stabilize every movement.

TL12R2 Features

TL12R2 Specs

TL12R2 Dimensions

Additional information

Condition	Used
Hours	2,238
Location	Springfield, IL

OPERATING PERFORMANCE
Operating Weight – Canopy	12,300 lb	(5,580 kg)
Operating Weight – Cab	12,590 lb	(5,710 kg)
Tipping Load	8,629 lb	(3,915 kg)
Rated Operating Capacity (ISO 14397-1) @35%*	2,975 lb	(1,349 kg)
Operating Capacity w/ Opt Counterweight	3,291 lb	(1,493 kg)
Operating Load @ 50% of Tip Load	4,315 lb	(1,957 kg)
Bucket Breakout Force	8,210 lb	(3,722 kg)
Lift Arm Breakout Force	8,075 lb	(3,663 kg)
Traction Force	14,010 lb	(6,353 kg)
Ground Pressure – Canopy	4.58 psi	(31.6 kPa)
Ground Pressure – Cab	4.68 psi	(32.3 kPa)
Travel Speed – Low	5.0 mph	(8.1 km/hr)
Travel Speed – High	7.3 mph	(11.8 km/hr)
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
ENGINE
Make / Model	Kubota / V3800TIF4B-Turbo Intercooled
Engine Displacement	230 cu in	(3.8 L)
Horsepower @ 2,400 rpm	111.3 hp	(83.0 kW)
Maximum Torque @ 1,500 rpm	276 ft-lb	(374 Nm)
HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit	23.2 gpm	(88.0 Lpm)
Auxiliary Flow – High Flow (optional)	40.4 gpm	(153.0 Lpm)
Auxiliary Flow – Secondary Circuit (optional)	23.2 gpm	(88.0 Lpm)
Hydraulic System Pressure	3,481 psi	(24.0 MPa)
FLUID CAPACITIES
Engine Lubrication	13.9 qt	(13.2 L)
Cooling System	19.0 qt	(18.0 L)
Fuel Tank Capacity	31.6 gal	(119.5 L)
DEF Fluid Tank Capacity	4.8 gal	(18.0 L)
Fuel Consumption (65% of Full Load)	3.8 gal/hr	(14.4 L /hr)
Hydraulic Reservoir Capacity	13.2 gal	(50.0 L)
Hydraulic System Capacity	20.9 gal	(79.0 L)

MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin	10 ft 6.0 in	(3,200 mm)
Dump Height Fully Raised	7 ft 10.5 in	(2,400 mm)
Dump Reach Fully Raised	3 ft 1.8 in	(960 mm)
Dump Angle	42°
Rollback Angle	30°
Track Ground Contact Length	5 ft 7.5 in	(1,716 mm)
Machine Length	10 ft 6.2 in	(3,205 mm)
Transport Length	13 ft 3.3 in	(4,045 mm)
Transport Height	7 ft 7.0 in	(2,311 mm)
Departure Angle	30°
Clearance Circle with Bucket	8 ft 4.6 in	(2,555 mm)
Clearance Circle without Bucket	5 ft 4.4 in	(1,635 mm)
Clearance Circle Rear	6 ft 0 in	(1,829 mm)
Track Width	17.7 in	(450 mm)
Ground Clearance	12.5 in	(320 mm)
Overall Width without Bucket	6 ft 5.2 in	(1,960 mm)

ENGINE
EPA Final Tier 4 Emission Compliant
Turbocharged and Intercooled
DOC+DPF+SCR Exhaust After Treatment
Automatic Fuel Bleed System
Active Power Control Power Management System
Working Modes – Power and ECO
Dual Element Air Filter
High Capacity Radiator, Hydraulic Oil Cooler and Intercooler Mounted Side-by-Side on Swing Out Frame

ELECTRICAL
Sealed Rocker Switches
12 volt System with 80 amp Alternator
LED: Two Front and Two Rear
Engine Preheat
Hour Meter
Back-up Alarm
Horn

UNDERCARRIAGE AND FRAME
Double Reduction Planetary Drives
Permanently Sealed Track Rollers with Metal Face Seals
Fully Welded Frame with Integrated Cross Members
2 Speed Travel
17.7″ Rubber Track
Grease Type Track Adjuster
Front and Rear Tie-Down Points and Lift Points
Rear Bumper Integrated into Frame
OPERATOR’S STATION

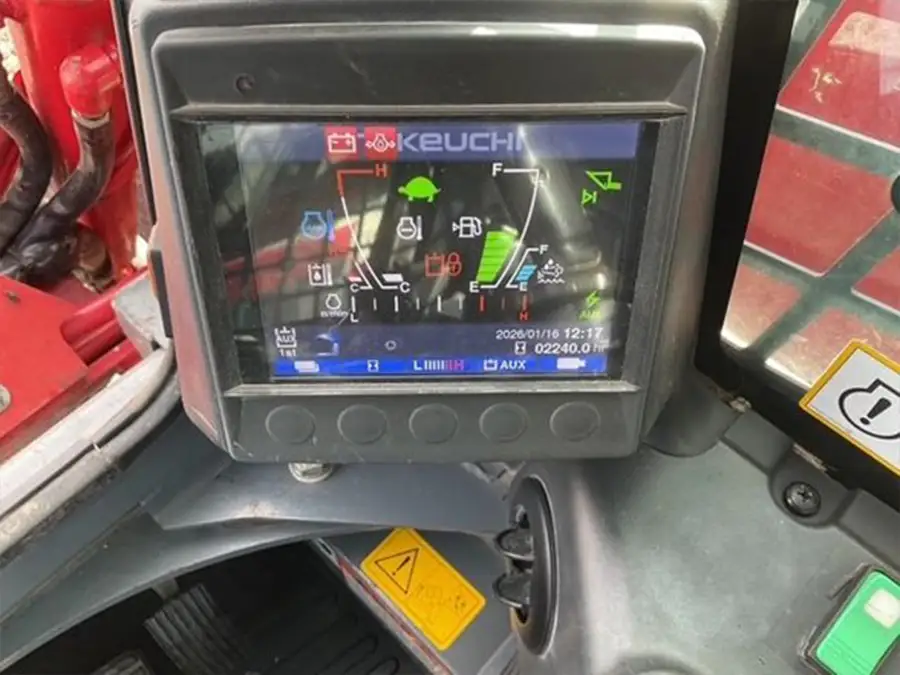

5.7″ Color Multi-Informational Display with Rear Camera
Tilt-up Operator’s Station
Deluxe High Back Suspension Seat
Rear Pivoting Lap Bar with Arm Rest
ROPS / FOPS Structure
Dial Throttle Control
Retractable 2″ Seat Belt
Foot Throttle
Pressurized Cab with Roll-up Door, A/C, Heat, Defrost and Front Wiper, and AM / FM / MP3 Radio with NOAA Weatherband (optional)
Retractable 3″ Seat Belt (optional)
3 Point Retractable Seat Belt (optional)

2022 Takeuchi TL12R2 Compact Track Loader – EQ0026175

Request more information:

2022 Takeuchi TL12R2 Track Loader for Sale

TL12R2 Features

TL12R2 Specs

TL12R2 Dimensions

Additional information

Related products

2024 Takeuchi TL8R2 Compact Track Loader – 408007376

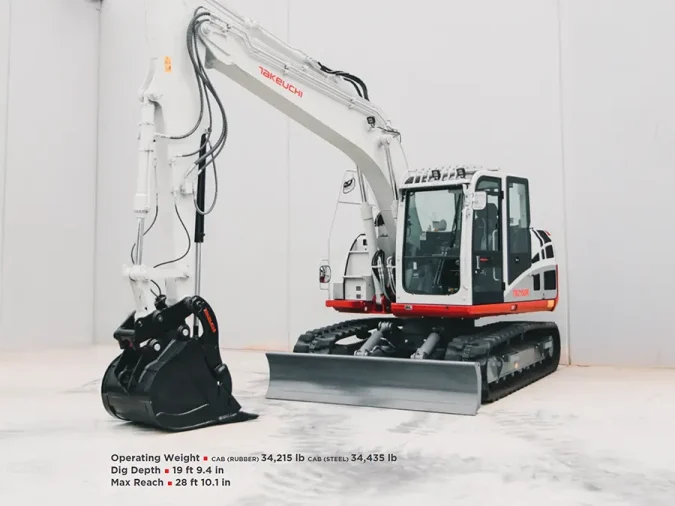

Takeuchi Compact Excavator TB2150
