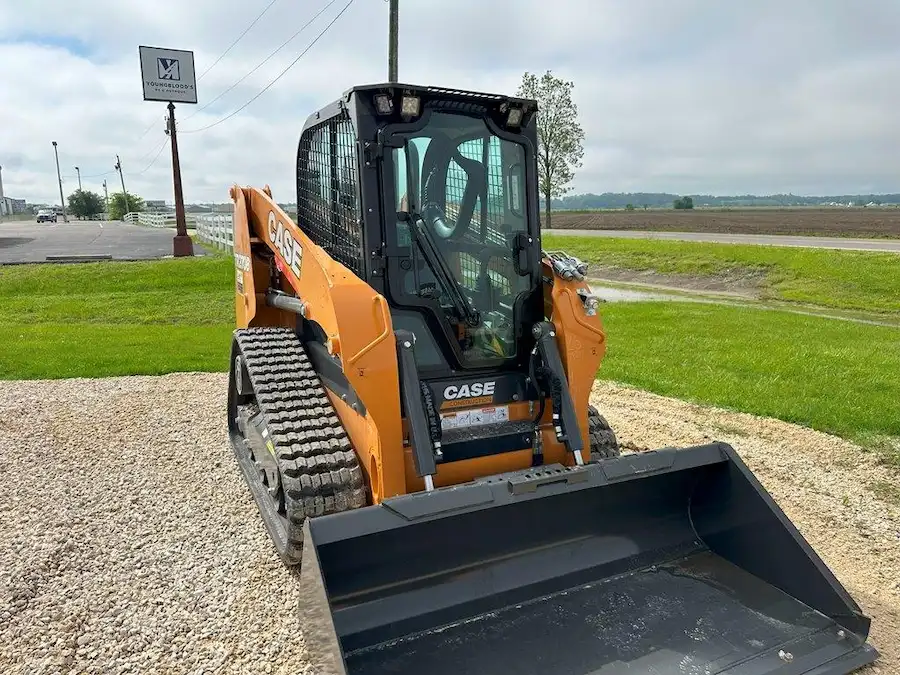

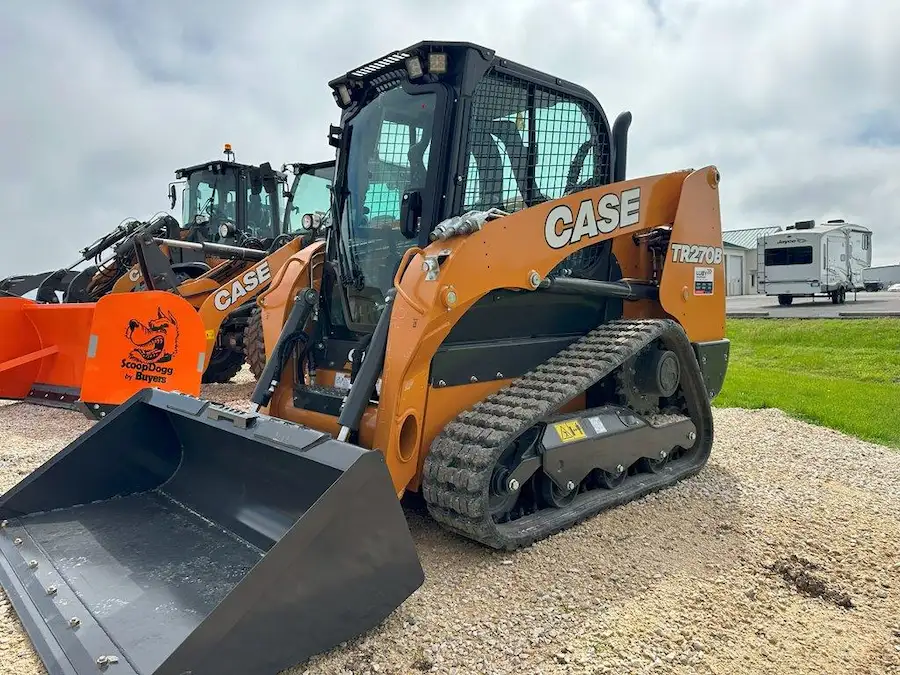

2024 CASE TR270B Compact Track Loader – EQ0034206

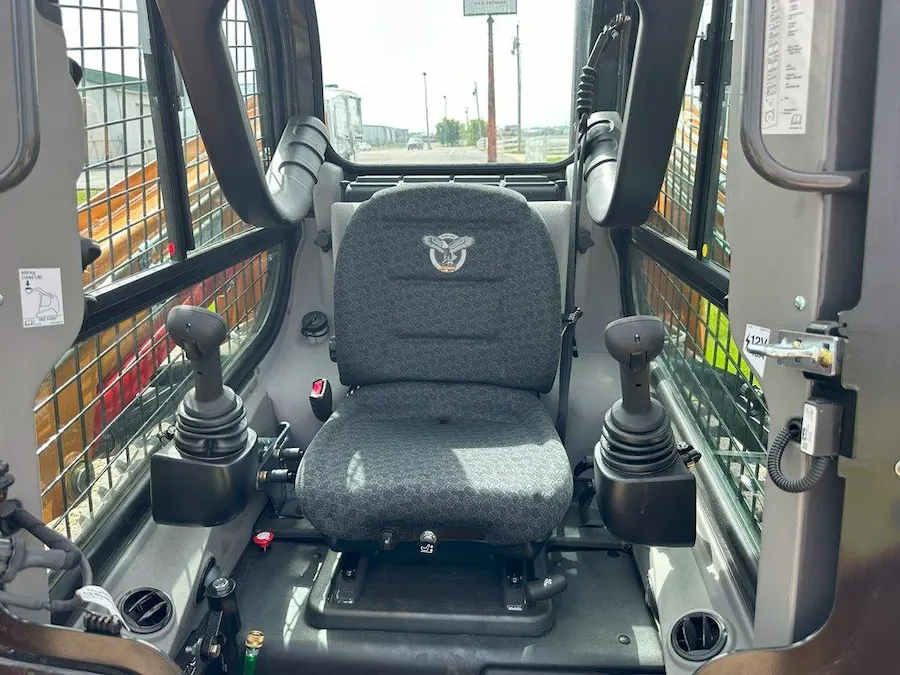

Visibility and Comfort: Enjoy unparalleled visibility with a backup camera, cab-wide rearview mirror, and large windows. The spacious cab offers ample legroom and comfort with redesigned controls, cupholders, and air vents.

Optimal Control: Choose from electro-hydraulic, mechanical, or mechanical hand and foot configurations. Electro-hydraulic models feature an 8-inch LCD multi-function display for precise control, customizable settings, and easy switching between operating patterns.

Productivity and Performance: With a 2,700-pound operating capacity, 74 horsepower, and optional high-flow auxiliary hydraulics, the TR270B delivers outstanding performance for various applications.

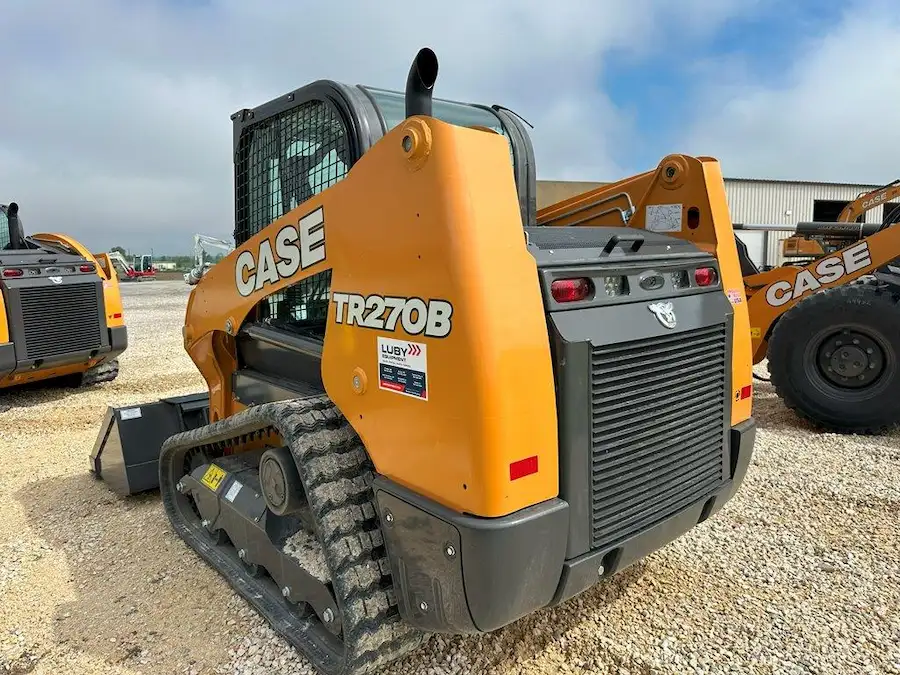

Ease of Ownership: Critical checks and service points are conveniently grouped at the rear of the machine. The maintenance-free Tier 4 Final emissions solution eliminates the need for fluids and lifetime filter service or replacement, ensuring hassle-free ownership.

OPERATING PERFORMANCE
Operating Weight – 8,270
Tipping Load – 5,400 lb

Rated operating capacity – ROC*:
35% of tipping load – 1,890 lb
50% of tipping load – 2,700 lb
w/ additional counterweight – 2,800 lb

Breakout forces @ 3,150 psi
Bucket cylinders – 7,270 lb
Lift cylinders – hydraulic limit – 6,260 lb

Travel speed:
Low range – 5.1 mph
High range – 8.0 mph

HYDRAULIC SYSTEM
Standard flow @ rated engine RPM: @ 100% efficiency 24.2 gpm
Optional high-flow @ rated engine RPM: @ 100% efficiency 32.4 gpm

ENGINE
Model – FPT F5H FL463 A*G001
Engine Displacement – 207 in3
Horsepower @ 2,500 rpm – 74 hp
Maximum Torque @ 1,400 rpm – 232 lb·ft

Overall operating height:
with foundry/excavating bucket – 155.6 in
with low profile bucket – 159.8 in
with low profile extended bucket – 164.6 in

Height to:
Bucket hinge pin – 125.1 in
Top of ROPS – 78.7 in
Bottom of level bucket, fully raised – 117.7 in

Overall length:
without attachment with coupler – 104.8 in
with foundry/excavating bucket on ground – 129.1 in
with low profile bucket – 133.4 in
with low profile extended bucket – 138.3 in

Dump height:
with foundry/excavating bucket – 100.6 in @ 38.1°
with low profile bucket – 98.0 in @ 38.1°
