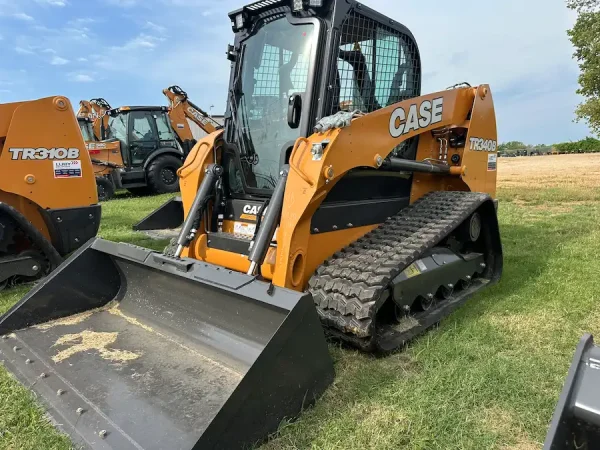

2024 CASE TR340B Compact Track Loader – EQ0037047

• Rated Operating Capacity: 3,400 pounds at 50% tipping load.
• Auxiliary Hydraulics: Optional high-flow (3,050 psi at 37.6 gpm) or enhanced high-flow (4,000 psi at 35 gpm) for versatile attachment operation.

Unmatched Visibility and Comfort

Experience industry-leading visibility and comfort with features designed to enhance productivity and reduce operator fatigue:

• Superior Visibility: Backup camera, cab-wide rearview mirror, large front and side windows, low entry threshold, and 360-degree lighting.
• Comfort: One of the industry’s widest cabs, redesigned controls, and ergonomic control handles.
• Additional Features: Low-sloping rear hood for better visibility, cupholders, and air vents for increased comfort.

Precision Control

Optimize your operational efficiency with unparalleled control options:

• Control Configurations: Available in electro-hydraulic, mechanical, and mechanical hand and foot configurations.
• Electro-hydraulic Models Feature an 8-inch LCD multi-function display that makes switching between ISO and H operating patterns, saving operator profiles, and adjusting machine responsiveness easy.

Exceptional Productivity and Performance

The TR340B is engineered for peak productivity and performance in challenging conditions:

• Power: a 90-horsepower engine with excellent breakout force (8,700 pounds at the bucket) and torque.
• Versatility: Enhanced high-flow auxiliary hydraulics for operating heavy-duty attachments like cold planers and mulchers.

Simplified Ownership

Designed with the operator in mind, the TR340B simplifies maintenance and operation:

• Maintenance: Critical checks and service points are easily accessible at the rear of the machine.
• Operational Data: An 8-inch LCD multi-function display provides real-time information.
• Emissions Solution: Features a selective catalytic reduction (SCR) solution that requires no regular maintenance; just fill the DEF tank as needed.

Operator Environment

• Safety and Comfort: ROPS/FOPS Level 1 canopy with side screens, tilt functionality, and a rear window with emergency escape enhance safety. A suspension seat with a retractable seat belt and padded seat bar with armrests ensures comfort.
• Convenience Features: Includes keyed and keyless start ignition, AM/FM radio with Bluetooth, rearview mirror, dome light, top window, cup holder, 12V power plug socket, footrest, and seat pocket for operator convenience.
• Control and Monitoring: Features hand and foot throttle, alarm package, loader control lockout system, electric parking brake control, and an advanced instrument cluster for comprehensive control and monitoring.
• Visibility Enhancements: Equipped with a rearview mirror, headliner, and top window to improve visibility and working efficiency.

Engine

Powered by an FPT F5B FL413 D*C001 engine, the TR340B delivers impressive power with 90 hp gross and 84 hp net. The engine is Tier 4 Final Certified, utilizing Selective Catalytic Reduction (SCR) and High-Pressure Common Rail (HPCR) fuel injection for optimal performance and emissions control.

Drivetrain

A 2-speed hydrostatic drivetrain and SAHR disc parking brake provide reliable movement and stopping power, ensuring smooth operation in various terrains and job conditions.

Hydraulics

The TR340B boasts a robust hydraulic system featuring auxiliary hydraulics at 3,050 psi, a 6-micron oil filtration system, and a heavy-duty hydraulic oil cooler, among other features. This system is designed to handle demanding tasks with ease.

Loader

The radial lift geometry and a heavy-duty hydraulic attachment coupler underscore the machine’s versatility. The SAE operating load of 3,400 lbs and a tipping load of 6,800 lbs highlight the TR340B’s capacity for heavy-duty tasks.

Tracks

Equipped with durable rubber tracks, the TR340B ensures superior traction and minimal ground disturbance, making it suitable for various working conditions and environments.

Other Standard Features

Includes LED lights, pre-wiring for rotating beacon, lockable service access hood, single-point daily servicing, rear tail lights, and more, aimed at enhancing usability and maintenance.

Telematics

CASE SiteWatch™ Telematics, with a 5-year data subscription and SiteConnect Module, provides advanced remote diagnostics capabilities, ensuring efficient fleet management and operational monitoring.

Operator Environment Enhancements

• Enclosed Cab: Upgrade to a fully sealed and pressurized FSP cab with a glass door, wiper, and washer, removable sliding side windows, and an integrated heater ventilation system. Options include a heater and air conditioner, AM/FM Bluetooth radio with USB port, keyless start ignition, and an 8-inch color LCD display.
• Comfort and Control: Select from electro-hydraulic controls for drive/steering and loader functions with adjustable sensitivity, switchable between H and ISO patterns, mechanical hand controls, or hand and foot controls for precise operation. A deluxe cloth air suspension seat with a heater and lumbar support offers superior comfort.
• Advanced Features: Economy mode with auto idle shutdown, auto engine protection shutdown, demolition cab door with polycarbonate, ignition timeout, machine settings, user access levels, operator security codes, and auto idle settings enhance efficiency, security, and convenience.

Hydraulic System Options

• High-Flow Auxiliaries: Choose between high-flow auxiliary hydraulics at 3,050 psi and 37.6 gpm for increased power and versatility or the enhanced high-flow system at 4,000 psi and 35.0 gpm for even more demanding attachments.
• Additional Hydraulic Features: Options include second auxiliary hydraulics, hydraulic one-way self-leveling, and ride control for improved load management and ride quality.

Loader Customizations

• Enhance your loader with auxiliary front electric control, a manual attachment coupler for versatile attachment capabilities, and various bucket options for specific tasks.

Drivetrain and Mobility

• Creep Speed Mode: For precision tasks requiring slow, steady movement.
• EZ Trac: Opt for a suspension track with a bogey wheel design for improved traction and ride comfort across uneven terrain.

Additional Options and Attachments

• Customize your TR340B with language decals, factory-installed tires, special paint, offsite service arrangements, and add-on counterweights for increased stability. Lighting options include road lights, a rotating beacon, and a four-corner LED strobe for enhanced visibility and safety.
• Factory Supplied Attachments: Consider adding 48-inch pallet forks for material handling versatility.

Service Parts

• Upgrade to a 3-inch retractable seat belt for added safety, and choose from bolt-on heavy-duty bucket teeth and cutting edges to enhance bucket durability and performance.

Engine Specification	Detail
Model	FPT F5B FL413 D*C001
Emissions Certification	Tier 4 Final
Type	Diesel, Turbo – Direct Injection
Cylinders	4
Bore/Stroke	3.9 x 4.3 in (99 x 110 mm)
Displacement	207 in³ (3.4 L)
Fuel Injection	Direct
Fuel	#2 Diesel
Fuel Filter	Pre-filter Beta (30) = 200/spin-on, Main filter Beta (4) = 20/spin-on
Air Intake	Turbocharged w/ waste gate and external cooled EGR
Exhaust Aftertreatment	Selective Catalytic Reduction (SCR)
Cooling	Liquid
Engine Speeds RPM	High idle – no load 2500 +/- 25, Rated – full load 2500, Low idle 1150 +/- 25
Horsepower @ 2500 RPM – SAE J1349	Gross 90 hp (67 kW), Net 84 hp (63 kW)
Peak Torque @ 1400 RPM	282 lb·ft (383 N·m)
Radiator	Core type Aluminum bar and plate, Core size area 319 in² (0.206 m²), Rows of tubes x columns 21, Cap pressure 16 +/- 2 psi (1.10 +/- 0.14 bar)
Fan	Diameter 22 in (560 mm), Ratio 0.96:1 standard, 1.1:1 high-flow
Water Pump	Style Centrifugal, Flow 47.8 gpm (181 L/min)
Engine Lubrication Pump	Rotor pump w/ deep sump pan, plate cooler, and pressurized under-piston nozzles
Pump Operating Angle Ratings	Side to side 45°, Bucket up 35°, Bucket Down 45°

Dimension	Measurement
A. Overall operating height	– Foundry/Excavating bucket: 157.2 in (3.99 m)
	– Heavy-duty dirt bucket: 161.4 in (4.10 m)
	– Low profile extended bucket: 166.2 in (4.22 m)
B. Height to bucket hinge pin	126.7 in (3.22 m)
C. Height to top of ROPS	80.4 in (2.04 m)
D. Bottom of level bucket, fully raised	118.7 in (3.02 m)
E. Overall length without attachment with coupler	118.2 in (3.00 m)
F. Overall length with bucket on ground	– Foundry/Excavating bucket: 142.6 in (3.62 m)
	– Heavy-duty bucket: 146.8 in (3.73 m)
	– Low profile extended bucket: 151.7 in (3.85 m)
G. Maximum dump angle	38.1°
H. Dump height	– Foundry/Excavating bucket: 102.2 in (2.59 m) @ 38.1°
	– Low profile bucket: 99.5 in (2.53 m) @ 38.1°
I. Dump reach at maximum height	– Heavy-duty bucket: 24.7 in (0.63 m) @ 38.1°
J. Maximum attachment rollback	– Bucket on ground: 30.6°
K. Bucket at full height	100.0°
L. Track on ground	64.5 in (1.64 m)
M. Ground clearance – bottom of belly pan	9.5 in (0.24 m)
N. Angle of departure	32.0°
O. Clearance circle without bucket	55.8 in (1.42 m)
P. Clearance circle with bucket in carry position	– 78 in Foundry/Excavating: 86.2 in (2.19 m)
	– 78 in Heavy-duty: 90.0 in (2.29 m)
	– 78 in Extended low profile: 94.4 in (2.40 m)
Q. Clearance circle rear	68.6 in (1.74 m)
R. Track gauge	58.6 in (1.49 m)
S. Over the track width	76.5 in (1.94 m)

Tier 4 Final

HPCR, EXTERNAL CEGR WITH DOC & SCR

Why this solution: As an after-treatment system, Selective Catalytic Reduction (SCR) lowers exhaust temperatures and does not require unproductive fuel use associated with burning off particulate matter, plus there’s no Diesel Particulate Filter (DPF) to replace making it a great solution for larger, high-productivity engines.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. Then the diesel oxidation catalyst (DOC) oxidizes the machine’s exhaust to create heat, further managing particulate matter emissions.

SCR is a simple solution that combines DEF (Diesel Exhaust Fluid) with exhaust to convert NOx emissions into nitrogen and water. DEF is a non-toxic liquid that reacts with engine exhaust in the presence of a catalyst to perform emissions conversion.

What this means to you: SCR provides a significant reduction in fuel use and has no DPF to replace, resulting in a lower total operating cost for the life of the machine. Keeping it running is simple – just refill DEF as needed.

Powered by an FPT engine.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Compact Track Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
