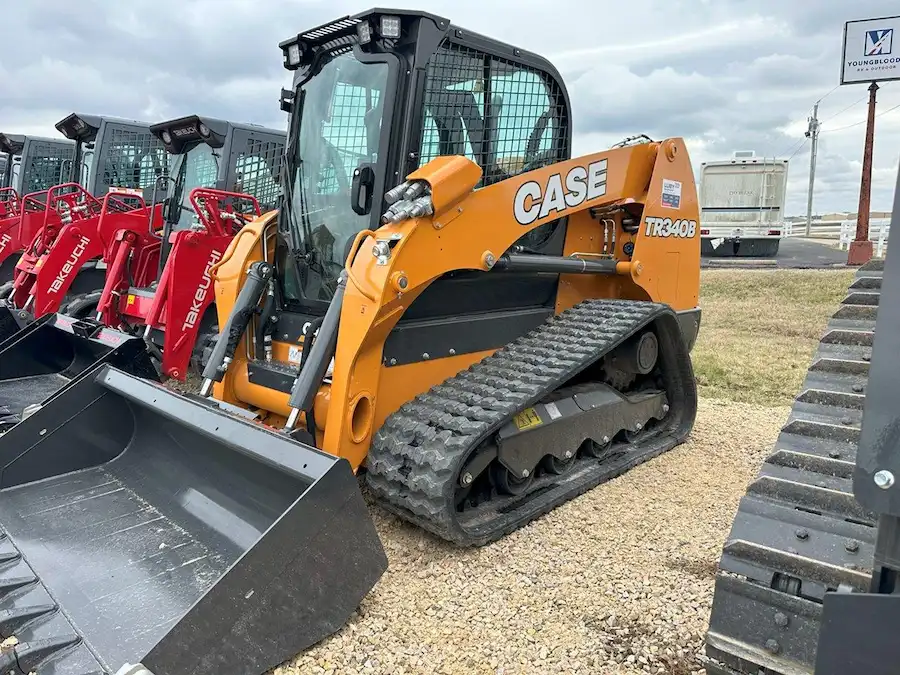

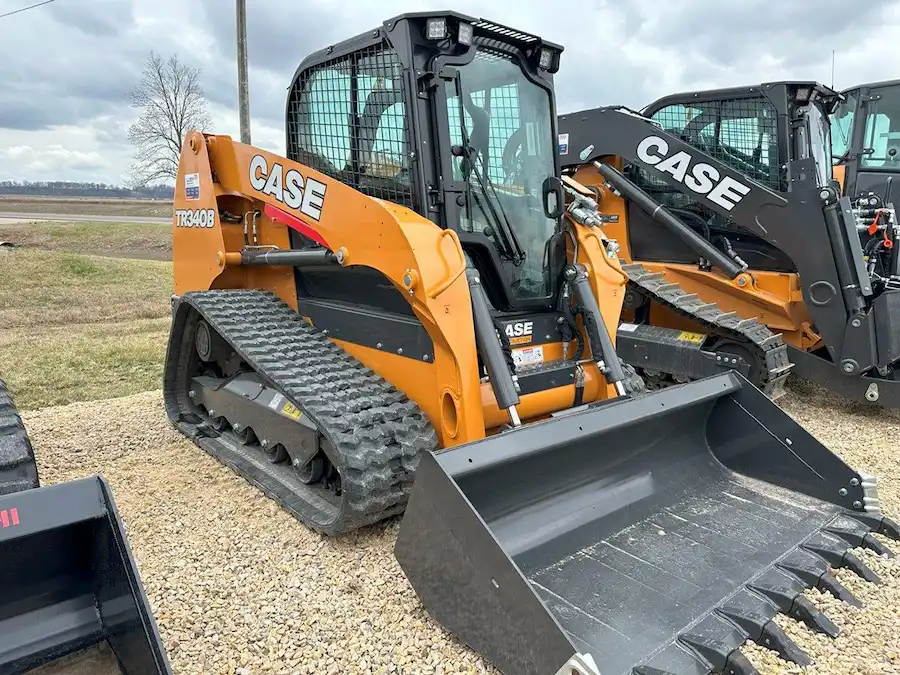

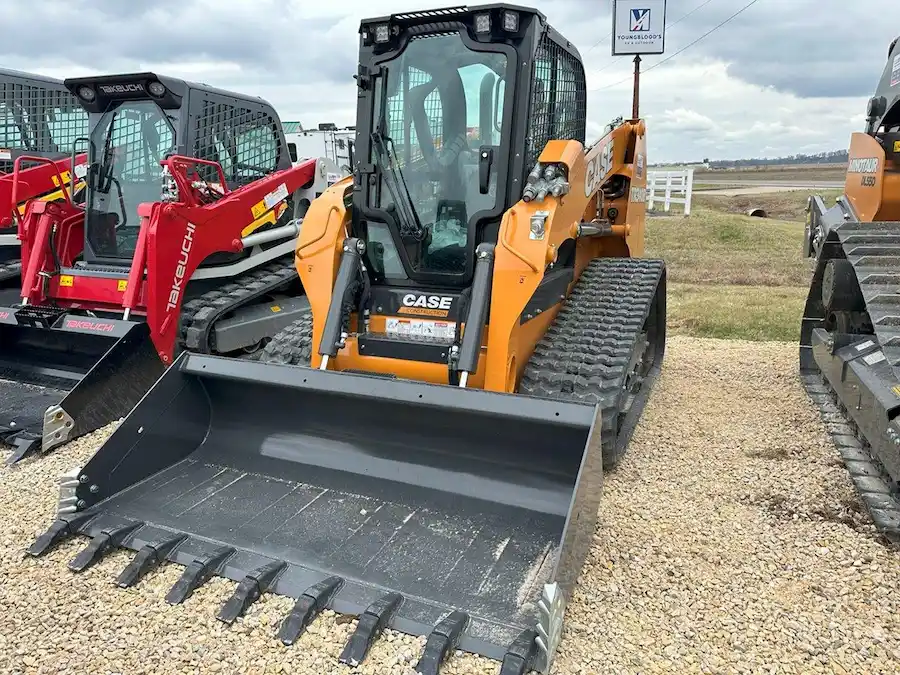

2024 CASE TR340B Compact Track Loader

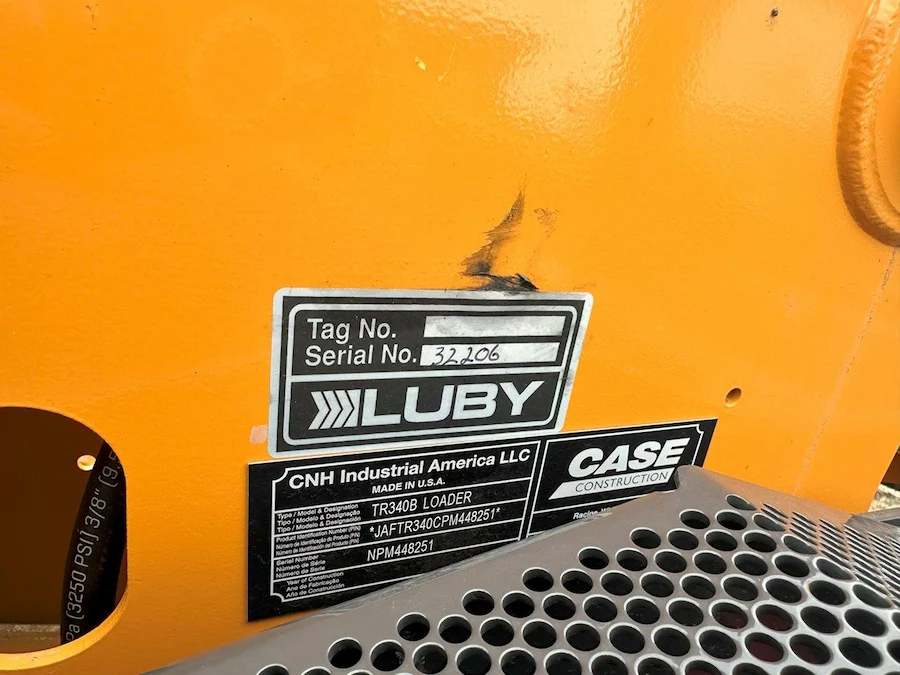

Experience unmatched power and efficiency with the TR340B, s/n NPM448251, High Flow Plus Package, in-stock at Luby Equipment, the most formidable radial-lift CTL in the CASE lineup. Engineered for heavy earthmoving and precise grading, this CTL delivers exceptional performance across diverse applications. With a robust 3,400-pound rated operating capacity at 50 percent tipping load, it effortlessly handles palletized materials with ease. For enhanced versatility, opt for optional high-flow (3,050 psi at 37.6 gpm) or enhanced high-flow (4,000 psi at 35 gpm) auxiliary hydraulics, transforming it into a versatile platform for attachment operation.
Visibility and Comfort
- Enjoy industry-leading visibility with a backup camera (operational in both forward and reverse), cab-wide rearview mirror, and large front and side windows.
- Benefit from a low entry threshold for easy access and greater visibility down to the bucket, alongside a low sloping rear hood and 360-degree lighting.

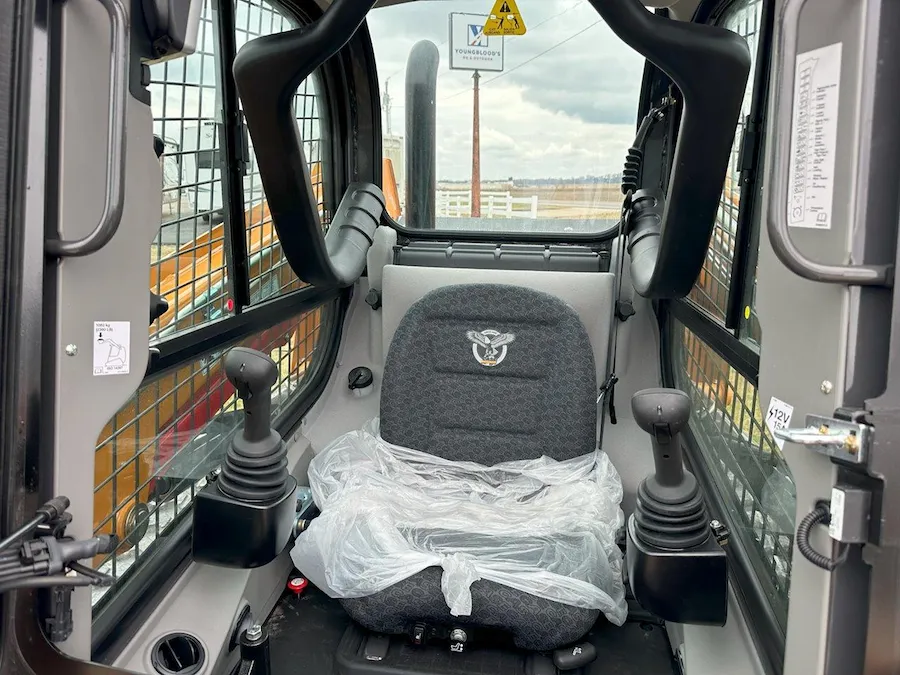

- Experience comfort throughout the day with one of the industry’s widest cabs, redesigned controls, cupholders, and air vents for enhanced legroom and comfort.
Optimal Control
- Choose from electro-hydraulic, mechanical, and mechanical hand and foot configurations for optimal control.
- Electro-hydraulic models feature an 8-inch LCD multi-function display, allowing easy switching between ISO and H operating patterns and the ability to save operator profiles and application settings.
- Adjust total machine responsiveness to low, medium, or high settings, or independently set loader arm and drive response according to operator preference.
Productivity and Performance
- The 90-horsepower TR340B delivers exceptional breakout force (8,700 pounds at the bucket) and torque, with a rated operating capacity of 3,400 pounds, making it highly versatile in earthmoving and material handling tasks.
- Optional enhanced high-flow auxiliary hydraulics provide flexibility to operate heavy-duty attachments such as cold planers and mulchers, boosting productivity.
Ease of Ownership
- All critical checks and service points are conveniently grouped at the rear of the machine for easy access.
- Stay informed with real-time data on machine operation and performance through the 8-inch LCD multi-function display.
- Enjoy hassle-free ownership with the machine’s selective catalytic reduction (SCR) emissions solution, requiring no regular maintenance—simply fill the diesel exhaust fluid (DEF) tank as needed!
OPERATING PERFORMANCE
Operating Weight – 10,000 lb
Tipping Load – 6,800 lb
Rated operating capacity – ROC*:
35% of tipping load – 2,380 lb
50% of tipping load – 3,400 lb
w/ additional counterweight – 3,600 lb
Breakout forces @ 3,150 psi
Bucket cylinders – 8,700 lb
Lift cylinders – hydraulic limit – 7,760 lb
Travel speed:
Low range – 5.1 mph
High range – 8.0 mph
HYDRAULIC SYSTEM
Standard flow @ rated engine RPM: @ 100% efficiency – 24.2 gpm
Optional high-flow @ rated engine RPM: @ 100% efficiency – 32.4 gpm
Enhanced high-flow @ rated engine RPM: @ 100% efficiency – 35.0 gpm
ENGINE
Model – FPT F5B FL413 D*C001
Engine Displacement – 207 in3
Horsepower @ 2,500 rpm – 90 hp
Maximum Torque @ 1,400 rpm – 282 lb·ft
Overall Operating Height:
with foundry/excavating bucket – 157.2 in
with low profile bucket – 161.4 in
with low profile extended bucket – 166.2 in
Height To:
Bucket hinge pin – 126.7 in
Top of ROPS – 80.4 in
Bottom of level bucket, fully raised – 118.7 in
Overall Length:
without attachment with coupler – 118.2 in
with foundry/excavating bucket on ground – 142.6 in
with low profile bucket – 146.8 in
with low profile extended bucket – 151.7 in
Dump Height:
with foundry/excavating bucket – 102.2 in @ 38.1°
with low profile bucket – 99.5 in @ 38.1°
Operating Weight: 10,000 lbs
