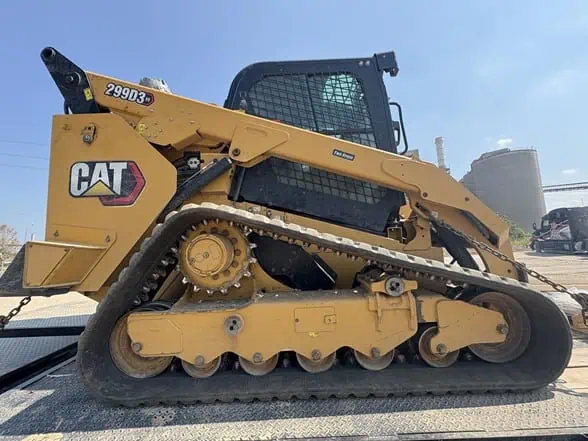

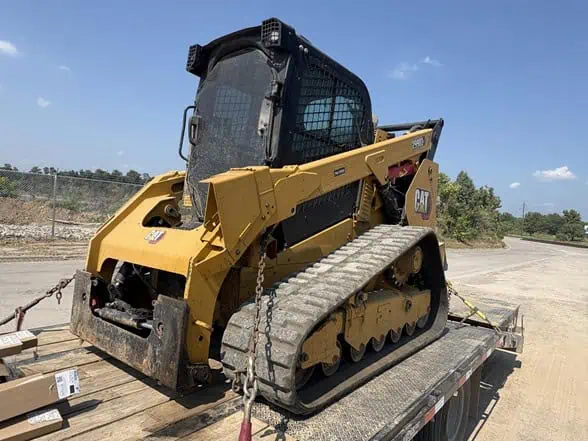

2024 Caterpillar 299D3 Track Loader XE Land Management

2024 Caterpillar 299D3 Track Loader XE Land Management for Sale

Cab, HVAC, ISO Controls, Land Management High Flow Hydraulics.

The Cat^® 299D3 XE Land Management Compact Track Loader is a segment focused machine solution for customers involved in demanding vegetation-management applications, ranging from mulching, brush-cutting, vegetation control, and mowing. The 299D3 XE Land Management machine’s powerful Cat C3.8 engine combined with its high-flow/high-pressure auxiliary hydraulic system to deliver a calculated hydraulic power rating of 70 kW (94 hp), resulting in optimum performance when powering high-production, hydro-mechanical attachments.

Specifications – Cat 299D3 XE Land Management Compact Track Loader

Engine

• Gross Power (SAE J1995-2014): 110 hp / 82 kW
• Net Power (SAE 1349): 106 hp / 79 kW
• Net Power (ISO 9249): 107 hp / 80 kW
• Displacement: 232 in³ / 3.8 L
• Bore: 3.9 in / 100 mm
• Stroke: 4.7 in / 120 mm
• Engine Model: Cat C3.8 DIT (turbo)
• Peak Torque (1,500 rpm): 276 ft·lb / 374 N·m

Operating Specifications

• Rated Operating Capacity – 35% Tipping Load: 4,340 lb / 1,975 kg
• Tipping Load: 12,400 lb / 5,635 kg
• Breakout Force (Tilt Cylinder): 7,270 lb / 3,298 kg
• Breakout Force (Lift Cylinder): 6,162 lb / 2,795 kg
• Ground Pressure (with 450 mm / 17.7 in tracks): 5.2 psi / 35.8 kPa
• Rated Operating Capacity – 50% Tipping Load: 6,200 lb / 2,820 kg
• Ground Contact Area (400 mm / 15.7 in tracks): 2,171 in² / 1.41 m²
• Ground Contact Area (450 mm / 17.7 in tracks): 2,443 in² / 1.58 m²
• Ground Pressure (with 400 mm / 15.7 in tracks): 5.9 psi / 40.5 kPa

Weights

• Operating Weight: 12,764 lb / 5,790 kg

Service Refill Capacities

• Cooling System: 4.1 gal (US) / 16 L
• Engine Crankcase: 3.5 gal (US) / 13 L
• Fuel Tank: 58 gal (US) / 220 L
• Hydraulic System: 14.5 gal (US) / 55 L
• Hydraulic Tank: 10.3 gal (US) / 39 L
• Diesel Exhaust Fluid (DEF) Tank: 5 gal (US) / 19 L

Dimensions

• Length – Track on Ground: 69.6 in / 1,767 mm
• Overall Length – Track: 89.4 in / 2,270 mm
• Height – Top of Cab: 83.6 in / 2,125 mm
• Ground Clearance: 9.6 in / 245 mm
• Departure Angle: 33°
• Maximum Dump Angle: 54°
• Turning Radius from Center – Coupler: 58.1 in / 1,476 mm
• Turning Radius from Center – Machine Rear: 74 in / 1,881 mm
• Vehicle Width (400 mm / 15.7 in tracks): 76 in / 1,931 mm
• Turning Radius from Center – Bucket (racked): 91.1 in / 2,314 mm
• Length – Without Bucket: 125.5 in / 3,189 mm
• Bucket Pin Reach – Maximum Lift: 19.4 in / 493 mm
• Clearance at Maximum Lift and Dump: 94.5 in / 2,399 mm
• Rack Back Angle – Maximum Height: 81°
• Vehicle Width (450 mm / 17.7 in tracks): 78 in / 1,982 mm
• Maximum Overall Height: 158.7 in / 4,032 mm
• Reach – Maximum Lift/Dump: 33.6 in / 852 mm
• Length – With Bucket on Ground: 154.7 in / 3,931 mm
• Maximum Reach – With Arms Parallel to Ground: 51.9 in / 1,319 mm
• Bucket Pin Height – Maximum Lift: 126.3 in / 3,208 mm
• Bucket Pin Height – Carry Position: 7.1 in / 180 mm
• Roll Back Angle: 25°

Cab

• ROPS: ISO 3471:2008
• FOPS: ISO 3449:2005 Level I

Hydraulic System

• Standard Flow Mode – Loader Hydraulic Flow: 23 gpm / 86 L/min
• Standard Flow Mode – Loader Hydraulic Pressure: 3,335 psi / 23,000 kPa
• Standard Flow Mode – Hydraulic Power (Calculated): 44 hp / 33 kW
• XE Mode – Hydraulic Power (Calculated): 94 hp / 70 kW
• XE Mode – Maximum Loader Hydraulic Flow*: 40 gpm / 150 L/min
• XE Mode – Maximum Loader Hydraulic Pressure: 4,061 psi / 28,000 kPa
• Note: *When equipped with Cat 400 Series work tools.

Power Train

• Travel Speed – Two Speed: 8.3 mph / 13.3 km/h
• Travel Speed – One Speed: 5.5 mph / 8.9 km/h

Noise Level

• Inside Cab*: 83 dB(A)
• Outside Cab**: 104 dB(A)
• *Measured with cab doors and windows closed & 70% engine-cooling fan speed.
