2024 Takeuchi TL6R Compact Track Loader – 406005327
Request more information:
New 2024 Takeuchi TL6R Compact Track Loader at Luby Equipment – Fenton, MO location. Open Cab, Pilot Controls, Standard Flow, Hydraulic Coupler, Tooth Bucket.
Location: Fenton, MO
Rops: Enclosed
S/N: 406005327
Luby Equipment is the authorized CASE CE & Takeuchi dealer of Springfield, IL and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!
DOWNLOAD BROCHURE: Takeuchi TL6R Track Loader
2024 Takeuchi TL6CR

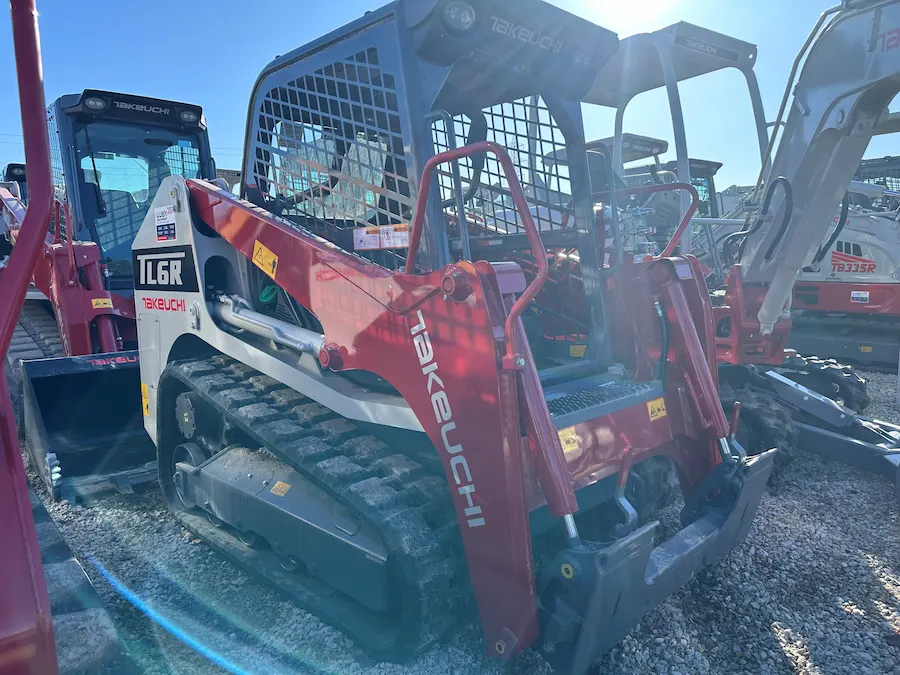

The Takeuchi TL6R, s/n 406005327, in-stock at Luby Equipment in Fenton, MO: Engineered with a radial lift loader design and compliant with all current emission standards. Its compact dimensions, at 6 ft 5.8 in height and just over 5 ft width, make it ideal for job sites with space restrictions. The redesigned cabin features a 5.7” color multi-informational display and backlit rocker switches for easy operation. Plus, enjoy a quiet ride with the standard quiet track design and flotation pads, reducing vibration and noise levels for enhanced comfort.
TL6R Features
ENGINE
U.S. EPA Final Tier 4 Emission Compliant
Turbocharged
DOC+DPF Exhaust After Treatment
Active Power Control Power Management System
Working Modes – Power and ECO
Automatic Fuel Bleed System
High-Capacity Radiator and Hydraulic Oil Cooler Mounted Side-by-Side on Swing Out Frame
Dual Element Air Filter
ELECTRICAL
Sealed Rocker Switches
12-volt System with 60-amp Alternator
Work Lights, Front and Rear
Engine Preheat
Hour Meter
Back-up Alarm
Horn
UNDERCARRIAGE AND FRAME
Permanently Sealed Track Rollers with Metal Face Seals
Double and Triple Flange Track Rollers
Fully Welded Frame with Integrated Cross Members
Front and Rear Tie-Down and Lift Points
Integrated Rear Bumper
2 Speed Travel
12.6″ Quiet Ride Track Design

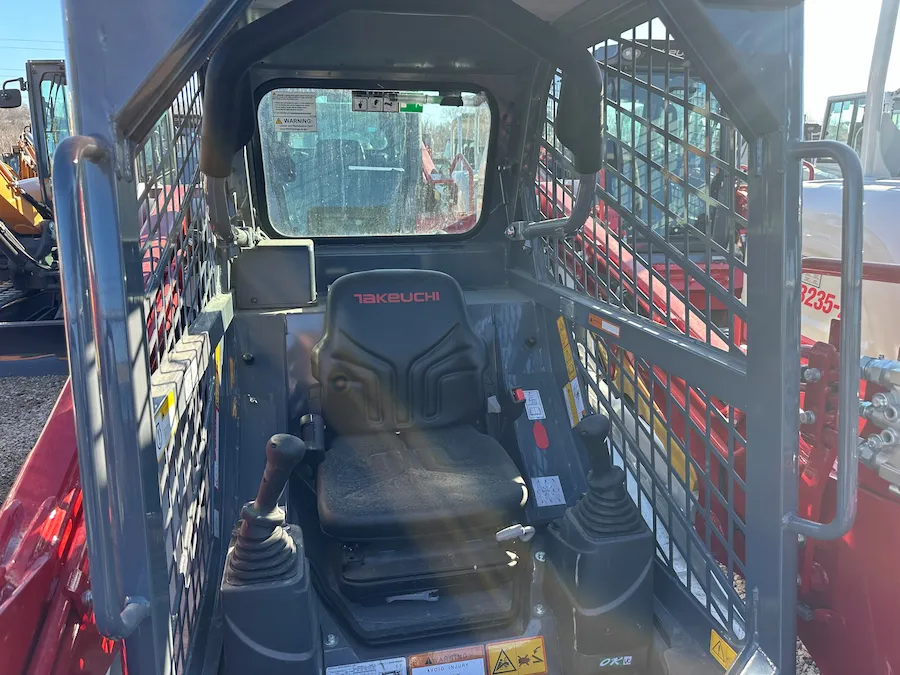

OPERATOR’S STATION
5.7″ Color Multi-Informational Display with Rear View Camera
Tilt-up Operator’s Station
Deluxe Adjustable Suspension Seat
Rear Pivoting Seat Bar with Integrated Arm Rest
ROPS / FOPS Structure
Retractable 2″ Seat Belt
Retractable 3″ Seat Belt (optional)
3 Point Retractable Seat Belt (optional)
Pressurized Cab with Swing Out Door, A/C, Heat, Defrost and Front Wiper (optional)
AM/FM/MP3 Radio with NOAA Weatherband (optional)
HYDRAULIC & WORKING EQUIPMENT
Cushioned Boom Cylinders
Boom Float with Detent
Hydraulic Pilot Controls
Proportional Auxiliary Controls with Detent
Pressure Relieving 1/2″ Flat Faced Coupler Body
14-Pin Connector
Hydraulic Self Leveling
Mechanical Quick Coupler (Canopy)
Hydraulic Quick Coupler – Cab – Standard Equipment
Hydraulic Quick Coupler – Canopy – optional
Primary Flow Auxiliary Hydraulics 18.4 gpm
TL6R Specs
OPERATING PERFORMANCE
Operating Weight – Canopy 7,485 lb
Operating Weight – Cab 7,780 lb
Tipping Load – 5,269 lb
Rated Operating Capacity, SAE J818* – 1,841 lb
Operating Load at 50% of Tipping Load – 2,635 lb
Bucket Breakout Force – 5,930 lb
Lift Arm Breakout Force – 4,860 lb
Traction Force – 8,655 lb
Ground Pressure – 12.6″ Track 5.1 psi
Travel Speed – Low 4.3 mph
Travel Speed – High 6.2 mph
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit – 17.8 gpm
Hydraulic System Pressure – 2,988 psi
ENGINE
Make / Model Kubota / V2403-CR-TE4B
Engine Displacement – 148.5 cu in
Horsepower @ 2,700 rpm – 65.2 hp
Maximum Torque @ 1,500 rpm – 144.3 ft-lb
FLUID CAPACITIES
Engine Lubrication – 7.6 qt
Cooling System – 14.0 qt
Fuel Tank Capacity – 20.0 gal
Fuel Consumption (65% of Full Load) – 2.69 gal/hr
Hydraulic Reservoir Capacity – 7.9 gal
Hydraulic System Capacity – 13.5 gal
TL6R Dimensions
MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin – 9 ft 6.4 in
Dump Height Fully Raised – 7 ft 5.6 in
Dump Reach Fully Raised – 1 ft 10.0 in
Dump Angle – 38°
Rollback Angle – 31°
Track Ground Contact Length – 4 ft 6.9 in
Machine Length – 8 ft 9.9 in
Transport Length – 10 ft 11.1 in
Transport Height – 6 ft 5.8 in
Departure Angle – 30°
Clearance Circle with Bucket – 6 ft 10.5 in
Clearance Circle without Bucket – 4 ft 6.9 in
Clearance Circle Rear – 4 ft 11.8 in
Track Width – 12.6 in
Ground Clearance – 9.1 in
Overall Width without Bucket – 5 ft 0.2 in
Additional information
Condition | New |
---|---|
Year | 2024 |
Rops | Open/Canopy |
