2024 Takeuchi TL6CR – SOLD

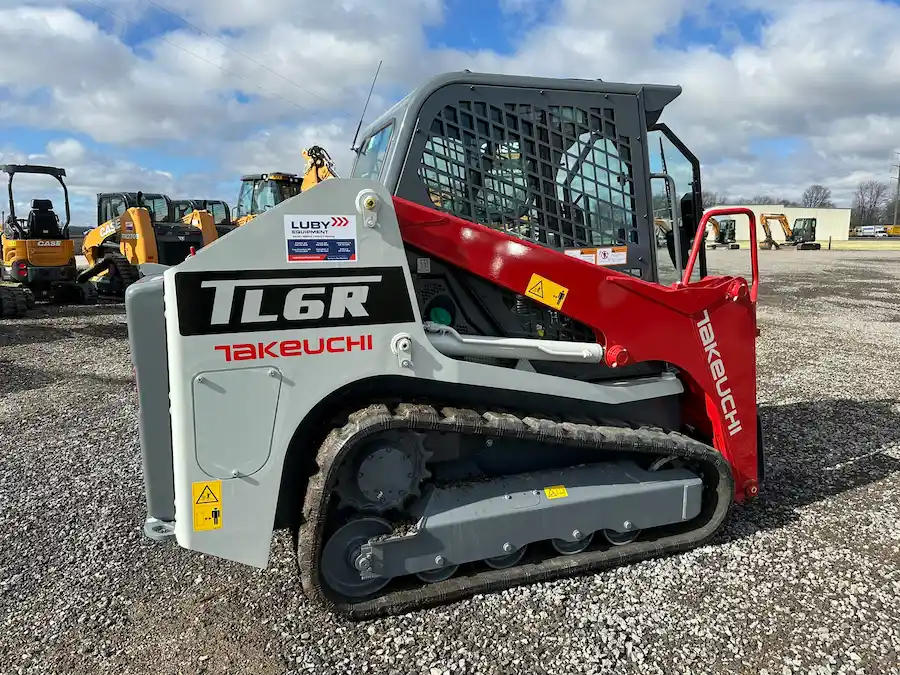

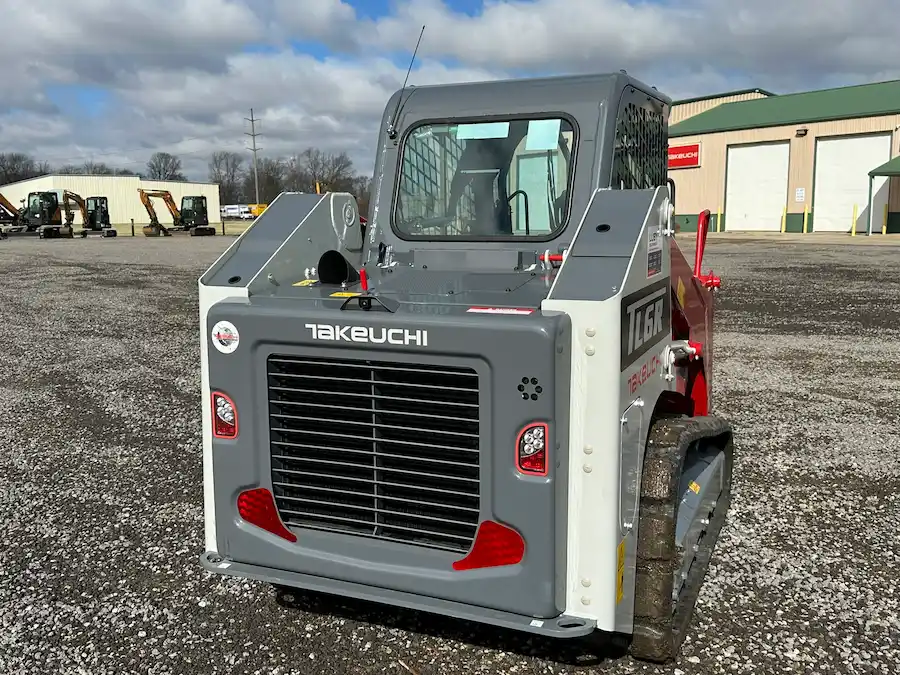

The Takeuchi TL6R, s/n 406005462, in-stock at Luby Equipment in Springfield, IL: Engineered with a radial lift loader design and compliant with all current emission standards. Its compact dimensions, at 6 ft 5.8 in height and just over 5 ft width, make it ideal for job sites with space restrictions. The redesigned cabin features a 5.7” color multi-informational display and backlit rocker switches for easy operation. Plus, enjoy a quiet ride with the standard quiet track design and flotation pads, reducing vibration and noise levels for enhanced comfort.
ENGINE
U.S. EPA Final Tier 4 Emission Compliant
Turbocharged
DOC+DPF Exhaust After Treatment
Active Power Control Power Management System
Working Modes – Power and ECO
Automatic Fuel Bleed System
High-Capacity Radiator and Hydraulic Oil Cooler Mounted Side-by-Side on Swing Out Frame
Dual Element Air Filter
ELECTRICAL
Sealed Rocker Switches
12-volt System with 60-amp Alternator
Work Lights, Front and Rear
Engine Preheat
Hour Meter
Back-up Alarm
Horn
UNDERCARRIAGE AND FRAME
Permanently Sealed Track Rollers with Metal Face Seals
Double and Triple Flange Track Rollers
Fully Welded Frame with Integrated Cross Members
Front and Rear Tie-Down and Lift Points
Integrated Rear Bumper
2 Speed Travel
12.6″ Quiet Ride Track Design

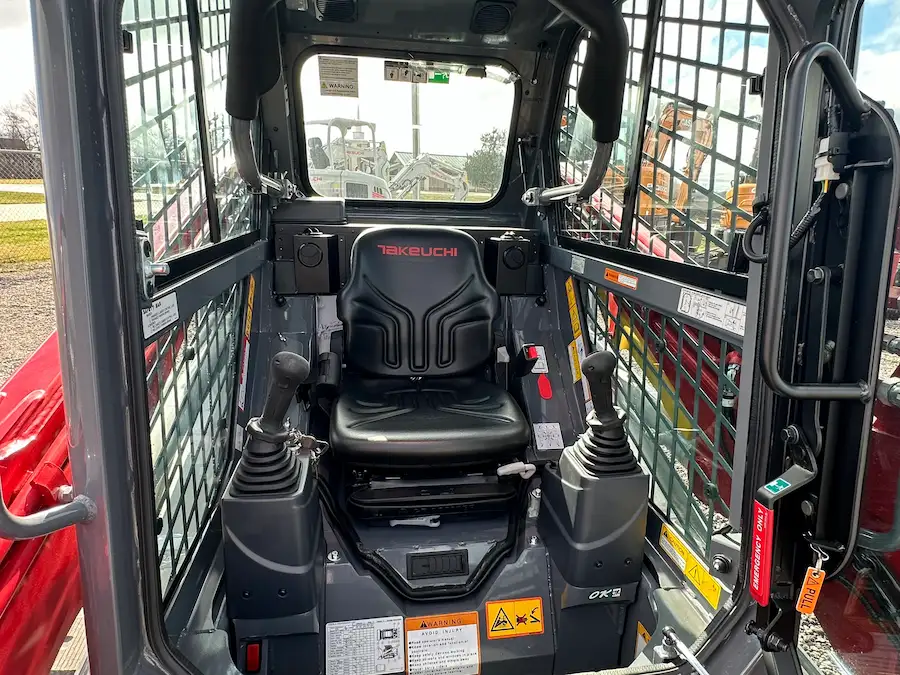

OPERATOR’S STATION
5.7″ Color Multi-Informational Display with Rear View Camera
Tilt-up Operator’s Station
Deluxe Adjustable Suspension Seat
Rear Pivoting Seat Bar with Integrated Arm Rest
ROPS / FOPS Structure
Retractable 2″ Seat Belt
Retractable 3″ Seat Belt (optional)
3 Point Retractable Seat Belt (optional)
Pressurized Cab with Swing Out Door, A/C, Heat, Defrost and Front Wiper (optional)
AM/FM/MP3 Radio with NOAA Weatherband (optional)
HYDRAULIC & WORKING EQUIPMENT
Cushioned Boom Cylinders
Boom Float with Detent
Hydraulic Pilot Controls
Proportional Auxiliary Controls with Detent
Pressure Relieving 1/2″ Flat Faced Coupler Body
14-Pin Connector
Hydraulic Self Leveling
Mechanical Quick Coupler (Canopy)
Hydraulic Quick Coupler – Cab – Standard Equipment
Hydraulic Quick Coupler – Canopy – optional
Primary Flow Auxiliary Hydraulics 18.4 gpm
OPERATING PERFORMANCE
Operating Weight – Canopy 7,485 lb
Operating Weight – Cab 7,780 lb
Tipping Load – 5,269 lb
Rated Operating Capacity, SAE J818* – 1,841 lb
Operating Load at 50% of Tipping Load – 2,635 lb
Bucket Breakout Force – 5,930 lb
Lift Arm Breakout Force – 4,860 lb
Traction Force – 8,655 lb
Ground Pressure – 12.6″ Track 5.1 psi
Travel Speed – Low 4.3 mph
Travel Speed – High 6.2 mph
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit – 17.8 gpm
Hydraulic System Pressure – 2,988 psi
ENGINE
Make / Model Kubota / V2403-CR-TE4B
Engine Displacement – 148.5 cu in
Horsepower @ 2,700 rpm – 65.2 hp
Maximum Torque @ 1,500 rpm – 144.3 ft-lb
FLUID CAPACITIES
Engine Lubrication – 7.6 qt
Cooling System – 14.0 qt
Fuel Tank Capacity – 20.0 gal
Fuel Consumption (65% of Full Load) – 2.69 gal/hr
Hydraulic Reservoir Capacity – 7.9 gal
Hydraulic System Capacity – 13.5 gal
MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin – 9 ft 6.4 in
Dump Height Fully Raised – 7 ft 5.6 in
Dump Reach Fully Raised – 1 ft 10.0 in
Dump Angle – 38°
Rollback Angle – 31°
Track Ground Contact Length – 4 ft 6.9 in
Machine Length – 8 ft 9.9 in
Transport Length – 10 ft 11.1 in
Transport Height – 6 ft 5.8 in
Departure Angle – 30°
Clearance Circle with Bucket – 6 ft 10.5 in
Clearance Circle without Bucket – 4 ft 6.9 in
Clearance Circle Rear – 4 ft 11.8 in
Track Width – 12.6 in
Ground Clearance – 9.1 in
Overall Width without Bucket – 5 ft 0.2 in
