2025 Takeuchi TB370 Compact Excavator – EQ0050541
$105,595.00
Request more information:

2025 TAKEUCHI TB370 Compact Excavator For Sale in Fenton, MO at lubyequipment.com. Cab, HVAC, Rubber Tracks, Dozer Blade, Pin Grabber, Thumb, Multiple Buckets Available for Purchase!
| BRAND |
TAKEUCHI |
|---|---|
| MODEL |
TB370 |
| CONDITION |
Used/Like New |
| YEAR |
2025 |
| HOURS |
55 |
| HORSEPOWER |
56.9 hp |
| ROPS |
Enclosed |
| OPERATING WEIGHT |
14,850 lbs |
| PRODUCT |
Mini Excavator |
| LOCATION |
Fenton, MO |
For over 50 years, Luby Equipment has been the authorized dealer of CASE CE and Takeuchi Equipment in St. Louis and surrounding areas. Our reputation is built on trust, transparency, and a commitment to always deliver reliable, high-quality used equipment that performs.
Whether you’re buying for the first time or adding to your fleet, we provide peace of mind with every purchase. Always Transparent, Globally Trusted—contact us today for top-quality used equipment and unmatched customer service.
DOWNLOAD BROCHURE: Takeuchi TB370 Compact Excavator

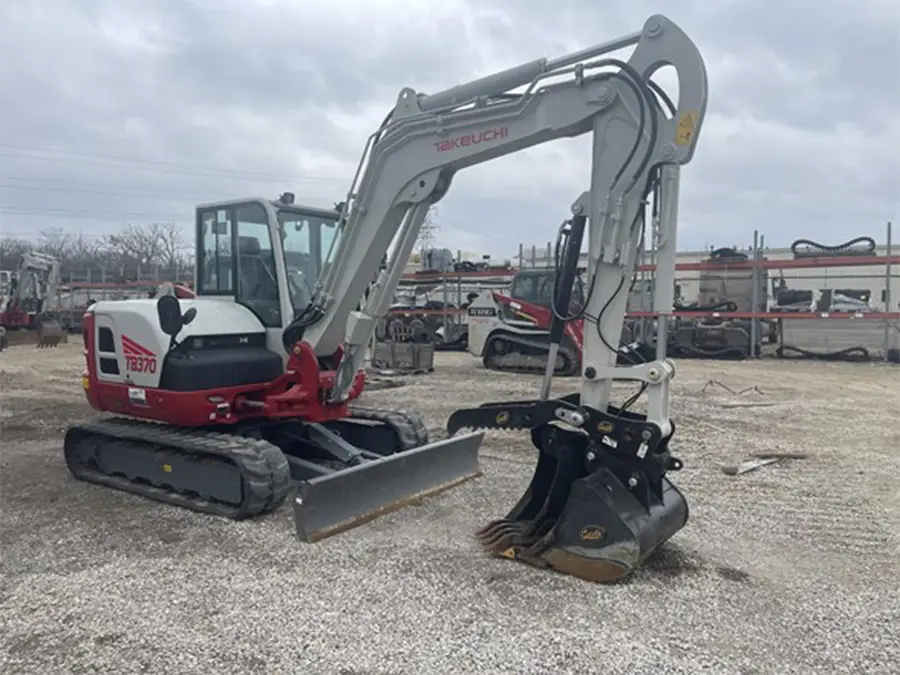

2025 Takeuchi TB370 Compact Excavator
Cab, HVAC, Auxiliary Hydraulics, Hydraulic Thumb, Multiple Buckets Available
Experience the ultimate in power and precision with the 2025 Takeuchi TB370, now available at Luby Equipment. As the flagship of Takeuchi’s “New Generation” lineup, this 7-ton compact excavator combines rugged performance with an automotive-style interior designed for all-day comfort. Whether you’re tackling utility work, landscaping, or farm drainage, the TB370 delivers best-in-class working range and the advanced hydraulic versatility needed to power your most demanding attachments.+1
Key Specs and Features
- Superior Performance: Equipped with a 56.9 hp turbocharged Kubota engine and a closed-center, load-sensing hydraulic system that provides a massive 31.7 gpm primary auxiliary flow.
- Redesigned Operator Station: Features a spacious, climate-controlled cab with an intuitive 8-inch color touchscreen monitor, jog-dial controls, and a high-back suspension seat.
- Heavy-Duty Capability: Boasts a maximum digging depth of 13′ 4.7″ and a bucket breakout force of 14,613 lbs, supported by triple-flange track rollers for maximum stability and durability.
Contact Luby Equipment today to schedule a demo or learn more about our flexible financing and rental options!
TB370 Features
ENGINE
EPA Tier 4 Final
Turbocharged
DOC+DPF Exhaust After Treatment
Automatic Fuel Priming System
Dual Element Air Cleaner
Working Modes: Standard and ECO
Automatic Cold Start Device
High-Capacity Radiator and Hydraulic Oil Cooler
Engine Safe Start System
90 Amp Alternator
UNDERCARRIAGE AND FRAME
Triple Flanged Track Rollers
2-Speed Axial Piston Travel Motors with Counterbalance Valves
Integrated Load Sensing Automatic Shift Down
Integrated Fail-Safe Mechanical Parking Brake
Automatic Slew Break with Shock-less Relief Valve
Concealed in Frame Travel Motor Hoses
High Torque Final Planetary Drives
Heavy Duty Backfill Blade with Float
Large Wrap-Around Counterweight
Power Angle Blade (Optional)
15.7″ Rubber Tracks
15.7″ Steel Tracks (Optional)
15.7″ Segmented Rubber Tracks (Optional)

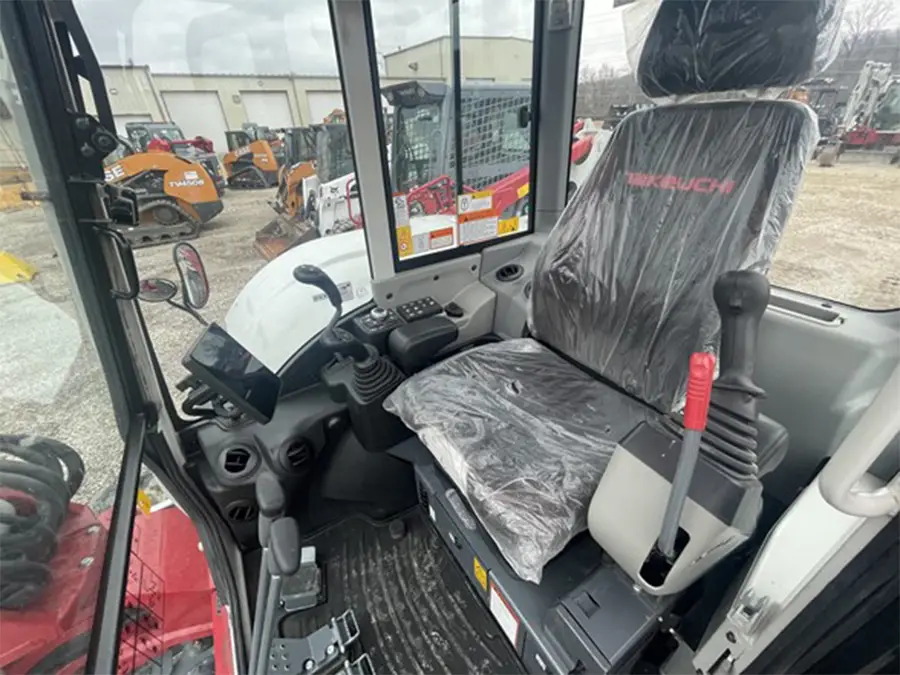

OPERATOR’S STATION
Cab with Automatic Climate Control System
Windshield Wiper and Washer
Skylight with Sunshade
AM/FM Radio with Bluetooth
8″ Color Multifunction LCD Touchscreen Display
Jog Dial with Multifunction Panel
Multifunction Joystick Controls
Hand Dial Electronic Throttle Control
Rear View Camera
Pilot Control Safety Lockout System
ROPS/FOPS/OPG Level 1 Cab
Deluxe High Back Suspension Seat
Removable Washable Floor Mat
Cup Holder
Adjustable Arm Rests
12 Volt Power Socket
2′ Retractable Seat Belt
3′ Retractable Seat Belt (Optional)
HYDRAULIC & WORKING EQUIPMENT
Variable Displacement, Axial Piston Hydraulic Pump with Tandem Gear Pumps
Closed Center, Load Sensing Hydraulic System
Cushioned Boom and Swing Cylinders
Boom Holding Valve with Integrated Lift Overload Alarm
Hydraulic Pilot Controls
High Flow Primary Auxiliary Circuit Plumbed to Mid-Arm with Shutoff Valves
Secondary Auxiliary Hydraulic Circuit Plumbed to Mid-Arm with Shutoff Valves
Integrated Hydraulic Attachment Quick Connect System (Couple Optional)
Automatic One-Way Flow Valve for Primary Auxiliary Circuit
Automatic Auxiliary Circuit Pressure Release Feature
Pilot Pressure Accumulator Valve
Pilot Control Pattern Change Valve (ISO/SAE)
LED Work Lights
Main Boom Cylinder Guard
Long Arm with Integrated Thumb Mount
Dual Pin Position Bucket (optional)
Hydraulic Pin Grabber Coupler (optional)
Mechanical Bucket Quick Coupler (optional)
Main Pin Hydraulic Thumb (optional)
TB370 Specs
OPERATING PERFORMANCE
Operating Weight – 14,850 lb
Slew Speed – 8.8 rpm
Travel Speed – Low Range 1.6 mph
Travel Speed – High Range 2.9 mph
Gradeability – 30 deg
Ground Pressure Cab (Rubber) – 5.4 psi
Max Bucket Breakout Force – 14,613 lb
Max Arm Digging Force – 6,609 lb
Traction Force – 16,479 lb
Boom Swing Angle (Left/Right) – 79 deg / 51 deg
HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit 31.7 gpm
Auxiliary Flow – Secondary Circuit 12.3 gpm
Hydraulic System Pressure 3,550 psi
ENGINE
Make / Model Kubota V2607-CR-TE5B
Displacement 159.6 cu in
Horsepower @ 2,200 rpm 56.9 hp
Maximum Torque @ 1,500 rpm 168.1 ft-lb
FLUID CAPACITIES
Engine Lubrication – 9.5 qt
Cooling System – 11.6 qt
Fuel Tank Capacity – 29.0 gal
Hydraulic Reservoir Capacity – 17.3 gal
Hydraulic System Capacity – 36.7 gal
TB370 Dimensions
MACHINE DIMENSIONS
Maximum Reach – 21′ 11.4″
Maximum Reach at Ground Level – 21′ 6.4″
Maximum Digging Depth – 13′ 4.7″
Maximum Vertical Digging Depth – 12′ 6.2″
Maximum Height of Cutting Edge – 21′ 0.7″
Maximum Dumping Height – 14′ 11.0″
Front Swing Radius – 8′ 5.5″
Front Swing Radius with Boom Offset – 6′ 8.3″
Slew Radius – 4′ 9.4″
Transport Length – 19′ 5.2″
Transport Height – 8′ 4.0″
Upper Structure Overall Width – 6′ 10.5″
Ground Clearance – 13.2″
Undercarriage Length – 8′ 5.4″
Undercarriage Width – 6′ 10.7″
Track Width (Rubber) – 15.7″
Additional information
| Model | |
|---|---|
| Condition | Used |
| Hours | 55 |
| Location | Fenton, MO |
