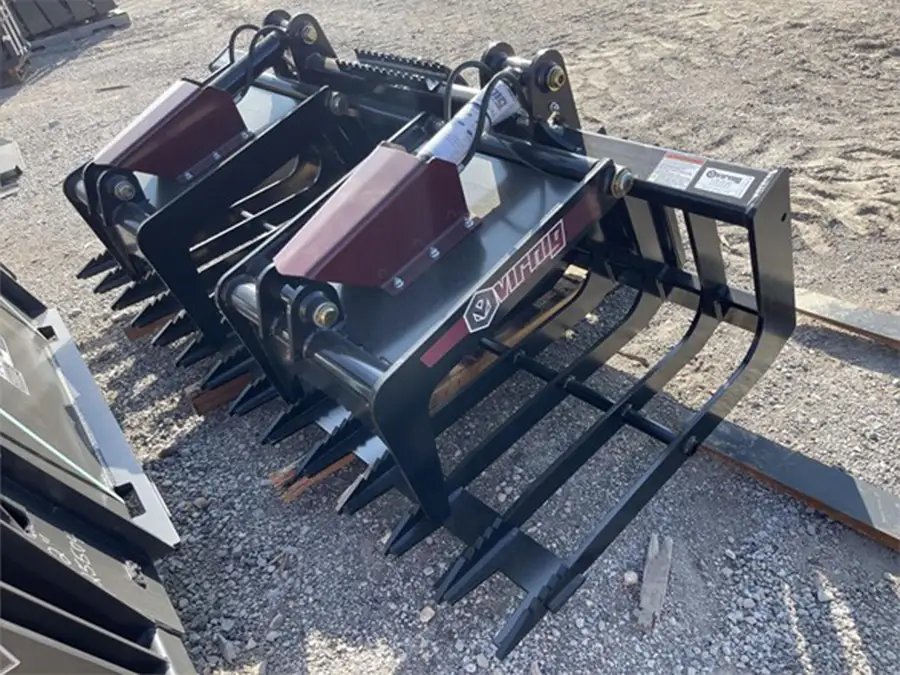

78″ Virnig V50 Skeleton Grapple – SGV78
Request more information:

Virnig V50 – SGV78 Skeleton Grapple for sale or rent at Luby Equipment. Two-cylinder independent grapple with and open sided design for hauling brush and logs. Open bottom allows dirt to fall through.
| BRAND |
Virnig |
|---|---|
| MODEL |
V50 – SGV78 |
| CONDITION |
New |
| YEAR |
2025 |
| HOURS |
– |
| HORSEPOWER |
– |
| ROPS |
– |
| OPERATING WEIGHT |
– |
| PRODUCT |
V50 Skeleton Grapple |
| LOCATION |
Fenton, MO |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of St. Louis and the surrounding areas that has been in business for over 50 years. We have the knowledge and experience to give you peace of mind when purchasing used equipment. Always Transparent, Globally Trusted. Call us today!
Virnig V50 Skeleton Grapple | 78″ Heavy-Duty Debris Handler
The Virnig V50 Skeleton Grapple (SGV78) is one of the most versatile and popular attachments in the industry, specifically designed to tackle logs, brush, and bulky demolition debris. This 78-inch grapple features an open-sided design, making it the ideal tool for hauling long logs and wide brush piles that extend beyond the frame
Features:
Maximum Rigidity and Strength
Unmatched structural integrity is the core of the SGV78 design. Every tine is constructed from one solid piece of 1/2″ Grade 80 steel, running from the tip all the way to the top brace. This single-piece construction adds incredible rigidity, ensuring the grapple can handle the prying and heavy lifting of professional land clearing without bending
Independent Dual-Cylinder Control
The V50 is a two-cylinder independent grapple, allowing the jaws to clamp securely around uneven loads. Whether you are grasping a tapered log or a jagged pile of scrap, the independent action ensures a balanced grip. To protect these vital components, NitroSteel® cylinder rods and Teflon® coated bushings are used on all pivots, providing superior rust resistance and smooth operation.
Efficient Open-Bottom Design
The open-bottom skeleton floor allows dirt, rocks, and fine debris to fall through while you retain the larger material. This ensures you move only what you need to, saving weight and keeping your transport loads clean. For added peace of mind, the unit comes standard with cylinder guards to protect the hydraulics from falling debris.
Specs
| Model | SGV60 | SGV66 | SGV72 | SGV78 | SGV84 | SGV90 |
|---|---|---|---|---|---|---|
| Overall Width (in) | 61.5 | 67.5 | 73.5 | 79.5 | 85.5 | 91.5 |
| Height: Overall/Bucket (in) | 27.8/21.3 | 27.8/21.3 | 27.8/21.3 | 27.8/21.3 | 27.8/21.3 | 27.8/21.3 |
| Overall Depth (in) | 39.9 | 39.9 | 39.9 | 39.9 | 39.9 | 39.9 |
| Number of Tines (with sides) | 11 | 12 | 13 | 14 | 15 | 16 |
| Space Between Tines (in) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Tine Thickness (in) | 0.5* | 0.5* | 0.5* | 0.5* | 0.5* | 0.5* |
| Cylinder Bore / Stroke (in) | 2.0/8.375 | 2.0/8.375 | 2.0/8.375 | 2.0/8.375 | 2.0/8.375 | 2.0/8.375 |
| Cylinder Pins / Hinge Pins Diameter (in) | 1.25/1.563 | 1.25/1.563 | 1.25/1.563 | 1.25/1.563 | 1.25/1.563 | 1.25/1.563 |
| Grapple Jaw Opening (in) | 36.1 | 36.1 | 36.1 | 36.1 | 36.1 | 36.1 |
| Approximate Weight (lbs) | 815 | 850 | 885 | 920 | 955 | 990 |
| Recommended Loader Capacity | > 1500 lbs | > 1500 lbs | > 1500 lbs | > 1500 lbs | > 1500 lbs | > 1500 lbs |
Additional information
| Condition | New |
|---|---|
| Year | 2025 |
