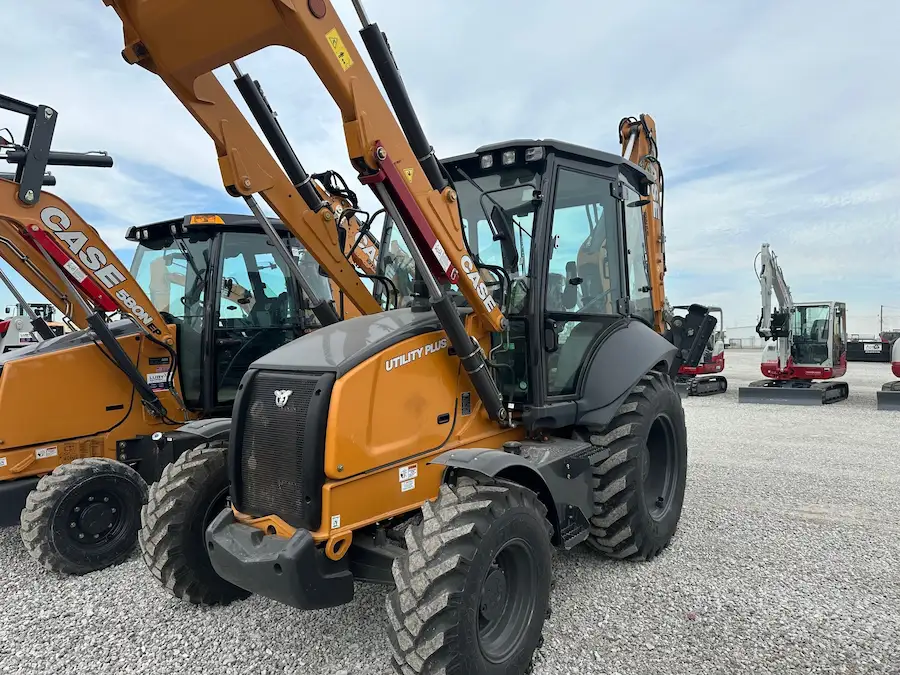

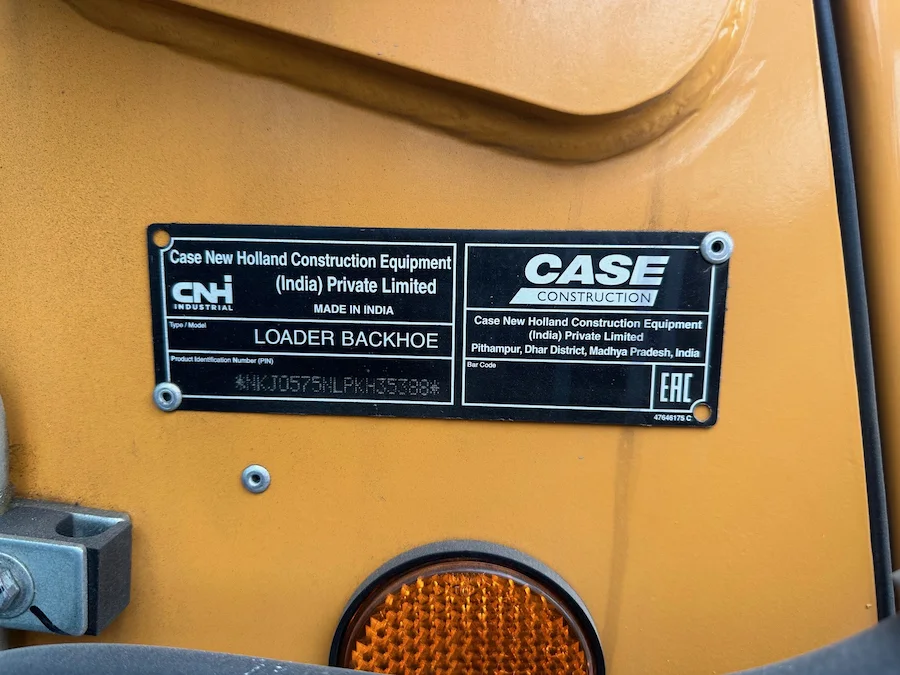

CASE 575N EP Utility Plus Backhoe Loader Extendahoe – LPKH35388

• Full-Sized Backhoe Performance: Despite its efficient design, the Utility Plus does not compromise on performance, offering all the capabilities expected from a full-sized backhoe loader.
• Designed for Versatility: Whether for landscaping, agriculture, rental services, general construction, or utility work, the Utility Plus is built to perform. Its versatility makes it a valuable asset for a wide range of applications.
• Operator-Focused Design: The big cab provides excellent sightlines to all work areas, ensuring operators have a clear view of their tasks for increased safety and efficiency.
• Ease of Service: Maintenance is straightforward with a maintenance-free emissions system that eliminates the need for DPF and DEF, reducing downtime and service costs.
• Control Options: Catering to a wide range of operator preferences and experience levels, the Utility Plus offers a choice between pilot controls for ease of use, especially for less experienced operators, and mechanical controls for those who prefer a traditional backhoe feel.
• Simple to Own and Operate: The machine’s design emphasizes ease of ownership and operation, focusing on reducing the total cost of ownership.
• Expandability with Options: While focusing on simplicity, the Utility Plus also offers the option to add features like the Extendahoe and an enclosed cab, allowing owners to customize the machine to meet specific needs.

Whether it’s your first backhoe or an addition to a large fleet, the CASE Utility Plus Backhoe Loader represents a smart investment, providing immediate value and long-term productivity. Its balance of performance, ease of use, and cost-effectiveness make it a standout choice for businesses aiming to maximize operational efficiency.

Operator Environment:

• Safety and Comfort: Features a ROPS/FOPS certified protective canopy, rear fender extensions, and an interior rearview convex mirror. A mechanical suspension seat with 180° swivel and a 2 in retractable seat belt enhance comfort and safety.
• Control and Monitoring: Equipped with essential gauges (engine coolant and converter oil temperatures, fuel level, tachometer/hourmeter, voltmeter) and warning lights for key system statuses, including air cleaner restriction, engine oil pressure, and more, ensuring the operator is always informed.
• Audible Alarms and Horns: Includes audible alarms for critical conditions like coolant temperature, engine oil pressure, and parking brake engagement, alongside dual switched front and rear horns for enhanced operational safety.

Engine:

• Powered by an FPT F5 diesel engine that incorporates a full-flow engine oil filter, aspirated air cleaner with a replaceable dual element dry type, and a fuel filter with a water trap.
• Features a Diesel Oxidation Catalyst (DOC) for spark arresting, a radiator with de-aeration bottle, antifreeze protection up to -34° F (-37° C), and high-pressure common rail system, ensuring efficient and reliable performance.

Drivetrain:

• Axles and Tires: Comes with a 4WD mechanically driven front axle equipped with 12.5/80-18 tires and a heavy-duty outboard planetary drive rear axle with 16.9-28 tires.
• Transmission: Features a 4F-4R Power Shuttle Synchromesh transmission and an 11.8 in torque converter, complemented by on-the-go electric 4WD control and electric F/R shuttle control without differential lock, offering smooth and responsive maneuverability.

Hydraulics:

• A heavy-duty hydraulic oil cooler and a 10-micron, spin-on oil filter support the backhoe’s demanding hydraulic needs, ensuring efficient operation.

Backhoe:

• Center pivot design with 1-way auxiliary hydraulics for various attachments, 2-lever mechanical backhoe controls, and flip-over stabilizer pads, designed for flexibility and ease of use in demanding conditions.

Other Features:

• Forward tilt engine hood, replaceable front bumpers, comprehensive lighting including working, driving, and signal lights, master disconnect switch, remote jump-start terminals, and vertical spin-on filters for engine oil, fuel, and hydraulics, all designed for convenience and maintenance efficiency.

Warranty:

• Offers peace of mind with a 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty and a 2-Year/2,000-Hour Extended Engine Warranty.

The CASE Utility Plus Backhoe Loader is built to deliver top-notch performance, durability, and operator satisfaction, making it a valuable asset for any project requiring a backhoe loader.

Operator Environment:

• ROPS/FOPS Certified Protective Cab: Ensures operator safety with a roll-over protection structure and falling object protection system.

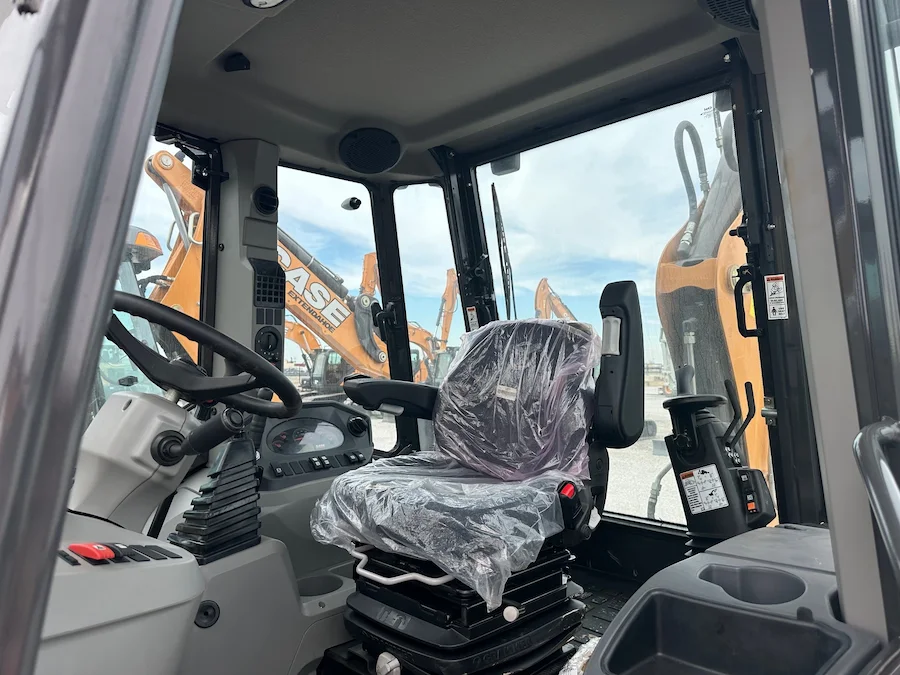

• Comfort and Visibility: Equipped with 2 doors, heating, air conditioning, defroster, and door-activated dome light for operator comfort in all weather conditions. The cab features 4 front and 4 rear lights for excellent visibility, a floor mat, tinted glass for reduced glare, and is radio ready. It also includes front and rear windshield wipers and front fenders.
• Seating: A mechanical suspension seat with flip-up armrests offers 180° swivel, adjustable seat and weight, backrest angle, lumbar support, and cushion angle adjustments for maximum comfort during long working hours. The seats are available in cloth for cab units and vinyl for canopy units.

Loader Features:

• Hydraulics and Control: Features a 3-spool auxiliary hydraulics valve for loader-mounted equipment, ensuring versatile and efficient loader operation with 2-lever loader control.
• Buckets: Offers a range of buckets to suit different material handling needs, enhancing the loader’s versatility.

Backhoe Features:

• Controls: Equipped with pilot backhoe controls for precision and ease of operation.
• Extendahoe®: This feature provides extended reach and digging depth, increasing the backhoe’s versatility and productivity.
• Buckets: A selection of backhoe buckets is available to cater to various digging and excavation requirements.

Additional Features:

• Front Fenders: Protect the machine and operator from debris and mud splashes during operation.

Service and Parts:

• Bluetooth Radio: For in-cab entertainment and connectivity.

• Safety: A 3-inch seat belt is provided for enhanced operator safety.

• CASE SiteWatch™ Telematics: This system offers advanced monitoring, management, and data analysis capabilities to optimize machine performance and reduce operational costs.

• Rotating Beacon: Enhances visibility and safety on work sites.

Loader Dimension	Specification
A. Bucket Hinge Pin Fully Raised	11 ft 9 in (3.58 m)
B. Dump Angle at Full Height	45°
C. Dump Clearance at Full Height, 45° Dump:	Bucket: 9 ft 0 in (2.73 m)
D. Dump Reach at Full Height, 45° Dump	Bucket: 3 ft 9 in (1.15 m)
Bucket Rollback:
E. @ Groundline	33°
F. Digging Depth Below Grade:	Bucket Flat: 4.3 in (110 mm)
G. Reach from Front Axle Centerline	Bucket on Ground: 6 ft 6 in (1.98 m)
Lift Capacity to Full Height	8,157 lb (3,700 kg)
Breakout Force:
Lift Cylinders	11,277 lb (5,115 kgf)
Dump Cylinders	13,788 lb (6,250 kgf)
H. Bucket Cutting Edge Width	89.6 in (2.27 m)
Raising Time to Full Height	5.9 sec
Bucket Dumping Time	1.8 sec
I. Overall Transport Length with Standard Loader Bucket	23 ft 1 in (7.03 m)
J. Overall Machine Width with Standard Loader Bucket	7 ft 6 in (2.28 m)
Stabilizer Width – In Raised Position	7 ft 7 in (2.30 m)
Height:
K. To Top of Cab	9 ft 3 in (2.83 m)
L. Overall Transport Height	12 ft 7 in (3.84 m)
M. Ground Clearance at Backhoe Frame	19.7 in (500 mm)
N. Wheelbase	85.6 in (2.18 m)

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump. Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.

Purchased Protection Plan

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Backhoe models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
