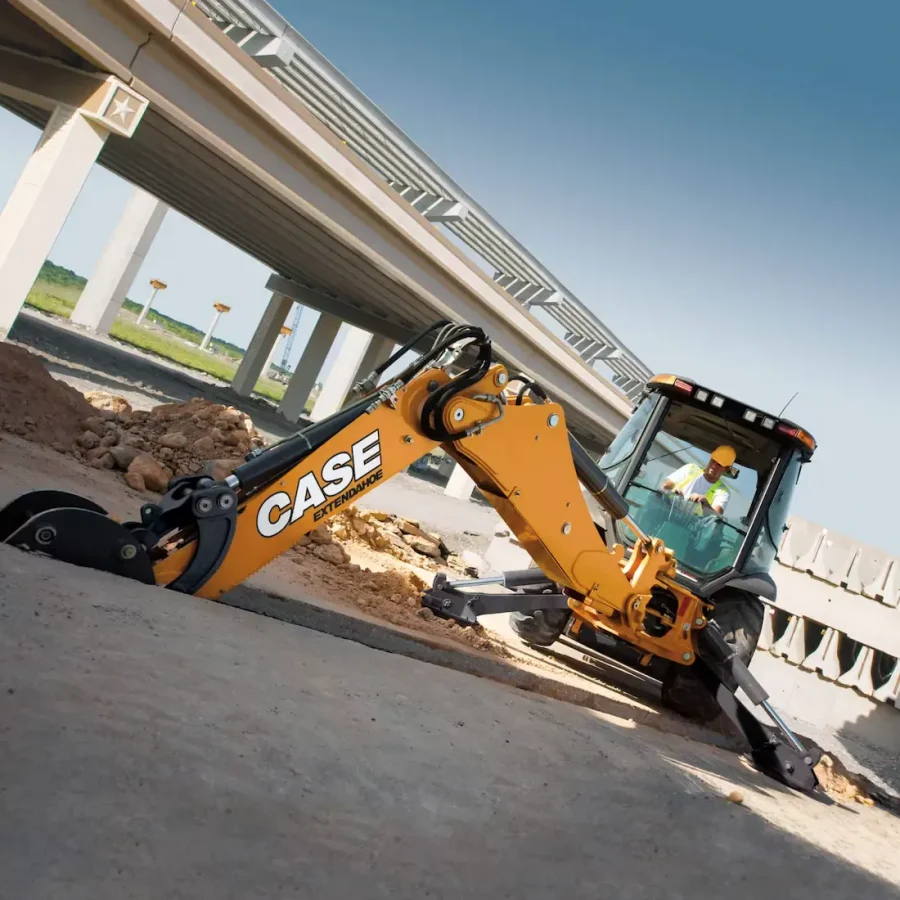

CASE 580 Super N Construction King Backhoe Loader

Purpose-Built Performance

The CASE 580 Super N is designed to excel in versatility, speed, and precision, ensuring you can tackle any task with confidence:

• PowerBoost: Instant hydraulic power increases at the push of a button for challenging conditions.
• PowerLift: Industry-leading 4,000 lb. lifting capacity for heavy-duty operations.
• ProControl System: Precise control for raising, setting, digging, and dumping operations.
• Attachment Versatility: Universal coupler option and factory-installed thumb for various tasks.
• PowerDrive Transmission: Optional 6-speed transmission with automatic engagement for improved acceleration and fuel efficiency.
• Comfort Steer: Optional feature for quicker stockpiling and truck loading operations.

Common-Sense Fuel Efficiency

Maximize your machine’s efficiency without sacrificing performance:

• SCR Tier 4 Final Solution: Optimal fuel usage while maintaining peak performance without regeneration downtime.
• ECO Mode: Standard feature for fuel efficiency in both backhoe and loader operations.
• Auto-Idle and Auto-Off: Reduce unnecessary fuel consumption and wear with adjustable timing for customized operation.

CASE Comfort & Visibility

Designed with the operator in mind, the 580 Super N provides an environment that promotes productivity and comfort:

• Enhanced Lighting: Optional LED lights for better visibility with less power consumption.
• Superior Visibility: Cab designs with extensive glass panels and opening rear-quarter windows.
• Premium Seating: More adjustments, built-in heater, and hand-stitched design for ultimate comfort.
• Intuitive Controls: Fingertip controls for loader and backhoe, including joystick FNR rocker, self-leveling, and more.

Simple Serviceability

Maintaining your 580 Super N is straightforward, ensuring you maximize uptime and ROI:

• Convenient Checkpoints: Routine maintenance points are easily accessible from the ground.
• Service Access: Swing-out coolers and a flip-up hood for easy access to vital systems.
• Extendahoe® Wear Pads: Externally adjustable for quick maintenance and reduced slop.
• SiteWatch Telematics: 3-year advanced data subscription for monitoring machine hours and performance.

The CASE 580 Super N Construction King redefines what it means to be “super” in the construction industry, providing a machine that’s not only built to perform but also designed to excel in efficiency, comfort, and serviceability.

OPERATOR ENVIRONMENT:

• ROPS/FOPS certified protective canopy for maximum safety.
• Anti-vandalism cover for the dashboard applies to the canopy only.
• Extensions on the rear fenders for added protection.
• Convenient coat hook with garment strap.
• Interior rearview convex mirror for enhanced visibility.
• Comfortable mechanical suspension seat with 180° swivel in vinyl.
• Safety-first with a 3 in (76 mm) retractable seat belt.
• Cup holder and storage tray mounted on the left-hand fender for personal items.
• Additional storage compartment with a lid on the right-hand side.
• Tilt-steering wheel provided on cab models for ergonomic control.

Instrumentation and Controls:

• Comprehensive gauges for engine water temperature, converter oil temperature, fuel level, tachometer/hour meter, and DEF level.
• Warning lights for air cleaner restriction, alternator status, A/C high pressure, cold start indication, low engine oil pressure, hydraulic oil filter bypass, parking brake engagement, low fuel, water in fuel, and low DEF.
• Audible alarms are equipped with diagnostics for coolant temperature, engine oil pressure, parking brake engagement, converter oil temperature, shuttle engagement/seat position, backup alarm, and low DEF.
• Dual switched horn for the front and rear for effective signaling.

ENGINE:

• FPT F5BFL413B diesel engine with Selective Catalytic Reduction (SCR) for Tier 4 Final compliance.
• Comprehensive filtration and cooling systems include a full-flow engine oil filter, aspirated air cleaner, fuel filter with water trap, and radiator with de-aeration bottle.
• Cold Weather Starting Aid features dual 12-volt batteries, glow plugs, an engine block heater, and a heated CCV hose for reliable operation in low temperatures.
• High-Pressure Common Rail (HPCR) fuel injection and electronic throttle controls (foot and rotary hand) for precise engine management.

DRIVETRAIN:

• Power Shuttle 4F-4R synchromesh transmission for smooth gear shifts.
• Front axle options include 2WD with 11.0 L x 16.0 tires or 4WD mechanically driven front axle with 12.0 L x 16.5 tires, including a drive shaft guard.
• Heavy-duty outboard planetary drive on the rear axle, compatible with 19.5 L x 24.0 tires.
• On-the-go electric 4WD control, electric F/R shuttle control, and push-button electric differential lock for enhanced traction and maneuverability.

HYDRAULICS:

• Remote hydraulic test ports are accessible at ground level for easy testing and troubleshooting.
• A robust hydraulic system featuring a 41 gpm pump at 3,000 psi and a heavy-duty hydraulic oil cooler to maintain optimal operating temperatures.

LOADER:

• Bucket position indicator to aid in precise operations.
• Lifting lugs and tie-downs on the standard bucket for secure transportation.
• Single lever control with self-leveling and return-to-dig functionalities for efficient loading operations.

BACKHOE:

• Over-center design with a fabricated “S” boom for stability and reach.
• ProControl System for precise control and reduced rebound.
• CASE mechanical coupler for quick attachment changes.
• Cleated dirt stabilizer pads for secure positioning during operation.

ADDITIONAL FEATURES:

• Forward-tilting engine hood and replaceable molded front bumpers for easy access and maintenance.
• Comprehensive lighting includes signal lights for the cab and canopy and adjustable halogen work lights for optimal visibility.
• Safety features include a master disconnect switch, remote jump-start terminals, hydrostatic steering, and a backup alarm.
• Lockable DEF, fuel cover for security, and a bolt-on, step-mounted toolbox for convenience.

TELEMATICS AND WARRANTY:

• CASE SiteWatch™ Telematics with hardware and a 3-year advanced data subscription for monitoring and managing machine performance.
• A comprehensive warranty package including a 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty and a 2-Year/2,000-Hour Extended Engine Warranty.

Feature Category	Feature Details
Engine Model	FPT F5BFL413B
Emissions Certification	Tier 4 Final
Engine Type	Diesel 4-stroke, Turbocharged
Cylinders	4
Bore/Stroke	3.90 x 4.33 in (99 x 110 mm)
Displacement	207 in³ (3.4 L)
Fuel Injection	Direct, high pressure common rail – HPCR
Fuel	Diesel
Engine Speeds (RPM)	Rated Speed (Full Load): 2200, Low Idle: 900-1000, High Idle (No Load): 2330-2430
Horsepower @ 2200 RPM	Gross: 97 hp (72 kW), Net: 95 hp (71 kW)
Maximum Torque @ 1400 RPM	Gross: 334 lb·ft (453 N·m), Net: 333 lb·ft (452 N·m)
Torque Rise at Rated Speed	45% +/- 5%
Radiator Core Type	Square wave
Radiator Core Size Area	486 in² (3 145 cm²)
Radiator Rows of Tubes	4
39° Fan Style	9 blade suction
Fan Diameter	19.65 in (499 mm)
Fan Ratio	1.4:1
Pump Operating Angle Ratings	Side to Side: Rated 35°, Fore and Aft: Rated 35°
Oil Filtration	Replaceable, full flow cartridge
Transmission (Standard)	4F-4R Power Shuttle Synchromesh, Manual gear shift, Fully synchronized
Transmission (Optional)	PowerDrive H-Type, 4F-4R Hydraulic clutch shifting w/ auto shift mode and direct drive
Gear Ratios – Power Shuttle (Forward/Reverse)	1st: 5.603/4.643, 2nd: 3.481/2.884, 3rd: 1.584/1.313, 4th: 0.793/0.657
Travel Speeds – Standard Power Shuttle (Forward/Reverse)	1st: 3.8/4.5 mph (6.1/7.3 kph), 2nd: 6.0/7.2 mph (9.7/11.6 kph), 3rd: 13.1/15.7 mph (21.1/25.3 kph), 4th: 24.6/29.5 mph (39.6/47.5 kph)
Torque Converter Ratio	2.2
Differential-Lock	On-the-go push-button activation
Front/Rear Axle (w/ 4WD 12×16.5 Front Tires)	Differential Ratio: 2.0/2.5, Planetary Hub Ratio: 6.0/6.4, Total Reduction Ratio: 12.0/16.0
Service Brakes	Individually applied, Power assisted, Hydraulically actuated, Maintenance-free, Self-adjusting, Outboard mounted, Wet disc, 2 per side, Total disc area: 384 in² (0.25 m²)
Parking Brakes	Trans Mounted spring-applied hydraulic release – SAHR
Electrical System	Voltage: 12 Volts, Negative ground, Alternator: 160 amp, Dual Batteries: 850 cold-cranking amps each, Power Plugs: 2 (30 amps total)
Operator Environment	ROPS/FOPS certified protective canopy, Anti-vandalism cover for dash (with canopy only), Rear fenders extensions, Coat hook with garment strap, Interior rearview convex mirror, Mechanical suspension seat (180° swivel, Vinyl), 3 in (76 mm) retractable seat belt, Cup holder/storage tray mounted on left-hand fender, Right-hand storage compartment with lid, Tilt-steering wheel on cab models
Gauges and Alarms	Engine water temperature, Converter oil temperature, Fuel level, Tachometer/hourmeter, DEF level, Air cleaner restriction, Alternator, A/C high pressure, Cold start, Engine oil pressure low, Hydraulic oil filter bypass, Parking brake engagement, Low fuel, Water in fuel, Low DEF, Audible alarms with diagnostics for various conditions
Operating Weight	Configuration 1 – SAE Transport: 17,810 lb (8,078 kg), Configuration 2 – SAE Transport: 19,750 lb (8,958 kg)
Add-on Weights	Cab-over canopy: 309 lb (140 kg), Fabricated stabilizer pads: 141 lb (64 kg), Extendahoe®: 286 lb (130 kg)

Loader Dimensions

Dimension	Long Lip Bucket	4 IN 1® Bucket
A. Overall Operating Height – Fully Raised	13 ft 9 in (4.18 m)	13 ft 8 in (4.16 m)
B. Bucket Hinge Pin Fully Raised	11 ft 3 in (3.42 m)	11 ft 3 in (3.42 m)
C. Bucket Hinge Pin at SAE Carry	13.6 in (345 mm)	13.6 in (345 mm)
D. Dump Angle at Full Height	47°	47°
E. Dump Clearance at Full Height, 45° Dump – Bucket	8 ft 10 in (2.69 m)	8 ft 11 in (2.71 m)
E. Dump Clearance at Full Height, 45° Dump – Clam Open	—	9 ft 8 in (2.96 m)
F. Dump Reach at Full Height, 45° Dump – Bucket	31.5 in (801 mm)	29.1 in (738 mm)
F. Dump Reach at Full Height, 45° Dump – Clam Open	—	15.3 in (388 mm)
G. Bucket Rollback at Groundline	42°	42°
H. Bucket Rollback at SAE Carry	42°	42°
J. Bucket Rollback at Full Height	Adjustable	Adjustable
K. Digging Depth Below Grade – Bucket Flat	6.1 in (155 mm)	4.8 in (122 mm)
K. Digging Depth Below Grade – Clam Open	—	4.1 in (103 mm)
L. Reach from Front Axle Centerline – Bucket on Ground	6 ft 10 in (2.07 m)	6 ft 8 in (2.03 m)
Lift Capacity to Full Height	7,044 lb (3,195 kg)	6,703 lb (3,040 kg)
Breakout Force – Lift Cylinders	9,833 lb (4,460 daN)	9,610 lb (4,359 daN)
Breakout Force – Dump Cylinders	10,947 lb (4,965 daN)	11,658 lb (5,288 daN)
Bucket Cutting Edge Width	82.5 in (2.09 m)	82.0 in (2.08 m)
Maximum Grading Angle	114°	114°
Maximum Clam Opening	—	38.3 in (972 mm)
Moldboard Height	—	36.8 in (934 mm)
Raising Time to Full Height	2.6/3.2 sec	2.6/3.2 sec
Bucket Dumping Time	0.8/1.2 sec	0.8/1.2 sec
Lowering Time – Power Down	1.9/2.1 sec	1.9/2.1 sec
Lowering Time – Return-to-Dig	2.5/2.2 sec	2.5/2.2 sec
Clam – Open Time	—	1.1 sec
Clam – Close Time	—	1.1 sec

Dimensions for 2WD and 4WD Configurations

Dimension	2WD with 17.5 L x 24.0 Rear Tires	4WD with 19.5 L x 24.0 Tires
M. Overall Transport Length
Long Lip Bucket with Quick Coupler	23 ft 5 in (7.14 m)	23 ft 4 in (7.10 m)
4 IN 1® Bucket with Quick Coupler	23 ft 3 in (7.07 m)	23 ft 1 in (7.04 m)
Long Lip Bucket with Straight Links	23 ft 6 in (7.15 m)	23 ft 4 in (7.12 m)
4 IN 1® Bucket with Straight Links	23 ft 3 in (7.09 m)	23 ft 2 in (7.06 m)
Overall Transport Width	7 ft 2 in (2.17 m)	7 ft 2 in (2.17 m)
Height to Top of Canopy	8 ft 8 in (2.64 m)	8 ft 9 in (2.66 m)
Height to Top of Cab	8 ft 9 in (2.68 m)	8 ft 11 in (2.72 m)
Height to Top of Exhaust Stack	8 ft 5 in (2.58 m)	8 ft 7 in (2.62 m)
N. Transport Height	10 ft 10 in (3.29 m)	11 ft 1 in (3.37 m)
Ground Clearance at Backhoe Frame	12 in (304 mm)	15.0 in (381 mm)
Angle of Departure	15.3°	19.0°
Front Wheel Tread	67.5 in (1.72 m)	67.5 in (1.72 m)
Rear Wheel Tread (19.5 L x 24.0)	—	61.2 in (1.55 m)
Width Over Tires (11.0 L x 16.0)	79.3 in (2.02 m)	79.3 in (2.02 m)
O. Wheelbase (19.5 L x 24.0)	84.0 in (2.13 m)	84.5 in (2.15 m)

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump. Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.

Purchased Protection Plan

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Backhoe models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
