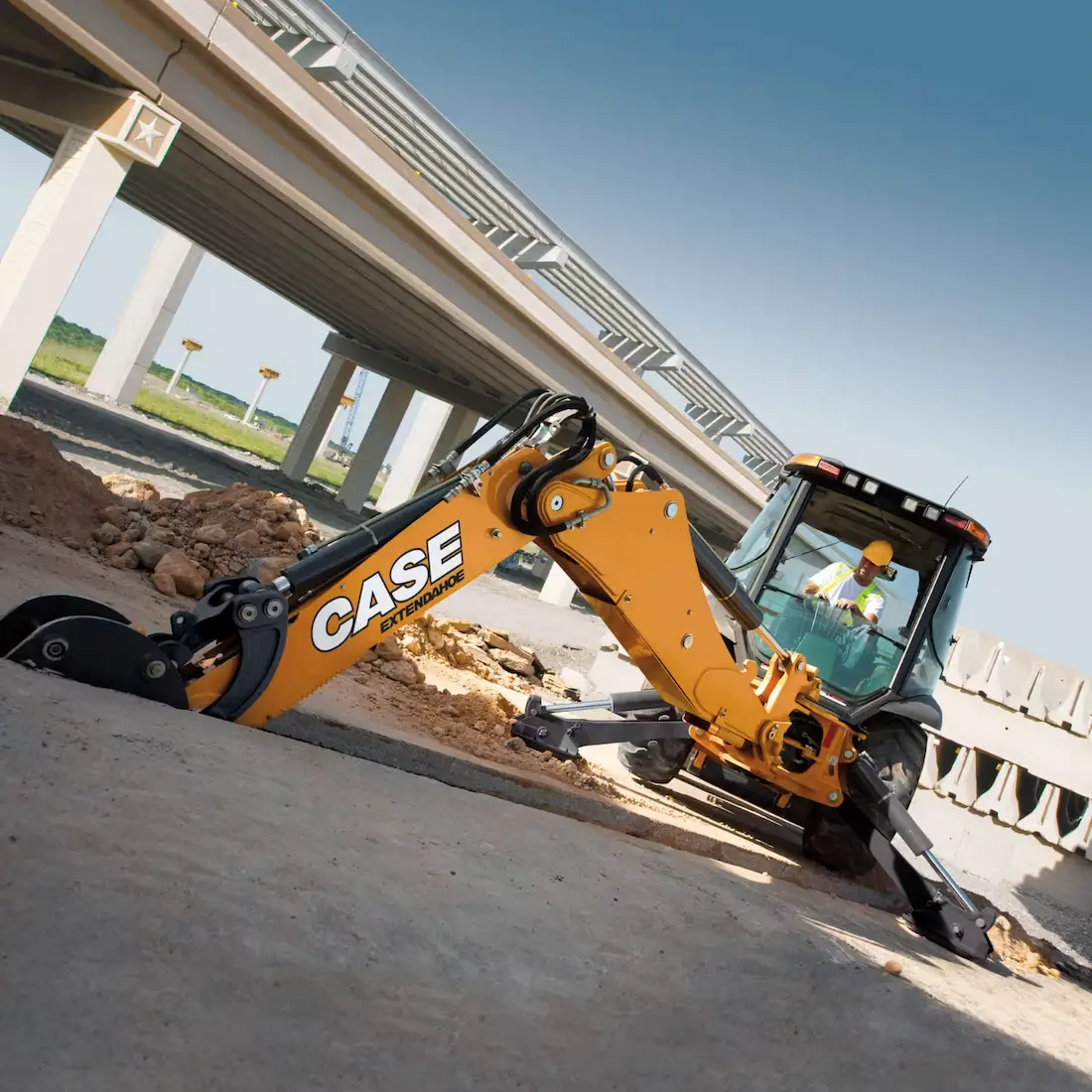

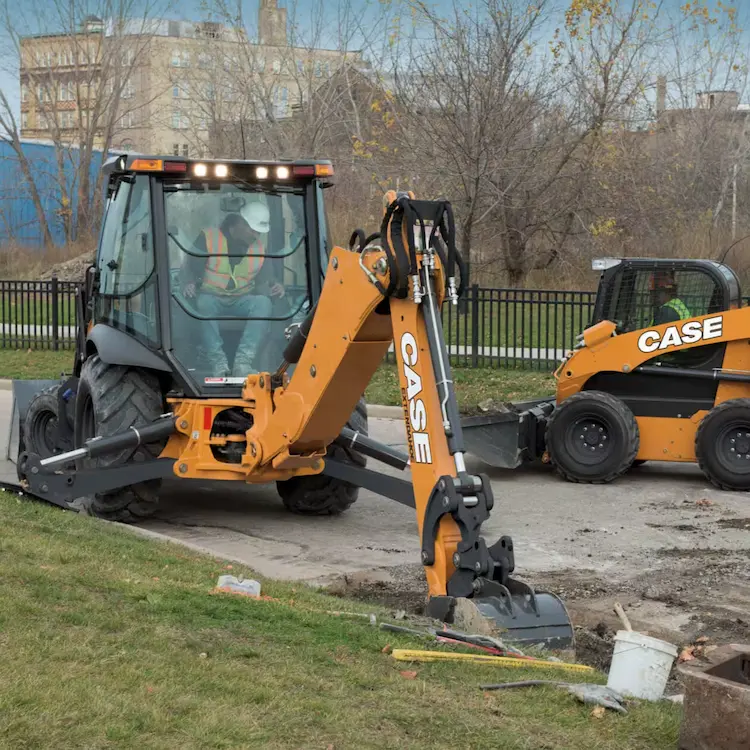

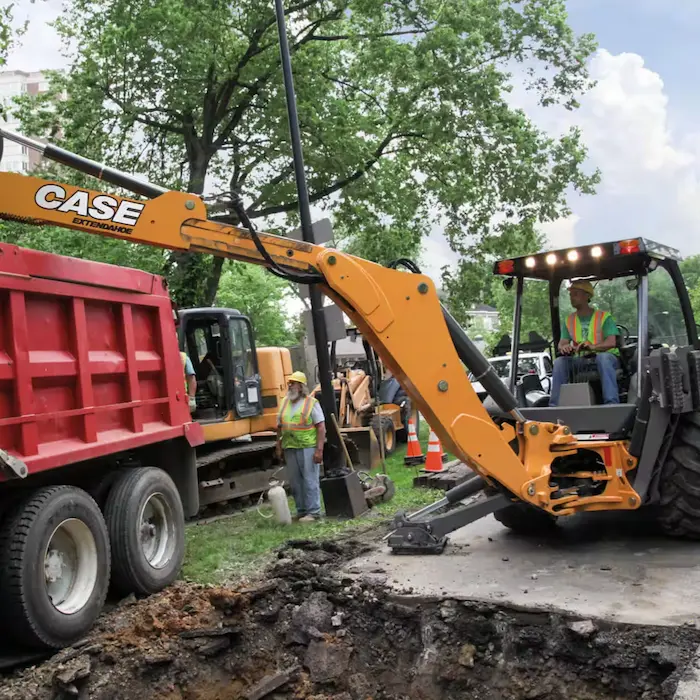

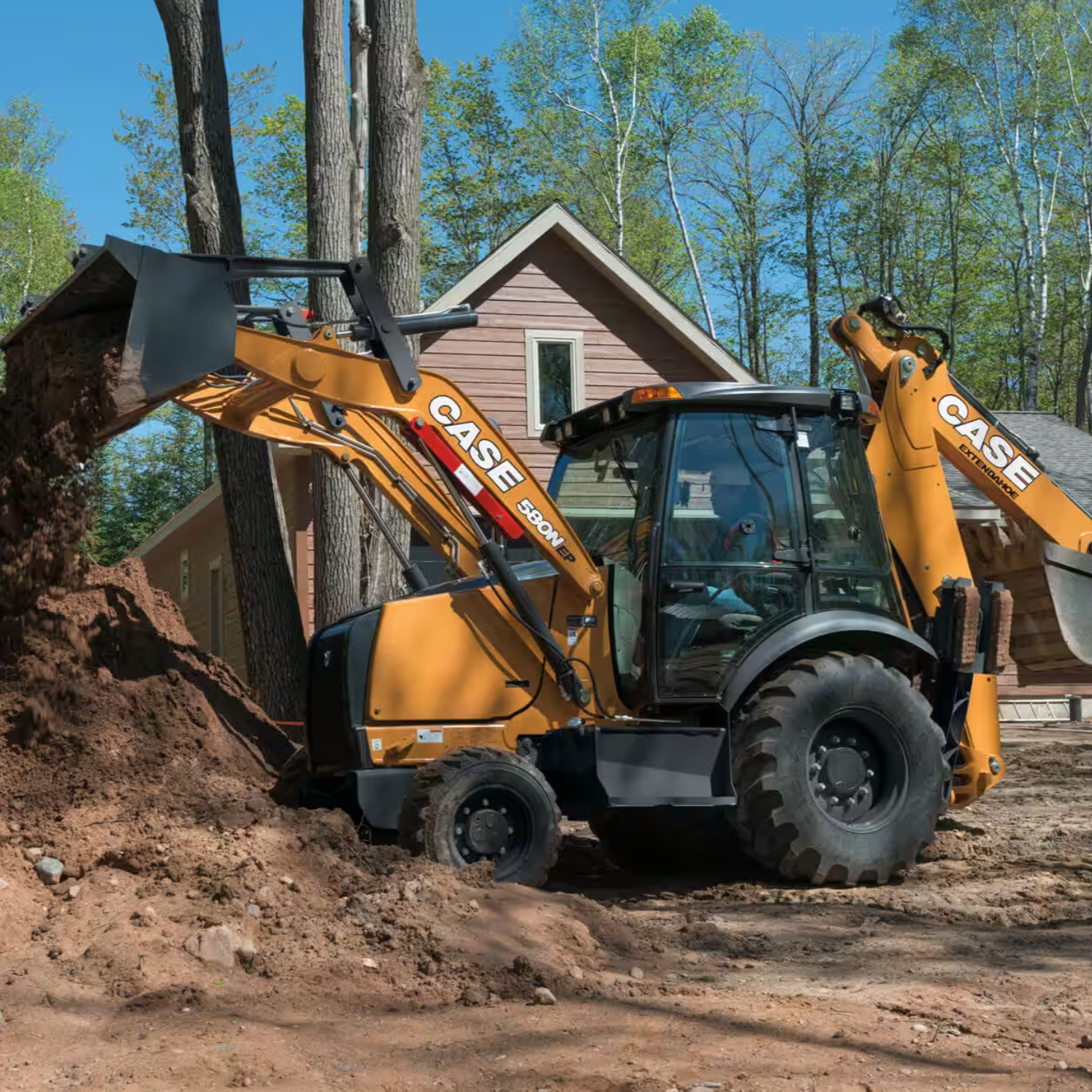

CASE 580N EP Backhoe Loader

Unlike other models, the 580N EP obviates the need for diesel exhaust fluid (DEF) and particulate filter maintenance, making it an exceptionally straightforward and low-maintenance choice for operators. Its combination of user-friendly controls, optional four-wheel drive (4WD), and standard SiteWatch™ Telematics positions the 580N EP as not only accessible for operators of varying experience levels but also as a prime candidate for rental markets. Excelling in versatility, it offers the digging prowess of a light-duty excavator, the loading capability of a wheel loader, and the adaptability of a skid steer, crafting a balance where efficiency meets formidable power.

Purpose-Built Performance

Performance in the 580N EP begins with its design. It features a heavy-duty loader with long arms and an in-line linkage system, optimizing truck loading tasks, even under uneven loads. A revolutionary over-center design mitigates “porpoising” and, when paired with the optional Ride Control, delivers a significantly smoother ride while preserving more material. Powered by a robust 74-hp FPT engine and equipped with a standard Power Shuttle transmission, it assures dependable performance across various applications. The Comfort Steer feature enhances operational efficiency, reducing the turning radius by half and minimizing effort during loading or stockpiling tasks.

The backhoe component boasts nearly 3,000 lbs of lifting force and over 11,500 lbs of breakout force. The optional ProControl anti-rebound feature offers precise and responsive control. A universal coupler option allows compatibility with various attachments, and a factory-installed thumb further enhances its utility. Moreover, standard SiteWatch Telematics facilitates optimal machine performance and maintenance tracking.

Common-Sense Fuel Efficiency

The 580N EP employs a Diesel Oxidation Catalyst (DOC) to adhere to Tier 4 Final emissions standards, promoting fuel efficiency without additional operator intervention. This compliance is achieved without needing DEF addition, DPF replacement, fuel-burning regeneration, streamlining operations and minimizing costs.

CASE Comfort & Visibility

The 580N EP is designed with operator comfort and visibility in mind. Optional comfort enhancements include:

• Climate control.
• A hands-free Bluetooth radio with USB.
• An adjustable heated suspension seat.

Its design prioritizes visibility, featuring floor-to-ceiling windows and a low-profile hood for superior sightlines. The machine is equipped to operate efficiently in various lighting conditions, with standard Easy-Flex cab lights and optional LED lights for enhanced visibility with reduced power consumption. Operators can choose between standard CASE foot-swing controls and optional dual-lever mechanical “wobble sticks” or opt for adjustable pilot controls with intuitive fingertip functions for a tailored operational experience.

Simple Serviceability

Efficiency extends to the 580N EP’s serviceability. Routine maintenance is streamlined through conveniently grouped, ground-level service points. Features like swing-out coolers, a flip-up hood, spin-on filters, and externally adjustable Extendahoe® wear pads simplify upkeep. Standard battery disconnect and jumpstart terminals offer security and easy access, while the DOC Tier 4 Final solution eliminates the concern of DPF maintenance.

In conclusion, the CASE 580N EP Backhoe Loader stands out for its power, efficiency, and ease of use, making it a versatile and reliable choice for any construction equipment fleet.

Operator Environment:

Designed with the operator’s safety and comfort in mind, the CASE 580N EP Backhoe Loader features a ROPS/FOPS certified protective canopy ensuring robust protection. Enhancements such as rear fender extensions, a coat hook with a garment strap, and an interior rearview convex mirror further elevate the operator’s convenience. Comfort is key, highlighted by a mechanical-suspension seat that offers 180° swivel functionality and is finished in durable vinyl, complemented by a 3-inch retractable seat belt for added safety. Operators will appreciate the thoughtful additions of a cup holder and storage tray on the left-hand fender, a right-hand storage compartment with a lid, and an anti-vandalism dash cover. The cab models boast a tilt steering wheel for ergonomic operation, alongside essential gauges and warning lights that monitor engine water temperature, fuel level, and more, ensuring the operator is fully informed. Audible alarms provide immediate diagnostics for critical functions such as coolant temperature and engine oil pressure.

Engine:

At the heart of the 580N EP lies an FPT F5HFL463D diesel engine, renowned for its efficiency and power. Equipped with a full-flow engine oil filter and an aspirated air cleaner with a replaceable dual-element dry type with radial seal, it ensures clean operation and easy maintenance. The inclusion of a Diesel Oxidation Catalyst and a radiator with de-aeration bottle, along with antifreeze protection up to -34°F, underscores the engine’s reliability in diverse conditions. Both hand rotary and foot throttles offer control flexibility, while the High Pressure Common Rail system enhances fuel efficiency.

Drivetrain:

The drivetrain is tailored for versatility, offering options for both 2WD and 4WD front axles, complemented by heavy-duty rear axle configurations. The 4F-4R Power Shuttle and Synchromesh transmission ensure smooth operation, bolstered by an on-the-go electric 4WD control and electric differential lock control for optimal traction and performance.

Hydraulics:

A high-capacity pump delivers 28.5 gallons per minute at 3,350 psi, backed by a heavy-duty hydraulic oil cooler and a 7-micron spin-on oil filter, ensuring the hydraulics system operates efficiently under demanding conditions.

Loader:

The loader unit is designed for precision and ease of use, featuring a single lever control with self-leveling and return-to-dig functionalities. It includes hand-operated clutch disconnects and a 4-function loader control for comprehensive handling capabilities.

Backhoe:

The backhoe boasts an over-center design with a fabricated “S” boom and Pro Control Swing dampening, enhancing stability and control. Cleated dirt stabilizer pads further augment the backhoe’s utility.

Other Features:

The 580N EP includes a forward tilt engine hood for easy access during maintenance, replaceable molded front bumpers, and comprehensive lighting solutions for visibility in all conditions. The machine is equipped with a master disconnect switch, remote jump-start terminals, and hydrostatic steering for enhanced operational efficiency.

Telematics:

CASE SiteWatch™ Telematics comes standard, featuring hardware and a 5-year Advanced data subscription, allowing for effective tracking and management of the machine’s performance and maintenance needs.

Operator Environment:

The CASE 580N EP Backhoe Loader is engineered for optimal operator comfort and safety, featuring a ROPS/FOPS certified protective cab. Available with a left-hand door, the cab is equipped with heat, air conditioning, a defroster, and a door-activated dome light to ensure a comfortable working environment in all weather conditions. The cab’s illumination is exceptional, with 4 front, 4 rear, and 2 adjustable side lights providing ample visibility for any task. Inside, operators will find a floor mat, tinted glass to reduce glare, a Bluetooth radio for connectivity, and front and rear wipers with fender extensions to maintain visibility in all conditions. The seat is designed for comfort and functionality, featuring mechanical suspension with flip-up armrests, 180° swivel, and adjustments for seat and weight, backrest angle, lumbar support, and cushion angle. Cab units are available in either cloth or vinyl, while canopy units are offered in vinyl only.

Engine:

To ensure reliable performance in cold conditions, the 580N EP is equipped with dual 12-volt batteries, glow plugs, an engine block heater, and a heated CCV hose. For extreme cold weather operations, it also offers synthetic transmission, hydraulic, and engine oil as part of its cold weather starting aid package.

Loader:

The loader is designed for versatility and ease of use, featuring auxiliary hydraulics for loader-mounted equipment with thumb-operated proportional control. A hydraulic front quick coupler facilitates easy attachment changes, expanding the tool portfolio with additional attachments and buckets for various applications.

Backhoe:

The backhoe unit offers both 1-way and 1-way/2-way auxiliary hydraulics, accommodating a wide range of attachments such as hammers, plate compactors, thumbs, augers, and more. The Extendahoe® feature provides extended reach and digging capability. Control is precise and effortless with two-lever backhoe controls, a pilot-operated control system, fingertip proportional Electro-Hydraulic stabilizer controls, and thumb-operated auxiliary hydraulic control. Operators can effortlessly switch between “excavator to backhoe” control patterns from within the cab. The stabilizer pads are flip-over for easy conversion, and a CASE mechanical quick coupler along with a universal coupler compatible with CAT/Deere attachments enhances versatility. The hydraulic thumb, compatible with 18 in & 24 in buckets, further extends the backhoe’s functionality.

Other Features:

The 580N EP stands on robust tires, with options for front and rear configurations to suit various terrains. The special paint option allows for customization, while the LED Working/Driving Light Package ensures the workspace is well-lit, enhancing safety and productivity. Front fenders protect against debris, and the special feature request option allows for further customization to meet specific operational needs.

Feature	Long Lip Bucket	4 IN 1® Bucket
A. Overall Operating Height – Fully Raised	13 ft 9 in (4.17 m)	14 ft 4 in (4.35 m)
Height to:
B. Bucket Hinge Pin Fully Raised	11 ft 3 in (3.41 m)	11 ft 3 in (3.41 m)
C. Bucket Hinge Pin at SAE Carry	12.8 in (326 mm)	14.6 in (371 mm)
D. Dump Angle at Full Height	46°	46°
E. Dump Clearance at Full Height, 45° Dump:
– Bucket	8 ft 8 in (2.63 m)	8 ft 11 in (2.71 m)
– Clam Open	—	9 ft 8 in (2.93 m)
F. Dump Reach at Full Height, 45° Dump – From Bumper:
– Bucket	26.7 in (679 mm)	26.2 in (666 mm)
– Clam Open	—	12.6 in (321 mm)
Bucket Rollback:
G. @ Groundline	40°	40°
H. @ SAE Carry	43°	43°
J. @ Full Height	Adjustable	Adjustable
K. Digging Depth Below Grade:
– Bucket Flat	7.8 in (199 mm)	7.1 in (180 mm)
– Clam Open – Dozing	—	4.4 in (111 mm)
L. Reach from Front Axle Centerline – Bucket on Ground	6 ft 10 in (2.08 m)	6 ft 8 in (2.03 m)
Lift Capacity to Full Height	6,503 lb (2,950 kg)	6,537 lb (2,965 kg)
Breakout Force:
– Lift Cylinders	9,271 lb (4,124 daN)	8,904 lb (3,961 daN)
– Dump Cylinders	9,607 lb (4,273 daN)	10,302 lb (4,583 daN)
Bucket Cutting Edge Width	82.5 in (2.09 m)	82.0 in (2.08 m)
Maximum Grading Angle	114°	114°
Maximum Clam Opening	—	38.3 in (972 mm)
Moldboard Height	—	36.8 in (934 mm)
Raising Time to Full Height	3.3 sec	3.3 sec
Bucket Dumping Time	0.8 sec	0.8 sec
Lowering Time:
– Power Down	2.4 sec	2.4 sec
– Return-to-Dig	4.4 sec	4.4 sec
Clam:
– Open Time	—	1.3 sec
– Close Time	—	1.1 sec
Note	Loader dimensions taken with 4WD, 12.0 x 16.5 front tires, and 19.5 L x 24.0 rear tires.

Feature	2WD with 19.5 L x 24.0 tires	4WD with 19.5 L x 24.0 tires
M. Overall Transport Length:
– Long Lip bucket with Universal Coupler	23 ft 1 in (7.02 m)	23 ft 0 in (7.00 m)
– 4 IN 1® bucket with Universal Coupler	22 ft 10 in (6.96 m)	22 ft 9 in (6.93 m)
– Long Lip bucket with Straight Links	23 ft 2 in (7.04 m)	23 ft 0 in (7.00 m)
– 4 IN 1® bucket with Straight Links	22 ft 11 in (6.98 m)	22 ft 10 in (6.95 m)
Overall Transport Width – Rear Tires	7 ft 2 in (2.17 m)	7 ft 2 in (2.17 m)
Height:
– To top of canopy	8 ft 9 in (2.66 m)	8 ft 9 in (2.66 m)
– To top of cab	8 ft 11 in (2.72 m)	8 ft 11 in (2.72 m)
– To top of exhaust stack	8 ft 7 in (2.62 m)	8 ft 7 in (2.61 m)
N. Transport – Standard Dipper	10 ft 10 in (3.30 m)	11 ft 1 in (3.37 m)
Ground Clearance at Backhoe Frame	15.0 in (380 mm)	15.0 in (380 mm)
Angle of Departure	15.3°	19.0°
Front Wheel Tread:
– 11.0 L x 16.0	67.5 in (1.71 m)	67.5 in (1.71 m)
– 12.0 L x 16.5	67.7 in (1.72 m)	67.7 in (1.72 m)
Rear Wheel Tread:
– 17.5 L x 24.0	63.1 in (1.60 m)	63.1 in (1.60 m)
– 19.5 L x 24.0	61.2 in (1.55 m)	61.2 in (1.55 m)
Width Over Tires:
– 11.0 L x 16.0	79.3 in (2.01 m)	79.3 in (2.01 m)
– 12.0 L x 16.5	81.1 in (2.06 m)	81.1 in (2.06 m)
– 17.5 L x 24.0	81.7 in (2.07 m)	81.7 in (2.07 m)
– 19.5 L x 24.0	81.4 in (2.07 m)	81.4 in (2.07 m)
O. Wheelbase	84.0 in (2.13 m)	84.5 in (2.15 m)

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump. Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.

Purchased Protection Plan

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Backhoe models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
