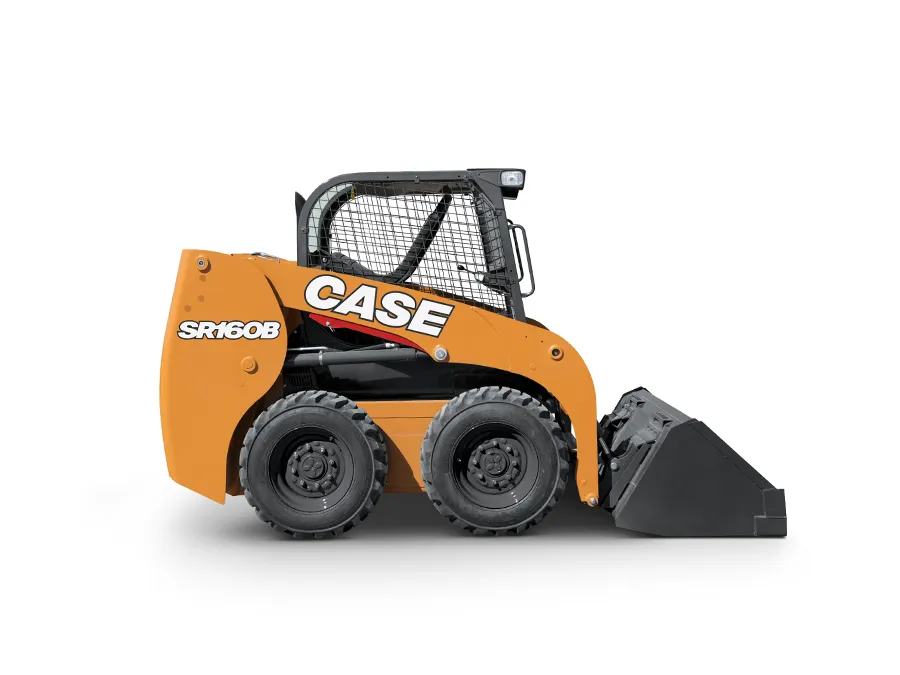

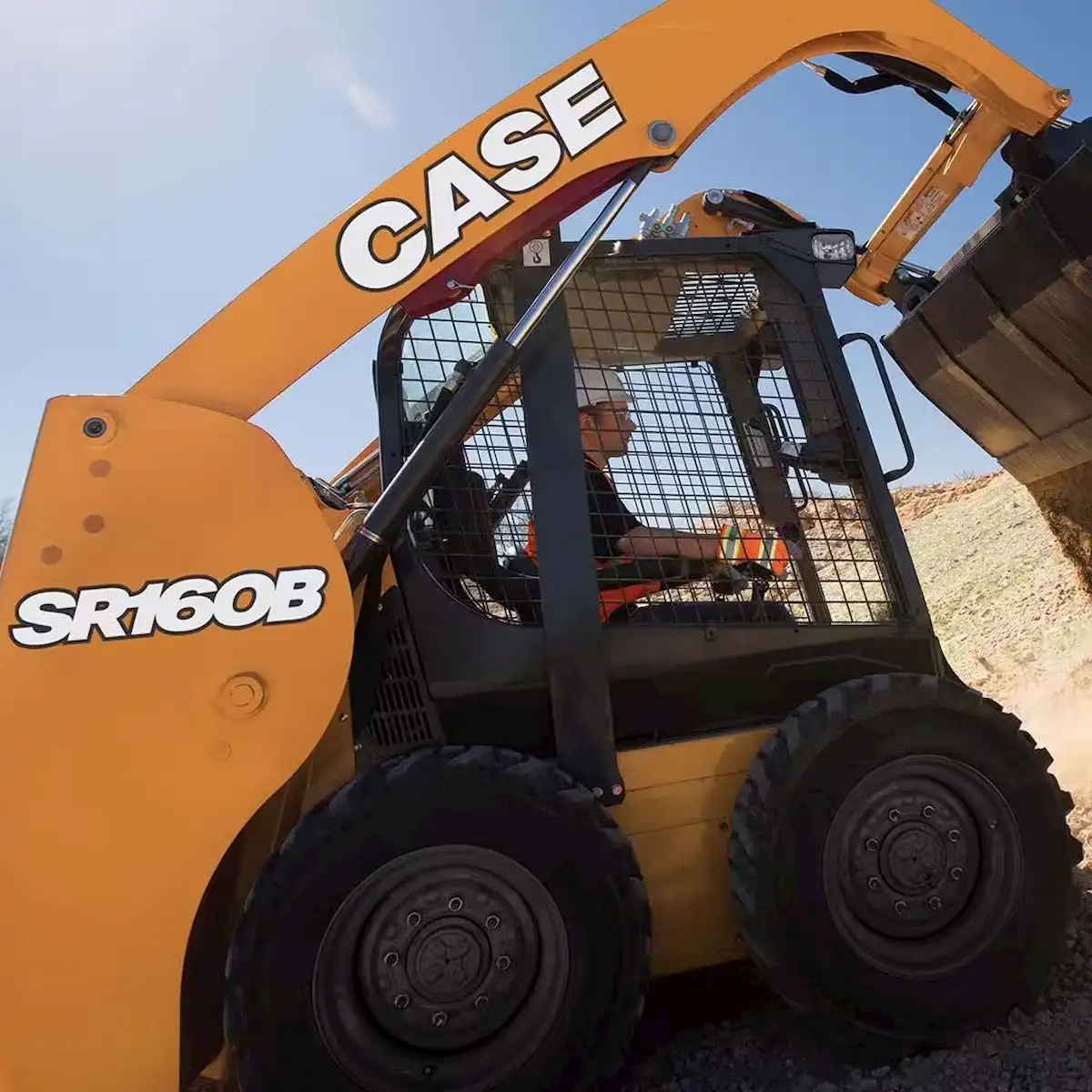

CASE SR160B Skid Steer Loader

Visibility and Comfort

• The SR160B is renowned for its industry-leading visibility, crucial for safety and precision on busy job sites.
• It boasts a spacious, comfortable cab that reduces operator fatigue during all-day operations, ensuring high productivity.

Optimal Control

• Standard mechanical controls provide reliable and precise operation.
• Optional hand-and-foot control configurations are available, catering to the preferences of different operators and allowing for seamless transitions between tasks.

Productivity and Performance

• The loader has a 1,600-pound rated operating capacity, which can be increased to 1,700 pounds with optional counterweights, making it versatile for various tasks.
• The SR160 B is driven by a robust 60-horsepower engine, ensuring strong performance across various applications.
• Auxiliary hydraulics come standard, offering compatibility with various basic attachments to extend the loader’s utility.

Ease of Ownership

• Critical checks and maintenance points conveniently located at the rear of the machine simplify serviceability, saving operators time and effort.
• Including a Diesel Particulate Filter (DPF) ensures that the SR160B meets Tier 4 Final emissions standards. This feature is thoughtfully integrated, considering the machine’s size, typical applications, engine layout, and overall cost of ownership, making the SR160B both an environmentally friendly and cost-effective solution.

Operator Environment:

• ROPS/FOPS Level 1 canopy with side screens for safety.
• Keyed start ignition for secure operation.
• Tilt ROPS/FOPS for easy access and maintenance.
• Rear window with emergency escape feature.
• The vinyl suspension seat has a 2-inch retractable 3-point lap seat belt for comfort and safety.
• Hand and foot throttle control for precise operation.
• Alarm package includes backup alarm and horn for job site safety.
• Rearview mirror and top window for enhanced visibility.
• Headliner and dome light for comfort and visibility inside the cab.
• Cup holder and 12V power plug socket for convenience.
• Footrest and seat pocket for additional comfort.
• Padded seat bar with integral armrests.
• Loader control lockout system for safety.
• Electric parking brake control.
• Operator’s compartment floor cleanout for easy maintenance.
• Proportional auxiliary hydraulic control on the joystick for precise attachment operation.
• Advanced Instrument Cluster has a digital hour meter, tachometer, fuel level LCD bar graph with alarm, diagnostic features, and security lockout.
• Warning lights with alarms for engine coolant temperature, engine oil pressure, engine malfunction, hydraulic charge pressure, and hydraulic filter restriction.
• Critical system stop, engine system, hydraulic system, and electrical and diagnostic system warnings.
• Warning alarms for battery voltage and oil service.
• Indicator lights for engine preheat, parking brake, and seat bar reminder.

Engine:

• Perkins/ISM N844LT-F-45SL diesel engine with 135.2 CID (2.2 L) Turbo, Tier 4 Final Certified.
• Spark Arresting Diesel Particulate Filter (DPF) muffler and Charged Air Cooler (CAC).
• Indirect fuel injection system.
• Horsepower: Gross 60 hp (44.7 kW), Net 57 hp (42.4 kW).
• Peak torque of 139 lb·ft (188 N·m).
• 120 amp alternator and dual element air cleaner.
• Organic Acid Technology (OAT) Anti-freeze solution effective to -34º F.
• 16-gallon fuel tank for extended operation periods.
• Efficient cooling with over and under radiator and oil cooler.
• Single plane, top and bottom oil cooler/radiator configuration for optimal cooling.
• Glow plugs for cold weather starting.
• Integral engine oil cooler for maintained performance.
• Fuel filter with a water trap to protect the engine from contaminants.
• 925 CCA 12V battery with master electrical disconnect for electrical system integrity.

Drivetrain:

• 1-speed hydrostatic four-wheel drive for smooth operation.
• ASA #80 drive chain ensures reliability and strength.
• SAHR disc parking brake for secure stopping and parking.

Hydraulics:

• Auxiliary hydraulics with a flow rate of 18.4 gpm at 3,050 psi for robust tool operation.
• 6-micron oil filtration system maintains hydraulic fluid cleanliness.
• 3-spool loader control valve for precise control of loader functions.
• ISO flat-face hydraulic disconnects allow for easy attachment changes.
• Hydraulic circuit pedal lock and auxiliary function lockout override for enhanced safety.
• Loader lift and function lockout overrides provide additional operational flexibility.
• Heavy-duty hydraulic oil cooler keeps the system at optimal temperatures.
• Loader arm float position adds versatility to loader operations.

Loader:

• Manual attachment coupler for easy attachment changes.
• Radial lift geometry offers excellent reach and clearance.
• Loader lift arm support strut for added safety during maintenance.
• Loader function lockout system ensures operator safety.

Tires:

• 10 X 16.5 heavy-duty tires for durability and traction.

Other Standard Features:

• LED lights (2 front, 2 sides, 2 rear floods) for enhanced visibility.
• Pre-wiring for a rotating beacon accommodates additional safety equipment.
• Lockable service access hood protects vital components.
• Single-point daily service simplifies maintenance routines.
• Rear tail lights for improved visibility and safety.
• Remote oil and fuel filters facilitate easier maintenance.
• Block heater for improved cold-weather starting.
• Debris ingression sealing protects against contaminants.
• Mounting points for add-on counterweights improve stability.

Telematics:

• CASE SiteWatch™ Telematics with hardware and a 5-year data subscription for advanced monitoring and management.
• SiteConnect Module provides remote diagnostics capability, enhancing maintenance and troubleshooting.

Operator Environment:

• Enclosed Cab (Fully Sealed and Pressurized—FSP): This provides a comfortable and controlled environment with a glass door, wiper, and washer.
• Sliding Side Windows – Removable: Offers ventilation and accessible communication.
• AM / FM Bluetooth Radio with 2 Speakers: This is for entertainment and connectivity within the cab.
• Keyless Start Ignition: Enhances security and convenience.
• Control Lockout System: Ensures operator safety by preventing unintended operation.
• Mechanical Hand Controls: Offer precise control over the loader.
• Hand and Foot Controls: Split functionality between driving (hand controls) and bucket/boom operation (foot controls).
• Deluxe Cloth, Air Suspension Seat with Heater and Lumbar Support: Maximizes operator comfort during long working hours.
• Demolition Cab Door with Polycarbonate: Provides extra protection in demanding environments.

Hydraulics:

• Second Auxiliary Hydraulics: Allows for additional hydraulic attachments.
• Hydraulic One-Way Self-Leveling: Enhances efficiency by keeping the load level during lifting.
• Ride Control: Improves operator comfort by reducing machine bounce during travel.

Loader:

• Hydraulic Attachment Coupler: Facilitates quick and easy attachment changes.

Other:

• Language Decals: Offer operational instructions in multiple languages.
• Buckets: A variety of bucket options to suit different job requirements.
• Bolt-On Bucket Cutting Edges: Extend the life of the bucket and improve penetration.
• Special Paint: Custom paint options are available for company branding or personal preference.
• Offsite Service Arrangement: Flexible maintenance options to suit operational needs.

Factory Supplied Attachments:

• Add-On Counterweights: Enhance machine stability and lifting capacity.
• Road Lights: Improve visibility and safety on public roadways.
• Rotating Beacon: Alerts nearby personnel to the machine’s presence.
• Four-Corner LED Strobe: Enhances visibility and safety, especially in low-light conditions.

Service Parts:

• 3 Inch (76.2 mm) Retractable Seat Belt: Offers additional safety for the operator.
• Bolt-On Heavy-Duty Bucket Teeth: This is for improved digging performance in harsh conditions.

Tier 4 Final

EXTERNAL CEGR WITH DOC & DPF

Why this solution: The SR160B offers a low cost of entry to the skid steer market while still providing the power and performance associated with CASE B Series. Using Tier 4 Final technology that’s more affordable, this solution helps keep the unit price down.

How it works: With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and then returned to the cylinder. This lowers combustion temperatures and dramatically reduces emissions but produces more particulate matter. Then the diesel oxidation catalyst (DOC) oxidizes the machine’s exhaust to create heat and further manage emissions while the diesel particulate filter (DPF) captures excess particulate matter and then burns it off through a combustion process known as “regeneration,” which helps maximize the life of the filter.

What this means to you: This solution requires no new additive and provides a lower upfront machine cost, but as with all DPF systems, the filter requires replacement over time, which impacts total cost of ownership. DPF regeneration also requires additional fuel burn.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler, and water pump.

Purchased Protection

The Purchased Protection Plan extends the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to three years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
