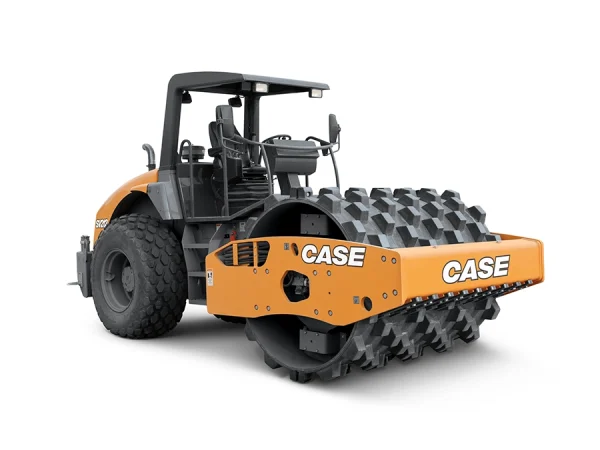

CASE SV211E Single Drum Vibratory Roller – NN3038898

Unmatched Compaction Capabilities:

• Centrifugal Force Range: The SV211E delivers a broad spectrum of centrifugal forces, from 34,845 pounds to 64,070 pounds, ensuring optimal compaction power for every task.

Superior Gradeability: King of the Hill:

• Axle-Free Design: Its innovative axle-free structure lowers the engine’s placement within the frame, granting the SV211E a low center of gravity. This feature, combined with the optional automatic traction control and HX drive propulsion system, allows the roller to compact efficiently on steep inclines of up to 67 percent.

Enhanced Design for Efficiency and Visibility:

• Compact and Fuel-Efficient: Recent enhancements in the frame design, styling, and layout of the machine have significantly improved visibility and operational efficiency, contributing to more precise compaction work and reduced fuel consumption.

Optimized Operator Environment:

• Comfort and Control: The SV211E is available in cab and open ROPS configurations, offering a spacious, comfortable, and intuitive operator environment. Features include an adjustable seat that swivels up to 80 degrees for outstanding drum surface visibility and an LED display integrated within the steering wheel for enhanced operation and easy access to vital machine information.

Enhanced Terrain Handling:

• Consistent Contact and Reduced Drift: The oscillating articulated roller joint ensures uninterrupted drum-to-ground contact on uneven terrains. At the same time, the updated drum design minimizes drift and maintains consistent compaction throughout each rotation.

Simplified Serviceability:

• Groundline Maintenance: Designed with convenience in mind, the E Series, including the SV211E, provides easy ground-level access to all fluid ports, drains, service checkpoints, and filters, simplifying maintenance and ensuring minimal downtime.

Safety and Construction:

• ROPS and FOPS Protection: Roll-Over Protective Structure and Falling Object Protective Structure ensure operator safety in all working conditions.
• Hydrostatic Drive: Provides smooth, responsive control for the drum and wheels, enhancing precision and ease of operation.
• Steel Drum Scrapers: Keep the drum clean for consistent compaction and performance.
• Diamond Tread Tires: Offer excellent traction and stability on various terrains.
• Telematics Ready: Allows easy integration with telematics systems for advanced monitoring and management capabilities.
• Interwheel Differential Lock: Improves traction and performance on challenging surfaces.
• Articulated Chassis: Enhances maneuverability and control, allowing precise compaction in tight spaces.
• Front and Rear Tow Points: Provide convenient options for transportation and positioning on job sites.
• 4-Point Lift and Tie-Down Provision: Ensures secure transport and easy roller lifting.
• Fan Guard: Protects the cooling system from debris, extending the machine’s life.
• Backup Alarm: Alerts personnel and enhances safety during reverse operations.
• Halogen Work Lights (2 Front/2 Rear): Illuminate the work area for safe operation in low-light conditions.
• Master Disconnect Switch: A secure method to disconnect power for maintenance or security.
• Spring-applied Hydraulic Release Parking Brake: This brake allows the machine to stay in place when parked, even on slopes.
• 3 Working Speeds/1 Transport Speed: Adapts to various job site conditions for optimal efficiency.
• Spin-On Filters: Facilitate easy maintenance with readily replaceable fuel, engine oil, and hydraulic filters.
• Spring-Assist Tilting Engine Hood: Provides easy access for maintenance and inspection, reducing downtime.

Operator Environment:

• Lockable Tool Box: Secure storage space for tools and personal items.
• 3-Inch Retractable Seat Belt: Enhances operator safety and compliance.
• Cup Holder: Keeps beverages within reach, improving operator comfort.
• Single Lever Speed/Direction Control: Simplifies operation, allowing for easy adjustments to speed and direction.
• Emergency Stop Button: Ensures quick machine shutdown in emergencies.
• Steering Wheel Embedded Monitor: Offers convenient access to critical machine information, enhancing operation and visibility.

Instrument Panel and Vibration System:

• Steering Wheel Spinner Knob: Aids in easier, more comfortable steering.
• Horn: Increases job site safety by facilitating communication.
• Auto Vibration Control: Automatically adjusts the vibration system for optimal compaction efficiency.
• Dual Amplitude and Frequency Vibration: Allows versatile compaction capabilities and is adaptable to different soil types and conditions.

Performance Enhancements:

• Automatic Traction Control (ATC) with HX Drive Propulsion System: Ensures optimal traction on challenging terrains, which is standard on Padfoot models for superior compaction performance.
• Leveling Blade: Facilitates material spreading and grading, enhancing the roller’s utility on job sites.
• Padfoot Shell Kit with Scrapers: Converts the smooth drum for use on cohesive soils, increasing the machine’s versatility.
• Traction Tread Tires: Provide improved grip and stability on loose or uneven surfaces.
• Tire Ballasting: Adds weight for increased compaction force and is suitable for specific ground conditions.

Operator Comfort and Convenience:

• Pressurized Cab with HVAC: Creates a comfortable operator environment in various weather conditions, complete with heat, ventilation, and air conditioning. It is also ready for radio installation (antenna and two speakers included, no radio).
• Extra Front Work Lights (Smooth Drum only): Enhances visibility for safe and efficient operation during low-light conditions.
• Engine Filter Pre-Cleaner: Extends engine life by removing larger particles before they reach the primary filter.

Compaction Efficiency and Documentation:

• ACI Eco—Analog Compaction Indicator: Provides a visual representation of compaction progress, helping operators achieve consistent results.
• ACE Force Intelligent Compaction (Cab only): Delivers real-time compaction data, optimizing efficiency and ensuring compliance with project specifications.
• ACE Force Printer (Cab only): Allows for on-site printing of compaction data, facilitating documentation and quality assurance.

Safety and Visibility:

• Rotating Beacon: Increases the machine’s visibility on the job site, enhancing the operator’s and surrounding personnel’s safety.

Advanced Technology:

• CASE SiteWatch Telematics: Includes hardware and a 3-year Advanced data subscription, offering comprehensive monitoring of machine performance, location, and utilization. This system aids in maintenance planning and fleet management, ensuring maximum uptime and productivity.

Category	Specification	Detail
ENGINE	Make	Deutz
	Emissions Certification	Tier 4 Final
	Model	TCD3.6 L4
	Cylinders	Not specified
	Displacement	Not specified
	Gross Horsepower @ 2200 RPM	134 hp (100 kW)
	Max. Torque @ 1600 RPM	368.8 lbf·ft (500 N·m)
DRIVETRAIN	Drive	Hydrostatic
	F/R Travel Speed Range	5+1
	Working Speeds (mph/kph)	1st – max. 1.6 (2.5), 2nd – max. 2.3 (3.7), 3rd – max. 3.1 (5), 4th – max. 4.7 (7.6)
	Max. Travel Speed (mph/kph)	7.5 (12)
	Parking Brake	Multiple-disc spring brake
	Emergency Brake	Multiple-disc spring brake
	Variable Displacement Axial Piston Type Wheel Drive Pump	1
	Hydraulic Fixed Displacement Wheel Drive Motors	2
	Drive Motor Interlock	Yes
	Hydraulic Variable Displacement Drum Drive Motor	1
	Gradeability w/o Traction Assist	54%
	Gradeability w/ HX Drive Traction Assist	67%
	Lateral Stability during Driving w/o Vibration	25%
ELECTRICAL	Voltage	24 Volts
	Battery	2 x 90 amp
	Alternator	45 amp
OPERATOR ENVIRONMENT	Features	Isolated from chassis by flexible shock absorbers; Handrail; Dual rearview mirrors; Front lighting; Instrument panel anti-vandal guard; Vinyl suspension seat w/ armrests and 3 in (76.2 mm) retractable seat belt; Exceptional front/rear visibility.
OPERATING WEIGHT	Smooth Drum	Operating weight w/o cab 25,630 lb (11,625 kg), Max. weight w/ cab 29,610 lb (13,430 kg), Static linear load 169.6 lb/in (30.3 kg/cm)
	Padfoot Drum	Operating weight w/o cab 26,860 lb (12,183 kg), Max. weight w/ cab 27,650 lb (12,542 kg), Weight of Blade (opt.) 1,970 lb (895 kg)
SERVICE CAPACITIES	Fuel Tank	91.1 gal (345 L)
	Engine Oil	2.6 gal (10 L)
	Diesel Exhaust Fluid Tank	5.8 gal (22 L)
	Engine Coolant	8.6 gal (32.5 L)
	Hydraulic System	20.1 gal (76 L)
	Transmission	0.4 gal (1.5 L)
	Drive Axle	0.4 gal (1.5 L)
	Vibration System	1.9 qt (7.3 L)
OTHER SPECIFICATIONS	Steering	Pump – gear type 1, Cylinders 2, Angle – left and right 36°, Oscillation angle 10°, Inside turning radius 142.9 in (3,630 mm), Outside turning radius 250.6 in (6,365 mm)
	Vibratory System	Hydraulic circuit type Closed, Variable displacement axial piston type pump 1, Fixed displacement hydraulic motor 1, Vibration modes 2, Vibration 2 eccentric weights circular pattern/continuously adjustable
	Frequency	Low 1,860 vpm (31 Hz), High 2,100 vpm (35 Hz)
	Amplitude	Low 0.033 in (0.83 mm), High 0.077 in (1.96 mm)
	Centrifugal Force	Low 34,845 lb (155 kN), High 64,070 lb (285 kN)
	Tires	Size 23,1×26´´, Smooth drum UK 5 Diamond, Padfoot drum TD-01 Tractor, Tire ballast Traction tread only

Dimension	Specification
A. Wheel Base	117.7 in (2,990 mm)
B. Drum Diameter w/ Smooth Drum	59.1 in (1,500 mm)
C. Drum Diameter w/ Padfoot Drum	58.7 in (1,490 mm)
D. Ground Clearance	16.9 in (430 mm)
E. Overall Height	116.9 in (2,970 mm)
F. Overall Length	232.3 in (5,900 mm)
G. Drum Width	83.9 in (2,130 mm)
H. Overall Width	89 in (2,260 mm)
I. Frame Extensions	4 in (102 mm)
J. Drum Thickness	1 in (25 mm)

Base & Extended Warranty Coverage

1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
