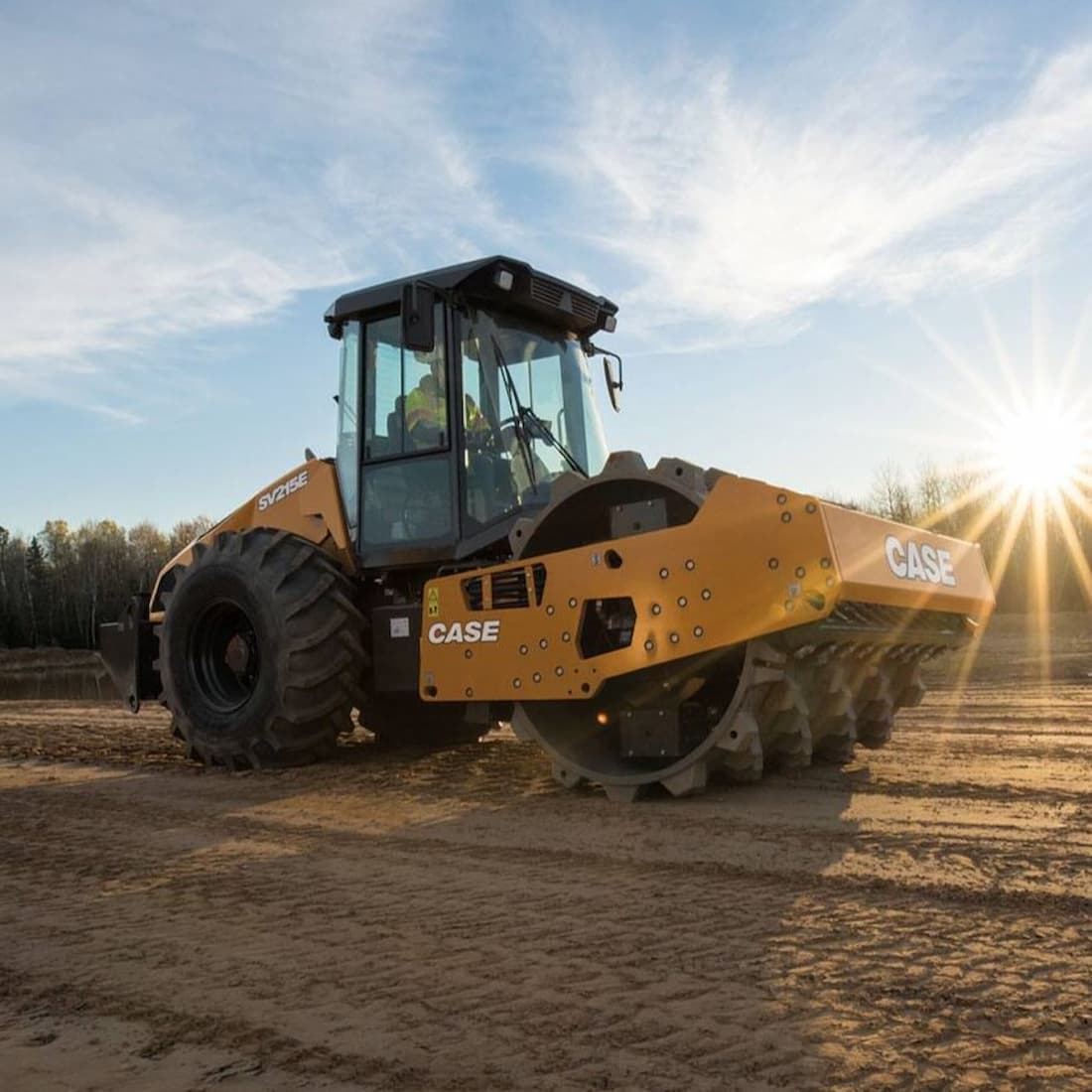

CASE SV215E Single Drum Vibratory Roller

The CASE SV215E sets the standard in heavy-duty soil compaction, engineered to deliver unparalleled compaction power and precision. With centrifugal forces peaking at 73,063 pounds, this machine is designed for efficiency and effectiveness, enabling deeper compaction in fewer passes and reducing wear and tear on the equipment.

SV215E Features

Unmatched Compaction Capabilities:

  • Dynamic Force Range: The SV215E offers centrifugal forces from 48,334 pounds to 73,063 pounds, allowing optimal compaction for various soil types and conditions.
  • Dual Amplitudes and Frequencies: With low amplitude settings at 0.038 inches and high settings at 0.081 inches, combined with low frequencies of 1,740 vibrations per minute at 29 hertz and high frequencies of 2,100 vibrations per minute at 35 hertz, operators can fine-tune the compaction to suit each unique project requirement.
  • Intelligent Compaction Solutions: Optional advanced compaction technologies further enhance productivity and compaction quality, adapting to the needs of complex projects.

Superior Gradeability: Take the Hill:

  • Low Center of Gravity: The innovative axle-free design positions the engine lower in the frame, enhancing the machine’s stability and enabling it to easily tackle steep grades of up to 67 percent, especially when equipped with the Automatic Traction Control and HX drive propulsion system.

Sleek, Agile, and Operator-Friendly:

  • Modern Design: The SV215E features a modern, sleek design with excellent rear visibility thanks to its low-sloping rear hood, ensuring safety and ease of operation.
  • Dynamic Performance: With hydrostatic drive, four working speeds, and a tight turning radius, this large soil compactor offers agile and responsive handling.

Enhanced Operator Comfort:

  • Spacious Operator Environment: Available with an open ROPS or an optional enclosed cab, the SV215E provides a comfortable, intuitive workspace. The adjustable seat swivels up to 80 degrees, offering exceptional visibility, while an LED display integrated into the steering wheel puts critical information at the operator’s fingertips.

Consistent Compaction Performance:

  • Oscillating Articulated Roller Joint: This feature ensures continuous drum-to-ground contact, enhancing compaction efficiency. The updated drum design minimizes drift and maintains consistent compaction.

Simplified Serviceability:

  • Groundline Maintenance: Designed for easy access to all fluid ports, drains, service checkpoints, and ground-level filters, the SV215E simplifies maintenance routines. The cab can also be tilted forward for convenient access to primary hydraulic components, with optional CASE SiteWatch telematics available to streamline fleet management further.

SV215E Standard Equipment

Safety and Durability:

  • ROPS and FOPS Protection: Ensures operator safety with a Roll-Over Protective Structure and Falling Object Protective Structure.
  • Hydrostatic Drive: Offers precise control for both the drum and wheels, enhancing maneuverability and compaction efficiency.
  • Steel Drum Scrapers: Keep the drum clean for consistent compaction performance.
  • Diamond Tread Tires: Provide superior traction and stability across various terrains.
  • Telematics Ready: Facilitates easy integration with telematics systems for enhanced machine monitoring and management.
  • Interwheel Differential Lock: Improves traction and performance on challenging surfaces.
  • Articulated Chassis: Enhances maneuverability and control, allowing precise compaction in tight spaces.
  • Front and Rear Tow Points: Provide convenient options for transportation and positioning on job sites.
  • 4-Point Lift and Tie-Down Provision: Ensures secure transportation and stability during lifting.
  • Fan Guard: Protects the cooling system from debris, prolonging machine life.
  • Backup Alarm: Increases job site safety by alerting nearby personnel during reverse operations.
  • Halogen Work Lights (2 Front/2 Rear): Illuminate the work area for safe operation in low-light conditions.
  • Master Disconnect Switch: A secure method to disconnect power for maintenance or security.
  • Spring Applied, Hydraulic Release Parking Brake: Ensures the roller remains stationary when parked, enhancing safety.

Operator Comfort and Convenience:

  • Lockable Tool Box: Provides secure storage for tools and personal items.
  • 3-Inch Retractable Seat Belt: Ensures operator safety and compliance with job site regulations.
  • Cup Holder: Keeps beverages within reach, improving operator comfort.
  • Single Lever Speed/Direction Control: Simplifies machine operation, allowing for effortless adjustments to speed and direction.
  • Emergency Stop Button: Offers a quick and reliable way to shut down the machine in emergencies.
  • Steering Wheel Embedded Monitor: Provides easy access to critical machine information, improving operational efficiency.

Instrument Panel and Vibration Control:

  • Steering Wheel Spinner Knob: Aids in easier steering, enhancing operator comfort.
  • Horn: Facilitates communication on the job site, increasing safety.
  • Auto Vibration Control: Automatically adjusts the vibration system for optimal compaction and efficiency.
  • Dual Amplitude and Frequency Vibration: Enables the operator to select the most effective compaction settings for various soil types and conditions.

SV215E Optional Equipment

Performance Enhancements:

  • Automatic Traction Control (ATC) with HX Drive Propulsion: This system, standard on Padfoot models, ensures optimal traction and compaction efficiency on challenging terrains and steep slopes.
  • Leveling Blade: Facilitates material spreading and site preparation, adding versatility to the roller’s capabilities.
  • Padfoot Shell Kit with Scrapers: Expands the roller’s application range for cohesive soil compaction, ensuring thorough compaction and material adherence.

Operator Comfort and Safety:

  • Pressurized Cab with HVAC: An optional enclosed cab provides a controlled environment with heat, ventilation, and air conditioning and is radio-ready (antenna and two speakers included, no radio), ensuring operator comfort in all weather conditions.
  • Engine Filter Pre-Cleaner: Extends engine life by preventing dust and debris ingress into the air intake system.
  • Extra Front Work Lights (Smooth Drum Only): Enhances visibility for safe operation in low-light conditions, ensuring precision and safety.
  • Rotating Beacon: Increases the machine’s visibility on busy job sites, enhancing operational safety.
  • Backup Camera: Provides increased rear visibility, aiding in safer maneuvering and reversing.

Compaction Efficiency and Monitoring:

  • ACI Eco—Analog Compaction Indicator: Offers a visual gauge of compaction progress, enabling operators to achieve consistent results.
  • ACE Force Intelligent Compaction (Cab Only): This advanced system provides real-time compaction data, optimizing efficiency and ensuring compaction quality.

Traction and Mobility:

  • Traction Tread Tires: Designed for enhanced grip and stability, these tires improve the roller’s performance on various terrains.

Advanced Telematics:

  • CASE SiteWatch Telematics: Comes with hardware and a three-year Advanced data subscription and offers remote monitoring of machine performance, location, and utilization. It aids in maintenance planning, fleet management, and operational optimization.

SV215E Specs

Emissions CertificationTier 4 Final
ModelTCD4.1 L4
Gross Horsepower @ 2200 RPM154 hp (115 kW)
Max. Torque @ 1600 RPM449.2 lbf·ft (609 N·m)
F/R Travel Speed Range5+1
Working Speeds (mph/kph)1st – max. 1.4 (2.2), 2nd – max. 2 (3.2), 3rd – max. 2.7 (4.3), 4th – max. 4 (6.5)
Max. Travel Speed (mph/kph)7.9 (12.7)
Parking BrakeMultiple-disc spring brake
Emergency BrakeMultiple-disc spring brake
Variable Displacement Axial Piston Type Wheel Drive Pump1
Hydraulic Fixed Displacement Wheel Drive Motors2
Drive Motor InterlockYes
Hydraulic Variable Displacement Drum Drive Motor1
Gradeability w/o Traction Assist54%
Gradeability w/ HX Drive Traction Assist67%
Lateral Stability during Driving w/o Vibration20%
ELECTRICALVoltage24 Volts
Battery2 x 90 amp
Alternator45 amp
OPERATOR ENVIRONMENTFeaturesIsolated from chassis by flexible shock absorbers; Handrail; Dual rearview mirrors; Front lighting; Instrument panel anti-vandal guard; Vinyl suspension seat w/ armrests and 3 in (76.2 mm) retractable seat belt; Exceptional front/rear visibility.
OPERATING WEIGHTSmooth DrumOperating weight w/o cab 32,570 lb (14,775 kg), Max. weight w/ cab 32,720 lb (14,840 kg), Static linear load 243 lb/in (43.4 kg/cm)
Padfoot DrumOperating weight w/o cab 33,280 lb (15,095 kg), Max. weight w/ cab 33,420 lb (15,160 kg), Weight of Blade (opt.) 1,970 lb (895 kg)
SERVICE CAPACITIESFuel Tank91.1 gal (345 L)
Engine Oil3.6 gal (13.5 L)
Diesel Exhaust Fluid Tank5.8 gal (22 L)
Engine Coolant7.7 gal (29 L)
Hydraulic System23.8 gal (90 L)
Transmission0.4 gal (1.5 L)
Drive Axle0.4 gal (1.5 L)
Vibration System1.9 qt (7.3 L)
OTHER SPECIFICATIONSSteeringPump – gear type 1, Cylinders 2, Angle – left and right 36°, Oscillation angle 10°, Inside turning radius 140.6 in (3,570 mm), Outside turning radius 233.5 in (5,930 mm)
Vibratory SystemHydraulic circuit type Closed, Variable displacement axial piston type pump 1, Fixed displacement hydraulic motor 1, Vibration modes 2, Vibration 2 eccentric weights circular pattern/continuously adjustable
FrequencyLow 1,740 vpm (29 Hz), High 2,100 vpm (35 Hz)
AmplitudeLow 0.038 in (0.96 mm), High 0.081 in (2.06 mm)
Centrifugal ForceLow 48,334 lb (215 kN), High 73,063 lb (325 kN)
TiresSize 23,1×26´´, Smooth drum UK 5 Diamond, Padfoot drum TD-01 Tractor

SV215E Dimensions

A. Wheel Base119.7 in (3,040 mm)
B. Drum Diameter w/ Smooth Drum59.1 in (1,500 mm)
C. Drum Diameter w/ Padfoot Drum67.6 in (1,716 mm)
D. Ground Clearance16.9 in (430 mm)
E. Overall Height116.9 in (2,970 mm)
F. Overall Length234.3 in (5,950 mm)
G. Drum Width83.9 in (2,130 mm)
H. Overall Width89 in (2,260 mm)
I. Frame Extensions4 in (102 mm)
J. Drum Thickness1.4 in (35 mm)


Base & Extended Warranty Coverage

1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
