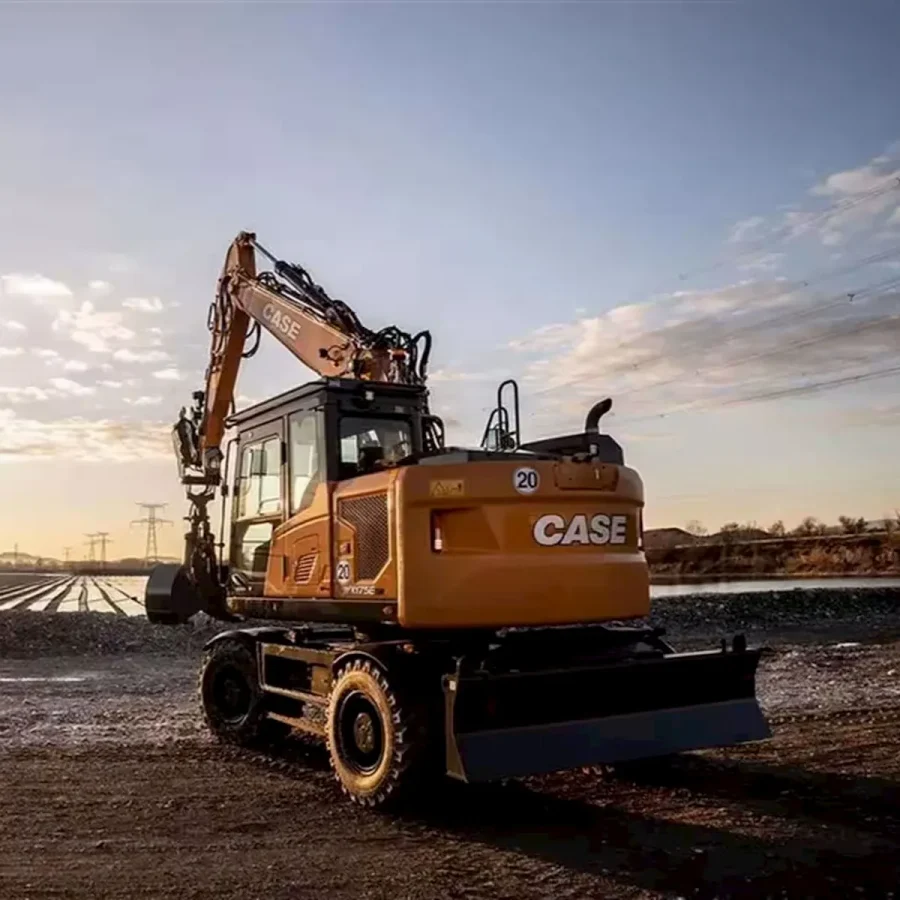

CASE WX175E SR Wheeled Excavator

Performance
At the heart of the WX175E SR lies a vigorous 170 hp engine, notable for its EGR-free operation and automatic after-treatment system cleaning, ensuring consistent peak performance. The excavator offers four user modes, including a customizable option, allowing operators to precisely adjust performance, power, fuel efficiency, and hydraulic flow to suit the demands of any task.

Mobility
Designed for supreme mobility, the WX175E SR boasts a variety of lower-frame configurations, including dozer blade and stabilizer options and twin tires to minimize flat tire downtime. Heavy-duty axles and a hydrostatic transmission enable speeds up to 25 mph. This excavator ensures you’re always ready to move, enhanced with standard cruise control and Ride Control for smoother travel, plus a trailer hitch for transporting additional equipment.

Versatility
A two-piece boom comes standard, offering flexibility for close-quarters work. For those requiring greater lift capacity, an optional monoboom is available. Joystick steering provides precise control at speeds up to 6.2 mph. This is an actual tool carrier, and it supports a wide array of attachments with a high-flow hydraulic system and a standard quick coupler auxiliary line. An optional low-flow circuit and a Leica 2D Precision package further expand its adaptability.

Comfort
CASE prioritizes operator comfort with a spacious cab featuring large windows for unparalleled visibility, an air-suspension heated seat with extensive adjustability, and an 8″ touchscreen display. Options like a smart ignition key and Auto Braking enhance convenience and safety, ensuring operators work efficiently and comfortably throughout the day.

Serviceability
Routine maintenance is streamlined with accessible service points for 8 “0-hour engine oil and filter changes, 1,000-hour fuel filter replacements, and 5,000-hour hydraulic oil changes. A 3-year/3,000-hour full machine warranty and a 2,000-hour maintenance plan underscore the excavator’s reliability.

Safety
Safety is paramount, with standard rear radar object detection and the CASE maximum view monitor offering 360-degree visibility. Hose burst check valves on critical cylinders and optional enhanced cab protection provide peace of the excavator’s safe working environment.

Engine:

• Cummins B4.5 engine: Water-cooled, 4-cylinder inline, 4.5-liter
• High-pressure common rail system with electronic control
• Waste gate turbocharger with air-cooled intercooler
• DOC+DPF+SCR after-treatment system for emissions control, EGR-free
• Rated flywheel horsepower: 170 hp (ISO 9249) and 173 hp (ISO 14396) at 2200 RPM
• Maximum torque: 575 ft·lb (ISO 14396) at 1500 RPM
• Tier 4 Final / Stage V emissions certified
• Compatible with ultra-low sulfur diesel and B7 biodiesel
• ECO gauge for monitoring fuel efficiency
• Detailed reports for fuel, work modes, and throttle position utilization
• Variable power control via jog dial
• Automatic, postponable after-treatment filter cleaning
• Programmable electronically-controlled reversible fan
• Programmable engine Auto Idle and Auto Shutdown functions
• Automatic or manually controlled 9.2 gpm electric refuel pump
• DEF tank overload warning
• Air intake with cup-type pre-cleaner
• Dual dry-type element air filter with warning restriction indicator
• Air grid heater for cold start aid
• Replaceable, full-flow spin-on fuel and engine oil cartridges
• Fuel pre-filter with water drain
• Stacked cooling pack configuration with protective screen for radiators

Upper Carriage:

• Standard counterweight for stability and performance
• Safety handrails on the front and right-hand side for secure access
• Lockable cab door, fuel and DEF tanks, service doors, and toolbox for security and convenience
• Rear work lamp and headlights with indicator lights for visibility
• LED working lights package for enhanced illumination during operations

Hydraulics:

• Load sensing hydraulic system (LUDV) with advanced flow sharing for efficiency.
• Three selectable work modes: Heavy Duty, Standard, and Economy, plus one user-customizable mode.
• High-flow multi-function hydraulic system with pressure settings for one-way and two-way flow attachments.
• Capacity for hydraulic settings storage and management for 20 attachments (10 one-way, 10 two-way).
• Three attachment work modes: push, detent, and proportional for varied operations.
• Quick coupler hydraulic circuit for easy attachment changes.
• Safety valves on the boom, arm, and dozer blade to prevent overload.
• Power boost mode for extra hydraulic power.
• Accumulator on boom cylinders for smoother operation.
• Boom float control for precise movements.
• High-pressure hoses are designed for durability.
• Main hydraulic pump: Variable displacement piston pump.
• Maximum oil flow of 68.9 gpm at 1800 RPM.
• Working circuit pressures optimized for performance.

Attachments:

• Standard 2-piece boom for flexibility.
• 8 ft 6 in digging arm with reinforcements for durability.
• Reinforced pins, bushings, and polymer shims for extended service life.

Maintenance and Warranty:

• Full Machine Protection Factory Warranty for 3 years or 3000 hours.
• Planned Maintenance Agreement for 3 years or 2000 hours.
• Convenient single-point engine checks.
• Integrated self-diagnostics system for troubleshooting.
• Service intervals for greasing, oil and filter changes, and hydraulic oil maintenance.

Operator Environment:

• Cab: Enclosed pressurized cab with full climate control, air conditioning, heat, and defrost, plus a lockable door for security.
• Safety: ROPS/FOPS certified for optimal operator safety. Safety glass on all windows, with laminated glass for the front window for added protection.
• Visibility: There is a One-piece sliding fold-in front window and a sliding left-hand side window. A clear roof view with sunshades and a rain deflector enhances visibility and comfort.
• Seat: High-back premium heated air suspension and tilting seat with comprehensive adjustments, including sliding fore/aft, weight, height, pan angle, depth, lumbar, and backrest.
• Controls: Low-effort joystick controls with proportional control, FNR transmission switch, detent activation, and front axle oscillation lock. Selectable steering wheel or right-hand joystick steering, with a slim 3-way adjustable steering column design.
• Instrumentation: An 8-inch touchscreen monitor displays an instrument cluster with navigation, air conditioning control, and engine throttle, all powered by a right-hand console jog dial module. Gauges include engine RPM, engine coolant temperature, hydraulic oil temperature, fuel level, DEF level, ECO mode, accelerometer dial, and hour meter.
• Safety Systems: CASE MaxView 360-degree 4-camera system with intelligent moving object detection and a radar object detection and warning system on the rear of the machine for enhanced safety.
• Communication and Entertainment: The audio system includes a radio player, USB MP3 player, aux-in port, and Bluetooth capability for hands-free calling. A 12-volt electric outlet is provided for charging personal electronics.
• Additional Features: Adjustable speed cruise control, emergency FNR switch, a 4-wheel auto-brake mode for attachment operation, ride control system for smoother travel, interior dome light, emergency exit and hammer, 2-piece rubber floor mat, exterior mirrors, cup holder, storage compartments, warm/cool storage compartment, electric horn, parallel windshield wiper and washer, cab filters (internal and external), and cab suspension mounts to minimize noise and vibration. An operator’s manual is included for reference.

Hydraulics:

• Secondary low 2-way flow electronic proportional controlled auxiliary hydraulics for precise control of attachments.
• Fine Swing control to enhance operational precision during swing movements.
• Cold climate hydraulic oil to ensure optimal hydraulic performance in colder temperatures.

Operator Environment:

• Option for rear view camera only to improve rearward visibility.
• Rear and right-side cameras for enhanced visibility and safety around the machine.
• Smart key with a push-to-start button for ease of use and increased security.

Front End Equipment:

• Digging arm options to suit various job requirements:
• 8 ft 0 in (2.45 m) digging arm for standard reach and depth.
• 8 ft 6 in (2.6 m) digging arm for extended reach and increased digging capabilities.

Upper Structure:

• FOPS (Falling Object Protective Structure) top cab guard for added protection against falling debris.
• Wire mesh screen front guard to shield the operator and cab from flying debris.
• OPG (Operator Protective Guard) Level 2 front guard for enhanced front protection.

Undercarriage:

• Rear blade for grading, backfilling, and leveling tasks.
• 2F/2R stabilizers to provide additional stability during operation.
• F/R blade option combines front and rear blades for versatile ground engagement.
• Solid tires for improved durability and reduced maintenance, especially suited for urban and hard-surface applications.
