Engine Rated Power (kW): 760 HP (567 kW) Operating Weight: Backhoe: 257,951 lbs (117,000 kg) | Shovel: 264,600 lbs (120,000 kg) Max. Digging Reach: Backhoe: 50 ft 4 in (15.35 m) | Shovel: 37 ft 9 in (11.5 m) Max. Digging Depth: Backhoe: 30 ft 9 in (9.38 m) | Shovel: 15 ft 8 in (4.78 m)

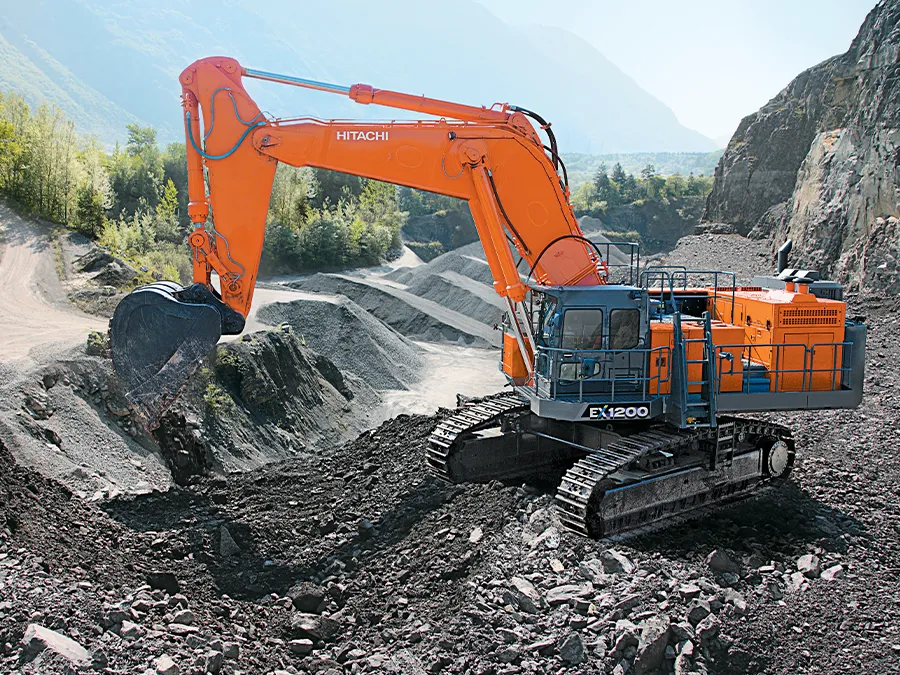

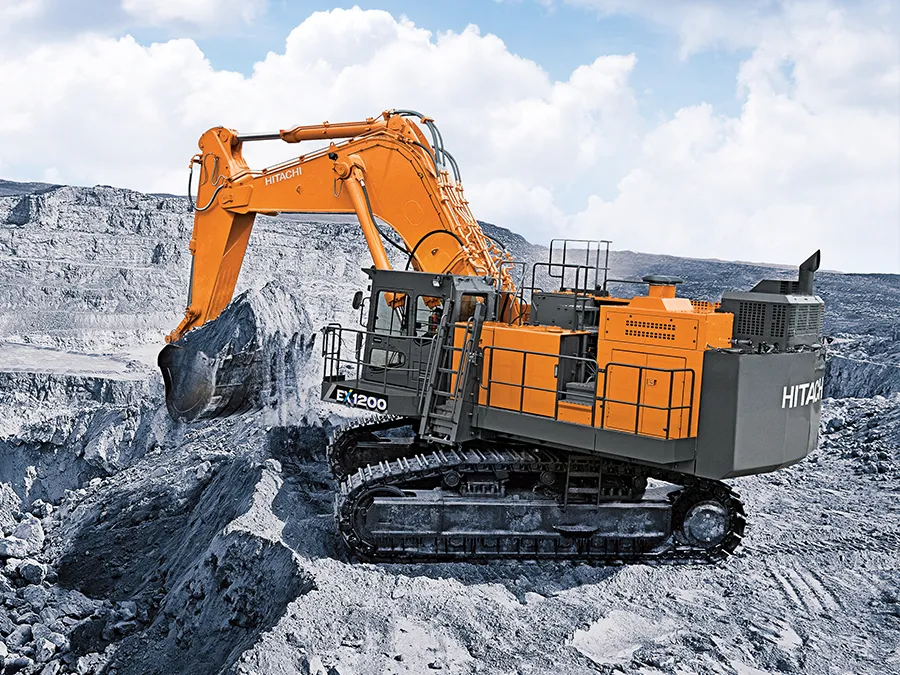

Hitachi mining excavator EX1200-7B T4F built for quarry and mining work with high productivity and Tier 4 Final power.
The Hitachi Mining Excavator EX1200-7B T4F is engineered for high-production mining and quarry operations where power, durability, and reliability are essential. Designed to move large volumes of material efficiently, the EX1200-7B delivers exceptional digging force, stable lifting capability, and consistent cycle times across demanding production environments.
Powered by a Tier 4 Final compliant diesel engine, this mining excavator meets U.S. emissions standards while maintaining the performance required for heavy excavation and truck loading applications. Advanced hydraulic systems provide smooth and responsive control, allowing operators to maintain precise digging and loading performance even during sustained production shifts.
The EX1200-7B is built on a reinforced structure designed to withstand the extreme conditions found in mining operations. Its heavy-duty undercarriage, durable boom and arm construction, and optimized hydraulic system help maximize uptime while supporting continuous production workloads.
Designed for operator productivity and machine reliability, the EX1200-7B T4F delivers the power, stability, and efficiency contractors and mining operators expect from Hitachi mining excavators.
EX1200-7B T4F Specifications
Specifications
Engine Rated Power (kW):
760 HP (567 kW)
Operating Weight:
Backhoe: 257,951 lb (117,000 kg) Shovel: 264,600 lb (120,000 kg)
Max. Digging Reach:
Backhoe: 50 ft 4 in (15.35 m) Shovel: 37 ft 9 in (11.5 m)
Max. Digging Depth:
Backhoe: 30 ft 9 in (9.38 m) Shovel: 15 ft 8 in (4.78 m)
Engine
Model
Cummins QSK23-C (FCO,T4F)
Rated power @1 800 min-¹ (rpm) ISO14396
567 kW (770 PS, 760 HP)
Piston displacement
23.2 L (1,416 cu.in.)
HYDRAULIC SYSTEM
Main pumps
3 variable-displacement, swash plate type axial piston pumps
Max. oil flow
3 x 520 L/min ( 3 x 134.4 gal./min)
Pressure setting
31.9 MPa (325 kgf/cm2, 4,627 psi)
Pilot pump
Gear pump
Max. oil flow
56.0 L/min (14.8 gal./min.)
Fan pump
Variable-displacement, swash plate type axial piston pumps
Max. oil flow
130.0 L/min (34.3 gal./min.)
UPPERSTRUCTURE
Swing speed
5.2 min-¹ (rpm)
Fuel tank capacity
1,700 L (449 gal.)
Def tank capacity (T4F only)
145 L (38.3 gal.)
UNDERCARRIAGE
Travel Speeds
High: 0 to 3.5 km/h (0 to 2.2 mph) Low: 0 to 2.4 km/h (0 to 1.5 mph)
Maximum traction force
707 kN (72 100 kgf, 158,940 lbf.)
Weights and Ground Pressure
Loading Shovel Equipped with 6.5 m³ (8.5 cu. yd.) (ISO Heaped) bottom dump bucket
Shoe type
Shoe width
Operating weight
Ground pressure
Double grousers
700 mm (28 in.)
118,000 kg (260,146 lb.)
149 kPa (1.19 kgf/cm², 16.8 psi)
Backhoe EX1200-7: Equipped with 9.0 m (29 ft 6 in.) boom, 3.6 m (11 ft 10in.) arm, and 5.2 m³ (6.8 cu. yd.) (ISO heaped) bucket
Shoe type
Shoe width
Operating weight
Ground pressure
Double grousers
700 mm (28 in.)
115 000 kg (253,352 lb.)
145 kPa (1.48 kgf/cm², 21.0 psi)
900 mm (35 in.)
116 000 kg (255,736 lb.)
114 kPa (1.17 kgf/cm², 16.8 psi)
EX1200-7 BE-front: Equipped with 7.55 m (24ft 9in.) BE-boom, 3.4 m (11 ft. 2 in.) BE-arm, and 7.0 m³ (9.2 cu. yd.) (ISO heaped) bucket
Shoe type
Shoe width
Operating weight
Ground pressure
Double grousers
700 mm (28 in.)
117,000 kg (257,951 lb.)
148 kPa (1.51 kgf/cm², 21.5 psi)
900 mm (35 in.)
118,000 kg (260,146 lb.)
116 kPa (1.19 kgf/cm², 16.8 psi)
FCO configuration only
Attachments Loading Shovel
Buckets
Capacity ISO 7546 (Heaped 2:1)
Width
No. of Teeth
Weight
Type
Materials Density
5.9 m³ (7.7 cu. yd.)
2,510 mm (8 ft. 3 in.)
6
10,000 kg (22,046 lb.)
◙
1 800 kg/m³ (3,034 lb./cu.yd.) or less
6.5 m³ (8.5 cu. yd.)
2,700 mm (8 ft. 10 in.)
6
9,390 kg (20,701 lb.)
○
1800 kg/m³ (3,034 lb./cu.yd.) or less
○ Bottom dump type general purpose bucket ◙ Bottom dump type rock bucket
Attachments Backhoe
Buckets
Capacity ISO 745 1 (Heaped 1:1)
Width Without shroud
Width With shroud
No. of teeth
Weight
Type
Materials density
5.2 m³ (6.8 cu. yd.)
2,140 mm (7 ft.)
2,140 mm (7 ft.)
5
10,000 kg (22,046 lb.)
○
1,800 kg/m³ (3,034 lb./cu.yd.) or less
7.0 m³ (9.2 cu. yd.)*
2,640 mm (8 ft. 8 in.)
2,640 mm (8 ft. 8 in.)
5
7,860 kg (17,328 lb.)
○
1,800 kg/m³ (3,034 lb./cu.yd.) or less
○ General purpose bucket * BE (Bulk Excavation) Front Attachment
