Engine Rated Power (kW): 1,944 HP (1,450 kW) Operating Weight:Backhoe: 815,710 lb (370,000 kg) Shovel: 813,506 lb (369,000 kg) Max. Digging Reach: Backhoe: 59 ft 10 in (18.24 m) Shovel: 51 ft 5 in (15.66 m) Max. Digging Depth:Backhoe: 28 ft 4 in (8.63 m) Shovel: 14 ft 4 in (4.35 m)

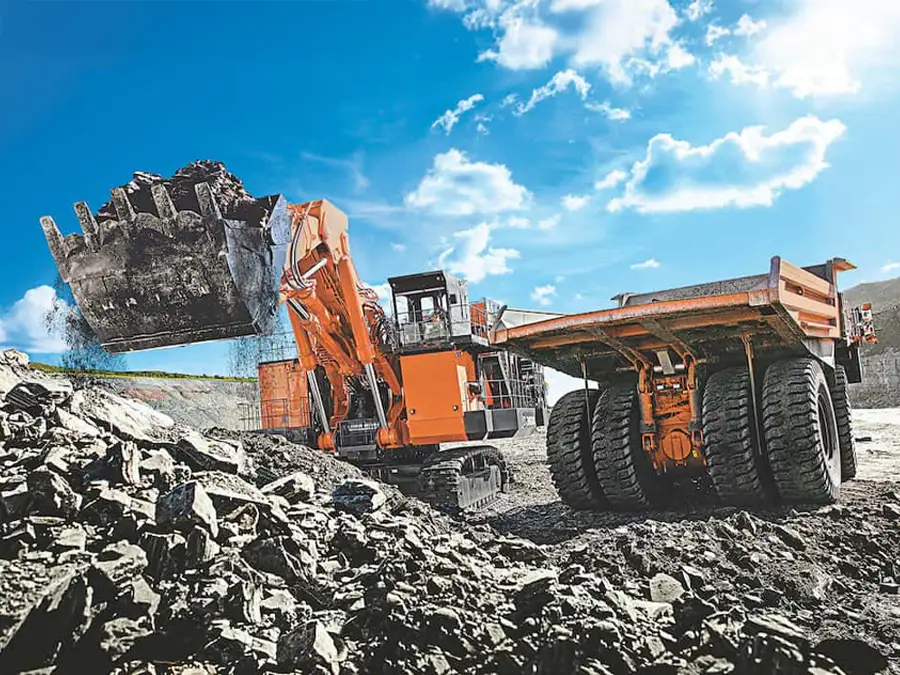

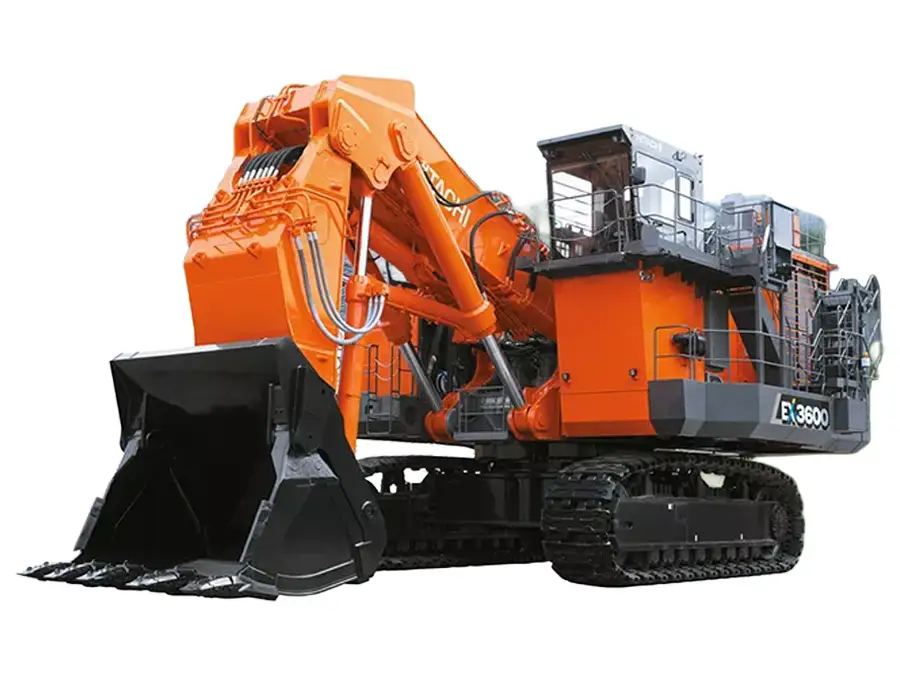

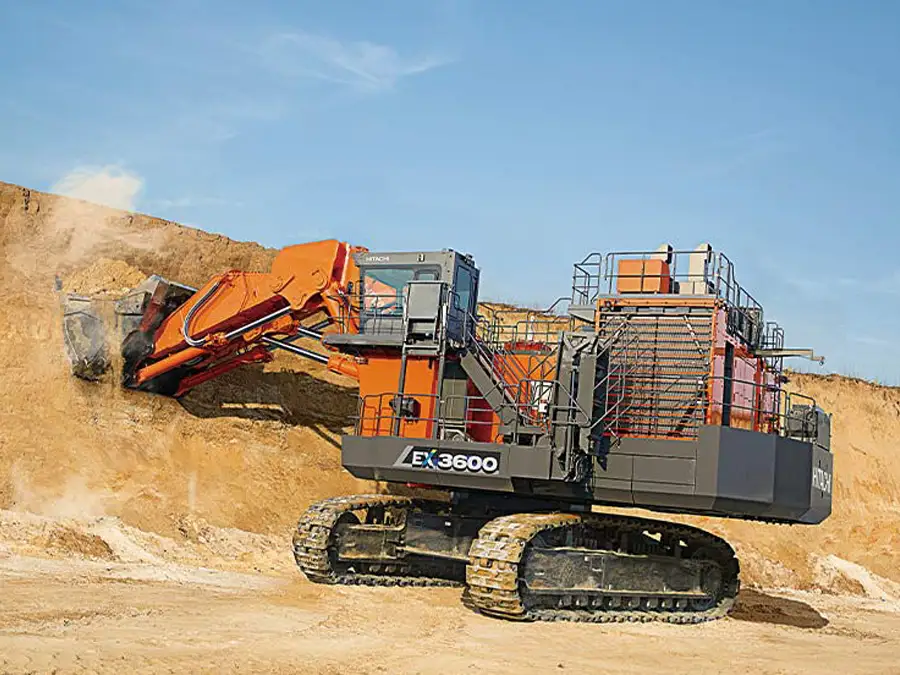

Hitachi mining excavator EX3600-7B T4F built for open-pit mining and heavy production excavation.
The Hitachi Mining Excavator EX3600-7B T4F is engineered for ultra-high production mining and large-scale quarry operations where maximum power and durability are required. Built to move massive volumes of material efficiently, the EX3600-7B delivers exceptional digging force, stable lifting capability, and consistent cycle times across demanding open-pit mining environments.
Powered by a Tier 4 Final compliant diesel engine, the EX3600-7B T4F meets U.S. emissions standards while delivering the high output required for continuous heavy excavation and truck loading operations. Its advanced hydraulic system provides smooth and responsive control, supporting efficient digging performance and precise material handling during extended production cycles.
The excavator is constructed on a reinforced heavy-duty platform designed to withstand the extreme conditions found in mining environments. Durable boom and arm components, a robust undercarriage, and optimized hydraulic performance help maximize uptime while supporting sustained high-production workloads.
Designed for reliability in large-scale mining operations, the EX3600-7B T4F delivers the power, stability, and productivity expected from Hitachi mining excavators operating in the world’s most demanding excavation environments.
EX2000-7B T4F Specifications
Specifications
Engine Rated Power (kW):
1,944 HP (1,450 kW)
Operating Weight:
Backhoe: 815,710 lb (370,000 kg) Shovel: 813,506 lb (369,000 kg)
Max. Digging Reach:
Backhoe: 59 ft 10 in (18.24 m) Shovel: 51 ft 5 in (15.66 m)
Max. Digging Depth:
Backhoe: 28 ft 4 in (8.63 m) Shovel: 14 ft 4 in (4.35 m)
Engine
Model
MTU 12V4000 C35 (T4F)
Rated power @1 800 min-¹ (rpm) ISO14396
1 500 kW (2 040 PS, 2 010 HP)
Piston displacement
57.2 L (3,491 cu. in.)
HYDRAULIC SYSTEM
Main pumps
8 variable-displacement, axial piston pumps for front attachment, travel and swing
Pressure setting
29.4 MPa (300 kgf/cm², 4 264 psi)
Max. oil flow
8 x 500 L/min (132 gal./ min)
UPPERSTRUCTURE
Swing speed
3.2 min-¹ (rpm)
Fuel tank capacity
7,450 L (1 639 gal.) DEF tank capacity
Def tank capacity (T4F only)
475 L (104.5 gal.)
UNDERCARRIAGE
Travel Speeds
High : 0 to 2.2 m/h (0 to 1.4 mph) Low : 0 to 1.7 km/h (0 to 1.1 mph)
Maximum traction force
1,760 kN (179 000 kgf, 395,664 lbf)
Weights and Ground Pressure
Loading Shovel Equipped with 15.0 m³ (19.6 cu. yd.) (ISO heaped) bottom dump bucket
Shoe width
Operating weight
Ground pressure
1,270 mm (50 in.)
369,000 kg (813,506 lb.)
193 kPa (1.97 kgf/cm³, 28 psi)
Backhoe Equipped with 17.0 m³ (22.2 cu. yd.) (ISO heaped) bucket
Shoe width
Operating weight
Ground pressure
1,270 mm (50 in.)
370,000 kg (815,710 lb.)
194 kPa (1.98 kgf/cm³, 28.1 psi)
Cummins T4F configuration
Attachments
Loading Shovel: 22.0 m³ (28.8 cu. yd.): Material density 1 800 kg/m3 (3,034 lb./cu. yd.) or less 24.0 m³ (31.4 cu. yd.): Material density 1 600 kg/m3 (2,697 lb./cu. yd.) or less
Backhoe Bucket Capacity (ISO heaped): 22.0 m³ (28.8 cu. yd.): Material density 1 800 kg/m3 (3,034 lb./cu. yd.) or less 24.0 m³ (31.4 cu. yd.): Material density 1 600 kg/m3 (2,697 lb./cu. yd.) or less
