Engine Rated Power (kW):2 x 1500 HP (2 x 1119 kW) Operating Weight: Backhoe: 1,210,338 lb (549,000 kg) Shovel: 1,199,315 lb (544,000 kg) Max. Digging Reach: Backhoe: 66 ft 3 in (20.2 m) Shovel: 55 ft 9 in (17 m) Max. Digging Depth: Backhoe: 28 ft 11 in (8.8 m) Shovel: 15 ft 9 in (4.8 m)

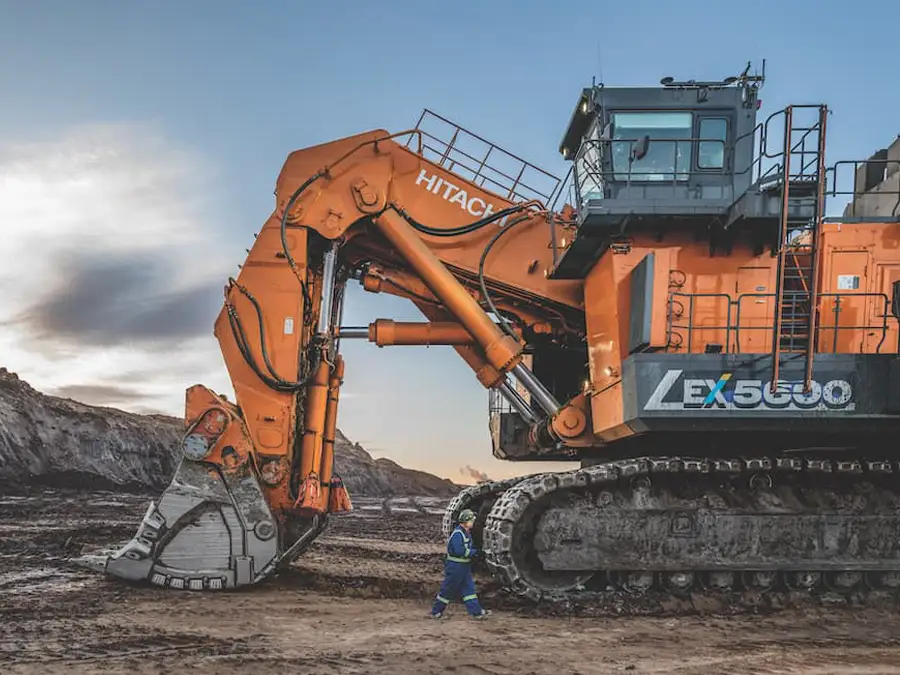

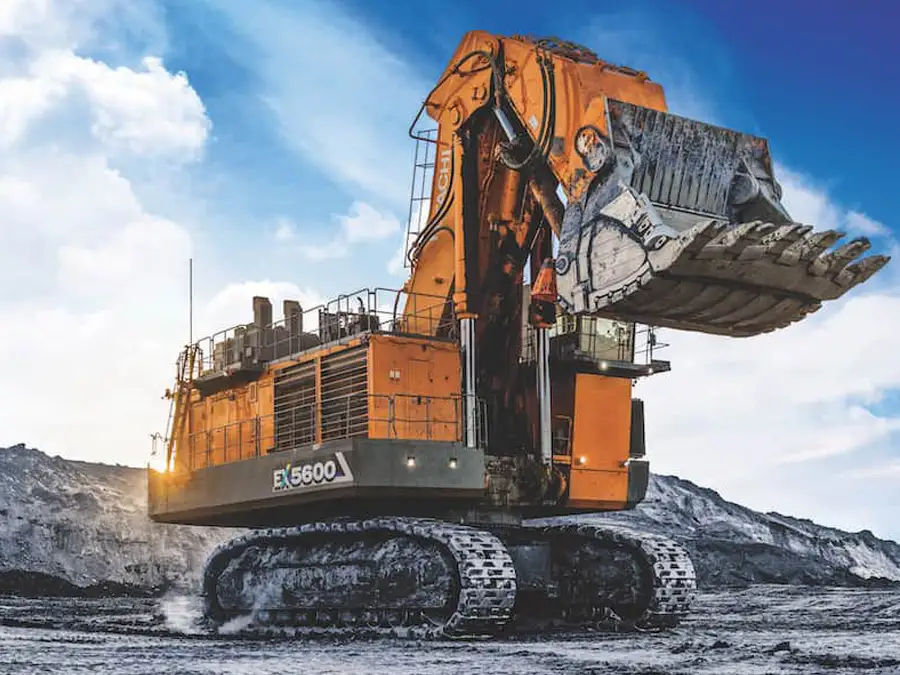

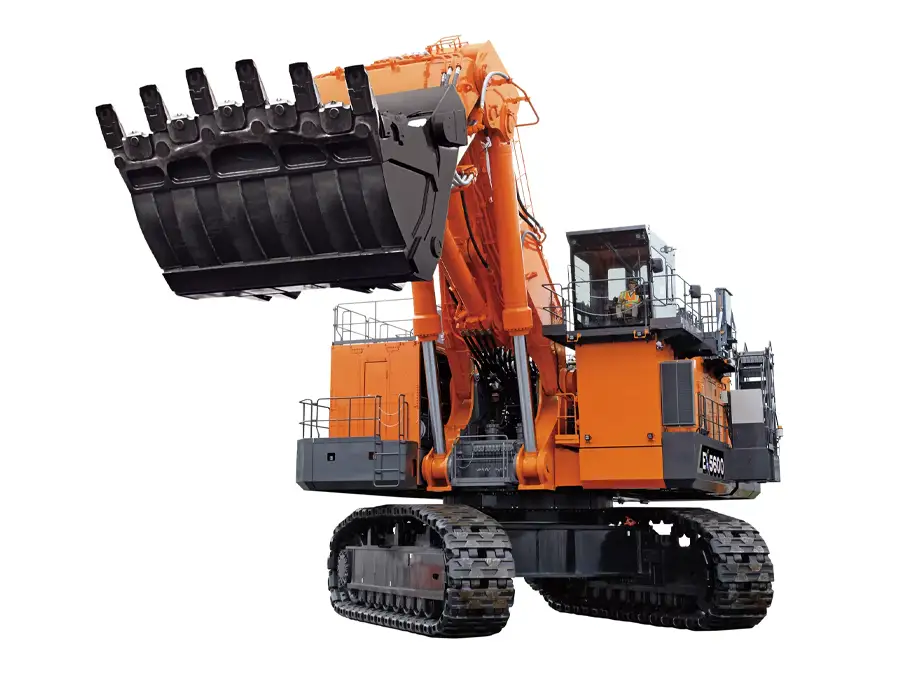

Hitachi mining excavator EX5600-7B T4F built for large-scale mining and quarry operations with Tier 4 Final power.
The Hitachi Mining Excavator EX5600-7B T4F is engineered for ultra-high production mining and large open-pit operations where extreme durability, power, and efficiency are required. Designed to move massive volumes of material with maximum productivity, the EX5600-7B delivers exceptional digging force, powerful lifting capability, and reliable cycle times across demanding mining environments.
Powered by a Tier 4 Final compliant diesel engine, the EX5600-7B T4F meets U.S. emissions standards while delivering the performance needed for heavy excavation and large truck loading operations. Its advanced hydraulic system provides smooth and responsive control, allowing operators to maintain precise digging and loading performance during sustained production cycles.
Built on a reinforced heavy-duty structure, the EX5600-7B is designed to withstand the extreme stresses of mining applications. Durable boom and arm components, a robust undercarriage, and optimized hydraulic performance help maximize uptime while maintaining consistent productivity during continuous operation.
Designed for reliability and long-term performance, the EX5600-7B T4F delivers the strength, stability, and production capability expected from Hitachi mining excavators operating in large-scale mining environments.
EX2000-7B T4F Specifications
Specifications
Engine Rated Power (kW):
2 x 1500 HP (2 x 1119 kW)
Operating Weight:
Backhoe: 1,210,338 lb (549,000 kg) Shovel: 1,199,315 lb (544,000 kg)
Max. Digging Reach:
Backhoe: 66 ft 3 in (20.2 m) Shovel: 55 ft 9 in (17 m)
Max. Digging Depth:
Backhoe: 28 ft 11 in (8.8 m) Shovel: 15 ft 9 in (4.8 m)
Engine
Model
MTU 12V4000 C15 (T4F)
Rated power @1 800 min-¹ (rpm) ISO14396
2 x 1 150 kW (1 563 PS, 1 542 HP)
Piston displacement
2 x 57.2 L (2 x 3,491 cu. in.)
HYDRAULIC SYSTEM
Main pumps
12 variable-displacement, axial piston pumps for front attachment, travel and swing
Pressure setting
29.4 MPa (300 kgf/cm², 4,264 psi)
Max. oil flow
8 x 375 L/min (8 x 99.1 gal/min), 4 x 425 L/min (4 x 112.3 gal/min)
UPPERSTRUCTURE
Swing speed
3.3 min-¹ (rpm)
Fuel tank capacity
11,300 L (2,486 gal)
Def tank capacity (T4F only)
356 L (78.3 gal)
UNDERCARRIAGE
Travel Speeds
High: 0 to 2.3 km/h (0 to 1.4 mph) Low: 0 to 1.6 km/h (0 to 1.0 mph)
Maximum traction force
2,230 kN (227,000 kgf, 501,324 lbf)
Weights and Ground Pressure
Loading Shovel Equipped with 15.0 m³ (19.6 cu. yd.) (ISO heaped) bottom dump bucket
Shoe width
Operating weight
Ground pressure
1,400 mm (55 in.)
544,000 kg (1,199,315 lb.
244 kPa (2.49 kgf/cm², 35.4 psi)
Backhoe Equipped with 17.0 m³ (22.2 cu. yd.) (ISO heaped) bucket
Shoe width
Operating weight
Ground pressure
1,400 mm (55 in.
549,000 kg (1,210,338 lb.)
246 kPa (2.51 kgf/cm², 35.7 psi)
Cummins T4F configuration
Attachments
Loading Shovel: 27.0 m³ (35.3 cu. yd.): Material density 1 900 kg/m3 (3,203 lb./cu. yd.) or less 29.0 m³ (38 cu. yd.): Material density 1 800 kg/m3 (3,034 lb./cu. yd.) or less 31.5 m³ (40.5 cu. yd.): Material density 1 600 kg/m3 (2,697 lb./cu. yd.) or less
Backhoe Bucket Capacity (ISO heaped): 34.0 m³ (44.5 cu. yd.): Material density 1 800 kg/m3 (3,034 lb./cu. yd.) or less 36.0 m³ (47.1 cu. yd.): Material density 1 800 kg/m3 (3,034 lb./cu. yd.) or less 38.5 m³ (50.4 cu. yd.): Material density 1 600 kg/m3 (2,697 lb./cu. yd.) or less
