Now available at Luby Equipment: New Takeuchi TL11R3 Compact Track Loader. With an operating weight of 11,650 lbs and a powerful 107.3-horsepower engine, this compact track loader is a versatile, well-balanced machine built for productivity across a wide range of applications.
NEW Takeuchi TL11 R3 Compact Track Loader For Sale
Available Now at Luby Equipment: The New Takeuchi TL11R3 Compact Track Loader
The Takeuchi TL11R3 is available now at Luby Equipment and ready to deliver performance where you need it most. With an operating weight of 11,650 lbs and a powerful 107.3-horsepower engine, this compact track loader is a versatile, well-balanced machine built for productivity across a wide range of applications.
The radial lift boom design provides excellent breakout forces, making the TL11R3 ideal for grading, excavation, and heavy dirt work. Inside the cab, operators will find a spacious, ergonomically designed station that features:
An intuitive 8-inch touchscreen display integrating Bluetooth® radio and A/C controls
Standard rearview camera for added safety and visibility
EH joystick controls for smooth, responsive handling
Adjustable suspension seat for comfort on long workdays
Double Flanged Front and Rear Idlers
With electric-over-hydraulic controls, the TL11R3 delivers seamless performance in both travel and loader functions, while unlocking advanced features that help boost efficiency. Routine maintenance is simple thanks to a heavy-duty rear door and tilt-up cab that provide easy access to the engine and inspection points.
New TL11R3 Features
ENGINE • EU Stage V / EPA Tier 4 Compliant • Turbocharged • DOC+DPF+SCR Exhaust After Treatment • Automatic Fuel Bleed System • Double Element Air Cleaner • Active Power Control • High Capacity Fuel Tank • Engine Safety Start System on Right Console • Engine Auto Stop • Parking Brake • Idle Up in Cold Weather • High-Capacity Radiator, Hydraulic Oil Cooler Mounted Side-by-Side on Swing Out Frame • Engine Preheat • Engine Block Heater (cab only)
OPERATOR STATION • ROPS/FOPS (Level I, TOP Guard Level II on high flow) • Tilt Up Operator’s Station • Deluxe High Back Adjustable Suspension Seat • 12V Power Outlet • 2’’ Retractable Seat Belt • Radio with Bluetooth (cab only) • Heat & Air Conditioner (cab only) • Joystick Pattern Change (ISO or H) • Foot throttle (Accel./Decel.) • Pressurized Cab with Roll-up Door, Defrost and Front Wiper • Polycarbonate Door (high flow only)
ELECTRICAL • 8” Touchscreen Multi-Informational Display • Rubberized Weatherproof Push Buttons • 12-volt System with 80 amp Alternator • LED Light Package; 2 Forward • Backup Alarm & Horn • 14-Pin Connector • 14-Pin Detent • Rearview Camera • 270° Rearview Camera (standard on high flow, optional on standard flow) • Steering Drift Adjustment • Travel Joystick Sensitivity Adjustment • Passcode Keyless Push-Button Start
UNDERCARRIAGE AND FRAME • Double Flanged Front and Rear Idlers • 2-Speed Travel • High Torque Planetary Final Drive • 17.7” Rubber Crawlers • Creep Mode • Slip Detection • Speed-Sensitive Ride Control (standard on high flow, optional on standard flow) • Automatic Transmission • Permanently Sealed Track Rollers with Metal Face Seals • Fully Welded Frame with Integrated Cross Members • Grease Type Track Adjuster • Rear Bumper Integrated into Frame • Front and Rear Tie-Down & Lift Points
HYDRAULIC & WORKING EQUIPMENT • EH Joystick Controls • Radial Lift Arm Design • Arm Height Limit (optional) • Self-Leveling Up (standard) • Self-Leveling Down (optional) • Arm & Bucket Return to Position (optional) • Loader Joystick Sensitivity Adjustment • Arm Float • Proportional Auxiliary Controls with Detent • Pressure Relieving Flat Face Coupler Body • Hydraulic Quick Coupler (cab standard) • Steel Hydraulic Tank with Fluid Sight Gauge • Air Breather & Filter in Hydraulic Tank • High Flow Auxiliary Hydraulics (optional) • Secondary Auxiliary Circuit (standard with high flow only)
TAKEUCHI FLEET MANAGEMENT • 5-Year Standard Service • Minimize Downtime • Remote Diagnostics • Utilization Tracking • Proactive Maintenance • Control Costs • Geofencing
New TL11R3 Specs
OPERATING PERFORMANCE Operating Weight Canopy: 11,650 lb (5,285 kg) Cab: 11,980 lb (5,435 kg) Tipping Load: 7,825 lb (3,550 kg) Rated Operating Capacity: 2,735 lb (1,240 kg) Operating Load at 50% of Tipping Load: 3,913 lb (1,775 kg) Bucket Breakout Force: 7,958 lb (3,610 kg) Lift Arm Breakout Force: 7,126 lb (3,232 kg) Traction Force: 13,196 lb (5,986 kg)
Operating capacity of compact track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM Auxiliary Flow Primary Circuit: 23.1 gpm (87.6 L/min) Secondary Circuit: 23.1 gpm (87.6 L/min) High Flow: 40.5 gpm (153.4 L/min) Hydraulic System Pressure: 3,480.9 psi (24 MPa)
ENGINE Make/Model: Kubota / V3800-TIE5B Displacement: 230 cu in (3.8 L) Horsepower @ 2,400 rpm: 107.3 hp (80 kW) Maximum Torque @ 1,500 rpm: 271.4 ft-lb (368 Nm)
FLUID CAPACITIES Engine Lubrication: 14 qt (13.2 L) Cooling System: 16.9 qt (16 L) Fuel Tank Capacity: 33.4 gal (126.5 L) Hydraulic Reservoir Capacity: 15.6 gal (58.9 L) Hydraulic System Capacity: 22.2 gal (84 L) DEF Tank Capacity: 4.8 gal (18 L) Fuel Consumption (65% of Full Load): 3.9 gal/h (14.8 L/h)

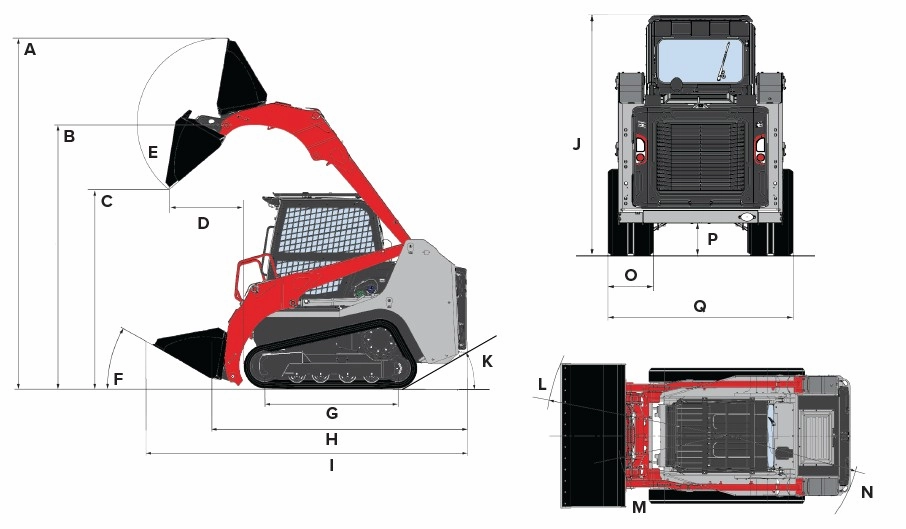

New TL11R3 Dimensions
MACHINE DIMENSIONS A. Overall Operating Height: 13 ft 11.1 in (4,245 mm) B. Max. Lift Height to Bucket Pin: 10 ft 6.0 in (3,200 mm) C. Dump Height Fully Raised :7 ft 11.3 in (2,420 mm) D. Dump Reach Fully Raised: 2 ft 11.2 in (895 mm) E. Dump Angle: 40° F. Rollback Angle: 30° G. Track Ground Contact Length: 5 ft 2.8 in (1,595 mm) H. Machine Length: 9 ft 11.3 in (3,030 mm) I. Transport Length: 12 ft 8.6 in (3,875 mm) J. Transport Height: 7 ft 7.7 in (2,330 mm) K. Departure Angle: 29° L. Clearance Circle with Bucket: 8 ft .8 in (2,460 mm) M. Clearance Circle without Bucket: 4 ft 10.6 in (1,490 mm) N. Clearance Circle Rear: 5 ft 10.2 in (1,785 mm) O. Track Width: 17.7 in (450 mm) P. Ground Clearance: 12.4 in (315 mm) Q. Overall Width without Bucket: 6 ft (1,830 mm)
