Engine and Performance

• Environmental Compliance: With U.S. EPA Final Tier 4 and EU Stage 5 emission standards, the TB335R demonstrates Takeuchi’s dedication to environmental stewardship while maintaining robust performance.
• Optimized for Efficiency: Features like the Automatic Fuel Priming System, Double Element Air Filter, and Automatic Idle, along with Standard and ECO working modes, ensure the engine runs efficiently, saving fuel and reducing downtime.
• Engine Durability: Enhanced with a high-capacity radiator and hydraulic oil cooler, engine safe start system, and engine auto stop feature, the TB335R is built to deliver reliable performance under the most demanding conditions.

Undercarriage and Frame

• Stable and Robust Design: The TB335R boasts triple-flanged track rollers and a 2-speed axial Piston travel motors setup, complemented by a large Wraparound Counterweight for unmatched stability and performance.
• Versatile and Durable: With its Sloped Frame with Open Centers and 11.8″ Rubber Tracks, the excavator is designed for durability and ease of movement across various terrains.

Operator Comfort and Efficiency

• Advanced Operator Station: The cabin is designed with the operator in mind, featuring a ROPS/TOPS/OPG certified environment, a Deluxe High Back Suspension Seat, and modern amenities like Air Conditioning, Heat, and an AM/FM Radio with Bluetooth connectivity for unparalleled comfort and productivity.
• Intuitive Controls and Displays: Updated high-definition monitors and jog dial controls allow for easy operation and monitoring of the excavator’s functions, ensuring a user-friendly experience.

Hydraulic and Working Equipment

• Precision and Versatility: The TB335R is equipped with Proportional Control for the Primary Auxiliary Circuit, Multiple Attachment Presets, and a 3rd Auxiliary Circuit for Quick Hitch on cab models, offering flexibility and precision for various tasks.
• Easy Maintenance: Excellent service access points ensure routine maintenance and inspections are straightforward and quick, minimizing downtime.

Takeuchi Fleet Management

• Enhanced Productivity: With two years of standard service, Takeuchi Fleet Management (TFM) offers features like Remote Diagnostics and Utilization Tracking to maximize uptime and efficiency.
• Cost Control: TFM also helps manage and control operational costs through proactive maintenance and insights into the excavator’s performance.

Electrical and Safety Features

• High-Definition Monitors: The TB335R is fitted with a 4.3″ High Definition Multifunction LCD Color Monitor for canopy models and a 7″ Multifunction Touchscreen Color Monitor for cab models, enhancing operational control and monitoring.
• Safety and Visibility: LED light packages, including boom lights and cab-mounted lights, along with a travel alarm and beacon socket, ensure high visibility and safety on the job site.

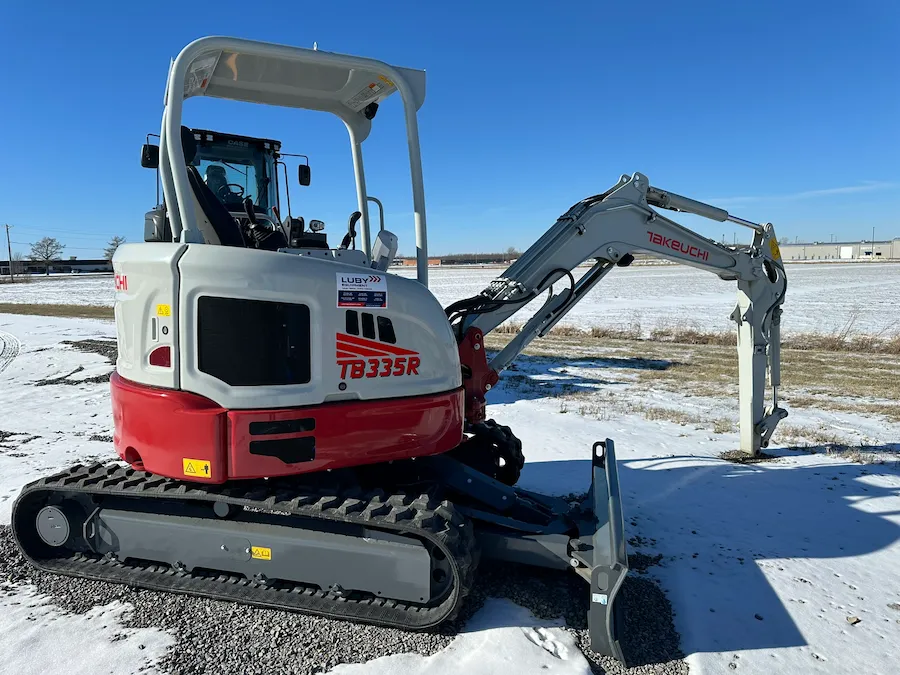

The Takeuchi TB335R Compact Excavator is a powerful, efficient, and versatile machine designed to meet the rigorous demands of today’s construction, landscaping, and utility projects. With its state-of-the-art features and operator-centric design, the TB335R is ideal for professionals seeking a compact excavator that delivers performance, comfort, and efficiency.

OPERATING PERFORMANCE
Operating Weight – Canopy	7,970 lb	3,615 kg
Operating Weight – Cab	8,310 lb	3,770 kg
Maximum Bucket Breakout	9,172 lbf	4,160 kgf
Maximum Arm Crowd Force	4,290 lbf	1,946 kgf
Arm Length	4′ 7.6″	1,410mm
Slew Speed	9.0 rpm
Traction Force	9,105 lbf	4,130 kgf
Ground Pressure – Canopy	4.5 psi	30.9 kPa
Ground Pressure – Cab	4.7 psi	32.2 kPa
Max Travel Speed
Low Range	1.9 mph	3.0 km/h
High Range	2.5 mph	4.1 km/h
HYDRAULIC SYSTEM
Total Hydraulic Flow	31 gpm	117 L/min
Auxiliary Flow – Primary Circuit	17.0 gpm	64.4 L/min
Hydraulic System Pressure	3,550 psi	24.5 Mpa
Auxiliary 1 Pressure	3,050 psi	21.0 Mpa
ENGINE
Make/Model	Kubota V1505-E4B
Displacement	91.4 cu in	1.5 L
Horsepower @ 2,300 rmp	24.4 hp	18.2 kW
Maximum Torque @1,700 rpm	70.6 lbf	95.8 Nm
FLUID CAPACITIES
Engine Lubrication	7.1 qt	6.7 L
Cooling System	3.3 gal	12.5 L
Fuel Tank	11.5 gal	43.5 L
Hydraulic Reservoir	7.5 gal	28.4 L
Hydraulic System	15.6 gal	59.0 L

MACHINE DIMENSIONS
Maximum Reach	17 ft 9.7 in	5,430 mm
Maximum Reach at Ground Level	17 ft 4.8 in	5,305 mm
Maximum Digging Depth	10 ft 6.2 in	3,205 mm
Maximum Vertical Digging Depth	8 ft 2.6 in	2,505 mm
Maximum Height of Cutting Edge	16 ft 2.6 in	4,945 mm
Maximum Dumping Height	11 ft 7.0 in	3,531 mm
Front Swing Radius	7 ft 5.2 in	2,265 mm
Front Swing Radius with Boom Offset	6 ft 1.2 in	1,860 mm
Tailswing Radius	3 ft 1.4 in	950 mm
Transport Length	17 ft 10.2 in	5,440 mm
Tranport Height	8 ft 3.2 in	2,520 mm
Ground Clearance	11.6 in	295 mm
Crawler Base	5 ft 8.9 in	1,750 mm
Undercarriage Length	7 ft 3.2 in	2,215 mm
Undercarriage Width	5 ft 8.5 in	1,740 mm
Track Width (Rubber)	11.8 in	300 mm
