Toro® Dingo® TX 1000 Mini Track Loader, Narrow – 415068011


Request more information:

The Dingo® TX 1000 Turbo Track Loader, Narrow Track, embodies the pinnacle of compact loader technology and design, offering unmatched efficiency and flexibility for a wide range of construction tasks. Luby Equipment is proud to feature this innovative machinery on our new construction equipment dealer website, highlighting its exceptional capabilities and features tailored to modern construction demands.

Location: Springfield, IL

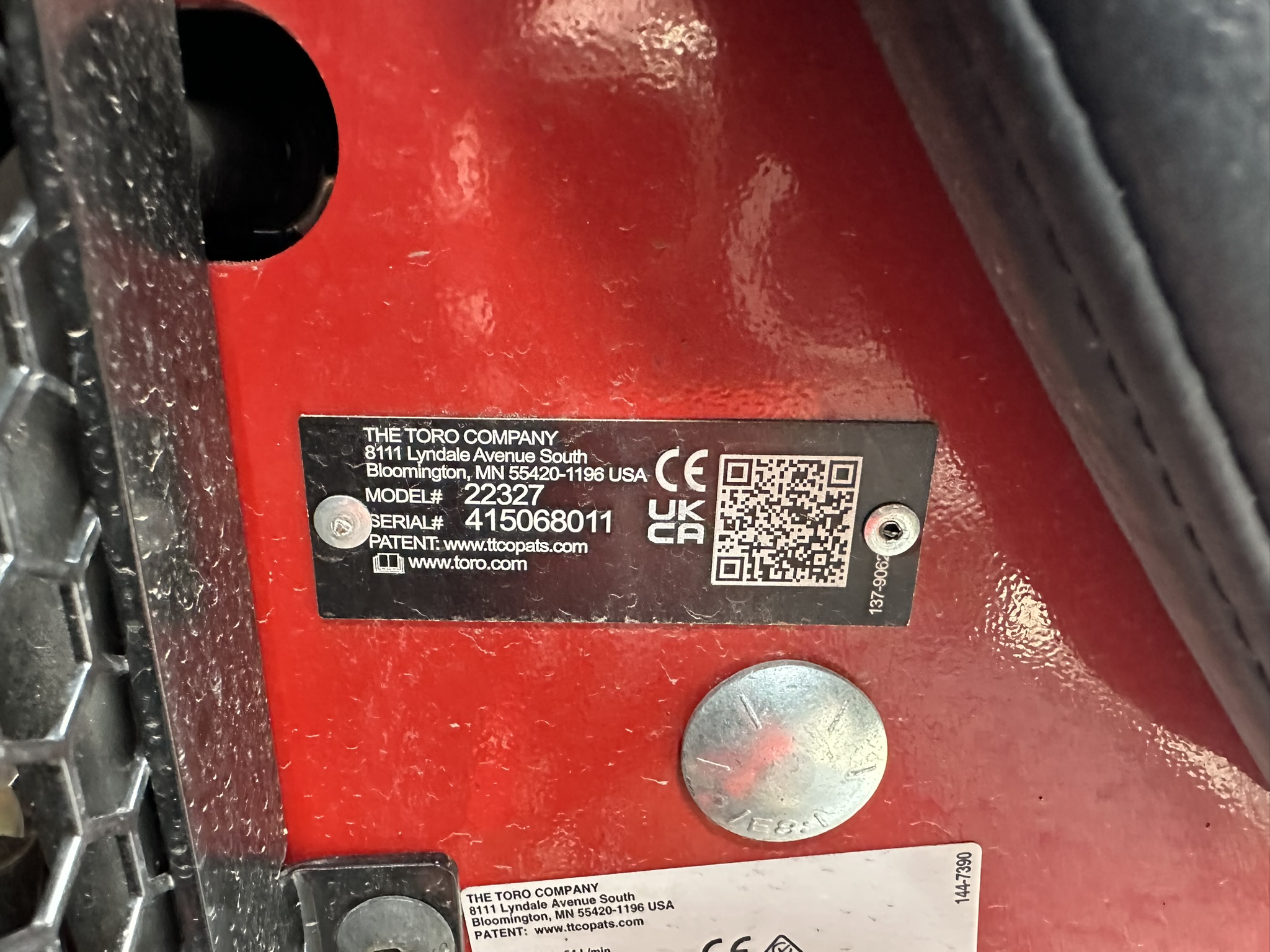

S/N: 415068011

Luby Equipment is the authorized CASE CE & Takeuchi dealer of Springfield, IL and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!


SKU: 415068011 Categories: , , Tags: ,

Discover the Power and Precision of the Toro® Dingo® TX 1000 Track Loader

Now available In-Stock at Luby Equipment, the Toro® Dingo® TX 1000 represents a significant leap forward in performance and versatility. This lightweight yet maneuverable machine offers unmatched strength and reach in a compact package, providing the ultimate working advantage. With a rated operating capacity of over 1,000 pounds, the TX 1000 serves as a powerful and compact alternative to larger skid-steer loaders and other machines.

TX 1000 Features

Vertical Lift Loader Arms for Superior Reach
This machine has vertical lift loader arms, providing an impressive 81″ (206 cm) hinge pin height. This feature enables the loader to easily manage materials over the sides of 30-yard dumpsters or one-ton trucks, facilitating efficient loading and material handling operations in various settings.

Turbocharged Diesel Engine for Optimal Performance
At the core of the Dingo® TX 1000 Turbo is a robust 24.7 HP Yanmar turbo diesel engine, renowned for its consistent and reliable performance. This engine ensures smooth operation across various tasks, offering the power needed for demanding projects while maintaining excellent fuel efficiency.

Smart Power® for Enhanced Efficiency
Featuring Toro’s advanced Smart Power® technology, the Dingo® TX 1000 Turbo automatically adjusts traction speed to optimize engine, auxiliary, and traction torque. This intelligent system ensures the machine operates efficiently, reducing operational costs and enhancing performance.

Intuitive Traction Control System
Toro’s patented traction control system ensures that operators of all skill levels can intuitively control the machine, enhancing safety and productivity. Integrating hydraulic attachment operation into the loader arm control simplifies tasks, while a digital display provides easy access to machine information and usage options.

Designed for Easy Operation
With an auxiliary foot pedal that maintains hydraulic flow to the attachment, operators can concentrate on ground speed and attachment positioning, freeing their hands for other controls. This design ensures easy operation, allowing precise control and efficient task execution.

The Dingo® TX 1000 Turbo Track Loader, Wide, is a testament to Luby Equipment’s commitment to providing top-tier construction equipment that addresses the evolving needs of the industry. Its advanced features, ergonomic design, and robust performance make it an invaluable tool for any construction project, ensuring high productivity and operational excellence.

TX 1000 Specs


Air FilterRemote: Primary and Safety Elements
Cooling SystemCombo Crossflow Radiator and Oil Cooler
Dump Angle40 degrees
Dump Height (cm)153.2
Dump Height (inches)60.3
Engine MakeYanmar
Engine Model3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant
Fuel Tank (gallons)10.25
Fuel Tank (liters)38.8
Fuel TypeDiesel
Ground Clearance (cm)15
Ground Clearance (inches)5.9
Ground Pressure4.1 psi
Ground Speed Forward (mph)4.1
Ground Speed Foward (km/h)6.6
Hinge Pin Height (cm)205.7
Hinge Pin Height (inches)81
Hydraulic Flow12.3 gpm (each pump)
Hydraulic Flow Auxilary13.2 gpm
Hydraulic Pressure3,000 psi
Hydraulic Reservoir Capacity (gallons)8.6
Hydraulic Reservoir Capacity (liters)32.5
Loader ArmsVertical Lift
Manufacturer’s Gross HP Rating (HP)24.7
Manufacturer’s Gross HP Rating (kW)18.4
Max Operating Height (cm)269.7
Max Operating Height (inches)106.2
Oil Capacity (liters)3.6
Oil Capacity (quarts)3.8
Overall Height w/bucket (cm)138.4
Overall Height w/bucket (inches)54.5
Overall Height w/o bucket (cm)138.4
Overall Height w/o bucket (inches)54.5
Overall Length w/bucket (cm)264.2
Overall Length w/bucket (inches)104
Overall Length w/o bucket (cm)210.8
Overall Length w/o bucket (inches)83
Overall Width w/bucket (cm)107.2
Overall Width w/bucket (inches)42.2
Overall Width w/o bucket (cm)101.3
Overall Width w/o bucket (inches)39.9
Rated Operating Capacity* (kg)453
Rated Operating Capacity* (lbs)1000
Reach – Fully Raised (cm)59.2
Reach – Fully Raised (inches)23.3
Track Length (inches)126.6
Track Length(cm)321.6
Track Width (cm)23.1
Track Width (inches)9.1
TracksMERT Track With Turf Friendly Style Tread
TractionDual Hydrostatic Pump
Weight (kg)1320
Weight (lbs)2911
Wheelbase (inches)39

TX 1000 Dimensions

Track Length & Width (Standard)126.6″ x 5.9″ (321.6 cm x 15.0 cm)
Track Length & Width (Wide)126.6″ x 9.1″ (321.6 cm x 23.1 cm)
Wheelbase39″ (99.1 cm)
Ground Clearance5.9″ (15.0 cm)
Overall Dimensions With Bucket (Standard)42.2″ x 104.0″ x 54.6″ (107.2 x 264.2 x 138.7 cm)
Overall Dimensions With Bucket (Wide)42.2″ x 104.0″ x 54.5″ (107.2 x 264.2 x 138.4 cm)
Overall Dimensions Without Bucket (Standard)34.6″ x 83.0″ x 54.6″ (87.9 x 210.8 x 138.7 cm)
Overall Dimensions Without Bucket (Wide)39.9″ x 83.0″ x 54.5″ (101.3 x 210.8 x 138.4 cm)
Maximum Operating Height106.2″ (269.7 cm)
Hinge Pin Height81″ (205.7 cm)
Dump Height60.3″ (153.2 cm)
Dump Angle40-degrees
Reach – Fully Raised23.3″ (59.2 cm)
Ground Speed4.1 mph (6.6 km/h)
Weight (Standard)2,826 lbs (1,282 kg)
Weight (Wide)2,911 lbs (1,320 kg)
Rated Operating Capacity1,000 lbs (453.5 kg)
Ground Pressure (Standard)6.1 PSI
Ground Pressure (Wide)4.1 PSI
