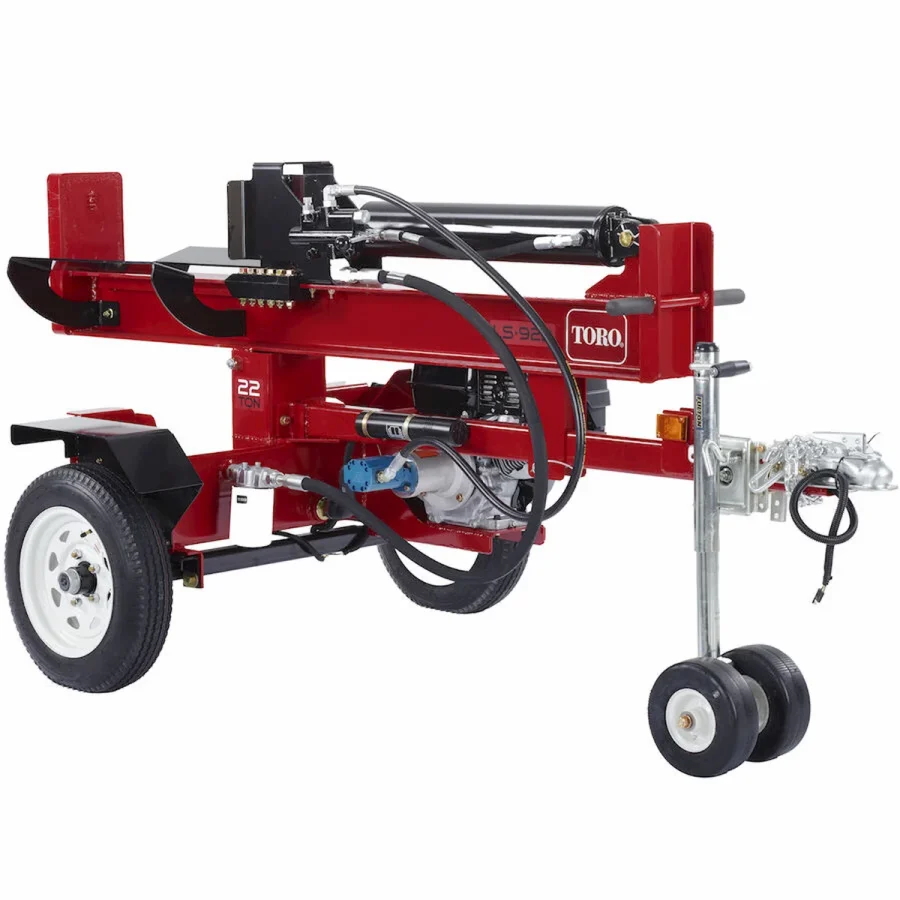

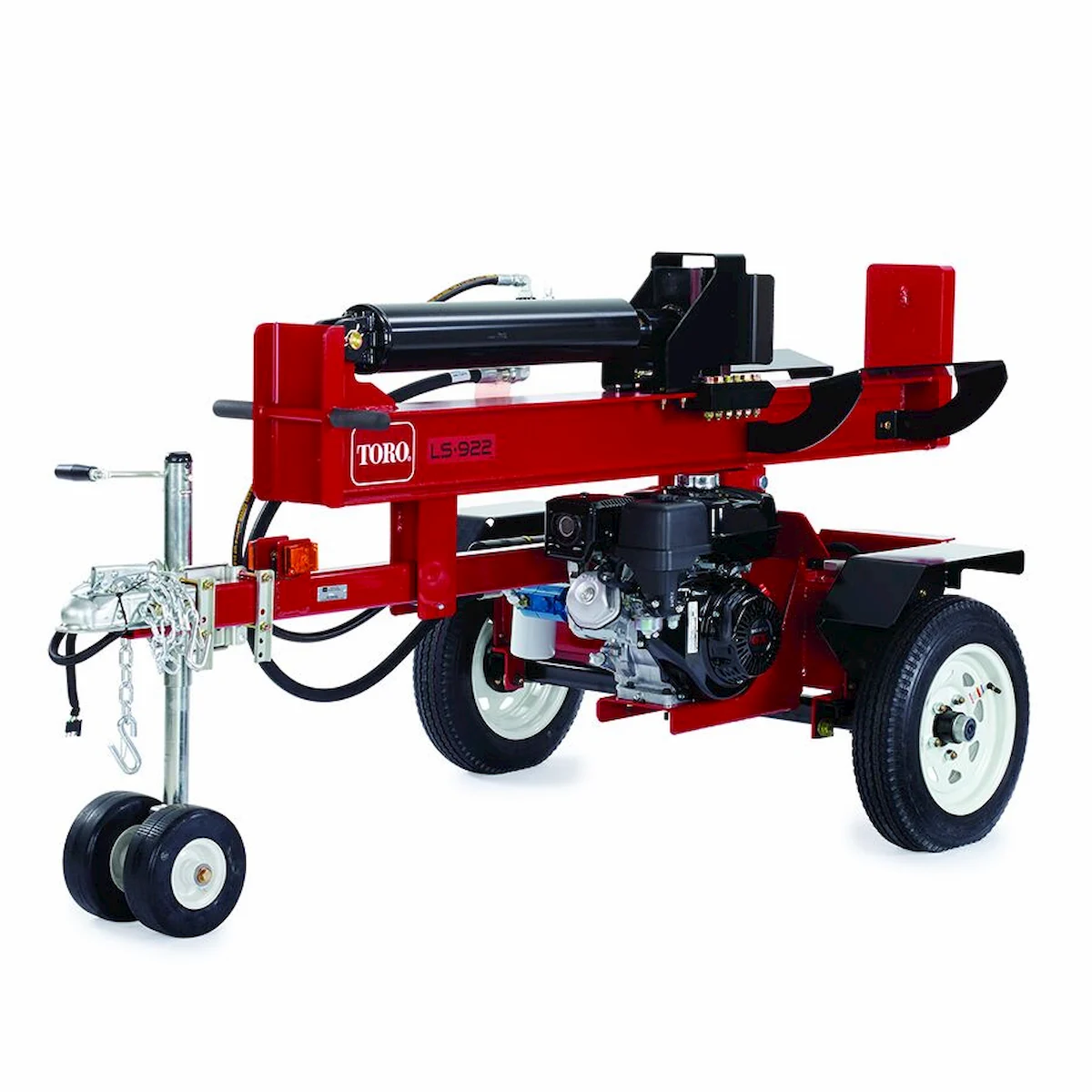

Toro® Log Splitter LS-922
Request more information:
The Toro® Log Splitter LS-922 embodies rugged durability and innovative design, tailored specifically for the demands of the rental industry. Luby Equipment is pleased to present this high-performance log splitter, which combines ease of use with efficient operation, ensuring it meets the needs of professionals and homeowners alike.
PDF BROCHURE: Toro® Log Splitter LS-922
Toro® Log Splitter LS-922
The Toro® Log Splitter LS-922 embodies rugged durability and innovative design, tailored specifically for the demands of the rental industry. Luby Equipment is pleased to present this high-performance log splitter, which combines ease of use with efficient operation, ensuring it meets the needs of professionals and homeowners alike.
LS-922 Features
Durable Design
- Built with a heavy-duty I-Beam and a 9″ (22.8 cm) solid steel splitting wedge, the machine’s durability and longevity are enhanced.
- Features a spring-loaded lock pin to hold the beam securely in a vertical position for added safety and stability.
- Equipped with a rubber torsion suspension axle, ensuring smooth transportation and trailering across various terrains.
Increased Productivity
- It offers a dual-wheel jack for improved maneuverability, even on challenging terrains, ensuring the machine can be positioned precisely where needed.

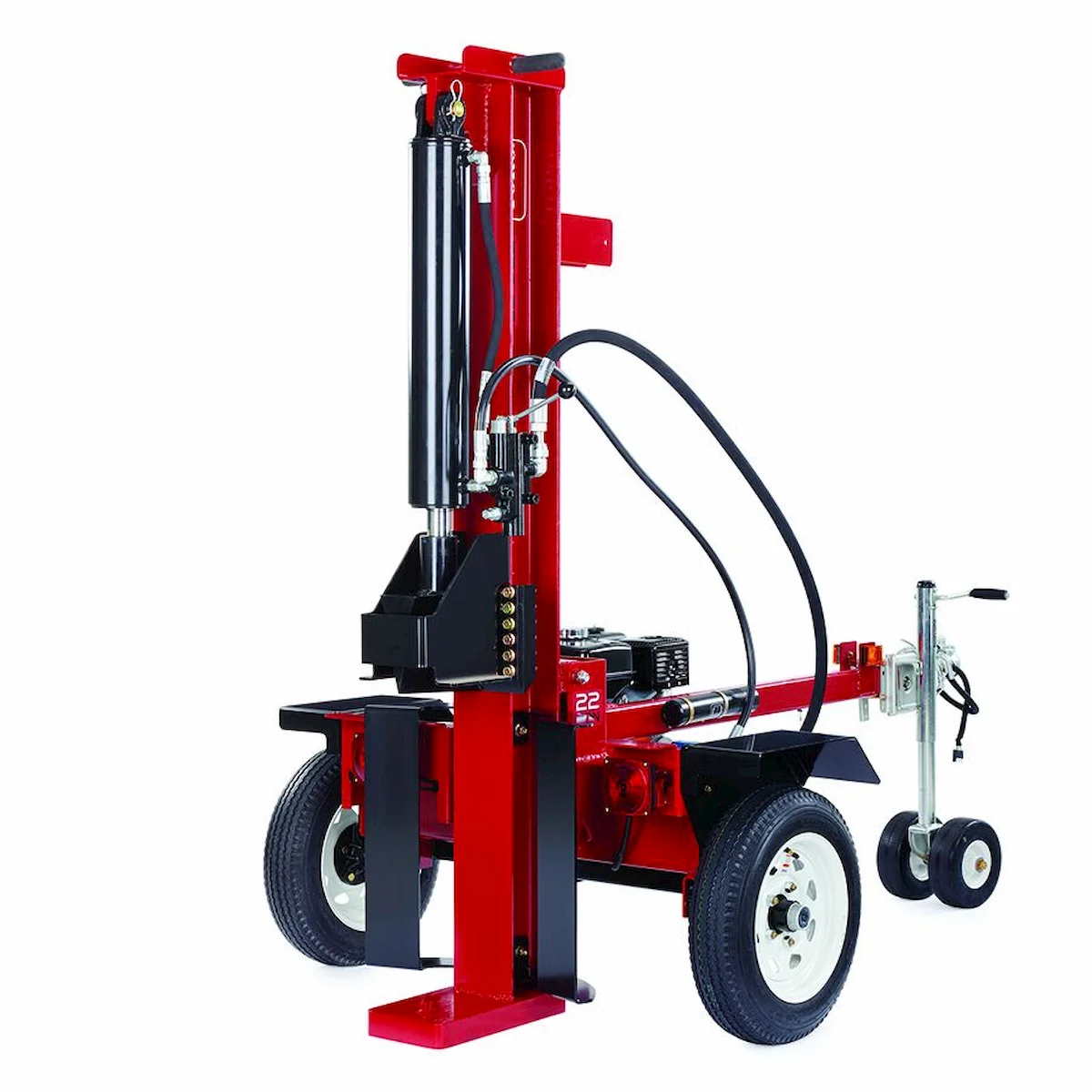

- Capable of operating horizontally and vertically, providing flexibility to accommodate different user preferences and job requirements.
- The intuitive control lever, combined with a 12-second cycle time, boosts productivity by allowing quick and efficient splitting cycles.
Value-Added Standard Features
- Comes equipped with tail lights and front amber lights that comply with US and Canadian towing standards, enhancing safety during transport.
- Protective light brackets safeguard tail lights from damage from falling logs, while heavy-duty log-catch assembly and durable fenders minimize the need for replacement parts.
- Features an adjustable swing-away towing jack with dual pneumatic tires, facilitating easy positioning on challenging job sites and ensuring the machine is readily accessible when needed.
LS-922 Specs
| Control Valve | Detent, Auto Return |
|---|---|
| Cutting Force (ton) | 22 |
| Cycle Time (seconds) | 12 |
| Cylinder Diameter (cm) | 11.4 |
| Cylinder Diameter (inches) | 4.5 |
| Cylinder Stroke (cm) | 60.9 |
| Cylinder Stroke (inches) | 24 |
| Engine Make | Honda |
| Engine Model | GX270 |
| Fuel Tank (gallons) | 8 |
| Fuel Tank (liters) | 30 |
| Fuel Type | Gasoline |
| Overall Height (cm) | 115.6 |
| Overall Height (inches) | 45.5 |
| Overall Length (cm) | 246.3 |
| Overall Length (inches) | 97 |
| Overall Width (cm) | 129.5 |
| Overall Width (inches) | 51 |
| Weight (kg) | 412.3 |
| Weight (lbs) | 909 |
| Working Pressure (bar) | 189 |
| Working Pressure (psi) | 2750 |
LS-922 Dimensions
| Feature | Specification |
|---|---|
| Dimensions (W x L x H) | 51″ x 97″ x 45.5″ (129.5 x 246.3 x 115.6 cm) |
| Weight | 909 lbs (412.3 kg) |
