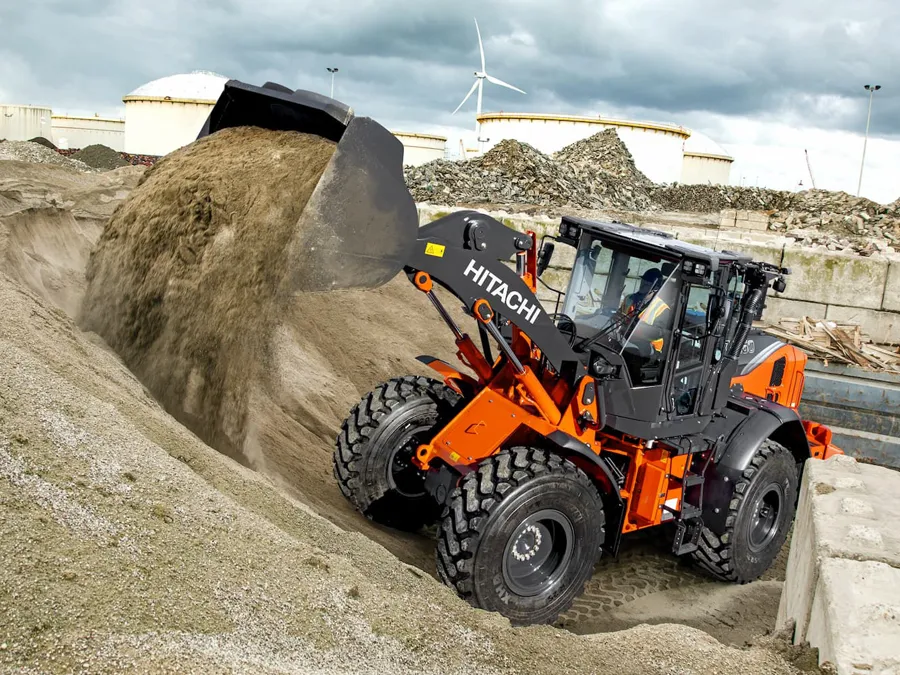

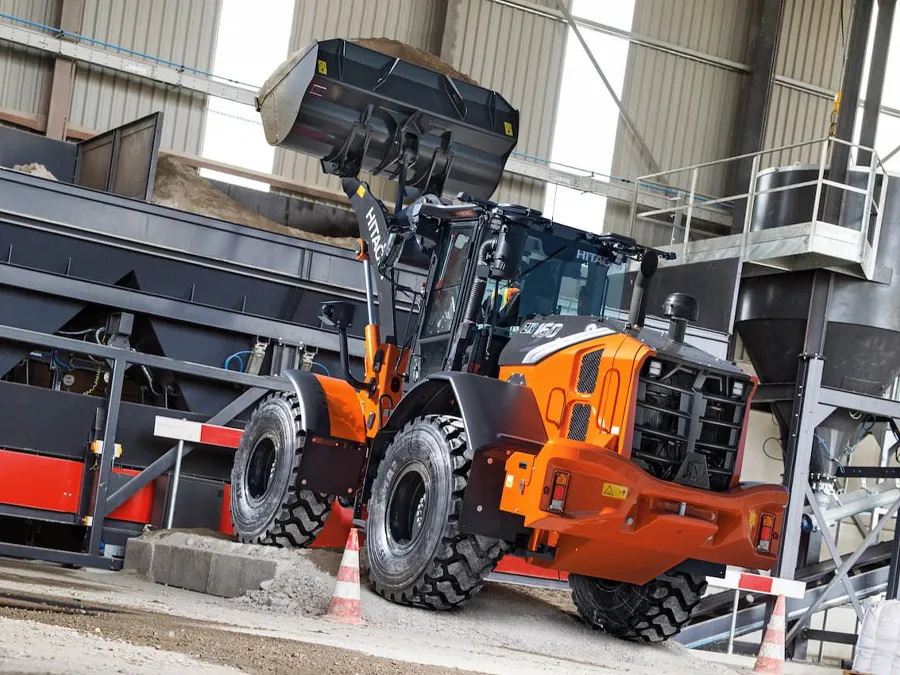

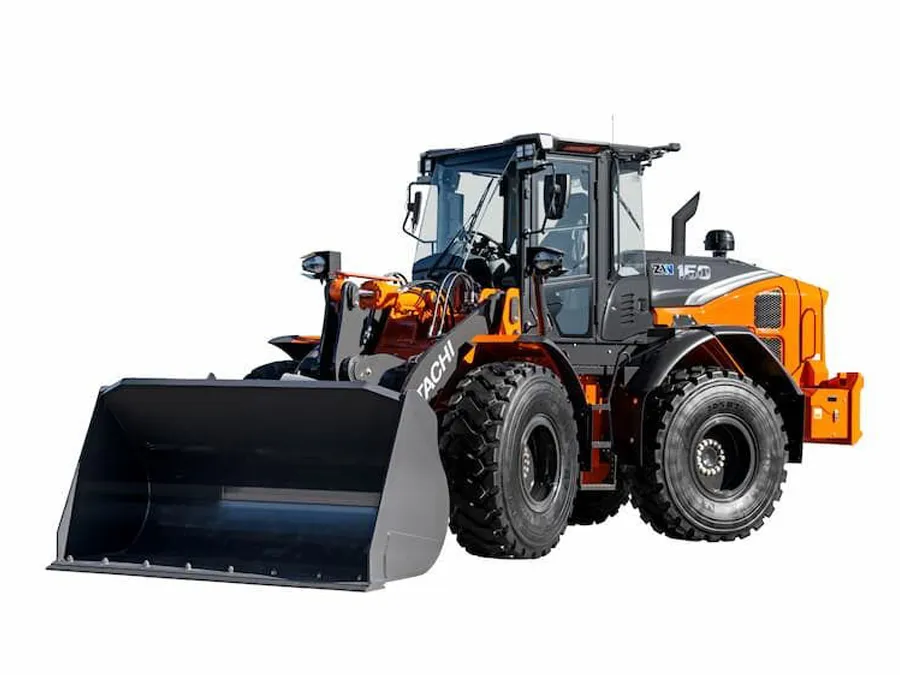

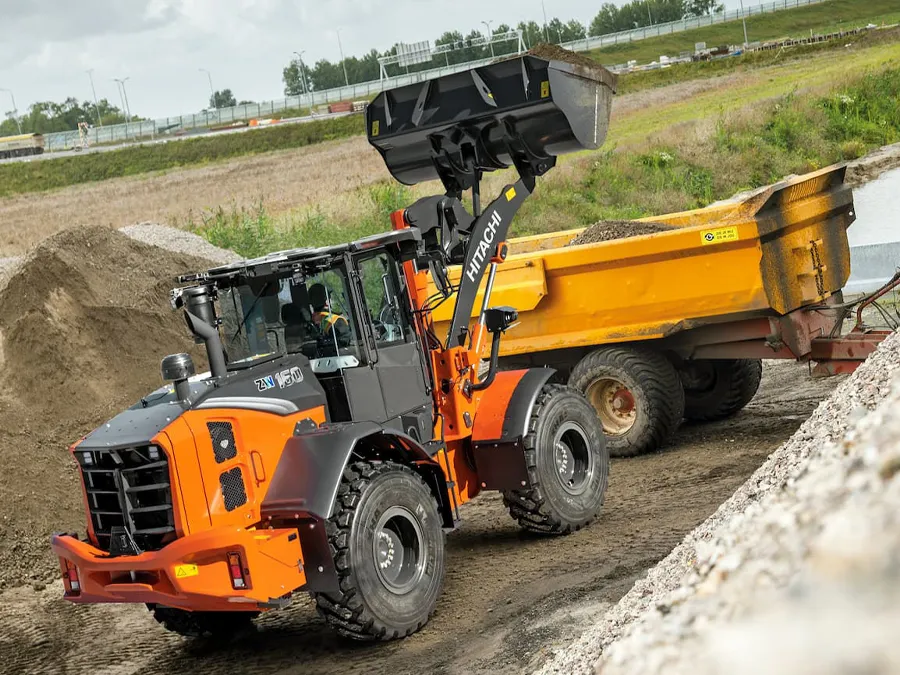

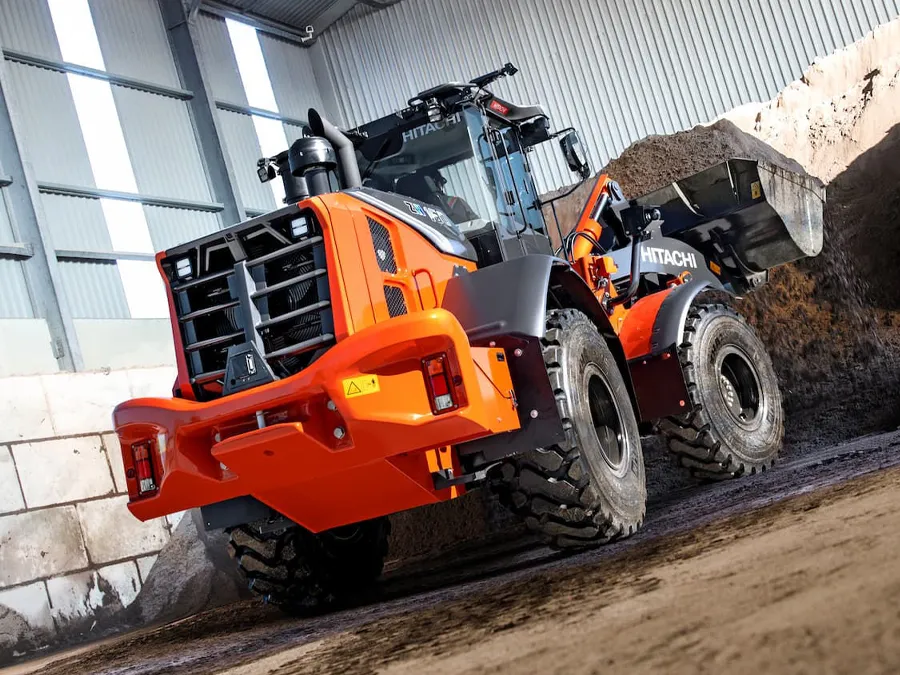

The Hitachi Wheel Loader ZW160-7 is engineered for high-production material handling, truck loading, and aggregate applications. Designed with advanced hydraulic performance and intelligent machine management systems, the ZW160-7 delivers strong breakout force, fast cycle times, and dependable lifting capability across demanding job sites.
As part of the latest generation wheel loader lineup, the ZW160-7 integrates improved fuel efficiency, responsive control systems, and enhanced operator comfort. Its balanced frame and loader arm geometry support stable operation under load, while refined hydraulic tuning allows for smooth, precise bucket control.
Built for durability in construction, quarry, and municipal environments, the ZW160-7 provides reliable productivity and long-term performance backed by Hitachi Construction Equipment engineering standards.
ZX17U-5n Specifications
Specifications
Bucket capacity (m³) ISO Heaped:
2.8 – 3.6 yd³ (2.1 – 2.8 m³)
Net Rated Power:
166 HP (124 kW)
Operating Weight:
28,650 – 29,200 lb (13,000 – 13,240 kg)
Breakout force (kN):
21,950 lbf (98 kN)
Engine
Model
CUMMINS B4.5
Type
4 cycle water-cooled, direct injection
Aspiration
Turbocharger and intercooled
Aftertreatment
DPF+SCR system
No. of cylinders
4
Maximum power
ECE R120 gross
169 HP (126 kW) at 2 000 min (rpm)
ISO 9249 : 2007 net
166 HP (124 kW) at 2 000 min (rpm)
Rated power
ISO 14396 : 2002
165 HP (123 kW) at 2 200 min (rpm)
ISO 9249 : 2007 net
163 HP (122 kW) at 2 200 min (rpm)
Maximum Torque
ISO 9249 : 2007 net
755 Nm at 1 200 min (rpm)
Bore and stroke
4.2″ x 4.9″ (107 mm X 124 mm)
Piston displacement
273.4 cu.in (4.46 L)
Batteries
2 x 12 V
Air cleaner
Two element dry type with restriction indicator
Power Train
Transmission
Electrical-controlled 2 motor hydrostatic transmission with summation gear box, Gear box : Fixed gear ratio, powershift countershaft type
Cooling method
Forced Circulation Type
Travel speed* Forward/Reverse
Operating Mode
Standard Mode
Power Mode
1st mph (km/h)
8.1 (13) / 8.1 (13)
8.1 (13) / 8.1 (13)
2nd mph (km/h)
8.1 (13) / 8.1 (13)
8.1 (13) / 8.1 (13)
3rd mph (km/h)
12.4 (20) / 12.4 (20)
12.4 (20) / 12.4 (20)
4th mph (km/h)
24.2 (39) / 24.2 (39)
24.2 (39) / 24.2 (39)
*With 20.5 R25 (L3) tires
Axle and Final Drive
Drive system
Four-wheel drive system
Front and rear axle
Semi-floating
Front
Fixed to the front frame
Rear
Trunnion support
Reduction and differential gear
Two stage reduction with limited slip differential
Oscillation angle
Total 20° (+10°, -10°)
Final drives
Heavy-duty planetary, mounted inboard
Tires
Tire size
20.5R25 (L3)
Brakes
Service brakes
Inboard mounted fully hydraulic 4 wheel wet disc brakes. Front and rear independent brake circuit,HST (Hydro Static Transmission) system provides additional hydraulic braking capacity
Parking brakes
Spring applied, hydraulically released, wet disc type
Steering System
Type
Articulated frame steering
Steering angle
Each direction 40°; total 80°
Cylinders
Double-acting piston type
No. x Bore x Stroke
2 x 2.6″ x 16.5″ (2 x 65 mm x 419 mm)
Hydraulic System
Arm and bucket are controlled by multifunction lever
Arm controls
Four position valve; Raise, hold, lower, float
Bucket controls with automatic bucket return-to-dig control
Three position valve; Roll back, hold, dump
Main pump (Serve as steering pump)
Gear type
Maximum flow
51.2 gal (194 L)/min at 2 200 min (rpm)
Maximum pressure
2,989 psi (20.6 MPa)
Brake and fan and pilot oil pump
Gear type
Maximum flow
11.9 gal (44.9 L) /min at 2 200 min (rpm)
Maximum pressure
2,248 psi (15.5 MPa)
Hydraulic cylinders
ZW160-7
Type
Double acting type
No. x Bore x Stroke
Arm: 2 x 4.9″ x 30″ (2 x 125 mm x 760 mm) Bucket: 1 x 5.9″ x 19.5″ (1 x 150 mm x 495 mm)
Filters
Full-flow 10 micron return filter in reservoir
ZW160PL-7
Type
Double acting type
No. x Bore x Stroke
4.9″ x 30″ (2 x 125 mm x 760 mm) Bucket: 2 x 4.3″ x 39.6″ (2 x 110 mm x 1 005 mm)
Filters
Full-flow 10 micron return filter in reservoir
Hydraulic cycle times
ZW160-7
Lift arm raise
6.4 s
Lift arm lower
3.8 s
Bucket dump
1.6 s
Total
11.8 s
ZW160PL-7
Lift arm raise
6.8 s
Lift arm lower
3.6 s
Bucket dump
3.4 s
Total
13.8 s
*Data at power mode
Environment
Engine Emissions
EPA Final Tier 4 / EU stage V
Sound Level
Sound level in cabin according to ISO 6396: 2008
67 LpA dB(A)
External sound level according To ISO 6395: 2008 and EU Directive 2000/14/EC
