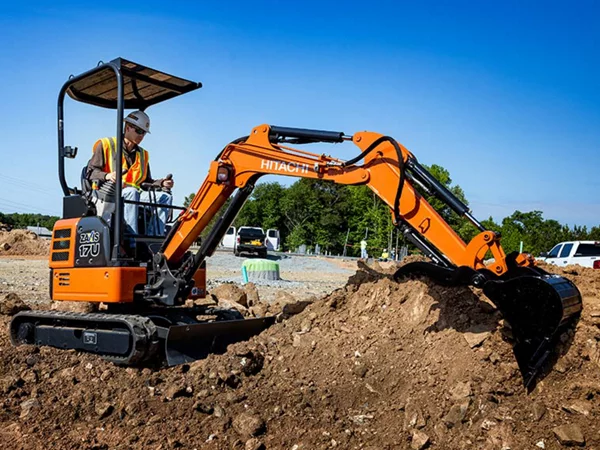

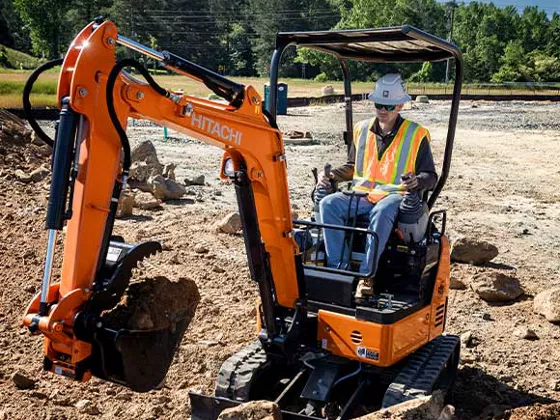

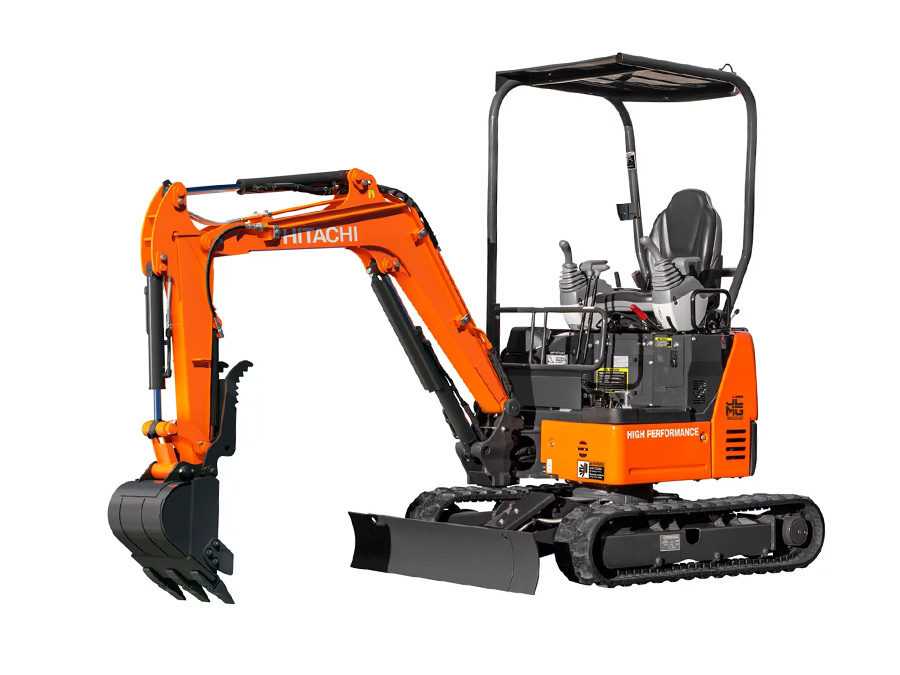

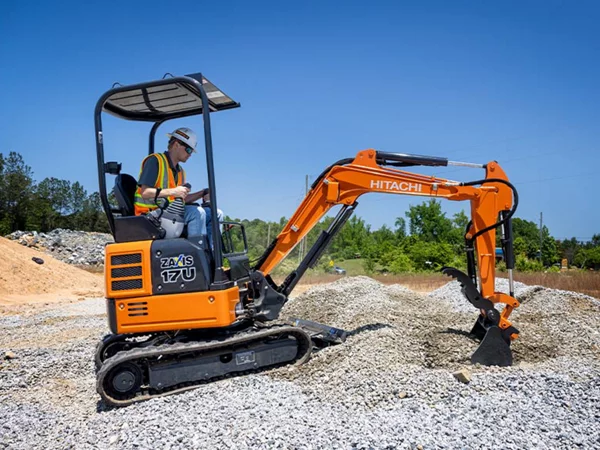

ZX17U-5N

Advanced Hydraulic Performance

The ZAXIS-5N Series features full hydraulic pilot controls for the front attachment, boom, swing, travel, and blade. A 1-way and 2-way selector valve allows seamless switching between attachment modes, making it easy to run breakers, augers, and other hydraulic tools with precision.

Versatile Operator Controls

An auxiliary function lever with integrated trigger, horn, and analog switches gives operators flexible control over multiple attachments. Everything is placed where it should be, reducing fatigue and improving productivity throughout the workday.

Strong Structure and Undercarriage

The variable track width undercarriage allows access to tight job sites while maintaining stability during operation. A pin-type blade stowage system adds durability and simplifies transport and storage.

Easy Maintenance and Serviceability

Wide-opening service covers provide quick access for daily checks and routine maintenance. The parallel-arranged cooling package improves airflow and makes cleaning faster, helping reduce downtime and extend component life.

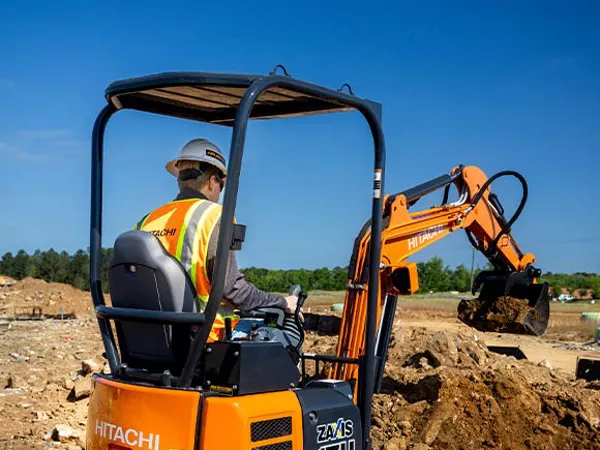

Comfortable and Visible Operator Environment

The 3-pillar canopy design improves all-around visibility and is compatible with ROPS and OPG Level 1 standards. Operators benefit from a safer, more comfortable working environment with clear sightlines to the work area.

Durable Boom and Arm Design

Boom hoses are carefully routed to reduce exposure and prevent damage. HN bushings at front attachment joints improve grease retention and reduce wear, helping maintain long-term performance in demanding conditions.

Specifications
Net Rated Power	14.7 HP (10.8 kW)
Operating Weight	3,790 lb (1,720 kg)
Max. Digging Reach at Ground Level	12 ft 2 in (3.72 m)
Max. Digging Depth	7 ft 2 in (2.19 m)

Working Ranges
Arm Length	3 ft 1 in (0.93 m )

Model	Yanmar 3TNV74F
Type	4-cycle water-cooled, vertical in-line special swirl combustion chamber injection
Aspiration	Natural
Aftertreatment	–
No. of cylinders	3
Rated power
ISO 14396: Gross	15.2 hp (11.2 kW) at 2,400 rpm
ISO 9249: Net	14.7 hp (10.8 kW) at 2,400 rpm
Maximum Torque	36.4 lbf-ft (49.4 Nm) at 1,800 min-1
Piston displacement	61 cu. in. (0.99 L)
Bore and Stroke	2.9″ x 3.0″ (74 mm x 77 mm)
Batteries	1 x 12 V/36 ah

Hydraulic Pumps
Main pumps	Open-center with 2 variable-displacement pumps, 1 fixed-gear pump and 1 pilot pump
Maximum oil flow	2 x 5.1 gal/m (2 x 19.2 L / min)
Pilot pump	1 gear pump
Maximum oil flow	2.9 gal/m (10.8 L/ min)
Auxiliary flow	7.9 gpm (30.0 L / min)
Auxiliary pressure	2,495 psi (17.2 Mpa)

Hydraulic Motors
Travel	2 variable displacement axial piston motors
Swing	1 gear motor

Relief Valve Settings
Implement circuit	2,987.8 psi (20.6 MPa)
Swing circuit	1,987.0 psi (13.7 MPa)
Travel circuit	2,987.8 (20.6 MPa)
Pilot circuit	594.7 psi (4.1 MPa)

	Quantity	Bore	Rod Diameter
Boom	1	2.4″ (60)	1.4″ (35)
Arm	1	2.2″ (55)	1.2″ (30)
Bucket	1	2.2 (55)	1.2″ (30)
Blade	1	2.2 (55)	1.4″ (35)
Boom swing	1	2.2 (55)	1.2″ (30)

Swing Device
Gear motor with planetary reduction gear is bathed by oil. Swing circle is single row. Swing parking brake is spring-set/ hydraulic released disc type
Swing speed	9.4 rpm
Swing torque	1,253.9 lb-ft (1.7 kNm)
Max boom swing angle, left/right	70 degrees / 50 degrees

Tracks
Tractor-type undercarriage. Welded track frame using selected materials. Side frame extended by cylinder span

Numbers of Rollers and Shoes on Each Side
Upper rollers	0
Lower rollers	3

Travel Device
Each track driven by 2-speed axial piston motor.	Parking brake is spring-set hydraulic-released disc type
Travel Speeds	High: 0 to 2.6 mph (0 to 4.2 km/h) Low 0 to 1.5 mph (0 to 2.4 km/h)
Maximum traction force	2,562.8 lbf (11.4 kN)
Gradeability	47% (25 degree) continuous

Engine Emissions	EPA Final Tier 4
Sound Level
Sound level in canopy according to iso 6396: 2008	*LpA 78.9 (right) / 76.6 (left) dB(A)
Sound level in cab according to ISO 6396: 2008	*LwA 93.8 dB(A)

Fuel tank	5.3 (20.0)
Engine coolant	0.7 (2.7)
Engine oil	0.8 (3.1)
Travel device (each side)	0.1 (0.25)
Hydraulic system	6.9 (26.0)
Hydraulic oil tank	3.7 (14.0)

Operating Weight and Ground Pressure

	Shoe width Unit: in (mm)	Operating weight Unit: lb (kg)	Ground pressure Unit: psi (kPa)
Rubber Track	9″ (230mm)	3,790 lb (1,720 kg)	3.9 psi (26.6 kPa)

Basic Machine Weight and Components Weight

Components Weight	Unit: lb (kg)
Counterweight	265 lb (120 kg)

Bucket and ARM Digging Force

Arm length	3′ 1″ (0.93 m)
Arm crowd force (ISO 6015:2006)	1,993 (8.6)
Bucket digging force* (ISO 6015:2006)	3,598 (16)
