Max. Digging Reach at Ground Level: 15 ft (4.63 m)
Max. Digging Depth: 8 ft 6 in (2.59 m)

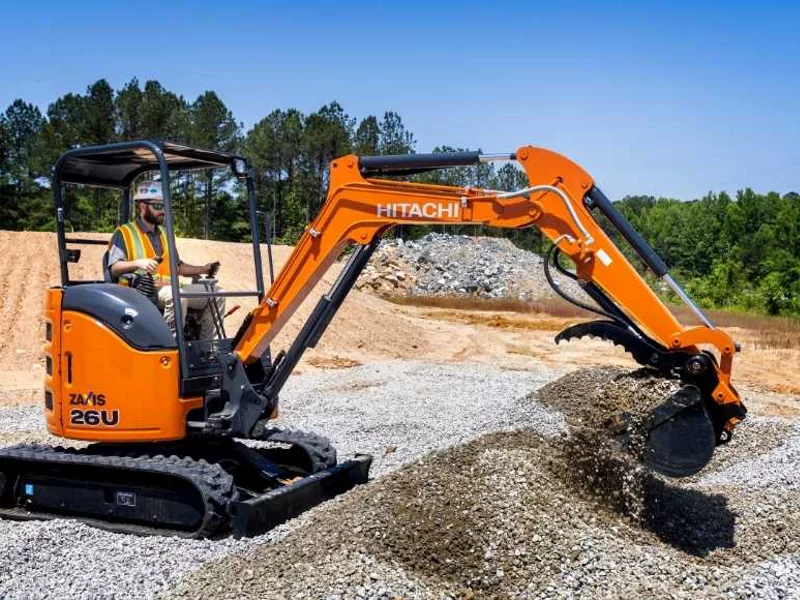

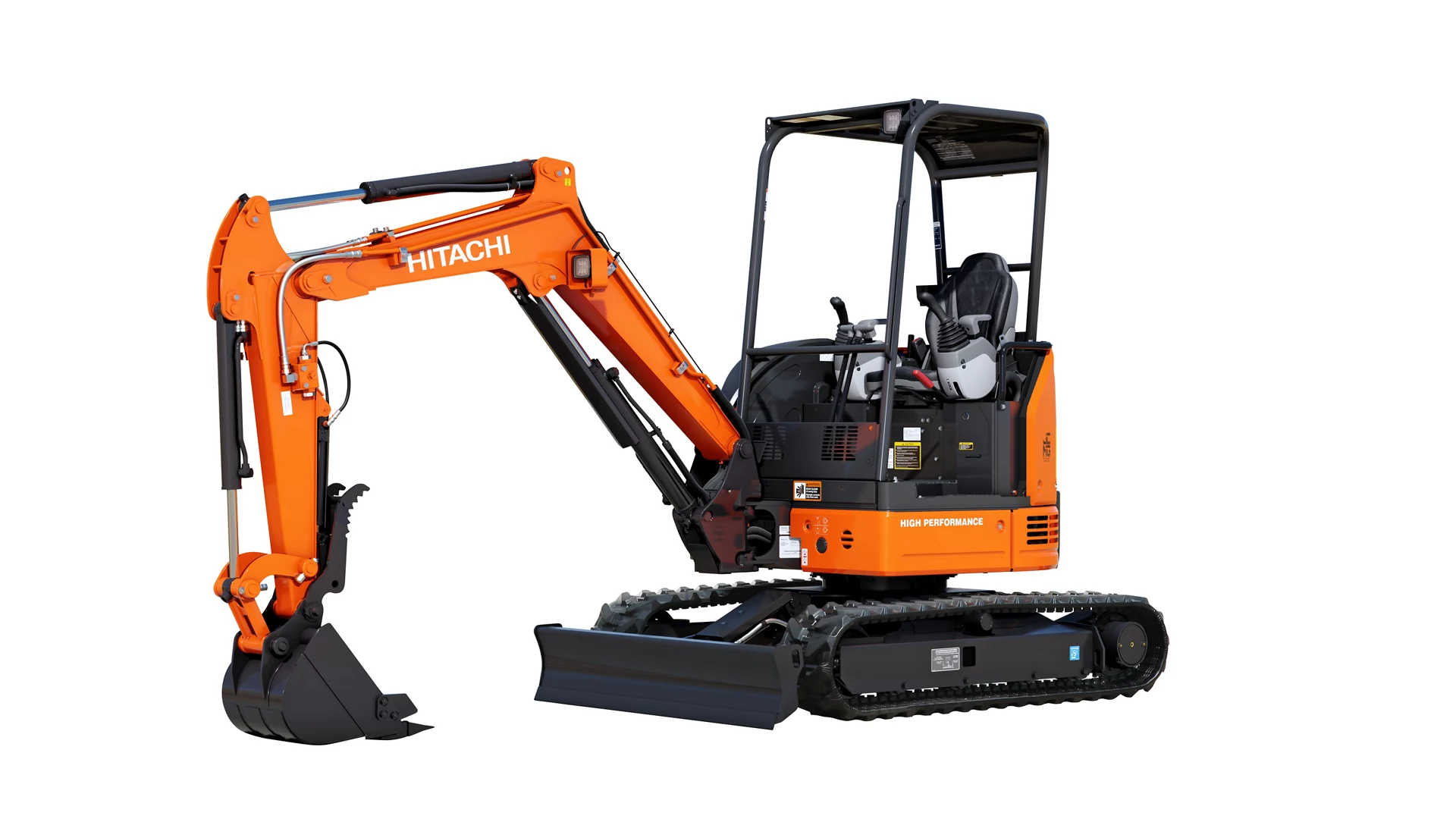

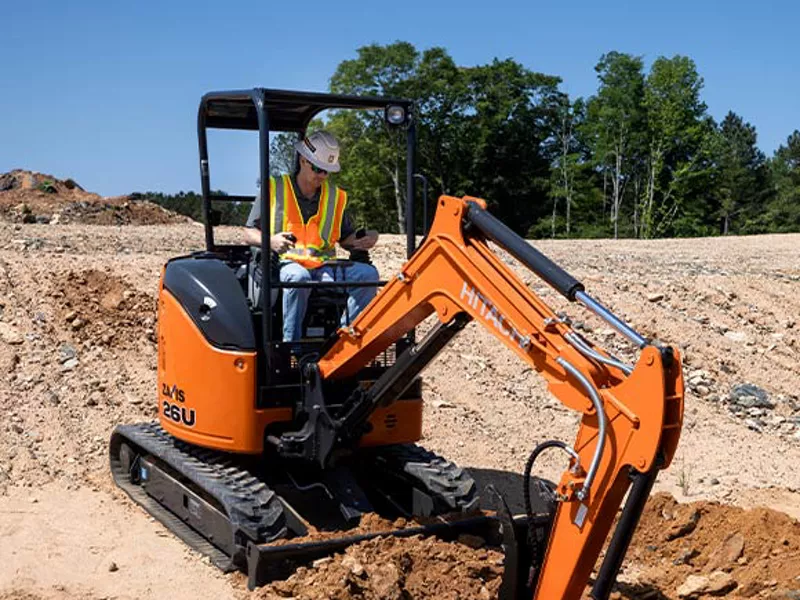

The Hitachi ZX26U-5N Compact Excavator delivers powerful performance in a compact, tight tail swing design. Built for confined job sites, it offers excellent maneuverability, smooth hydraulics, and reliable digging power for utility, landscaping, and residential work.
The Hitachi ZX26U-5N Compact Excavator delivers big performance in a small, highly maneuverable package. Designed with a tight tail swing and compact footprint, the ZX26U-5N allows operators to work efficiently in confined spaces where larger machines simply cannot fit.
Despite its size, this excavator offers impressive digging power, smooth hydraulics, and precise control for utility work, landscaping, residential construction, and light commercial applications. Built for durability and operator comfort, the ZX26U-5N is a reliable solution for contractors who need productivity without sacrificing access or maneuverability.
As part of the compact excavator lineup from Hitachi Construction Equipment, the ZX26U-5N is engineered to perform day in and day out on demanding job sites.
Product Highlights
Tight Tail Swing Design
Keeps the rear of the machine within the track width, allowing safe and efficient operation in narrow or congested job sites.
Compact Size, Powerful Performance
Delivers strong digging force and breakout power while maintaining excellent control and responsiveness.
Exceptional Maneuverability
Ideal for utility work, residential projects, landscaping, and urban construction where space is limited.
Smooth, Responsive Hydraulics
Provides precise control for grading, trenching, and detail work.
Operator-Focused Cab Layout
Designed for comfort and visibility to reduce fatigue and improve productivity during long workdays.
Built for Reliability
Engineered with durable components and proven Hitachi construction for long-term performance.
ZX17U-5n Specifications
Specifications
Net Rated Power
20.3 HP (14.9 kW)
Operating Weight
5,560 lb (2,520 kg)
Max. Digging Reach at Ground Level
15 ft (4.63 m)
Max. Digging Depth
8 ft 6 in (2.59 m)
Working Ranges
Arm Length
3 ft 10 in (1.16 m)
Engine
Model
Yanmar 3TNV80F
Type
4-cycle water-cooled, vertical in-line special swirl combustion chamber injection
Aspiration
Natural
Aftertreatment
–
No. of cylinders
3
Rated power
ISO 14396: Gross
20.7 hp (15.2 kW) at 2,500 rpm
ISO 9249: Net
20.3 hp (14.9 kW) at 2,500 rpm
Maximum Torque
48.4 lbf-ft (65.6 Nm) at 1,800 min-1
Piston displacement
77 cu. in. (1.266 L)
Bore and Stroke
3.1″ x 3.3″ (80 mm x 84 mm)
Batteries
1 x 12 V/36 Ah
Hydraulic System
Hydraulic Pumps
Main pumps
Open-center with 2 variable-displacement, 1 fixed-gear pump and 1 pilot pump pumps
Maximum oil flow
2 x 7.9 gal/m (2 x 30.0 L/min)
Pilot pump
1 gear pump
Maximum oil flow
8.9 gal/m (33.6 L/min)
Auxiliary flow
12.2 gpm (46.30 L/min)
Auxiliary pressure
2,495 psi (17.2 Mpa)
Hydraulic Motors
Travel
2 variable displacement axial piston motors
Swing
1 axial piston motor
Relief Valve Settings
Implement circuit
3,553.4 psi (24.5 MPa)
Swing circuit
2,697.7 psi (18.6 MPa)
Travel circuit
3,553.4 psi (24.5 MPa)
Pilot circuit
594.7 psi (4.1 MPa)
Quantity
Bore
Rod Diameter
Boom (Canopy)
1
3.0″ (75)
1.8″ (45)
Boom (Cab)
1
3.0″ (75)
1.8″ (45)
Arm
1
2.6″ (65)
1.6″ (40)
Bucket
1
2.2″ (55)
1.4″ (35)
Blade
1
3.0″ (75)
1.8″ (45)
Boom swing
1
3.0″ (75)
1.6″ (40)
Upperstructure
Swing Device
Gear motor with planetary reduction gear is bathed by oil. Swing circle is single row. Swing parking brake is spring-set/ hydraulic released disc type
Swing speed
9.1 rpm
Swing torque
2,655.2 lbf-ft (3.6 kNm)
Max boom swing angle, left/right
60 degrees / 70 degrees
Undercarriage
Tracks
Tractor-type undercarriage. Welded track frame using selected materials. Side frame extended by cylinder span
Numbers of Rollers and Shoes on Each Side
Upper rollers
1
Lower rollers
4
Travel Device
Each track driven by 2-speed axial piston motor.
Parking brake is spring-set hydraulic-released disc type
Travel Speeds
High: 0 to 2.8 mph (0 to 4.5 km/h) Low: 0 to 1.8 mph (0 to 2.9 km/h)
