ZX50U-5N

CALL FOR PRICE

Request more information:

Net Rated Power: 36.8 HP (27.1 kW)

Operating Weight: 11,054 – 11,729 lb (5,014 – 5,320 kg)

Max. Digging Reach at Ground Level: 20 ft 1 in (6.13 m)

Max. Digging Depth: 12 ft 7 in (3.83 m)

The Hitachi ZX50U-5 Compact Excavator delivers strong, reliable performance across a wide range of job types without sacrificing efficiency or durability

See Brochure: ZX50U-5N Brochure
See Spec Sheet: ZX50U-5N Spec Sheet

Category: Compact Excavator Tags: compact excavators, HCE, New Product Condition: Brand New Brand: Hitachi

Description
Additional information

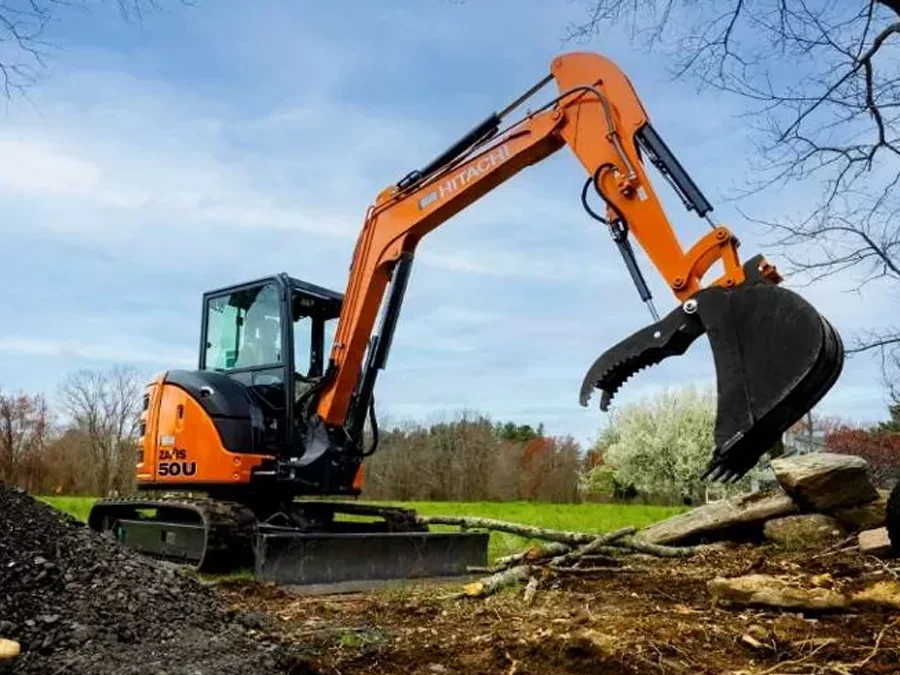

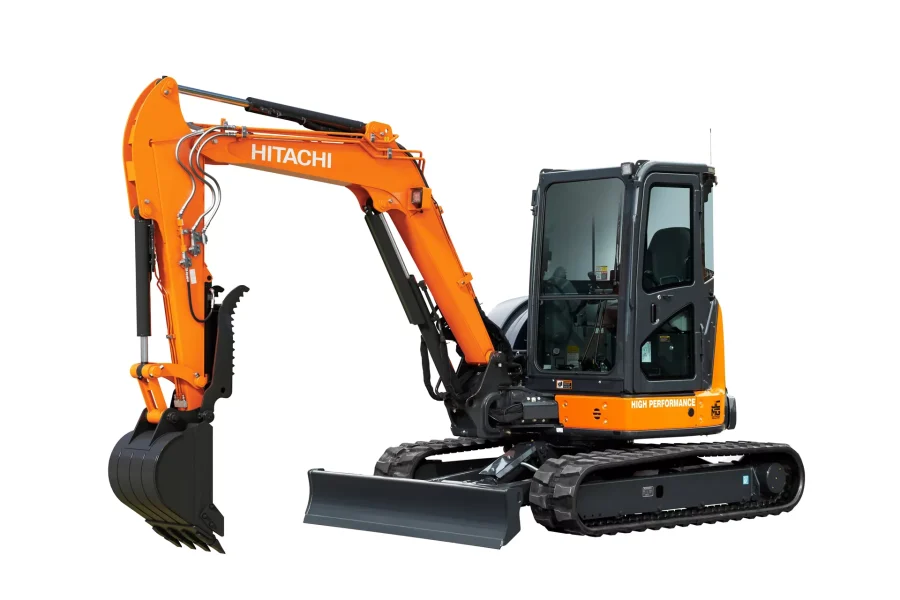

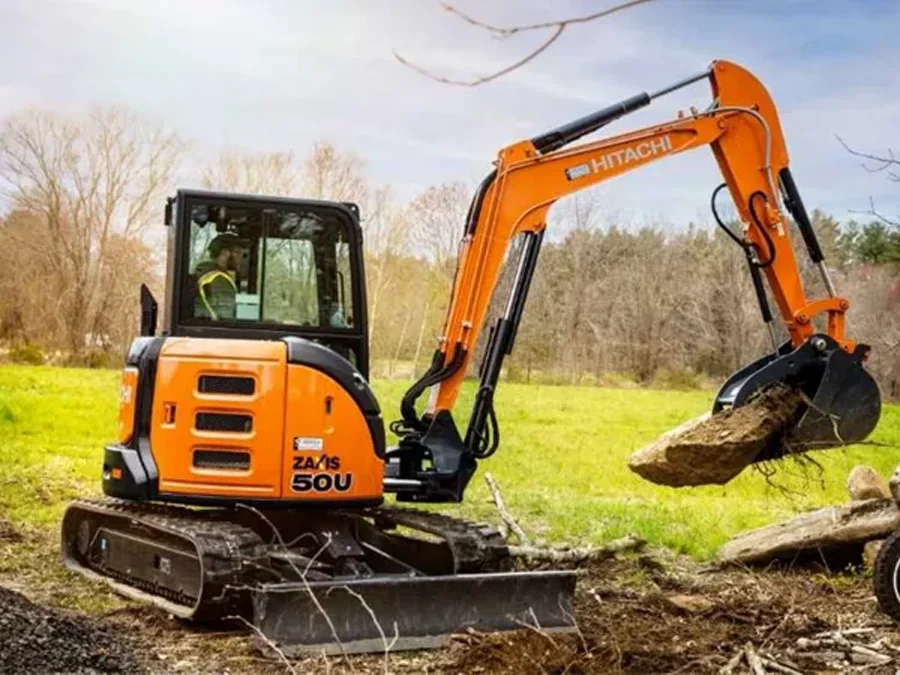

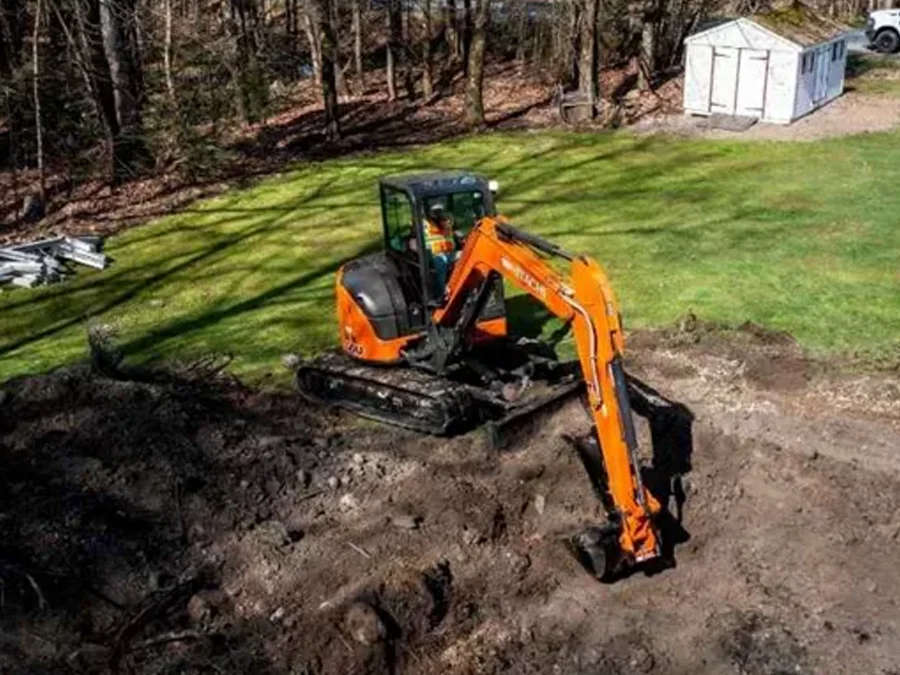

Hitachi Compact Excavator ZX50U-5N

The Hitachi ZX50U-5 Compact Excavator delivers strong, reliable performance across a wide range of job types without sacrificing efficiency or durability. Designed with a reduced footprint, this machine is well suited for both confined job sites and open work areas where maneuverability and power matter.

Built to meet modern emission standards, the ZX50U-5 pairs fuel-efficient operation with the rugged construction contractors expect. From trenching and excavation to loading and general site work, this compact excavator offers dependable productivity while maintaining the reliability that defines Hitachi Construction Equipment machines.

Product Highlights

ZX17U-5n Specifications

Specifications
Net Rated Power	36.8 HP (27.1 kW)
Operating Weight	11,054 – 11,729 lb (5,014 – 5,320 kg)
Max. Digging Reach at Ground Level	20 ft 1 in (6.13 m)
Max. Digging Depth	12 ft 7 in (3.83 m)

Working Ranges
Arm Length	4 ft 4 in – 5 ft 8 in (1.315 – 1.715 m)

Engine

Hydraulic System

Hydraulic Pumps
Main pumps	Closed center load sensing with variable displacement pump
Maximum oil flow	31.7 gpm (120 L/m)
Auxiliary flow	23.1 gpm (87.5 L/min)
Auxiliary pressure	2,495 psi (17.2 Mpa)

Hydraulic Motors
Travel	2 variable displacement axial piston motors
Swing	1 axial piston motor

Relief Valve Settings
Implement circuit	3,553.4 psi (24.5 MPa)
Swing circuit	2,654.2 psi (18.3 MPa)
Travel circuit	3,553.4 psi (24.5 MPa)
Pilot circuit	594.7 psi (4.1 MPa)

	Quantity	Bore	Rod Diameter
Boom (Canopy)	1	3.7″ (95)	2.2″ (55)
Boom (Cab)	1	3.7″ (95)	2.2″ (55)
Arm	1	3.1″ (80)	2.0″ (50)
Bucket	1	3.0″ (75)	1.8″ (45)
Blade	1	4.1″ (105)	2.0″ (50)
Angle Blade	1	2.6″ (65)	1.6″ (40)
Boom swing	1	3.5″ (90)	2.0″ (50)

Upperstructure

Revolving Frame	D-Section frame for resistance to deformation
Axial piston motor with planetary reduction gear is bathed in oil. Swing circle is single row.	Swing parking brake is spring-set/hydraulic released disc type
Swing speed	9.0 rpm
Swing torque	6,343.0 lbf-ft (8.6 kNm)
Max boom swing angle, left/right	80 degrees /60 degrees

Undercarriage

Tracks
Tractor-type undercarriage. Welded track frame using selected materials. Side frame welded to track frame

Numbers of Rollers and Shoes on Each Side
Upper rollers	1
Lower rollers	4
Steel track (optional)	39

Travel Device
Each track driven by a 2-speed axial piston motor	Parking brake is spring-set/hydraulic-released disc type. Automatic transmission system: High-Low
Travel Speeds	High: 0 to 2.6 mph (0 to 4.2 km/h) Low: 0 to 1.6 mph (0 to 2.5 km/h)
Maximum traction force	8,610.2 lbf (38.3 kN)
Gradeability	58% (30 degree) continuous

Environment

Service Refill Capacities

Weights and Ground Pressure

Additional information

Condition	New

Model	Yanmar 4TNV88F
Type	4-cycle water-cooled, common rail direct injection
Aspiration	Natural
Aftertreatment	DPF
No. of cylinders	4
Rated power
ISO 14396: Gross	39.6 hp (29.1 kW) at 2,400 rpm
ISO 9249: Net	36.8 hp (27.1 kW) at 2,400 rpm
Maximum Torque	100.2 lbf-ft (135.8 Nm) at 1,560 min-1
Piston displacement	134 cu. in. (2.189 L)
Bore and Stroke	3.5″ x 3.5″ (88 mm x 90 mm)
Batteries	1 x 12 V/72 Ah

Engine Emissions	EPA Final Tier 4
Sound Level
Sound level in canopy according to iso 6396: 2008	*LpA 77.4 (right)/77.2( left) dB(A)
Sound level in cab according to ISO 6396: 2008	*LpA 76.8 (right)/70.8 (left) dB(A)
External sound level according to ISO 6395: 2008	*LwA 97.0 (canopy) dB(A)

Fuel tank	18.5 (70.0
Engine coolant	1.3 (5.0)
Engine oil	2.2 (8.6)
Travel device (each side)	0.2 (0.9)
Hydraulic system	17.4 (66.0)
Hydraulic oil tank	14.8 (56.0)

	Shoe width Unit: in (mm)	Operating weight Unit: lb (kg)	Ground pressure Unit: psi (kPa)
*Rubber track, Canopy 4′ 4″ (1,315 mm) arm	16″ (400 mm)	11,054 lb (5,014 kg)	4.2 psi (28.8 kPa)
*Rubber track, Cab 4′ 4″ (1,315 mm) arm	16″ (400 mm)	11,341 lb (5,144 kg)	4.3 psi (29.5 kPa)
**Rubber track, Canopy 5′ 8″ (1,715 mm) arm	16″ (400 mm)	11,442 lb (5,190 kg)	4.2 psi (29.0 kPa)
**Rubber track, Cab 5′ 8″ (1,715 mm) arm	16″ (400 mm)	11,729 lb (5,320 kg)	4.4 psi (30.0 kPa)

Components Weight	Unit: lb (kg)
Standard	1,543 lb (700 kg)
Additional	441 lb (200 kg)
Optional Angle Blade	902 lb (409 kg)
Optional Angle Blade Weight Increase	485 lb (485 kg)

Arm length	5′ 7″ (1.690 m)
Arm crowd force (ISO 6015:2006)	4,718 (21.0)
Bucket digging force* (ISO 6015:2006)	8,267 (36.8)
