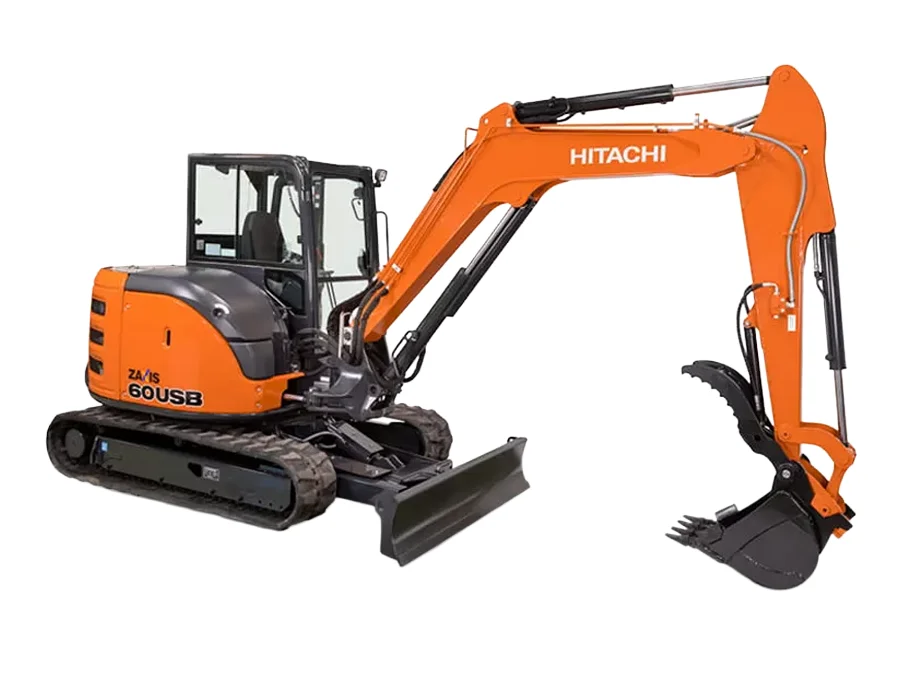

The Hitachi Compact Excavator ZX60USB-5N is built for operators who need full power in confined or congested work areas.
See Brochure: ZX60USB-5N Brochure
See Spec Sheet: ZX60USB-5N Spec Sheet
Hitachi Compact Excavator ZX60U-5N
The Hitachi Compact Excavator ZX60USB-5N is built for operators who need full power in confined or congested work areas. Its reduced tail swing design allows confident operation near structures, utilities, and tight boundaries without sacrificing digging force or overall performance.
Designed with owner-inspired improvements, the ZX60USB-5N features a more spacious cab with easier entry and enhanced visibility to improve comfort and jobsite awareness. A fuel-efficient, reliable engine that meets current emission standards supports long workdays while helping control operating costs. Simplified service access makes routine maintenance faster and easier, keeping downtime to a minimum.
Product Highlights
Advanced Hydraulic Performance
A high-efficiency hydraulic system delivers smooth, responsive control with selectable work modes that balance fuel efficiency and jobsite productivity.
Versatile Attachment Control
An integrated auxiliary control lever allows operators to easily manage a variety of hydraulic attachments, including breakers and specialty tools.
Robust Structure and Undercarriage
A debris-resistant track design helps minimize material buildup, with multiple track options available to match terrain and application demands.
Simplified Service Access
Wide-opening service covers and a streamlined cooling layout make inspections and cleaning faster, helping reduce downtime.
Operator-Focused Cab Design
An ergonomically arranged operator station features a comfortable suspension seat and a clear LCD display for improved visibility and control.
Reinforced Boom and Arm Components
Protective guards and high-durability bushings help extend service life while maintaining smooth, consistent operation in demanding conditions.
ZX17U-5n Specifications
| Specifications | |
|---|---|
| Net Rated Power | 53.8 HP (39.6 kW) |
| Operating Weight | 13,426 – 14,418 lb (6,090 – 6,540 kg) |
| Max. Digging Reach at Ground Level | 21 ft 1 in (6.56 m) |
| Max. Digging Depth | 13 ft 6 in (4.12 m) |
| Working Ranges | |
|---|---|
| Arm Length | 6′ 1″ (1.850 m) |
Engine
| Model | Yanmar 4TNV98C |
| Type | 4-cycle water-cooled, common rail direct injection |
| Aspiration | Natural |
| Aftertreatment | DPF |
| No. of cylinders | 4 |
| Rated power | |
| ISO 14396: Gross | 57.6 hp (42.4 kW) at 2,000 rpm |
| ISO 9249: Net | 53.8 hp (39.6 kW) at 2,000 rpm |
| Maximum Torque | 166.7 lbf-ft (226.0 Nm) at 1,300 min-1 |
| Piston displacement | 202 cu. in. (3.318 L) |
| Bore and Stroke | 3.9″ x 4.3″ (98 mm x 110 mm) |
| Batteries | 1 x 12 V/92 Ah |
Hydraulic System
| Hydraulic Pumps | |
|---|---|
| Main pumps | Closed center load sensing with variable displacement pump |
| Maximum oil flow | 38.0 gpm (144 L/m) |
| Auxiliary flow | 24.2gpm (90 L/min) |
| Auxiliary pressure | 2,495 psi (17.2 Mpa) |
| Hydraulic Motors | |
|---|---|
| Travel | 2 variable displacement axial piston motors |
| Swing | 1 axial piston motor |
| Relief Valve Settings | |
|---|---|
| Implement circuit | 3,553.4 psi (24.5 MPa) |
| Swing circuit | 2,842.7 psi (19.6 MPa) |
| Travel circuit | 3,727.5 psi (25.7 MPa) |
| Pilot circuit | 594.7 psi (4.1 MPa) |
| Quantity | Bore | Rod Diameter | |
|---|---|---|---|
| Boom (Canopy) | 1 | 4.3″ (110) | 2.4″ (60) |
| Boom (Cab) | 1 | 3.5″ (90) | 2.2″ (55) |
| Arm | 1 | 3.1″ (80) | 2.0″ (50) |
| Bucket | 1 | 4.7″ (120) | 2.8″ (70 |
| Blade | 1 | 2.8″ (70) | 1.6″ (40) |
| Angle Blade | 1 | 3.7″ (95) | 2.2″ (55) |
Upperstructure
| Revolving Frame | D-Section frame for resistance to deformation |
|---|---|
| Swing Device | |
| Axial piston motor with planetary reduction gear is bathed in oil. Swing circle is single row. | Swing parking brake is spring-set/hydraulic released disc type |
| Swing speed | 9.5 rpm |
| Swing torque | 8,113.2 lbf-ft (11 kNm) |
| Max boom swing angle, left/right | 80 degrees /60 degrees |
Undercarriage
| Tracks |
|---|
| Tractor-type undercarriage. Welded track frame using selected materials. Side frame welded to track frame |
| Numbers of Rollers and Shoes on Each Side | |
|---|---|
| Upper rollers | 1 |
| Lower rollers | 4 |
| Steel track (optional) | 39 |
| Travel Device | |
|---|---|
| Each track driven by a 2-speed axial piston motor | Parking brake is spring-set/hydraulic-released disc type. Automatic transmission system: High-Low |
| Travel Speeds | High: 0 to 3.0 mph (0 to 4.8 km/h) Low: 0 to 1.8 mph (0 to 2.9 km/h) |
| Maximum traction force | 8,947.4 lbf (39.8 kN) |
| Gradeability | 46.6% (25 degree) continuous |
Environment
| Engine Emissions | EPA Final Tier 4 |
| Sound Level | |
| Sound level in cab according to ISO 6396: 2008 | *LpA 78.0 (right)/78.5 (left) dB(A) |
| External sound level according to ISO 6395: 2008 | *LwA 100.3 dB(A) |
Service Refill Capacities
| Fuel tank | 31.7 (120.0) |
| Engine coolant | 2.0 (7.7) |
| Engine oil | 2.9 (11.2) |
| Travel device (each side) | 0.2 (0.9) |
| Hydraulic system | 28.4 (107.5) |
| Hydraulic oil tank | 21.1 (80.0) |
Weights and Ground Pressure
Operating Weight and Ground Pressure
| Shoe width Unit: in (mm) | Operating weight Unit: lb (kg) | Ground pressure Unit: psi (kPa) | |
| *Rubber track, Cab, 6′ 1″ (1,850 mm) arm | 16″ (400 mm) | 14,021 lb (6,340 kg) | 5.4 psi (37.0 kPa |
| **Steel track, Cab 6′ 1″ (1,850 mm) arm | 16″ (400 mm) | 14,418 lb (6,540 kg) | 5.4 psi (37.0 kPa) |
Basic Machine Weight and Components Weight
| Components Weight | Unit: lb (kg) |
| Standard | 1,642 lb (745 kg) |
| Additional | 595 lb (270 kg) |
| Optional Angle Blade | 1,010 lb (458 kg) |
| Optional Angle Blade Weight Increase | 683 lb (310 kg) |
Bucket and ARM Digging Force
| Unit: lbf (kN) | |
| Arm length | 6′ 1″ (1.850 m) |
| Arm crowd force (ISO 6015:2006) | 6,063 (27.0) |
| Bucket digging force* (ISO 6015:2006) | 9,237 (41.1) |
Additional information
| Condition | New |
|---|
