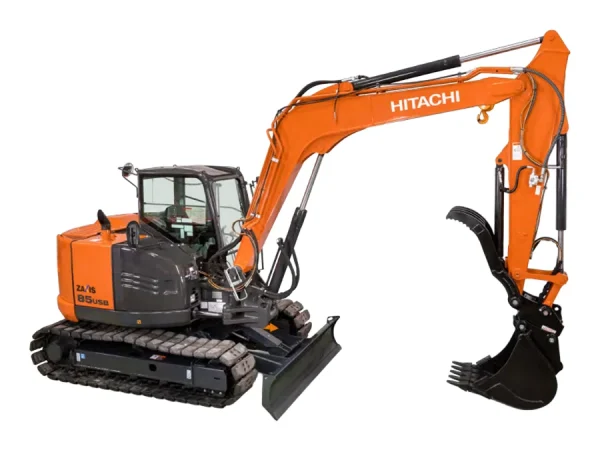

The Hitachi Compact Excavator ZX85USB-5H is built for operators who need serious performance in residential and congested job environments. Its reduced tail swing design allows confident operation in tight areas while maintaining the digging force, hydraulic smoothness, and stability expected from larger Hitachi excavators.
Designed for versatility and maneuverability, the ZX85USB-5H provides strong breakout force, responsive controls, and efficient operation in an easy-to-handle package. Whether working near structures, utilities, or restricted access areas, this machine delivers the power and reliability contractors depend on without sacrificing control or comfort.
Engineered with the same quality standards as larger models from Hitachi Construction Equipment, the ZX85USB-5H offers a balanced solution for crews who demand performance and practicality in one machine.
Product Highlights
Reduce Tail Swing Design
The compact rear profile allows operators to work closer to structures, traffic lanes, and obstacles without compromising stability or digging capability.
Large Machine Performance
Delivers strong digging force, smooth hydraulic response, and dependable lifting capacity comparable to larger excavators.
Responsive Hydraulic Control
Precision pilot controls provide smooth operation for trenching, grading, loading, and attachment work.
Versatile Jobsite Capability
Ideal for residential construction, utility installation, site development, and confined commercial applications.
Operator Focused Comfort
Designed to improve visibility, ease of operation, and overall productivity throughout long workdays.
Built for Durability
Engineered with reinforced components and dependable construction to handle demanding jobsite conditions.
ZX17U-5n Specifications
Specifications
Net Rated Power
53.7 HP (39.5 kW)
Operating Weight
18,735 lb (8,498 kg)
Max. Digging Reach at Ground Level
24 ft 10 in (7.56 m)
Max. Digging Depth
14 ft 10 in (4.51 m)
Working Ranges
Arm Length
6′ 11″ (2.120 m)
Engine
Model
Yanmar 4TNV98C
Type
4-cycle water-cooled, common rail direct injection
Aspiration
Natural
Aftertreatment
DPF
No. of cylinders
4
Rated power
ISO 14396: Gross
57.6 hp (42.4 kW) at 2,000 rpm
ISO 9249: Net
53.7 hp (39.5 kW) at 2,000 rpm
Maximum Torque
166.6 lbf-ft (225.9 Nm) at 1,300 min
Piston displacement
202 cu. in. (3.318 L)
Bore and Stroke
3.9″ x 4.3″ (98 mm x 110 mm)
Batteries
2 x 12 V/52 Ah
Hydraulic System
Hydraulic Pumps
Main pumps
Open Center, Speed Sensing 3 variable displacement axial piston pump
Maximum Oil flow
2 x 19 + 15 gpm (2 x 72 + 56 L/min)
Pilot Pump
1 gear pump
Maximum Oil Flow
5.33 gpm (20 L/min)
Auxiliary flow
18.1 gpm (68.4 L/min)
Auxiliary Pressure
3,278 psi (22.6 Mpa)
Hydraulic Motors
Travel
2 variable displacement axial piston motors
Swing
1 axial piston motor
Relief Valve Settings
Implement circuit
3,553.4 psi (24.5 MPa)
Swing circuit
2,842.7 psi (19.6 MPa)
Travel circuit
3,727.5 psi (25.7 MPa)
Pilot circuit
594.7 psi (4.1 MPa)
Hydraulic Cylinders | ZX75US-7
Quantity
Bore
Rod Diameter
Boom
1
4.5″ (115 mm)
2.6″ (65)
Arm
1
3.7″ (95 mm)
2.4″ (60 mm)
Bucket
1
3.3″ (85 mm)
2.2″ (55 mm)
Blade
1
4.7″ (120 mm)
2.8″ (70 mm)
Upperstructure
Revolving Frame
D-Section frame for resistance to deformation
Swing Device
Axial piston motor with planetary reduction gear is bathed in oil. Swing circle is single row.
Swing parking brake is spring-set/hydraulic released disc type
Swing speed
10.5 rpm
Swing torque
12,243.5 lbf -ft (16.6 kNm)
Undercarriage
Tracks
Tractor-type undercarriage. Welded track frame using selected materials. Side frame welded to track frame
Numbers of Rollers and Shoes on Each Side
Upper rollers
1
Lower rollers
5
Track Shoes
40
Travel Device
Each track driven by a 2-speed axial piston motor
Parking brake is spring-set/hydraulic-released disc type. Automatic transmission system: High-Low
Travel Speeds
High: 0 to 3.1 mph (0 to 5.0 km/h) Low: 0 to 1.9 mph (0 to 3.1 km/h)
Drawbar pull
14,661 lb (6,650 kg)
Maximum traction force
14,657.6 lbf (65.2 kN)
Gradeability
70% (35 degrees) continuous
Environment
Engine Emissions
EPA Final Tier 4
Sound Level
Sound level in cab according to ISO 6396: 2008
*LpA 68.8 (right)/71.8 (left) dB(A)
External sound level according to ISO 6395: 2008
*LwA 97.9 dB(A)
Service Refill Capacities
Fuel tank
35.7 (135.0 L)
Engine coolant
2.6 (9.7 L)
Engine oil
3.2 gal (12.3 L)
Travel device (each side)
0.3 gal (1.2 L)
Hydraulic system
26.4 gal (100.0 L)
Hydraulic oil tank
15 gal (56 L)
Weights and Ground Pressure
Operating Weight and Ground Pressure
Shoe Type
Shoe width Unit: in (mm)
Operating Weight lb (kg)
Ground Pressure psi (kPa)
Rubber Crawler Pads
18″ (450 mm)
17,831 lb (8,088 kg)
5.1 psi (35.0 kPa)
Triple Semi-Grouser Shoe
18″ (450 mm)
17,787 lb (8,068 kg)
5.1 psi (35.0 kPa)
Triple Semi-Grouser Shoe
24″ (600 mm)
18,206 lb (8,258 kg)
3.9 psi (27.0 kPa)
Continuous Rubber Belt
18″ (450 mm)
17,897 lb (8,118 kg)
5.1 psi (35.0 kPa)
Including 0.37 yd3 (0.28 m3) (ISO 7451: 2007 heaped) bucket weight 465 Ib (211 kg) and counterweight 2,568 lb (1,165 kg)
