2001 CASE 75XT Skid Steer Loader For Sale
Request more information:

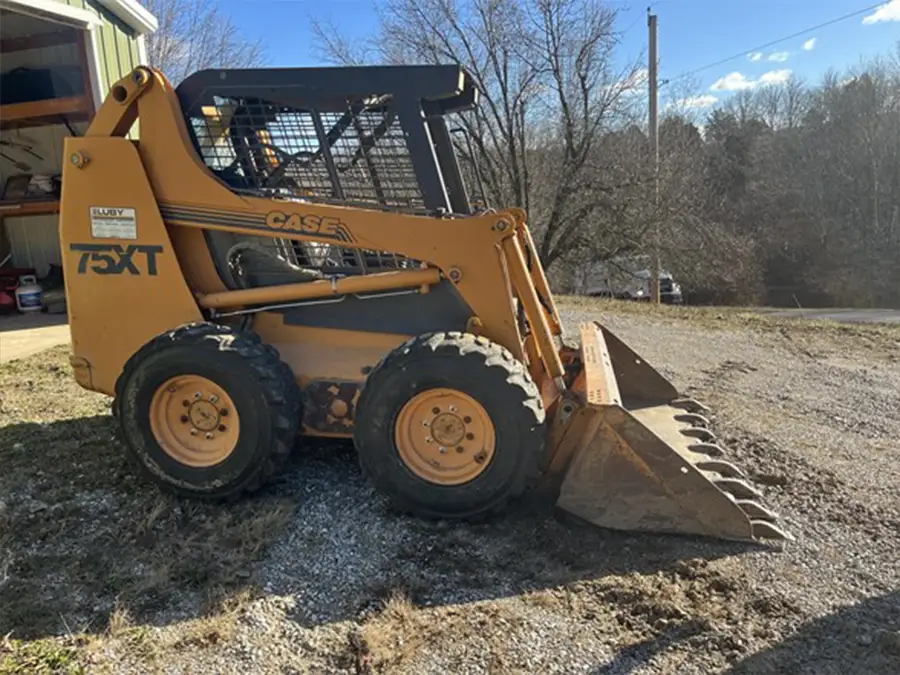

2001 CASE 75XT skid steer with OROPS, hand controls, standard flow hydraulics, and two buckets. Reliable, easy-to-run machine ready for everyday work.
| BRAND |
CASE |
|---|---|
| MODEL |
75XT |
| CONDITION |
Used |
| YEAR |
2001 |
| HOURS |
3388 |
| HORSEPOWER |
75 hp |
| ROPS |
Enclosed |
| OPERATING WEIGHT |
6,700 lbs |
| PRODUCT |
Skid Steer |
| LOCATION |
Customer Yard |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of St. Louis and the surrounding areas that has been in business for over 50 years. We have the knowledge and experience to give you peace of mind when purchasing used equipment. Always Transparent, Globally Trusted. Call us today!
2001 CASE 75XT Skid Steer Loader at Luby Equipment

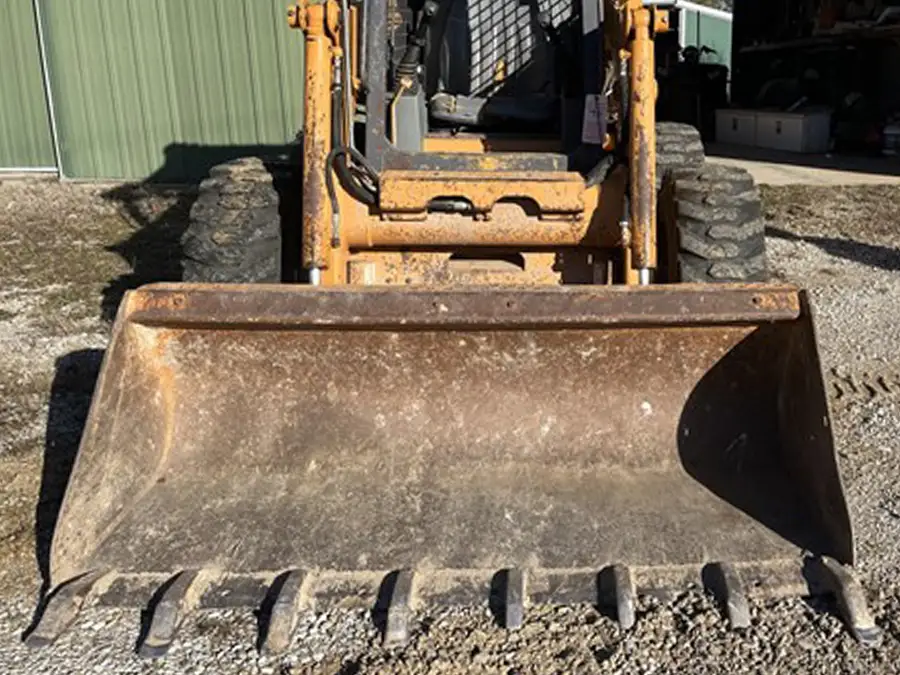

OROPs, Hand Controls, Standard Flow, Two Buckets.
Get the job done with a proven skid steer that’s built to handle everyday work without the extra complexity. The CASE 75XT is known for its solid construction, strong hydraulics, and dependable operation, making it a great fit for contractors, farms, and property maintenance crews.
Strong Hydraulic Output
The 75XT delivers consistent hydraulic power to run common attachments like buckets, forks, augers, and trenchers. It’s a practical machine for loading, grading, and general material handling across a wide range of jobs.
Compact and Maneuverable
With its tight turning radius and responsive controls, this skid steer is easy to operate in confined spaces. Ideal for working around buildings, in barns, or on smaller job sites where larger equipment won’t fit.
Operator Simplicity
Designed with straightforward controls and a functional cab layout, the 75XT keeps operation simple and efficient. It’s a machine you can put to work quickly without a steep learning curve.
Built for Everyday Work
CASE machines from this era are known for durability and ease of maintenance. The 75XT is a dependable option for buyers looking for a cost-effective skid steer that still delivers solid performance.
CASE 75XT Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 75.0 HP | 55.9 kW |
| Lifting Capacity (35% Tipping) | 1600 lbs | 725 kg |
| Lifting Capacity (50% Tipping) | 2200 lbs | 998 kg |
| Operating Weight | 6700 lbs | 3039 kg |
| Tipping Load | 4400 lbs | 1996 kg |
| Lift Breakout Force | 5173 lbs | 2346 kg |
| Tilt Breakout Force | 5371 lbs | 2436 kg |
| Max. Travel Speed | 7.2 mph | 11.6 km |
CASE 75XT Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 21.0 GPM | 79.5 LPM |
| Relief Pressure | 3000 psi | 206.8 Bar |
| Optional Flow | N/A | |
| Hydraulic Capacity | 16.5 gal | 62.5 L |
Engine Specs
| Manufacturer | CASE |
| Model | 4-390 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | |
| Rated Speed | 2200 RPM |
| Torque Power | 1200 RPM |
| Combustion | Direct Injection |
| Compression Ratio | 17.0.1 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 75.0 HP | 55.9 kW |
| Net Power | 69.0 HP | 51.5 kW |
| Displacement | 239 cu in. | 3916.5 cc |
| Bore | 4.0 in. | 10.2 cm |
| Stroke | 4.7 in. | 12.0 cm |
| Peak Torque | 193 ft-lb | 262 N-m |
| Coolant Capacity | 4.2 gal | 16.1 L |
| Engine Oil Capacity | 2.7 gal | 10.4 L |
| Fuel Tank Capacity | 17.3 gal | 65.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 79.9 in. | 202.9 cm |
| Bucket Hinge Pin | 119.7 in. | 304.0 cm |
| Width | 60.9 in. | 154.7 cm |
| Length | 135.5 in. | 344.2 cm |
| Dump Height | 90.6 in. | 230.1 cm |
| Dump Reach | 32.7 in. | 83.1 cm |
| Ground Clearance | 8.9 in. | 22.6 cm |
| Dump Angle | 45° |
| Rollback Angle | 27° |
| Departure Angle | 25° |
Additional information
| Location | Luby Equipment |
|---|---|
| Hours | 3388 |
