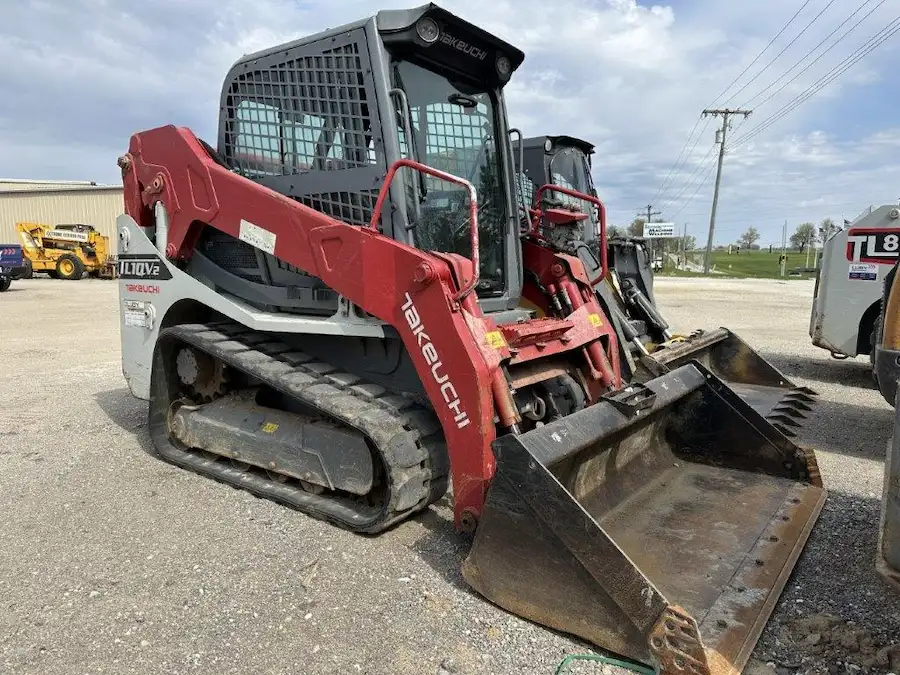

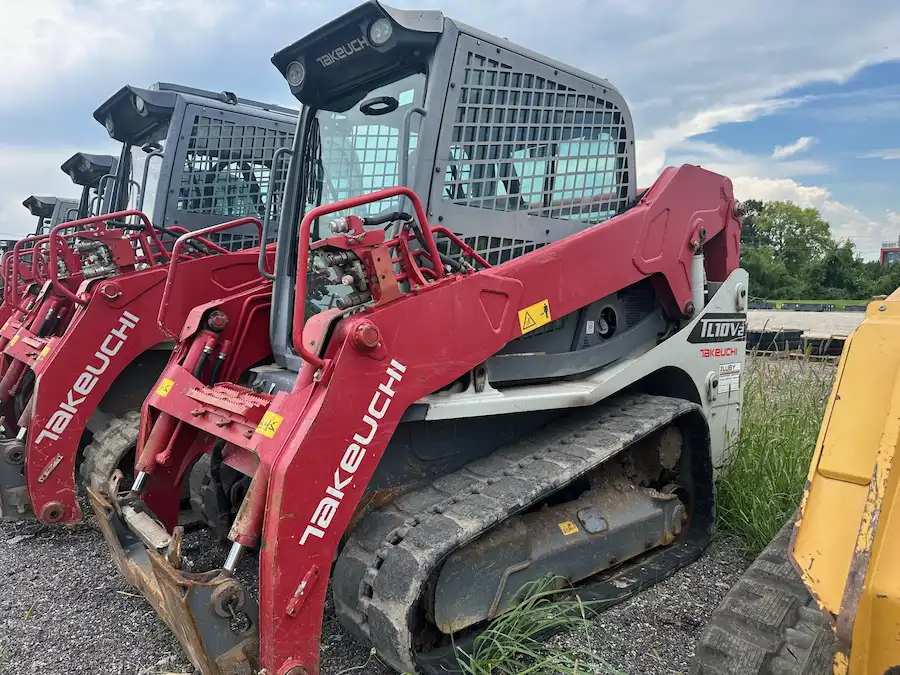

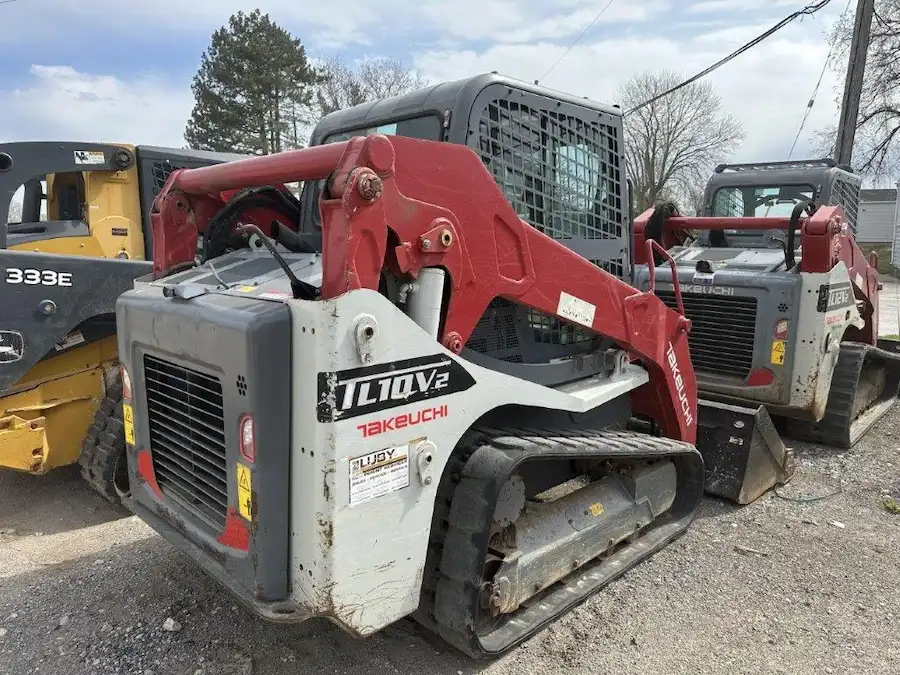

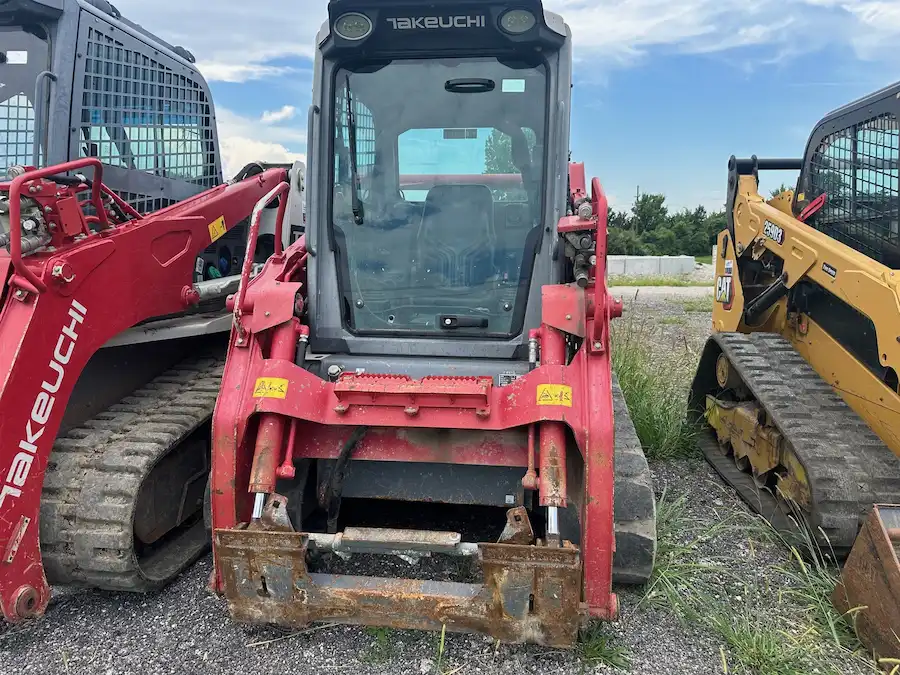

2018 Takeuchi TL10V2-CR Compact Track Loader – EQ0035476

The Takeuchi Compact Track Loader TL10V2 sets a new standard for performance, reliability, and operator comfort in compact track loaders. With its vertical lift loader arrangement and Final Tier 4 emissions compliance, the TL10V2 is designed to deliver exceptional power and efficiency on the job site. Here’s a detailed overview of its features:

Engine:

• The TL10V2 has an EPA Final Tier 4 Emission-compliant engine, ensuring reduced emissions without compromising power.
• Turbocharged engine with High-Pressure, Common Rail Injection System delivers impressive performance and fuel efficiency.
• DOC+DPF Exhaust After Treatment system minimizes emissions for cleaner operation.
• Automatic Fuel Bleed System simplifies maintenance procedures.
• Active Power Control Power Management System optimizes power delivery for enhanced efficiency.
• Working Modes include Standard and ECO mode, providing flexibility to adapt to different working conditions.
• Dual Element Air Filter ensures the engine’s longevity by effectively filtering out contaminants.
• Dial and Foot Throttle offer convenient control options for the operator.
• High Capacity Radiator and Hydraulic Oil Cooler mounted side-by-side on the swing-out frame ensure efficient cooling even in demanding conditions.

Electrical System:

• The TL10V2 features a 5’7 Multi-Informational Color Display, providing essential machine data at a glance.
• Sealed Rocker Switches ensure durability and reliability in harsh operating environments.
• A 12-volt System with a 60-amp Alternator provides ample electrical power for accessories and equipment.
• LED Work Lights at the front and rear illuminate the work area for improved visibility.
• Engine Preheat feature aids cold weather starts.
• Hour Meter assists in tracking maintenance intervals.
• Back-up Alarm enhances job site safety.

Undercarriage and Frame:

• Double Planetary Reduction Drives ensure robust performance and durability.
• Permanently Sealed Track Rollers with Metal Face Seals require minimal maintenance and offer extended service life.
• Fully Welded Frame with Integrated Cross Members provides superior structural integrity.
• Two-Speed Travel enhances maneuverability and productivity.
• 15.7″ Rubber Tracks offer excellent traction and stability on various terrains.
• Grease Type Track Adjuster facilitates easy track tension adjustments.
• Front and Rear Tie-Down Points and Lift Points enable easy transport.
• Rear Bumper Integrated into Frame protects the machine during operation.

Hydraulic & Working Equipment:

• Vertical Lift Design ensures balance and stability during operation.
• Pilot Hydraulic Controls offer precise control and responsiveness.
• Boom Float with Detent simplifies attachment handling.
• Cushioned Boom Cylinders minimize shock loads for smoother operation.
• Hydraulic Self Leveling enhances efficiency during material handling tasks.
• Proportional Auxiliary Hydraulic Controls with Detent enable fine-tuned adjustments.
• Pressure Relieving Flat-Faced Coupler Body ensures leak-free connections.
• 14-pin Connector with Push Button Control facilitates easy integration of attachments.
• High Capacity Steel Hydraulic Tank ensures reliable hydraulic performance.
• Mechanical Quick Coupler or Hydraulic Quick Coupler options provide versatility in attachment changes.
• Optional features include High Flow Auxiliary Hydraulics for increased hydraulic power, Ride Control for enhanced comfort, and Pattern Change Valve for operator convenience.

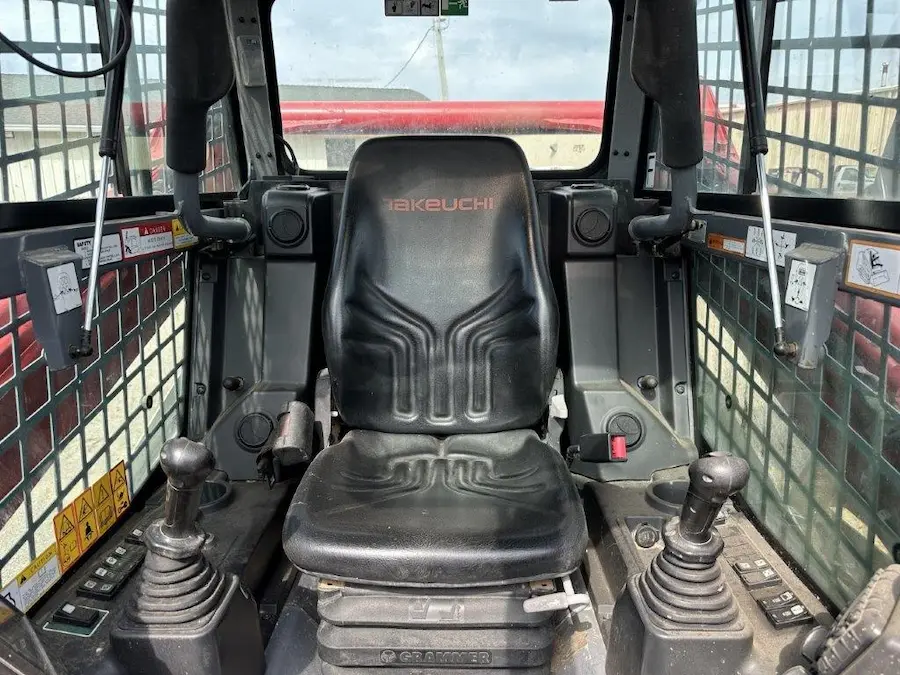

Operator’s Station:

• Tilt-up Operator’s Station allows easy access for maintenance and service.
• Deluxe High Back Suspension Seat ensures operator comfort during long work hours.
• Rear View Camera enhances visibility and safety.
• Rear Pivoting Lap Bar with Arm Rest provides comfort and support.
• ROPS / FOPS Structure offers operator protection in hazardous conditions.
• Retractable 2″ Seat Belt ensures operator safety.
• Pressurized Cab with Roll-up Door, A/C, Heat, Defrost, and optional AM / FM / MP3 Radio with NOAA Weatherband provide a comfortable working environment in all weather conditions.
• Optional upgrades include a Retractable 3″ Seat Belt or 3 Point Retractable Seat Belt for additional safety measures.
• Polycarbonate Door and Level 2 Guard (High Flow Only) further enhance operator safety.

Convenient Service and Maintenance Access:

• The TL10V2 is designed for easy service and maintenance access, minimizing downtime and reducing overall operating costs.

Takeuchi Fleet Management:

• The TL10V2 comes with Takeuchi Fleet Management, offering features such as Remote Diagnostics, Utilization Tracking, Proactive Maintenance, and Cost Control, helping minimize downtime and optimize machine performance.

With its advanced features, rugged construction, and operator-centric design, the TL10V2 is ready to tackle many applications quickly and efficiently, making it an invaluable asset for any construction operation.

OPERATING PERFORMANCE
Operating Weight – Canopy	9,950 lb	(4,515 kg)
Operating Weight – Cab	10,270 lb	(4,660 kg)
Tipping Load	7,205 lb	(3,268 kg)
Rated Operating Capacity (ISO 14397-1)@35%*	2,522 lb	(1,144 kg)
Operating Load at 50% of Tipping Load	3,600 lb	(1,633 kg)
Bucket Breakout Force	6,520 lb	(2,957 kg)
Lift Arm Breakout Force	5,400 lb	(2,450 kg)
Traction Force	9,730 lb	(4,413 kg)
Ground Pressure – Canopy	4.9 psi	(34.3 kPa)
Ground Pressure – Cab	5.1 psi	(35.4 kPa)
Travel Speed – Low	4.8 mph	(7.7 km/hr)
Travel Speed – High	7.0 mph	(11.3 km/hr)
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit	18.8 gpm	(71.2 Lpm)
Auxiliary Flow – High Flow (optional)	32.8 gpm	(124.0 Lpm)
Hydraulic System Pressure	3,481 psi	(21.0 MPa)
ENGINE
Make / Model	Kubota / V3307CR-TE4B
Engine Displacement	203 cu in	(3.3 L)
Horsepower @ 2,600 rpm	74.3 hp	(55.4 kW)
Maximum Torque @ 1,500 rpm	195 ft-lb	(265.0 Nm)
FLUID CAPACITIES
Engine Lubrication	11.8 qt	(11.2 L)
Cooling System	15.9 qt	(15.0 L)
Fuel Tank Capacity	21.5 gal	(81.0 L)
Fuel Consumption (65% of Full Load)	2.7 gal/hr	(10.3 L /hr)
Hydraulic Reservoir Capacity	9.5 gal	(36.0 L)
Hydraulic System Capacity	17.2 gal	(65.0 L)

MACHINE DIMENSIONS
Max. Lift Height to Bucket Pin	10 ft 4.8 in	(3,169 mm)
Dump Height Fully Raised	7 ft 11.9 in	(2,435 mm)
Dump Reach Fully Raised	3 ft 1.4 in	(950 mm)
Dump Angle	40°
Rollback Angle	30°
Track Ground Contact Length	4 ft 7.9 in	(1,419 mm)
Machine Length	9 ft 7.2 in	(2,925 mm)
Transport Length	12 ft 1.0 in	(3,680 mm)
Transport Height	7 ft 5.4 in	(2,270 mm)
Departure Angle	30°
Clearance Circle with Bucket	7 ft 8.5 in	(2,350 mm)
Clearance Circle without Bucket	5 ft 0 in	(1,535 mm)
Clearance Circle Rear	5 ft 5.2 in	(1,655 mm)
Track Width	15.7 in	(400 mm)
Ground Clearance	12.6 in	(320 mm)
Overall Width without Bucket	5 ft 8.5 in	(1,740 mm)
