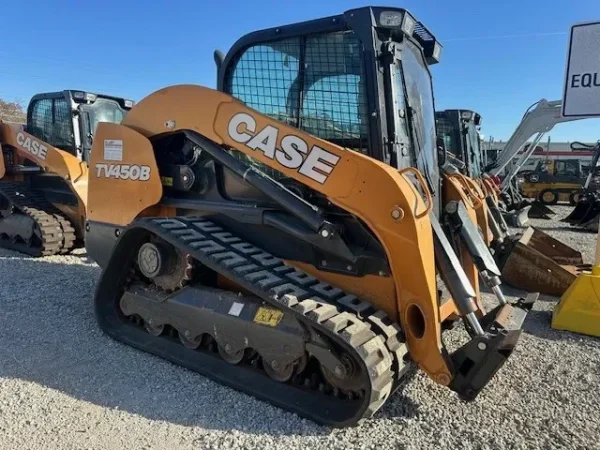

2020 CASE TV450B Compact Track Loader – EQ0038080
$50,595.00
Request more information:

2020 CASE TV450B Compact Track Loader For Sale at Luby Equipment – Cab, HVAC, Mechanical 2 Speed Hand Controls, High Flow Hydraulics.
| BRAND |
CASE |
|---|---|
| MODEL |
TV450B |
| CONDITION |
Used |
| YEAR |
2020 |
| HOURS |
995 |
| HORSEPOWER |
90 HP |
| ROPS |
Enclosed |
| OPERATING WEIGHT |
10,610 lbs |
| PRODUCT |
Track Loader |
| LOCATION |
Fenton, MO |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of St. Louis, MO and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!
BROCHURE: CASE B-Series Track Loaders
SPEC SHEET: CASE TB450B
2020 CASE TV450B Compact Track Loader For Sale
Cab, HVAC, Mechanical 2 Speed Hand Controls, High Flow Hydraulics.
Available for sale at Luby Equipment, the TV450B stands as one of the most popular and powerful CTLs in the CASE lineup. With a 4,500-pound rated operating capacity at 50 percent tipping load and high breakout forces, it allows contractors to lift and load more efficiently. Equipped with enhanced high-flow auxiliary hydraulics, this CTL enables the use of powerful attachments for increased productivity in various tasks.
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 90.0 HP | 67.1 kW |
| Lifting Capacity (35% Tipping) | 3150 lbs | 1428.8 kg |
| Lifting Capacity (50% Tipping) | 4500 lbs | 2041.2 kg |
| Operating Weight | 10600 lbs | 4808.1 kg |
| Tipping Load | 9000 lbs | 4082.3 kg |
| Lift Breakout Force | 77000 lbs | 3492.7 kg |
| Tilt Breakout Force | 9200 lbs | 4173.0 kg |
| Max Travel Speed | 5.5 mph | 8.9 km |
| Optional High Speed | 8.0 mph | 12.9 km |
| Ground Pressure | 4.6 psi | 31.7 kPa |
Cycle Time
| Raise Lift Arms | 5.1 sec |
| Lower Lift Arms | 3.2 sec |
| Bucket Rollback | 2.0 sec |
| Bucket Dump | 2.7 sec |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.5 LPM |
| Relief Pressure | 3046 psi | 210.0 Bar |
| Optional Flow | 39.5 GPM | 149.5 LPM |
| Hydraulic Capacity | 11.9 gal | 96.5 L |
Engine Specs
| Manufacturer | FPT |
| Model | FSB FL413 D*C001 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 Final |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct Injection |
| Compression Ratio | 22.0 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 90.0 HP | 67.1 kW |
| Net Power | 84.0 HP | 62.6 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in | 9.9 cm |
| Stroke | 4.3 in | 11.0 cm |
| Peak Torque | 282 ft-lb | 383.0 N-m |
| Coolant Capacity | ||
| Engine Oil Capacity | 2.2 gal | 8.5 L |
| Fuel Tank Capacity | 25.5 gal | 96.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 80.4 in | 204.2 cm |
| Bucket Hinge Pin | 131.6 in | 334.3 cm |
| Width | 76.0 in | 193.0 cm |
| Length | 144.6 in | 367.3 cm |
| Dump Height | 101.9 in | 258.8 cm |
| Dump Reach | 35.5 in | 90.2 cm |
| Ground Clearance | 9.5 in | 24.1 cm |
| Dump Angle | 45° |
| Rollback Angle | 31° |
| Departure Angle | 32° |
Additional information
| Weight | 2000 lbs |
|---|---|
| Model | |
| Condition | Used |
| Year | 2020 |
| Location | Fenton, MO |
| Hours | 996 |
