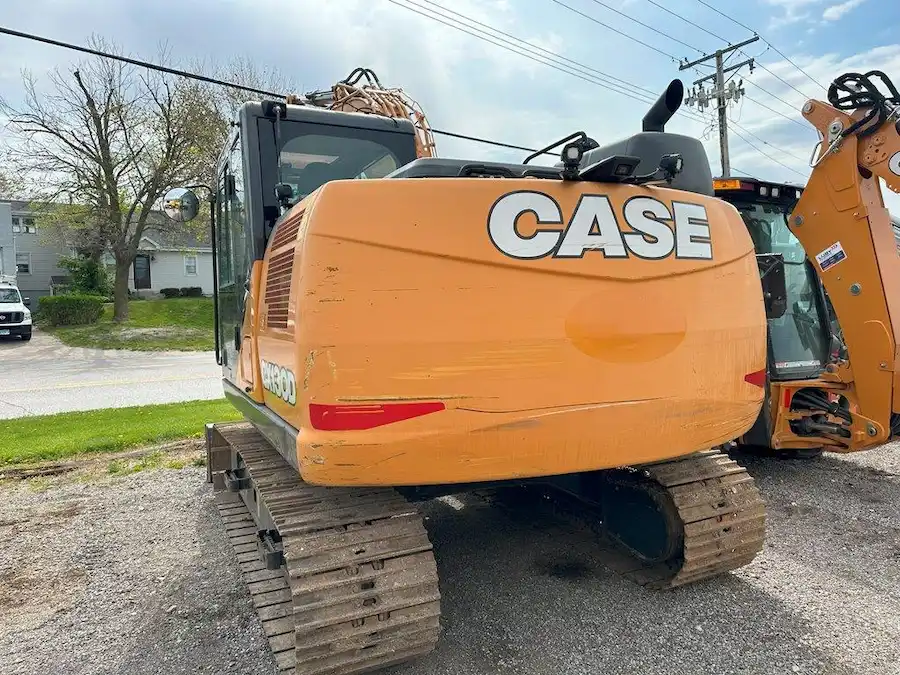

2021 CASE CX130D Full Size Excavator – NLS7D1654

Productivity:

The CX130D is engineered for performance, offering:

• Up to 5% faster cycle times and increased power due to an advanced hydraulic system featuring an electronically controlled pump, larger control valve, and solenoid valve.
• The standard Free-Swing feature for improved control when craning uneven loads.
• An optional LED light package for effective night-time operation.
• A control pattern selector and power mode selector come standard to customize the machine to the operator and the task at hand.

Fuel Efficiency:

• The excavator operates efficiently with an SCR solution that allows the engine to run at peak performance, maintaining complete throttle response throughout the work cycle while complying with Tier 4 Final emissions regulations.
• The SCR system is straightforward. It requires only the addition of diesel exhaust fluid during fill-ups and does not require a diesel particulate filter replacement.

Comfort and Visibility:

• The cab has been significantly improved to offer unprecedented comfort. It includes more entry room, increased foot space, and a larger air-ride seat with numerous adjustments to minimize pressure points.
• Innovations such as adjustable armrests, pedals, a Bluetooth radio, and a climate control system that adapts to sunlight ensure a superior operator experience.
• A 7″ widescreen color monitor provides a continuous rear camera view, enhancing situational awareness.

Serviceability:

• Designed for durability and ease of maintenance, the CX130D features a standard oil sample port for quick checks, grouped service points, tilt-out coolers, and auto-locking side panels for straightforward routine maintenance.
• Additional handrails have been added to improve accessibility around the machine.

OEM-Fit Machine Control:

• The CX130D can be equipped with optional OEM-Fit 2D and 3D machine control solutions installed and tested by certified CASE precision specialists, removing the uncertainty of matching machine and control systems.
• This integration simplifies the acquisition process by including precision excavation technology in the machine purchase. It enhances the residual/resale value by confirming the system’s compatibility and efficacy with the CX130D.

Engine:

• Equipped with an Isuzu AR-4JJ1X four-cylinder turbo-charged diesel engine featuring advanced technologies like VGT turbocharger, electronic fuel injection, and high-pressure common rail system for exceptional performance and efficiency.
• Complies with Tier 4 Final emissions standards using Selective Catalytic Reduction (SCR), Diesel Oxidation Catalyst (DOC), and Cooled Exhaust Gas Recirculation (CEGR) technologies.
• Includes features like neutral safety start, auto-engine warm-up, glow-plug pre-heat, and Fuel Economy Assist System (FEA) to optimize operation and fuel efficiency.
• Engine Protection Feature (EPF), dual-stage fuel filtration, dual-element air filter, and remote oil filter for enhanced protection and maintenance.
• The system includes a remote engine oil drain, a 500-hour engine oil change interval, a 24-volt system, an engine oil sample port, and external fuel and DEF gauges for simplified servicing.

Hydraulics:

• Advanced hydraulic system featuring auto power boost, auto swing priority, arm and boom speed assistance, and auxiliary flow control for superior control and efficiency.
• Electronically controlled hydraulic pumps, holding valves for boom and arm, and selectable work modes, including free swing, to tailor the machine’s performance to specific tasks.
• Serviceability is enhanced with a 5,000-hour hydraulic oil change interval, 1,000-hour hydraulic filter change interval, and SAHR brake system.

Upper Structure:

• Equipped with ISO mirrors, viscous cab mounts, an upper-mounted work light, and a swivel guard belly pan for durability and ease of operation.
• Additional features include a center cover over the main control valve, fuel tank belly pan, right-hand access handrail, ISO guard rails, and lifting eyes for the counterweight.

Operator Environment:

• The pressurized cab offers ROPS protection, FOPS cab top guard, face vent, interior lighting, and a one-touch lock front window for enhanced operator comfort and safety.
• Features a high-back heated cloth seat with air suspension, adjustable armrests, tilting consoles, a sliding cockpit, and low-effort joystick controls for ergonomic operation.
• The 7-inch LED color monitor provides vital information and camera views, while the anti-theft system ensures security. The cab also includes Bluetooth capabilities, a rear-view camera, a travel alarm, and a warm/cool storage compartment.

Fuel Economy Systems:

• It incorporates multiple fuel economy systems, such as Auto-idle, One-touch idle, Auto-idle shut-down, Boom Economy Control (BEC), Auto Economy Control (AEC), Swing Relief Control (SWC), and Spool Stroke Control (SSC), to optimize fuel usage.

Attachments:

• Standard equipment includes a 15 ft 2 in boom, an 8 ft 2 in arm, heavy-duty bucket linkage, and a boom-mounted work light for versatility in various applications.
• Auxiliary pipe brackets, centralized grease fittings, attachment cushion valve, arm and boom regeneration, and bucket anti-clatter device enhance functionality and maintenance.

Undercarriage:

• The undercarriage is designed with 23.6-inch steel shoes, a triple semi-grouser, a full-overlap turntable bearing tub, track chain guides, and hydraulic track adjustment for robust performance and stability.
• Features include a sealed link chain, car body steps, car body belly pan, X-pattern car body, and lashing points for secure transportation.

Front Dozer Blade:

• Excavator includes an 8 ft 6 in wide dozer blade, which enhances its versatility and productivity on the job site.

Telematics:

• The excavator is equipped with CASE SiteWatch™ Telematics, which includes hardware and a 3-year advanced data subscription for comprehensive machine monitoring and management.

Engine:

• Refueling Pump: This pump facilitates convenient and efficient fuel transfer, allowing your excavator to be ready for operation with minimal downtime.

Hydraulics:

• Auxiliary Hydraulics Options: Include single-acting/joystick-activated, double-acting/joystick-activated for thumb operation, multi-function with electronic pressure control and secondary low-flow options for versatile attachment operation.
• Proportional Hydraulic Controls: Offer precise control of hydraulic attachments, enhancing efficiency and productivity.
• Hose Burst Check Valve (HBCV): Provides added safety by preventing the collapse of attachments in the event of a hose burst.

Attachments:

• Arms: Options include a heavy-duty arm (6 ft 11 in) and a long arm (9 ft 11 in) for extended reach and digging depth.
• Quick Coupler: The CASE multi-pin grabber allows fast and easy attachment changes, increasing job site efficiency.
• Tools: A wide range of attachments, including heavy-duty/extreme-duty/ditching buckets, hammers, thumbs, and compaction plates, expands the excavator’s versatility.
• Load Holding Control: Enhances safety by preventing the accidental release of loads.

Upper Structure:

• Rubber Bumper Guard: Available through Service Parts for added protection against impacts.
• Vandal Guard: Protects the front window and is keyed like standard CASE security equipment.

Undercarriage:

• Rubber Link Chain and Steel Shoes: Options include 19.7 in rubber link chain with bolt-on rubber pads and 27.6 in steel shoes, triple semi-grouser, for varied terrain adaptability.
• Double Track Chain Guides: Enhance track stability and durability.

Operator Environment:

• FOPS Cab Top Guard – Level 2: Provides additional protection against falling objects.
• Front Guards: Options include 2 x 2 in screen mesh grill guard and vertical bars rock guard in two-piece/OPG 1 or one-piece/OPG 2 configurations for enhanced frontal protection.
• Sun Visor and Side-View Camera: Improve visibility and safety, while the LED Package further illuminates the work area for safe operation in low light conditions.

Front Dozer Blade:

• Hydraulically Controlled: Available in widths of 8 ft 2 in and 8 ft 10 in to match undercarriage configurations, this system enhances the excavator’s versatility in grading and backfilling operations.

Machine Control:

• Leica iCON Systems: Available with 2D (iXE2) or 3D (iXE3) machine control systems, pre-installed and calibrated by certified CASE precision specialists, these systems ensure accuracy and efficiency in grading and excavation tasks.

Specification Category	Details
ENGINE
Model	Isuzu AR-4JJ1X
Emissions	CEGR, SCR, DOC, Tier 4 Final
Fuel Requirements	Ultra-low sulfur fuel, B5 biodiesel tolerant
Type	Water-cooled, 4-cycle, high pressure common rail system, turbocharger with air-cooled intercooler, SCR system
Cylinders	4-cylinder in-line
Displacement	183 in³ (3 L)
Bore/Stroke	3.76 x 4.13 in (95.4 x 104.9 mm)
Fuel Injection	Direct injection – electronic
Fuel Filter	Replaceable, full flow spin-on cartridge
Air Filter	Dry type element with warning restriction indicator
Oil Filter	Replaceable, full flow spin-on cartridge
Engine Gradeability	Side-to-side 35°, Fore and aft 35°
Net Horsepower @ 2000 RPM	102 hp (76.4 kW) – SAE J1349
Net Max. Torque @ 1800 RPM	257 lbf·ft (349 N·m) – SAE J1349
Cooling Operating Range	109° to -13°F (43° to -25°C)
Oil	Requires low-ash oil CJ-4
DRIVETRAIN
Travel Control	Dual stage relief/counter balance design
Brakes	Mechanical disc
Service Brakes	SAHR disc – each motor
Two Speed Travel	Max. high speed 3.5 mph (5.6 km/h), Max. low speed 2.1 mph (3.4 km/h)
Automatic Downshift	Yes
Drawbar Pull	26,100 lbf (116 kN)
Gradeability	70% – 35° Slope
ELECTRICAL
Voltage	24 Volts
Alternator Rating	50 amp
Batteries	2 x 12 Volt
Battery Reserve Capacity	72 Ah/5 hour
Work Lights	4 x 24 Volt/70 watt (1 boom, 1 upper, 2 cab)
OPERATOR ENVIRONMENT
Air Conditioner Output	18,100 BTU/hr
Heater Output	20,150 BTU/hr
Sound Level Inside Cab	70 dBA – ISO6395
Electrical Outlet	12 Volt
Cab Interior Light	10 watt
Rear View Camera	Standard
Seat	Heated, air-suspension

Dimension	8 ft 2 in (2.50 m) Arm	9 ft 10 in (3.01 m) Arm	6 ft 11 in (2.11 m) Arm
A. Overall Height	9 ft 1 in (2,770 mm)	8 ft 8 in (2,640 mm)	8 ft 10 in (2,680 mm)
B. Cab Height	9 ft 3 in (2,830 mm)	9 ft 3 in (2,830 mm)	9 ft 3 in (2,830 mm)
C. Overall Length with Attachment	25 ft 11 in (7,900 mm)	25 ft 11 in (7,900 mm)	25 ft 11 in (7,890 mm)
D. Overall Length without Attachment	13 ft 8 in (4,160 mm)	13 ft 8 in (4,160 mm)	13 ft 8 in (4,160 mm)
E. Width of Upper Structure	8 ft 4 in (2,530 mm)	8 ft 4 in (2,530 mm)	8 ft 4 in (2,530 mm)
F. Track Overall Length	11 ft 6 in (3,500 mm)	11 ft 6 in (3,500 mm)	11 ft 6 in (3,500 mm)
G. Track Overall Width with 23.6 in Shoes	8 ft 6 in (2,590 mm)	8 ft 6 in (2,590 mm)	8 ft 6 in (2,590 mm)
H. Track Shoe Width	2 ft 0 in (600 mm)	2 ft 0 in (600 mm)	2 ft 0 in (600 mm)
I. Center to Center – Idler to Sprocket	9 ft 2 in (2,790 mm)	9 ft 2 in (2,790 mm)	9 ft 2 in (2,790 mm)
J. Upper Structure Ground Clearance	2 ft 11 in (895 mm)	2 ft 11 in (895 mm)	2 ft 11 in (895 mm)
K. Minimum Ground Clearance	1 ft 5 in (425 mm)	1 ft 5 in (425 mm)	1 ft 5 in (425 mm)
L. Rear Tail Swing Radius	7 ft 1 in (2,170 mm)	7 ft 1 in (2,170 mm)	7 ft 1 in (2,170 mm)
M. Blade Height	1 ft 10 in (570 mm)	1 ft 10 in (570 mm)	1 ft 10 in (570 mm)
