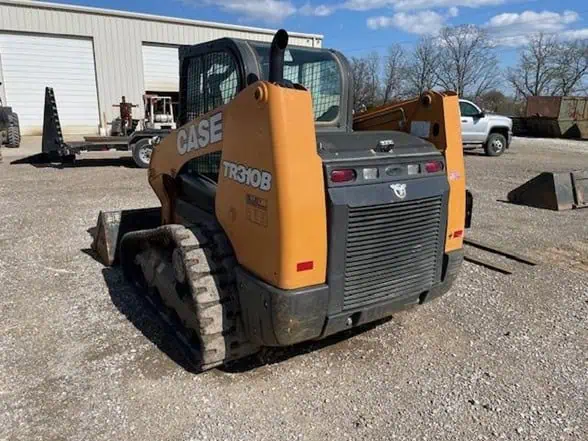

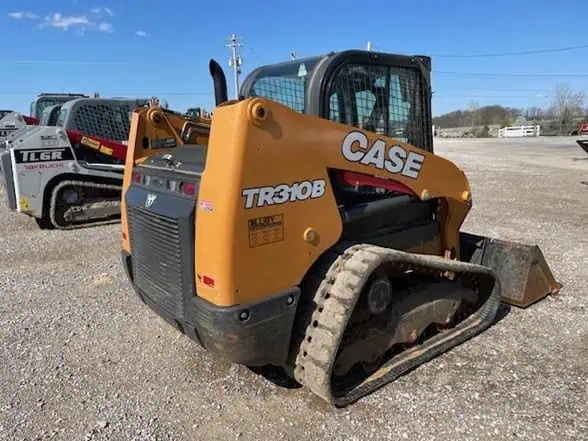

2023 CASE TR310B Compact Track Loader – EQ0050159

Visibility and Comfort

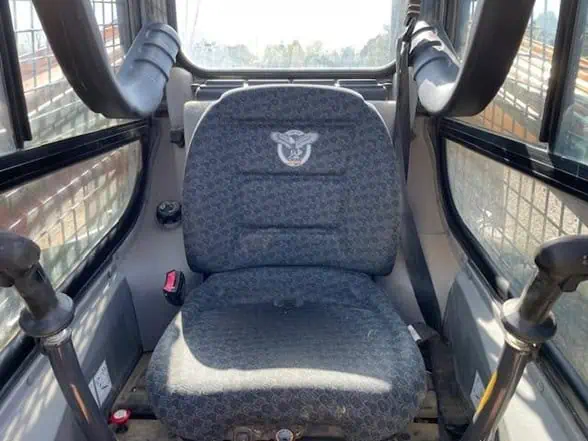

Enhance your work environment with CASE CTLs, boasting unparalleled visibility and comfort features. Enjoy industry-leading visibility with a backup camera operational in both forward and reverse, along with cab-wide rearview mirrors, large windows, and 360-degree lighting. Our CTLs feature one of the widest cabs in the industry for added comfort during extended operation. Redesigned controls, cupholders, and air vents ensure a spacious and ergonomic workspace.

Optimal Control

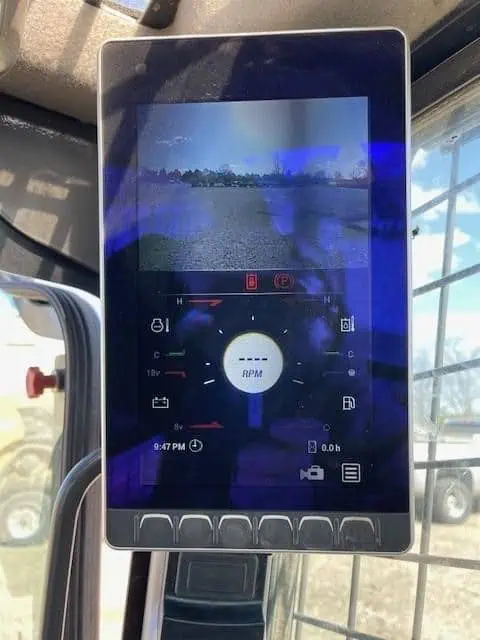

Achieve precise control with CASE compact track loaders, available in various configurations to suit operator preferences. Opt for electro-hydraulic models with an 8-inch LCD multi-function display for maximum control. Easily switch between ISO and H operating patterns, save operator profiles and application settings, and adjust machine responsiveness to meet specific requirements.

Productivity and Performance

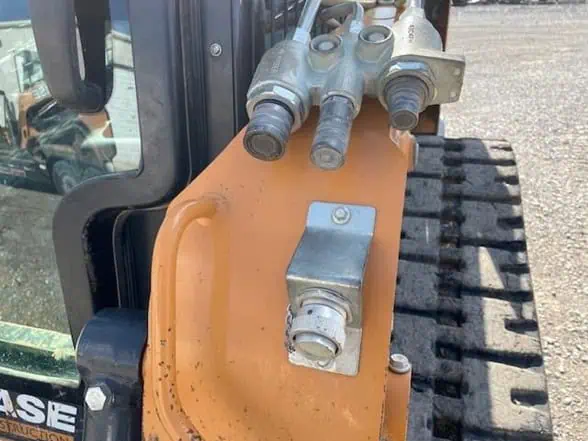

The TR310B is engineered to maximize productivity while maintaining a compact footprint. With a 3,100-pound rated operating capacity, it excels in handling heavier palleted materials, making it ideal for a wide range of applications. Standard and optional high-flow auxiliary hydraulics ensure compatibility with various attachments, further enhancing versatility and performance.

Ease of Ownership
Experience hassle-free maintenance with the TR310B. Critical checks and service points are conveniently grouped at the rear of the machine for easy access. The 8-inch LCD multi-function display provides real-time data on machine operation and performance, simplifying monitoring and troubleshooting. With a maintenance-free Tier 4 Final emissions solution, the TR310B eliminates the need for fluids and lifetime filter service or replacement, ensuring cost-effective ownership.

OPERATING PERFORMANCE
Operating Weight – 8,880
Tipping Load – 6,200 lb

Rated operating capacity – ROC*:
35% of tipping load – 2,170 lb
50% of tipping load – 3,100 lb
w/ additional counterweight – 3,200 lb

Breakout forces @ 3,150 psi
Bucket cylinders – 8,680 lb
Lift cylinders – hydraulic limit – 6,440 lb

Travel speed:
Low range – 5.1 mph
High range – 8.0 mph

HYDRAULIC SYSTEM
Standard flow @ rated engine RPM: @ 100% efficiency – 24.2 gpm
Optional high-flow @ rated engine RPM: @ 100% efficiency – 32.4 gpm

ENGINE
Model – FPT F5H FL463 A*G001
Engine Displacement – 207 in3
Horsepower @ 2,500 rpm – 74 hp
Maximum Torque @ 1,400 rpm – 232 lb·ft

Overall Operating Height:
with foundry/excavating bucket – 155.6 in
with low profile bucket – 159.8 in
with low profile extended bucket – 164.6 in

Height To:
Bucket hinge pin – 125.1 in
Top of ROPS – 78.7 in
Bottom of level bucket, fully raised – 117.7 in

Overall Length:
without attachment with coupler – 104.8 in
with foundry/excavating bucket on ground – 129.1 in
with low profile bucket – 133.4 in
with low profile extended bucket – 138.3 in

Dump Height:
with foundry/excavating bucket – 100.6 in @ 38.1°
with low profile bucket – 98.0 in @ 38.1°
