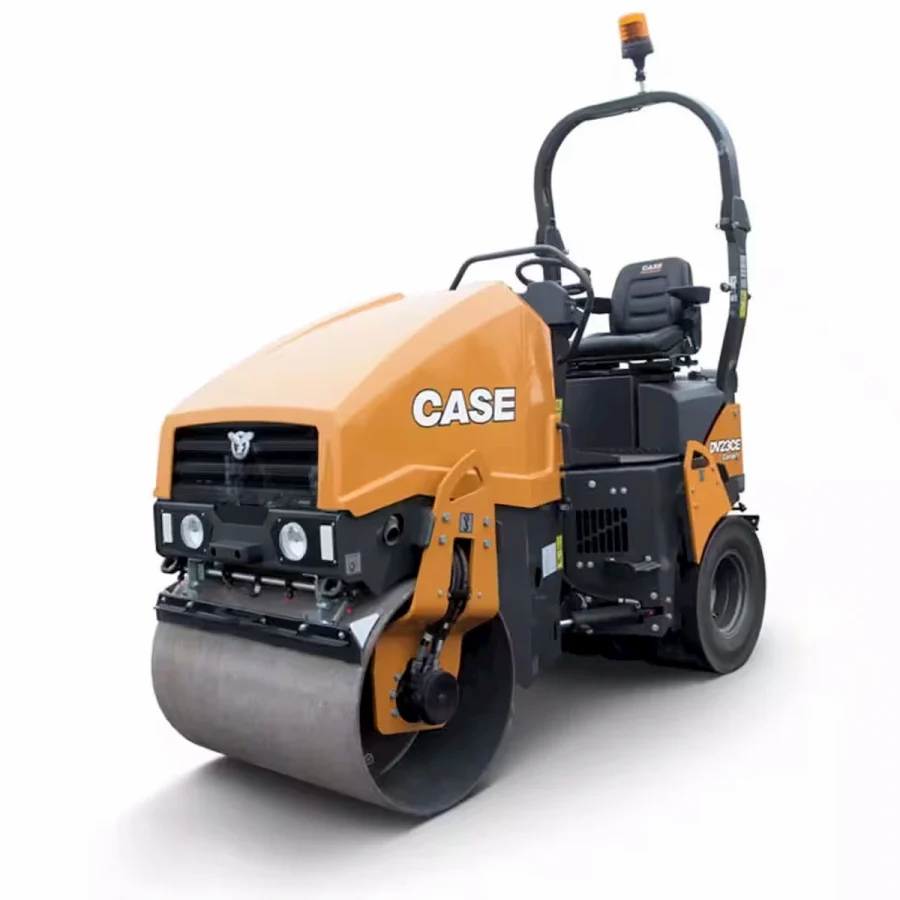

CASE DV23CE Combination Roller
Request more information:
The CASE DV23CE Combination Roller combines solid drum performance at the front with superior asphalt kneading pneumatic tire quality at the rear, offering unparalleled versatility and compact performance without compromising quality. It is designed for exceptional maneuverability and boasts high curb clearance, no overhangs, and a narrow drum width, allowing access to tight spaces. This compact roller also features the control flexibility typically found in larger models, making it an ideal choice for various applications.
PDF Brochure: CASE DV23CE Combination Roller Brochure
PDF Specifications: CASE DV23CE Combination Roller Specifications
CASE DV23CE Combination Roller
The CASE DV23CE Combination Roller combines solid drum performance at the front with superior asphalt kneading pneumatic tire quality at the rear, offering unparalleled versatility and compact performance without compromising quality. It is designed for exceptional maneuverability and boasts high curb clearance, no overhangs, and a narrow drum width, allowing access to tight spaces. This compact roller also features the control flexibility typically found in larger models, making it an ideal choice for various applications.
DV23CE Features
Redesigned Operator Interface:
- Intuitive Controls: The operator interface has been redesigned for intuitive operation and enhanced ergonomics, making it more user-friendly.
- Electronic Travel Lever: Features an electronic travel lever with a comprehensive range of functions at the operator’s fingertips, including:
- Adjustable RPM settings for precise control
- Drive settings tailored to various conditions
- Sprinkler system controls for adequate asphalt compaction
- Parking brake for enhanced safety
- Additional operational controls for increased versatility
Enhanced Control and Efficiency:
- Mode Selector: Offers three operational modes (loading, working, and transport) to optimize machine performance and fuel efficiency according to the task.
Drive Settings:** Choose between a soft drive for smooth asphalt compaction and an optional hard drive for swift turns, enhancing maneuverability. - Differential Lock: Optional differential lock functionality increases the machine’s capability on challenging terrains.
Superior Performance with Big Roller Features:
- High Centrifugal Forces and Frequencies: Achieves high centrifugal forces and frequencies at lower RPMs, enhancing performance and fuel efficiency.
Selectable Dual Vibration Frequencies: This feature allows operators to adjust the machine to meet the specific compaction needs of the job, improving productivity.
Ease of Maintenance with Groundline Serviceability:
- Convenient Service Access: This machine is designed for groundline serviceability. All fluid ports, drains, and service checkpoints are grouped on one side of the machine for easy access, reducing downtime and simplifying maintenance.
DV23CE Standard Equipment
Other Features:
- Foldable ROPS: Ensures operator safety while allowing easy transport and storage.
- Anti-vandal guard: Protects the machine from unauthorized use and vandalism.
- Hydrostatic drive: Delivers smooth, efficient power and easy operation.
- Articulated chassis: Provides excellent maneuverability and control.
- Hydraulic oil cooler: Maintains optimal hydraulic system performance.
- Backup alarm: Enhances safety by alerting nearby personnel when the roller is in reverse.
- Tapered drum edges: Minimize marks on the asphalt for a smoother finish.
- 2 adjustable Vulcollan scrapers per front drum: Keep the drum clean for consistent compaction.
- Master disconnect switch: Offers a quick way to power down the machine for safety or maintenance.
- Horn and Hourmeter: Essential tools for safe operation and tracking machine usage.
- 4-point lift and tie-down provision: Facilitates secure transportation.
- Flip-open hood: Simplifies access for maintenance.
- Spin-on filters: Make maintenance quicker and easier.
Operator Environment:
- Lateral shifting suspension seat: Enhances operator comfort and visibility.
- 3-inch retractable seat belt: Ensures operator safety.
- Drive lever with vibration and water switch: Allows for easy compaction and water spray control.
- Emergency stop button and Electric fuse protection: Enhance operational safety.
Indicator Lights:
- Includes comprehensive indicators for battery, engine oil pressure, intake preheater, engine temperature, parking brake status, hydraulic oil temperature, low fuel, work light, turn signal, fuel gauge, and operator hours, ensuring the operator is fully informed of the machine’s status.
Water System:
- Pressurized water system with 2-stage filtration: Keeps the drum wet to prevent asphalt from sticking.
- Water system drains and a 50.2-gallon Polyethylene water tank: Ensure ample water supply and easy maintenance.
Vibration System:
- Dual frequency vibration with front drum vibration control: Offers adaptability to different compaction needs.
- Auto vibration stop in neutral: Prevents unnecessary wear and enhances safety.
DV23CE Optional Equipment
Rotating Beacon: This increases visibility and safety on the job site, particularly in low-light conditions or congested areas.
- Weather Canopy: Protects the operator against adverse weather conditions, ensuring comfort and productivity.
- Steel Canopy: Offers durable protection for the operator, adding an extra layer of safety and comfort.
- 2-inch Retractable Seat Belt: Enhances operator safety with a more secure fit.
- Tiltable Drum Scraper: Allows for easy cleaning and maintenance of the drum, ensuring optimal performance.
- Infrared Thermometer: Enables precise monitoring of asphalt temperatures, ensuring optimal compaction results.
- Edge Cutter: This tool trims excess material from the edges, providing a clean, finished look to the asphalt surface.
Lighting Package: This includes 2 front and 1 rear road light, turn signals, and flashers, improving visibility and safety during operation.
Traction Assist: This feature provides additional power in challenging conditions, enhancing the roller’s performance on uneven or slippery surfaces. - Lights on ROPS: Adds lighting to the Rollover Protective Structure for enhanced visibility (not available with the Weather Canopy option).
- Armrests on the Seat: Increases operator comfort, reducing fatigue over extended operating periods.
- Dual Side Drive Levers: These allow users to operate the roller from either side, improving ergonomics and control.
- Heated Seat: Provides added comfort in colder conditions, keeping the operator warm and focused.
ACE Force Intelligent Compaction delivers real-time compaction data, allowing for more efficient and effective compaction operations.
Locking Water Tank Cap: This cap secures the tank against unauthorized access or tampering, ensuring the integrity of the water supply.
DV23CE Warranty
Base & Extended Warranty Coverage
1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Purchased Protection
The Purchased Protection Plan extends the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to six years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
