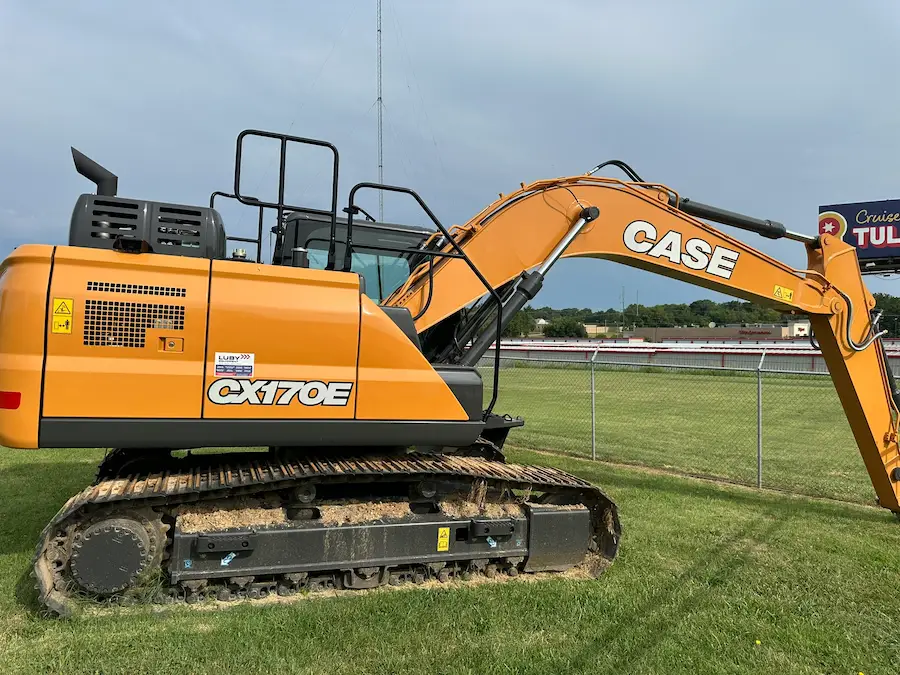

2024 CASE CX170E Full-Size Excavator – EQ0036652

A Revolutionized Command Center

• Advanced Display: A groundbreaking 10-inch LCD display serves as the nerve center, offering enhanced visibility and access to cameras, machine data, and controls.
• Customizable Views: Features include simultaneously displaying rear, side view, and Max View™ perspectives while accessing crucial machine data and controls.
• Personalized Operation: Intuitive customization capabilities allow operators to tailor the workspace to their preferences, with four new operating modes and up to 10 throttle settings to fine-tune performance.
• Eco Mode: The innovative Eco mode significantly reduces fuel consumption by up to 18%, making the CX170E a leader in efficiency.

Unmatched Hydraulic Control

• Hydraulic Flow Control Balance: This feature lets operators prioritize hydraulic flow for specific movements, enhancing responsiveness and efficiency based on the task and operator preference.

A Robust Attachment Platform

• Versatile Attachment Management: The CX170E allows for storing and setting numerous attachments within the LCD monitor, catering to one-way and two-way hydraulic attachments.
• Optimized Attachment Performance: Operators can adjust the power directed to attachments, ensuring optimal performance while preventing potential damage or downtime.

Enhanced Engine Power

• FPT Industrial Engines: The new engines offer increased torque, horsepower, transient response, simplified emissions, and extended service intervals, making the CX170E both powerful and easy to maintain.

Precision Solutions from CASE

• OEM-Fit Machine Control: Featured on the CX170E, these solutions guarantee an optimal match between machine and technology, installed and tested by CASE-certified specialists. This integration simplifies the acquisition process and enhances the machine’s residual/resale value.

Collaborative Fleet Management for Increased Uptime

• Advanced Connectivity: With the new SiteConnect Module and SiteManager App, the CX170E offers remote analysis capabilities. This allows certified CASE technicians to diagnose and address issues efficiently, ensuring greater uptime.
• Enhanced Telematics Data: Real-time monitoring and improved collaboration between equipment owners, dealers, and the manufacturer ensure meticulous maintenance management, service intervals, and overall machine record-keeping.

Protected by CASE ProCare

The CASE CX170E Full-Size Excavator comes with the assurance of ProCare, providing peace of mind and controlled owning and operating costs through:

• Comprehensive Warranty: A three-year, 3,000-hour full-machine factory warranty.
• Planned Maintenance: A three-year, 2,000-hour planned maintenance contract.
• SiteWatch™ Telematics: A three-year subscription ensuring optimal machine management.

Engine & Fuel Efficiency:

• Engine Model: FPT NEF4, Tier 4 Final/Stage V Certified, ensuring compliance with the latest emissions regulations.
• Innovative Technologies: For optimal performance, it includes a Selective Catalytic Reduction on Filter (SCRoF), a high-pressure standard rail system, and a fixed-geometry turbocharger.
• Fuel Economy Systems: Equipped with Auto-idle, One-touch idle, Timed engine shutdown, and a suite of economy controls, including Boom Economy Control (BEC) and Auto Economy Control (AEC), to minimize fuel consumption.

Upper Structure & Safety:

• Visibility & Safety: Features three ISO mirrors, cab ISO mounts for reduced vibration, and a 70-watt upper-mounted work light for enhanced visibility.
• Accessibility & Protection: A swivel guard belly pan, lifting eyes for counterweight, and lockable service doors for secure and easy maintenance.

Hydraulics & Control:

• Precision Control: Pilot pressure control system with customizable flow balance adjustments for precise operation.
• Work Mode Selection: Offers four selectable work modes (SP, Power, Eco, Lift) and two-speed travel with auto downshift for versatile performance in varying conditions.
• Attachment Integration: Provisions for multi-functionality with electronic pressure and flow control for various attachments.

Operator Environment:

• Advanced Cab Features: The operator’s cab is designed with a smooth, round shape and shock-less suspension, featuring a 10-inch full-color LCD monitor for easy control and monitoring.
• Comfort & Ergonomics: The operator’s seat includes low-frequency air suspension, adjustable armrests, and lumbar support, ensuring comfort during long working hours.
• Connectivity & Entertainment: Equipped with AM/FM/Bluetooth Radio, hands-free phone capabilities, and comprehensive telematics with a 3-year CASE SiteWatch™ subscription.

Attachments & Maintenance:

• Versatile Attachment Options: Comes standard with a 16 ft 11 in boom, 8 ft 7 in arm, and heavy-duty bucket linkage, along with centralized grease fittings and an attachment cushion valve for easy maintenance.
• Enhanced Durability: Features arm and boom regeneration, a bucket anti-clatter device, chrome pins, and Easy Maintenance System (EMS) bushings for extended service life.

Engine Enhancements:

• Refueling Pump: Simplifies the refueling process, enhancing efficiency and reducing downtime.

Advanced Hydraulics:

• Auxiliary Hydraulics: Available in single-acting and double-acting for thumb operation, multi-function with electronic pressure control, and secondary low-flow configurations for varied attachment needs.
• Proportional Hydraulic Controls: Offers precise control over attachments, improving operator efficiency and attachment responsiveness.
• Hose Burst Check Valve (HBCV): Enhances safety by preventing potential hose failure during operation.

Precision Machine Control:

• Leica iCON iXE2 & iXE3 Systems: Leica’s state-of-the-art 2D and 3D machine control systems ensure precise excavation and grading, enhancing productivity and accuracy on the jobsite.

Versatile Attachment Options:

• Long Arm: Adds reach and depth capability with a 10 ft 0 in (3.05 m) arm.
• Quick Coupler: Facilitates easy attachment changes, increasing versatility and efficiency.
• Tools: A wide range of tools, including heavy-duty and extreme-duty buckets, ditching buckets, hammers, thumbs, and compaction plates, are available to tackle any task.

Upper Structure Protection:

• Rubber Bumper Guard: Additional protection for the upper structure is available through Service Parts.

Undercarriage Upgrades:

• Steel Shoes: Upgraded 27.6 in (700 mm) steel shoes with triple semi-grouser for enhanced traction and stability.
• Track Guides: Triple track guides improve track alignment and durability.

Operator Environment and Visibility:

• FOPS Level 2 Cab Top Guard: Provides additional protection against falling debris.
• Front Grill and Rock Guards: Enhanced protection with 2 x 2 in screen mesh or vertical bars, available in two-piece or one-piece configurations.
• Vandal Guard: Secures the front window, which can be accessed with a common key.
• Rain Deflector & Sun Visor: Improve operator comfort by reducing glare and preventing rain from obstructing the view.
• Max View Monitor: A 270-degree view around the excavator enhances jobsite awareness and safety.
• LED Package: Six strategically placed LED lights ensure the jobsite is well-lit for safe and efficient operation during low-light conditions.

Category	Specifications
ENGINE
Model	FPT NEF4
Emissions Certification	Tier 4 Final/Stage V
Fuel	Requires ultra-low sulfur fuel, B5 biodiesel tolerant
Type	Water-cooled, 4-cycle diesel, 4-cylinder in line, high pressure common rail system – electric control, Fixed geometry turbocharger w/ air-cooled intercooler, ATS, EGR-free
Cylinders	4-cylinder in-line
Displacement	274 in³ (4.49 L)
Bore/Stroke	4.09 x 5.2 in (104 x 132 mm)
Fuel Injection	High-pressure common rail system – electronic
Fuel Filter	Replaceable, full flow spin-on cartridge
Air Filter	Dry type dual element w/ warning restriction indicator
Oil Filter	Replaceable, full flow spin-on cartridge
Engine Gradeability	Side-to-side 35°, Fore and aft 35°
Net Horsepower – SAE J1349 @ 2200 RPM	121 hp (90.4 kW)
Gross Horsepower – ISO 14396 @ 2200 RPM	130 hp (97 kW)
Net Max. Torque – SAE J1349 @ 1600 RPM	336 lbf·ft (456 N·m)
Cooling Operating Range	109° to -13°F (43° to -25°C)
Oil	Requires low-ash oil CJ-4
DRIVETRAIN
Travel Control	Dual-stage relief/counterbalance design
Brakes	Mechanical disc
Two-Speed Travel	Max. high speed 3.2 mph (5.2 km/h), Max. low speed 1.9 mph (3.0 km/h)
Automatic Downshift	Yes
Drawbar Pull	36,200 lbf (161 kN)
Gradeability	70% – 35° Slope

Dimension	8 ft 7 in (2.62 m) Arm	10 ft 0 in (3.04 m) Arm
A. Overall Height	9 ft 9 in (2,960 mm)	10 ft 3 in (3,130 mm)
B. Cab Height	10 ft 1 in (3,050 mm)	10 ft 1 in (3,050 mm)
C. Overall Length – With Attachment	27 ft 11 in (8,520 mm)	28 ft 1 in (8,570 mm)
D. Overall Length – Without Attachment	14 ft 8 in (4,480 mm)	14 ft 8 in (4,480 mm)
E. Width of Upper Structure	8 ft 3 in (2,520 mm)	8 ft 3 in (2,520 mm)
F. Track Overall Length	13 ft 1 in (3,990 mm)	13 ft 1 in (3,990 mm)
G. Track Overall Width with 23.6 in Shoes	8 ft 6 in (2,590 mm)	8 ft 6 in (2,590 mm)
H. Track Shoe Width	2 ft 0 in (600 mm)	2 ft 0 in (600 mm)
I. Center to Center – Idler to Sprocket	10 ft 6 in (3,190 mm)	10 ft 6 in (3,190 mm)
J. Upper Structure Ground Clearance	3 ft 5 in (1,030 mm)	3 ft 5 in (1,030 mm)
K. Minimum Ground Clearance	1 ft 5 in (420 mm)	1 ft 5 in (420 mm)
L. Rear Tail Swing Radius	8 ft 3 in (2,520 mm)	8 ft 3 in (2,520 mm)

PROTECTED BY CASE PROCARE

Each CASE E Series excavator provides peace of mind and controlled owning and operating expenses with ProCare:

• Three-year, 3,000-hour full-machine factory warranty
• Three-year, 2,000-hour planned maintenance contract
• Three-year CASE SiteWatch™ telematics subscription
