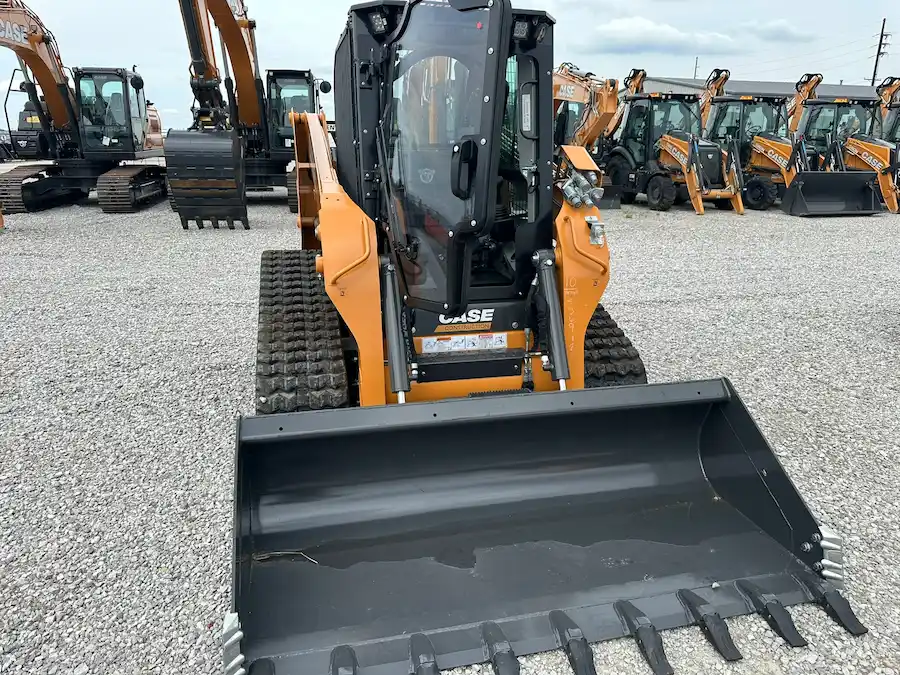

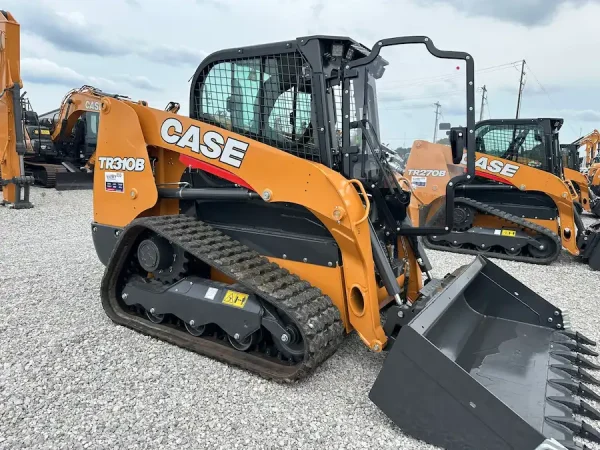

2024 CASE TR310B Compact Track Loader – EQ0033960

Visibility and Comfort:

The TR310B leads in operator comfort and visibility. Features include:

• Backup Camera: Operational in both forward and reverse for enhanced visibility.
• Cab-wide Rearview Mirror and Extensive Windows: Offers unparalleled all-around visibility.
• Low Entry Threshold: Facilitates easy entry and exit while ensuring visibility down to the bucket.
• 360-degree Lighting: Ensures operational safety at any time of the day.
• Industry’s Widest Cab: This has control handles for comfortable day-long operation.

Optimal Control:

The TR310B is available in various control configurations to suit every operator’s preference:

• Electro-Hydraulic Models: Feature an 8-inch LCD multi-function display for comprehensive control, easy switching between ISO and H operating patterns, customizable operator profiles and application settings, and adjustable machine responsiveness.

Productivity and Performance:

Designed for heavy-duty tasks without losing its compact dimensions, the TR310B excels in performance:

• Rated Operating Capacity: 3,100-pound capacity for handling heavier palletized material efficiently.
• Auxiliary Hydraulics: Standard and optional high-flow auxiliary hydraulics for various attachments and applications.

Ease of Ownership:

The TR310B simplifies maintenance and operation:

• Accessible Service Points: Critical checks and service points are conveniently located at the machine’s rear.
• 8-inch LCD Display: Provides real-time data on machine operation and performance.
• Maintenance-free Tier 4 Final Emissions Solution: Eliminates the need for fluid additions or filter replacements.

With its impressive stability, operational ease, and maintenance-friendly design, the 2024 CASE TR310B sets a new standard for medium-frame CTLs. It’s ideally suited for those who demand high performance without compromise, offering a versatile solution for various applications.

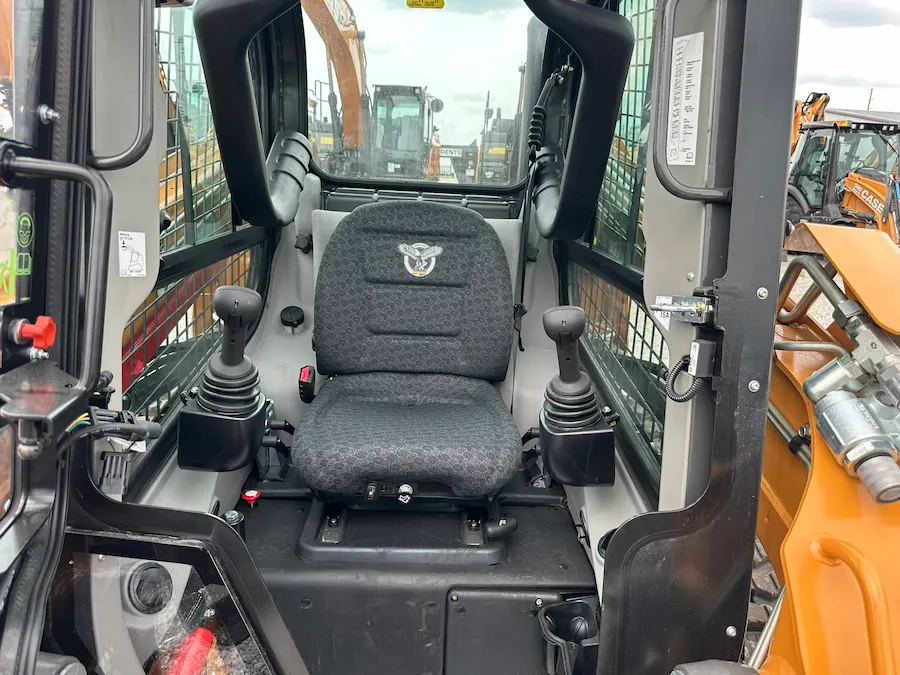

Operator Environment:

• Safety and Structure: ROPS/FOPS Level 1 canopy with side screens for operator protection.
• Starting System: Keyed start ignition for secure operation.
• Visibility and Escape: Rear window with an emergency escape ensures safety and visibility.
• Seating: Suspension seat, vinyl with a 2-inch (51 mm) retractable 3-point lap seat belt, providing comfort and security.
• Control: Hand and foot throttles for precise operation control.
• Alerts: Alarm package includes a backup and a horn for safety notifications.
• View and Comfort: Equipped with a rearview mirror, headliner, dome light, top window, and cup holder for enhanced operator comfort.
• Convenience: Features include a 12V power plug socket, footrest, seat pocket, and a padded seat bar with integral armrests.
• Safety Systems: Loader control lockout and electric parking brake control enhance operational safety.
• Maintenance: Operator’s compartment floor cleanout for easy cleaning and maintenance.
• Hydraulic Control: Proportional auxiliary hydraulic control on the joystick for precise manipulation.
• Instrumentation: Advanced Instrument Cluster includes a digital hour meter, tachometer, fuel level LCD bar graph with alarm, diagnostic features, and security lockout for comprehensive monitoring.
• Warnings: Equipped with lights and alarms for engine coolant temperature, oil pressure, engine malfunction, and more.

Engine:

• Model: FPT F5H FL463 A*G001 featuring a 207 CID (3.4 L) Turbo engine.
• Emissions: Tier 4 Final Certified with a Diesel Oxidation Catalyst (DOC) and High-Pressure Common Rail (HPCR) fuel injection.
• Power: Offers a gross horsepower of 74 hp (55 kW) and net horsepower of 68 hp (51 kW).
• Torque: Peak torque at 232 lb·ft (314 N·m) for powerful performance.
• Support Systems: Includes a 120 amp alternator, dual element air cleaner, and a 925 CCA 12V battery, among others.

Drivetrain:

• Transmission: 2-speed hydrostatic transmission paired with a SAHR disc parking brake for reliable movement and secure stopping.

Hydraulics:

• System: Features auxiliary hydraulics at 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min), a 6-micron oil filtration system, and a 3-spool loader control valve.
• Additional Hydraulics: include auxiliary hydraulic disconnects and ISO flat-face – connect-under-pressure with case drain.

Loader:

• Design: Manual attachment coupler with radial lift geometry for versatile loading.
• Capacity: SAE operating load of 3,100 lbs and a tipping load of 6,200 lbs.

Tracks:

• Durable Rubber Tracks for optimal traction and stability.

Other Features:

• Lighting: LED lights for excellent visibility, pre-wired for a rotating beacon.
• Maintenance: Lockable service access hood and single-point daily servicing for convenience.
• Telematics: CASE SiteWatch™ Telematics includes hardware and a 5-year data subscription for advanced equipment management.

Operator Environment Options:

• Enclosed Cab: Fully sealed and pressurized (FSP) for maximum comfort and safety, equipped with a glass door including a wiper and washer and removable sliding side windows.
• Comfort and Control: Features a ventilation system with an integrated heater, air conditioner, and an AM/FM Bluetooth radio with two speakers and a USB port.
• Advanced Operation: Keyless start ignition, an 8-inch color LCD display for easy access to machine controls, including economy mode (auto idle shutdown) and auto engine protection shutdown.
• Flexible Controls: Electro-hydraulic controls for drive/steering and loader functions are switchable between H and ISO patterns with adjustable sensitivity—mechanical hand controls and hand and foot controls for precise operation.
• Seating: Deluxe cloth, air suspension seat with heater and lumbar support for extended comfort. An open cab interior trim package enhances the cab environment.
• Additional Safety: Demolition cab door with polycarbonate for increased protection.

Hydraulics:

• High-flow Auxiliary Hydraulics: Offers a combined flow of 32.4 gpm (122.6 L/min) at 3,050 psi (210 bar) for greater operational versatility.
• Efficiency Features: Second auxiliary hydraulics, hydraulic one-way self-leveling, and ride control for improved handling and performance.

Loader Features:

• Control Enhancement: Auxiliary front electric control and hydraulic attachment coupler for easy attachment changes.

Drivetrain:

• Creep Speed Mode: Available for electro-hydraulic (EH) machines, allowing for precise speed control during detailed tasks.

Additional Options:

• Customization and Safety: Language decals, factory-installed tires, buckets with bolt-on cutting edges, and a bolt-on heavy-duty bucket spill guard. Unique paint options and offsite service arrangements are available for added convenience.
• Visibility and Safety: Add-on counterweights, road lights, a rotating beacon, and a four-corner LED strobe to enhance machine visibility and safety.

Factory Supplied Attachments:

• Versatility Tools: Includes 48 in (1.22 m) pallet forks, among other attachments, to expand the machine’s utility.

Service Parts:

• Enhanced Safety and Durability: A 3-inch (76.2 mm) retractable seat belt and bolt-on heavy-duty bucket teeth for improved operational safety and efficiency.

Specification	Detail
Model	FPT F5H FL463 A*G001
Emissions Certification	Tier 4 Final
Type	Diesel 4-stroke, Turbo, Direct Injection (D.I.)
Cylinders	4
Bore/Stroke	3.9 x 4.3 in (99 x 110 mm)
Displacement	207 in³ (3.4 L)
Fuel Injection	Direct, high-pressure common rail – HPCR
Fuel	#2 Diesel
Fuel Filter	Pre-filter Beta (30) = 200/spin-on; Main filter Beta (4) = 20/spin-on
Air Intake	Turbocharged with waste gate and external cooled EGR
Exhaust Aftertreatment	Diesel Oxidation Catalyst (DOC)
Cooling	Liquid
Engine Speeds RPM	High idle – no load 2500 +/- 25; Rated – full load 2500; Low idle 1150 +/- 25
Horsepower @ 2500 RPM – SAE J1349	Gross: 74 hp (55 kW); Net: 68 hp (51 kW)
Peak Torque @ 1400 RPM	232 lb·ft (314 N·m)
Radiator	Core type: All aluminum; Core size area: 2.77 ft² (0.257 m²); Rows of tubes x columns: 43 x 3; Cap pressure: 16 +/- 2 psi (1.10 +/- 0.14 bar)
Fan	Diameter: 20.4 in (518 mm); Ratio: 0.96:1 standard, 1.1:1 high-flow
Water Pump	Style: Centrifugal; Flow: 29 gpm (110 L/min)
Engine Lubrication Pump	Rotor pump with deep sump pan, plate cooler, and pressurized under-piston nozzles
Pump Operating Angle Ratings	Side to side: 45°; Bucket up: 35°; Bucket down: 45°

Dimension	Measurement (in)	Measurement (m)
A. Overall Operating Height
– With foundry/excavating bucket	155.6	3.95
– With low profile bucket	159.8	4.06
– With low profile extended bucket	164.6	4.18
B. Height to Bucket Hinge Pin	125.1	3.18
C. Top of ROPS	78.7	2.00
D. Bottom of Level Bucket, Fully Raised	117.1	2.98
E. Overall Length
– Without attachment with coupler	104.8	2.66
F. With Bucket on Ground
– Foundry/excavating bucket	129.1	3.28
– Low profile bucket	133.4	3.39
– Low profile extended bucket	138.3	3.51
G. Maximum Dump Angle	38.1°
H. Dump Height
– With foundry/excavating bucket	100.6	2.56
– With low profile bucket	98.0	2.49
I. Dump Reach at Maximum Height
– With low profile bucket	25.6	0.65
Maximum Attachment Rollback
J. Bucket on Ground	31.0°
K. Bucket at Full Height	99.9°
L. Track on Ground	55.9	1.42
M. Ground Clearance – Bottom of Belly Pan	8.0	0.20
N. Angle of Departure	32.0°
Clearance Circle
O. Without Bucket	52.3	1.35
P. With Bucket in Carry Position
– Foundry/excavating bucket	83.5	2.12
– Low profile bucket	87.3	2.22
– Extended low profile bucket	91.7	2.33
Q. Clearance Circle Rear	59.9	1.52
R. Track Gauge	58.5	1.49
S. Over the Track Width	74.3	1.89

Tier 4 Final

HPCR, EXTERNAL CEGR

Why this solution: This Tier 4 Final solution requires no new actions or upkeep and delivers best-in-class performance so operators can focus entirely on the work at hand.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. This lowers combustion temperatures and dramatically reduces NOx emissions, but produces more particulate matter.

The additional particulate matter is managed by the Diesel Oxidation Catalyst (DOC). The DOC converts emissions into neutral gases and automatically burns it off using heat from the exhaust.

What this means to you: This solution is a maintenance-free emissions solution, requiring no costly DPF (Diesel Particulate Filter) to replace and no new fluids to add.

Powered by an FPT engine.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Compact Track Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
