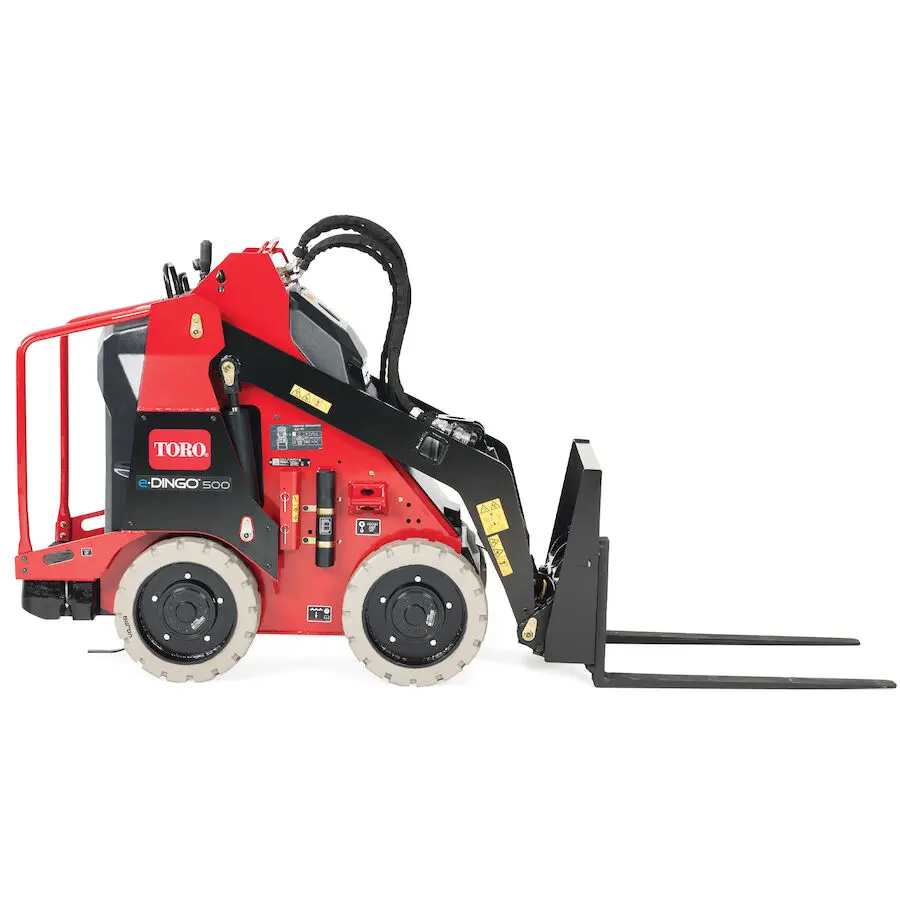

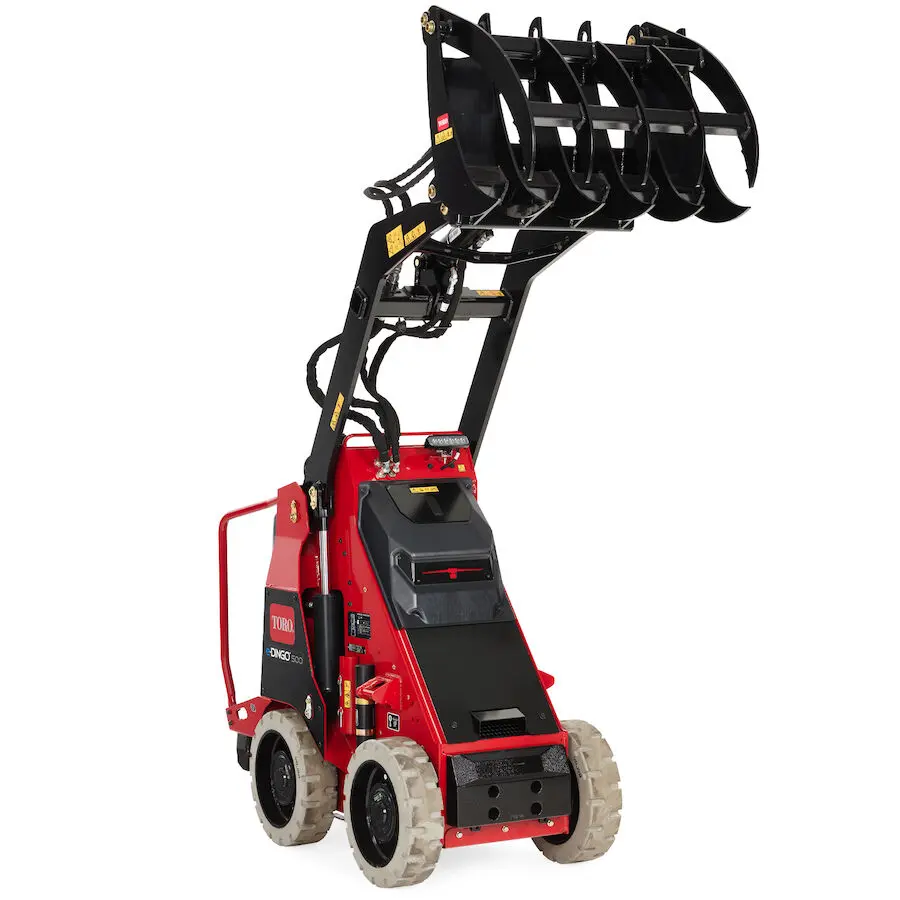

Toro eDingo® 500 Electric Mini Skid Steer


Request more information:

Discover the future of compact utility loaders with the Toro eDingo® 500, a groundbreaking advancement in electric construction technology.

Toro eDingo® 500 Electric Mini Skid Steer – brochure
Toro eDingo® 500 Electric Mini Skid Steer – sell sheet

Categories: , Tags: , , , , , ,

Model: 22219 UPC/EAN: 21038222196

Introducing the Revolutionary Toro eDingo® 500 Electric Mini Skid Steer

Discover the future of compact utility loaders with the Toro eDingo® 500, a groundbreaking advancement in electric construction technology. Designed to navigate the most confined spaces and handle the toughest tasks with ease, the eDingo® 500 sets a new standard for efficiency and performance in indoor construction and demolition projects.

Powerful, Sustainable, Efficient

At the heart of the eDingo® 500 is the innovative HyperCell® Power System. This cutting-edge battery technology by Toro delivers the robust power you expect from traditional internal combustion engines but with zero exhaust emissions and significantly reduced noise levels. Experience the perfect blend of environmental responsibility and operational excellence with this electric marvel.

Unmatched Performance Specifications

  • Battery System: Toro HyperCell® for unparalleled endurance.
  • Charging Convenience: 120VAC system for easy access and quick charging.
  • Exceptional Dumping Capability: 38-degree dump angle, reaching a height of 61 inches.
  • Agility and Speed: Ground speeds of 2.75 mph (4.43 km/h) in both forward and reverse.
  • Precision and Strength: 515 lb rated operating capacity (ROC) with a 3250 psi hydraulic pressure system.
  • Compact Design: With an overall length of 88 inches (with bucket) and a width of 41.83 inches (with bucket), it maneuvers effortlessly in tight spaces.

Key Features for Optimal Efficiency

  • Extended Runtime: Up to eight hours of continuous operation to keep you productive all day long.
  • Low Ground Impact: A modest ground clearance of 4.25 inches, paired with a compact wheelbase of 28 inches, ensures minimal disruption to work sites.
  • Versatile Functionality: Whether lifting, hauling, or digging, the eDingo® 500’s radial loader arms and auxiliary hydraulic flow (6.5 gpm) are engineered to handle a wide range of tasks efficiently.
  • Impressive Capacities: From its 1251 lb tip capacity to its 6-gallon reservoir capacity, every aspect of the eDingo® 500 is designed to maximize your workload.

Dimensions and Weights for Easy Planning

  • Streamlined for Access: Navigate through narrow passageways with a 30-inch width (without bucket) and easily operate in low-overhead environments with an overall height of 88 inches (without bucket).
  • Built to Perform: Despite its compact size, the eDingo® 500 boasts a substantial weight of 2342 lbs, ensuring stability and durability on the job site.

The Toro eDingo® 500 is not just a piece of equipment; it’s a game-changer in the construction industry, offering unparalleled efficiency, environmental sustainability, and performance. Empower your projects with the next generation of compact utility loaders and experience the difference in productivity and operational efficiency.


Battery Toro HyperCell
Charging System Voltage 120VAC
Dump Angle 38 degrees
Dump Height (cm) 154.9
Dump Height (inches) 61
Fuel Type Electric
Ground Clearance (cm) 10.8
Ground Clearance (inches) 4.25
Ground Speed Forward (mph) 2.75
Ground Speed Foward (km/h) 4.43
Ground Speed Reverse (km/h) 4.43
Ground Speed Reverse (mph) 2.75
Hinge Pin Height (cm) 205.7
Hinge Pin Height (inches) 81
Hydraulic Flow 6.5 gpm (24.6 lpm)
Hydraulic Flow Auxilary 6.5 gpm
Hydraulic Pressure 3250 psi
Loader Arms Radial
Max Operating Height (cm) 269.2
Max Operating Height (inches) 106
Motor Capacity (kW) 13.57
Overall Height w/bucket (cm) 137.8
Overall Height w/bucket (inches) 54.25
Overall Height w/o bucket (cm) 137.8
Overall Height w/o bucket (inches) 88
Overall Length w/bucket (cm) 223.62
Overall Length w/bucket (inches) 88
Overall Length w/o bucket (cm) 168.28
Overall Length w/o bucket (inches) 66.25
Overall Width w/bucket (cm) 106.25
Overall Width w/bucket (inches) 41.83
Overall Width w/o bucket (cm) 76.2
Overall Width w/o bucket (inches) 30
Rated Operating Capacity (kg) 233
Rated Operating Capacity (lbs) 515
Reach – Fully Raised (cm) 54.6
Reach – Fully Raised (inches) 21.5
Reservoir Capacity (gallons) 6
Reservoir Capacity (liters) 27.28
Tip Capacity (kg) 567
Tip Capacity (lbs) 1251
Weight (kg) 1062
Weight (lbs) 2342
Wheelbase (inches) 28
