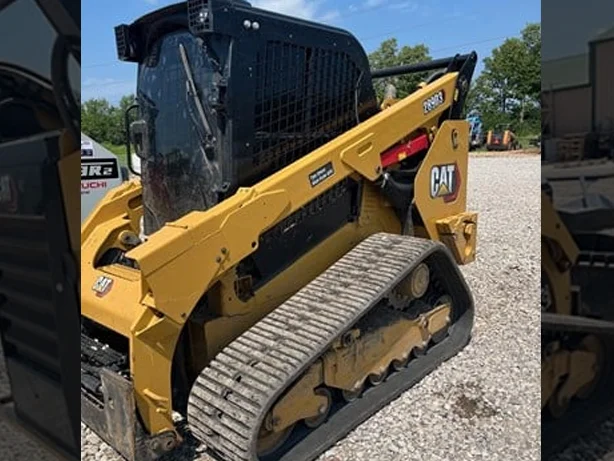

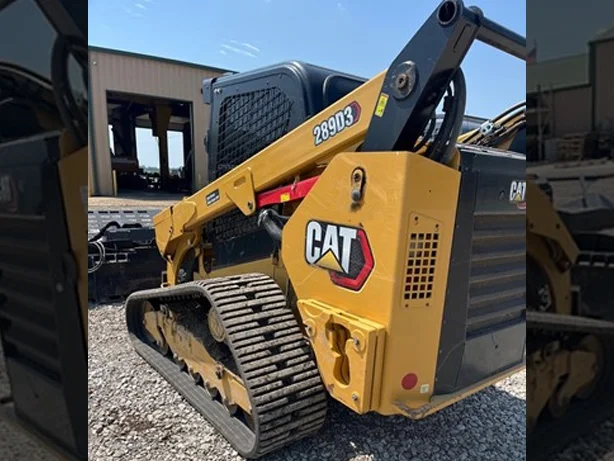

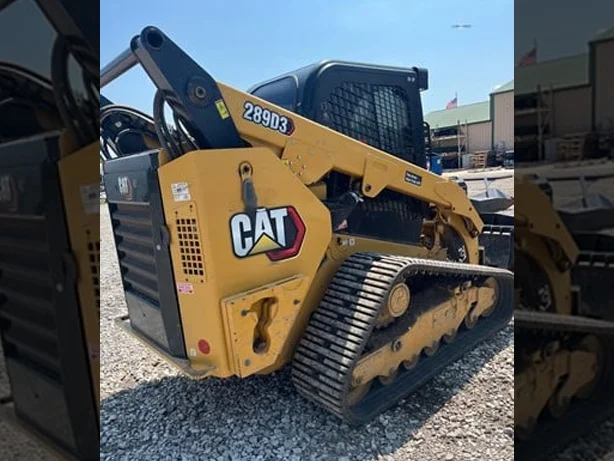

2024 Caterpillar 289D3 Compact Track Loader – EQ0050422

Engine

• Engine Model: Cat C3.3B DIT (turbo)
• Gross Power (SAE J1995): 74.3 hp (55.4 kW)
• Net Power (SAE 1349): 72.9 hp (54.4 kW)
• Displacement: 203 in³ (3.30 L)
• Peak Torque (1,500 rpm): 195 ft-lb (265 N·m)

Operating Specifications

• Rated Operating Capacity (35 % Tipping Load): 2,890 lb (1,315 kg)
• Tipping Load: 8,255 lb (3,750 kg)
• Breakout Force – Tilt Cylinder: 7,291 lb (3,307 kg)
• Rated Operating Capacity (50 % Tipping Load): ~4,130 lb (1,880 kg) (with optional counterweight)
• Ground Pressure (with 17.7 in tracks): ~4.70 psi (32.2 kPa)
• Ground Contact Area: ~2272 in² (1.47 m²)

Weights

• Operating Weight: 10,688 lb (4,848 kg)

Dimensions

• Length – Track on Ground: 64.20 in (1,630 mm)
• Overall Length – Track: 83.80 in (2,129 mm)
• Height – Top of Cab: 83.20 in (2,113 mm)
• Ground Clearance: 8.90 in (226 mm)
• Departure Angle: 33°
• Maximum Dump Angle: 51°
• Clearance at Maximum Lift and Dump: 94.00 in (2,387 mm)
• Bucket Pin Height – Maximum Lift: 125.10 in (3,178 mm)
• Turning Radius – Machine Rear: 70.70 in (1,796 mm)
• Turning Radius – Bucket: 88.80 in (2,256 mm)
• Length – With Bucket on Ground: 146.20 in (3,714 mm)
• Maximum Overall Height: 158.10 in (4,015 mm)
• Bucket Pin Reach – Maximum Lift: 14.50 in (369 mm)

Hydraulic System

• Standard Hydraulic Flow: ~23 gpm (86 L/min) @ 3,335 psi (230 bar)
• High-Flow XPS Maximum Hydraulic Flow: ~32 gpm (121 L/min) @ 4,061 psi (280 bar)
• Standard Hydraulic Power (Calculated): ~44 hp (33 kW)
• High-Flow XPS Hydraulic Power (Calculated): ~76 hp (57 kW)

Power Train

• Travel Speed (One Speed): 4.5 mph (7.2 km/h)
• Travel Speed (Two Speed): 8.3 mph (13.3 km/h)

Service Refill Capacities

• Fuel Tank: 27.70 gal (105 L)
• Cooling System: 3.70 gal (14 L)
• Engine Crankcase: 3.00 gal (11 L)
• Hydraulic System: 13.70 gal (52 L)
• Hydraulic Tank: 10.30 gal (39 L)

Cab & Safety

• FOPS: ISO 3449:2005 Level I
• ROPS: ISO 3471:2008
